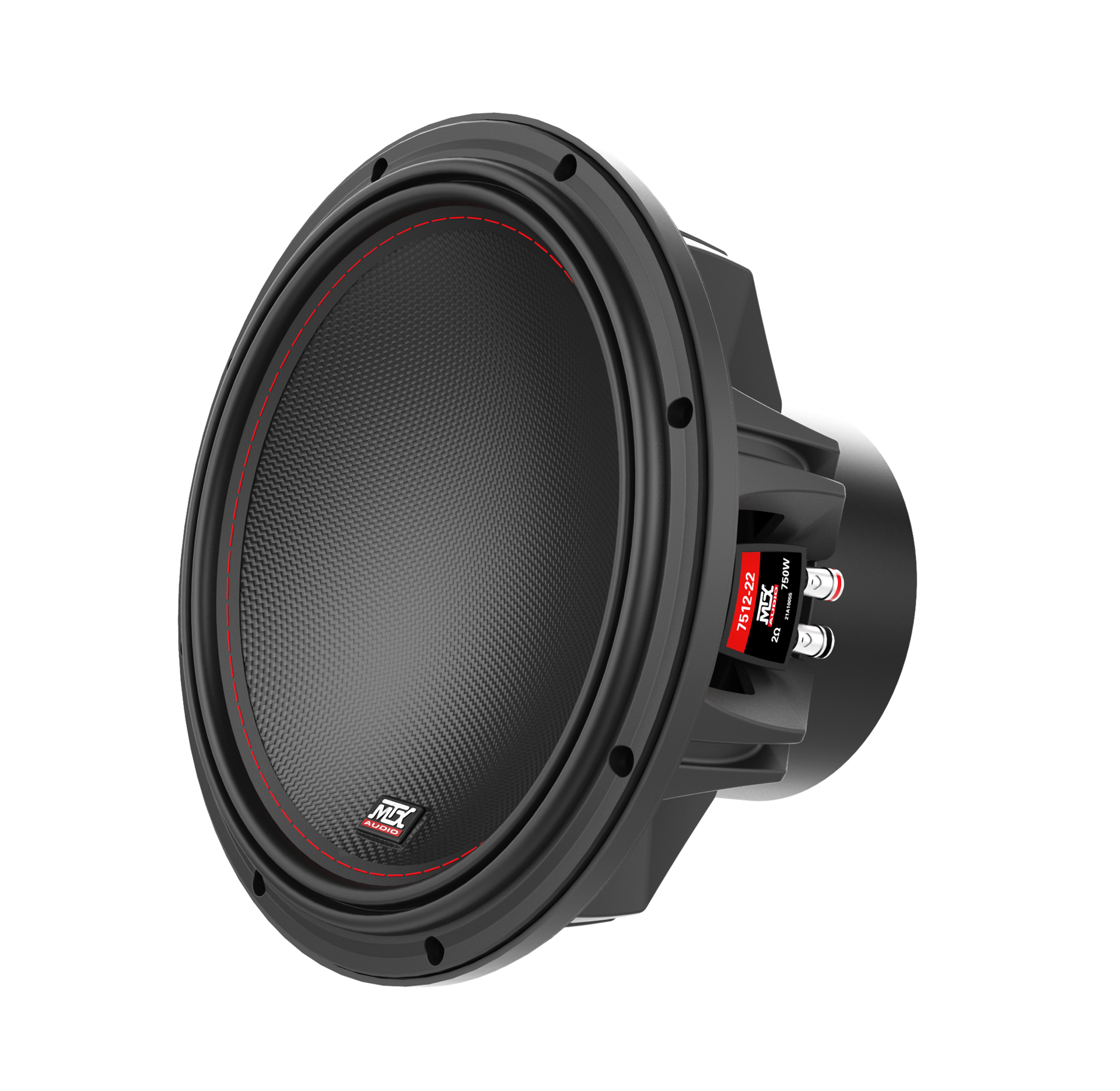

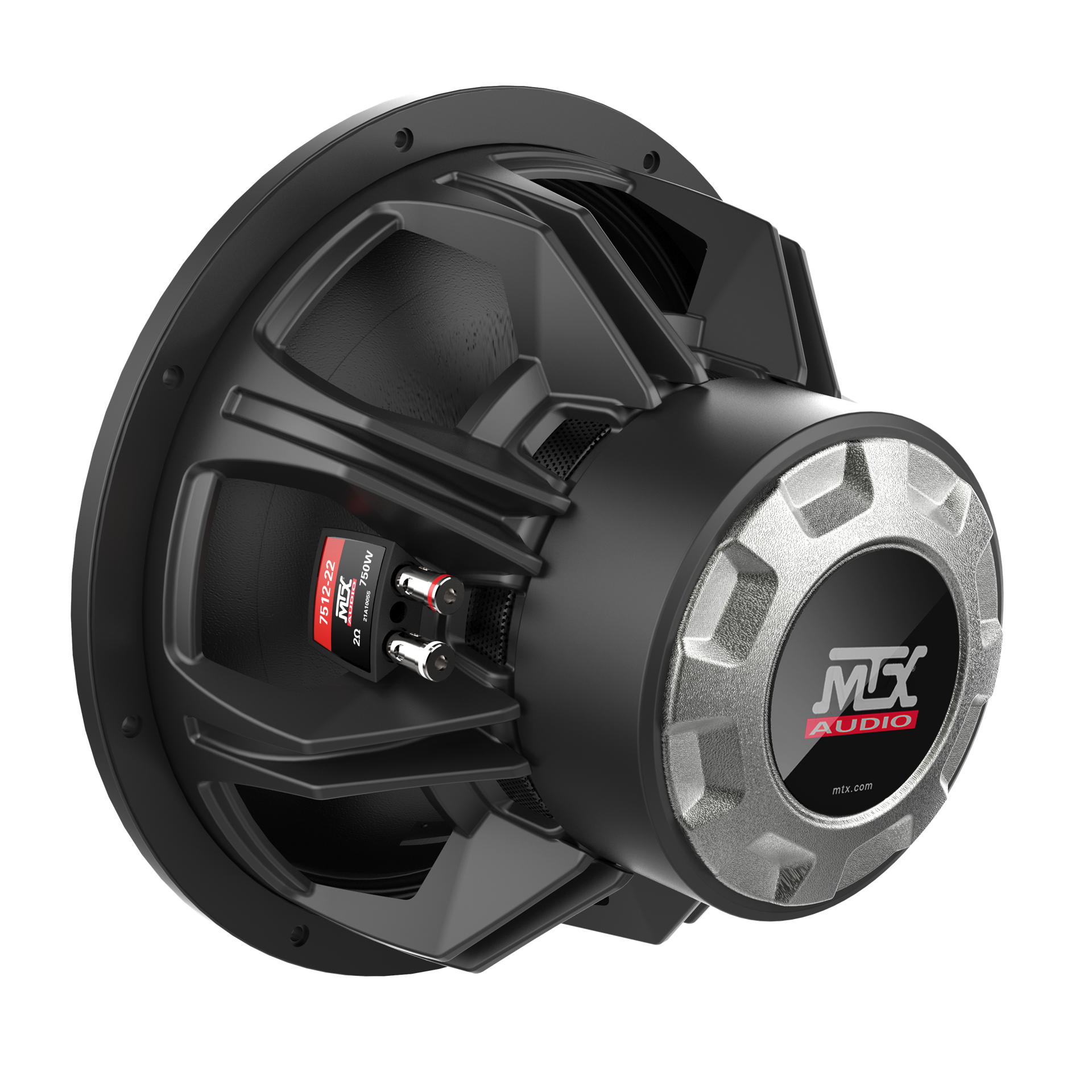

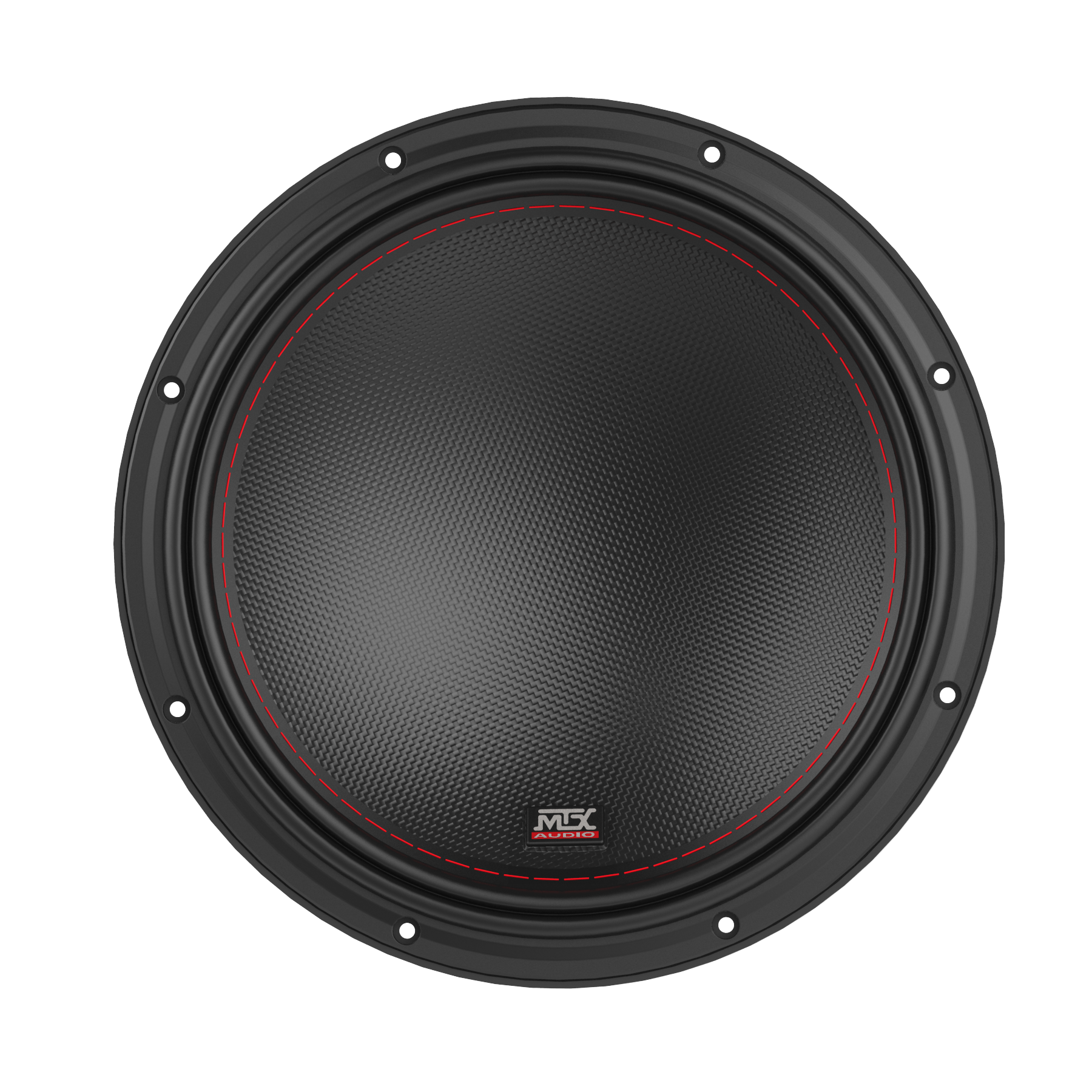

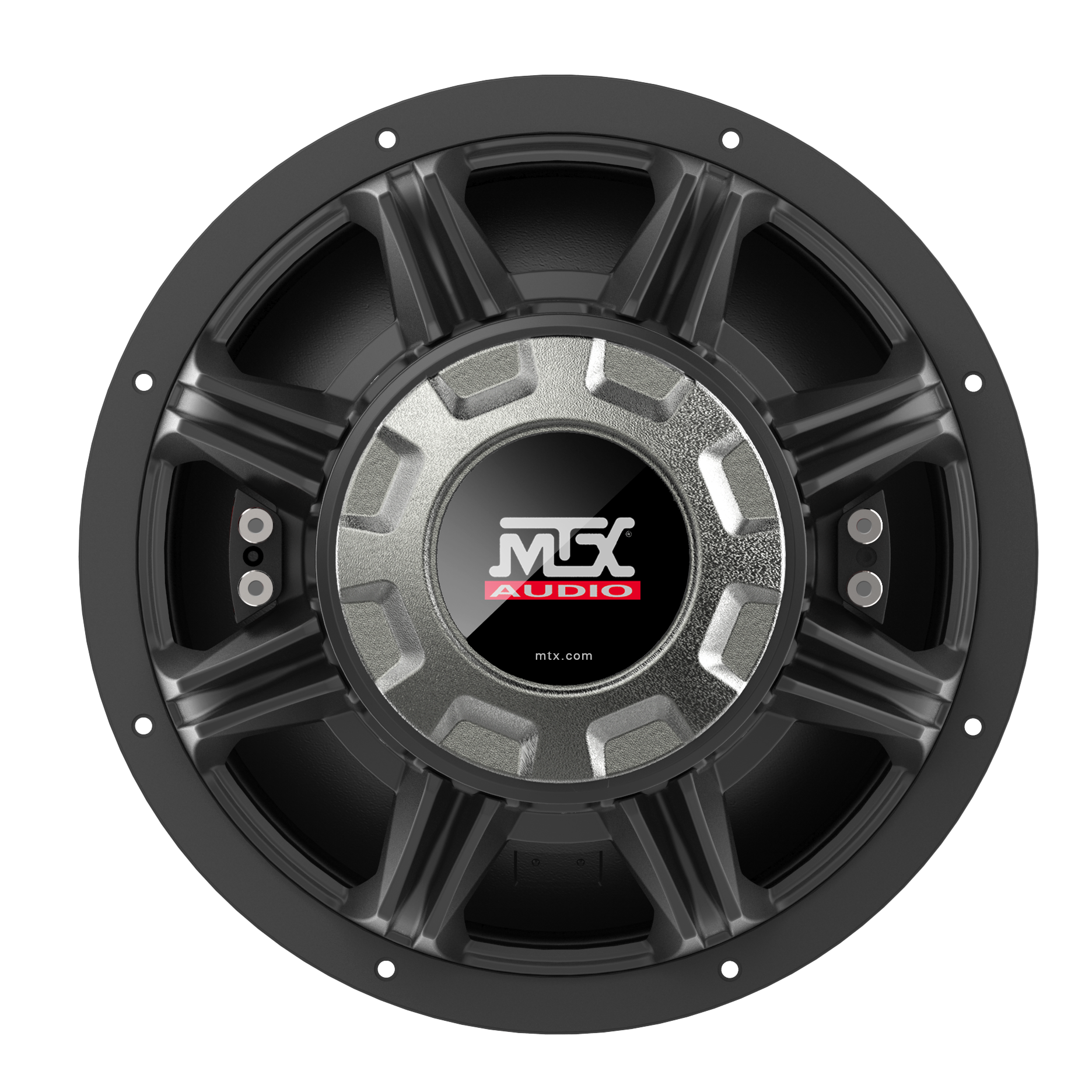

75 Series 7512-22 12 inch 750W RMS Dual 2Ω Car Audio Subwoofer

Premium Design and Build

Competition Level Performance for SQ or SPL

Our 75 Series SuperWoofer has been known for being extremely reliable while it rocks like nobody's business...one of the best in the market. We stepped it up a few notches and have now brought the 75 Series back. Just like the 95 Series, the 75 Series is a "GAME CHANGER" in the SPL world. And sound quality is uncomparable, exceeded by only the MTX 95 Series.

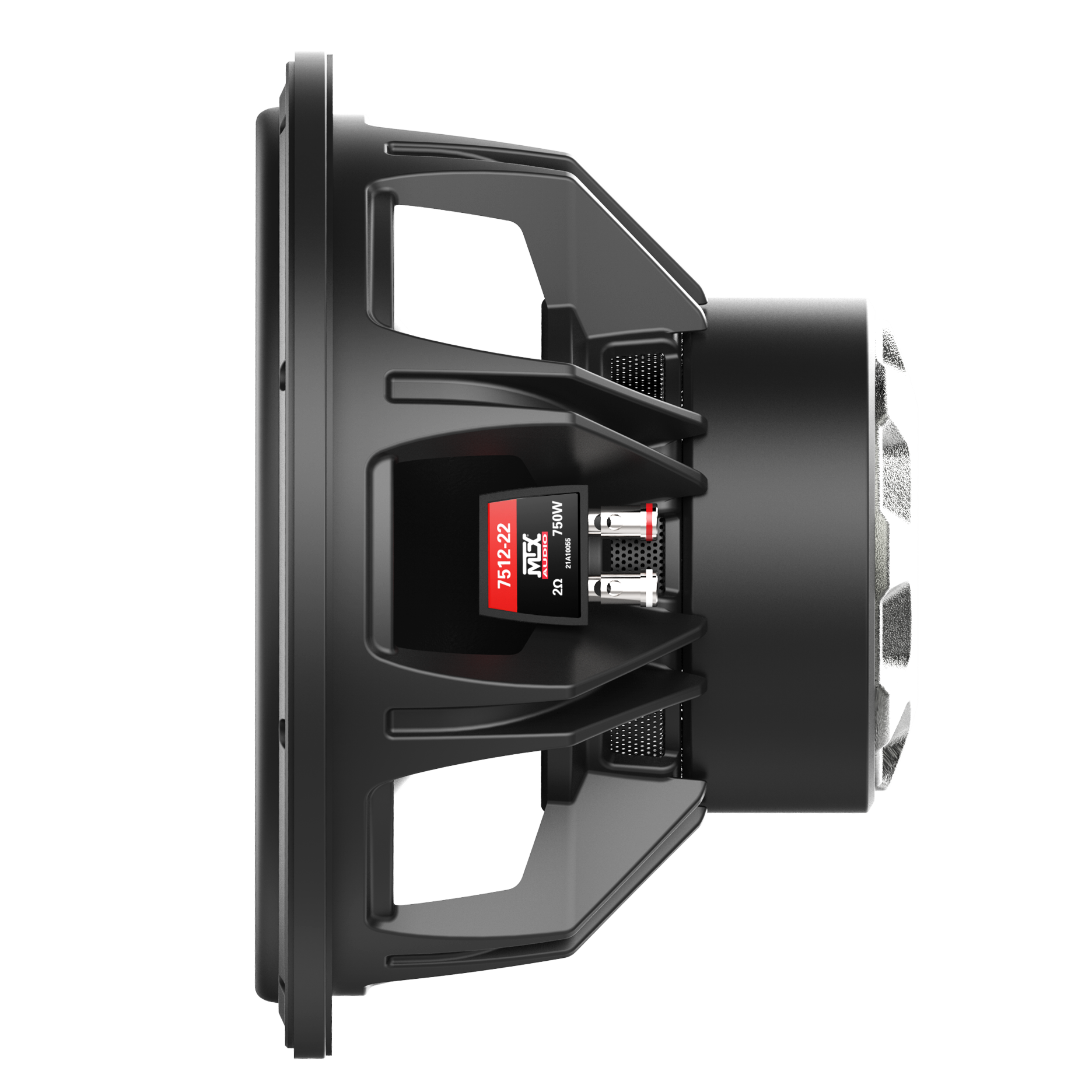

MTX 75 Series Subwoofer Side ViewIf you compete and want a SuperWoofer that's not only affordable, but reliable, and has been engineered by some of the best in the manufacturing world then get ready to... "PUT SOME THUNDER IN YOUR DOME"!

The 7512-22 SuperWoofer

This 7512-22 is a 12 inch diameter, dual voice coil, 2 ohm subwoofer built on the MTX tradition of getting more than expected.

Inverted Apex Surround Spider Plateau Venting Progressive Suspension

Availability: In stock
SKU: 7512-22
Sold Individually
449.95
50.00
399.95
Share this MTX page...

    Inverted Apex Surround

    Creates higher volume displacement, higher SPL and less distortion.

    Dual Thermal Management

    Spider Plateau Venting lets you play hard and long.

    Radial Ribbed T-Yoke

    Dissipates heat and decreases distortion.

    The Beast

    This beast is ideally used in applications where bass levels are the most important factor. The 75 Series subwoofer delivers exceptional SPL and sound quality making it perfect for any application.

    WHAT OUR CUSTOMERS SAY!

    "Awesome sub... It lives up to the 7500 series brand, I had 4 mtx 7500 before and they were extremely loud, and this subwoofer is no different."

    Guest - 75 Series Review


    Read Performance Auto Sound's Review of the 7512-22

    Inverted Apex Surround

    This super Car Audio Subwoofer features an Inverted Apex Surround that increases surface area and Xmax allowing for increased volume displacement and higher SPL as well as a progressive, layered spider that eliminates break in time and lowers distortion resulting in improved sound quality.

    This subwoofer has a dual layer thermal management system that incorporates Spider Plateau Venting, a mechanical cooling process that targets cool air at the voice coil, and an integrated t-yoke heatsink that helps eliminate excess temperature for long term performance. The glass fiber cone offers excellent stiffness to weight ratio providing outstanding sensitivity.



    Subwoofer Wiring Calculator

    Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

    Select # Of Woofers:

    Choose Impedance To Match Amp:


    Features

    Inverted Apex Surround - Increases Surface Area Resulting in Increased Volume Displacement and SPL

    Progressive Suspension - Controls Excursion at High Power Reducing Distortion Resulting in Better Sound Quality

    Radial Ribbed T-Yoke - Helps Dissipates Heat and Decreases Distortion Improving Sound Quality

    Spider Plateau Venting - Targets Cool Air at Voice Coil for Improved Thermal Performance

    Cast Aluminum Basket - Reduces Resonance for Improved Sound Quality

    2.5" Aluminum Voice Coil

    Tech Specs
    RMS Power (Watts) 750
    Recommended Amp Power (RMS) 375 - 750
    Peak Power (Watts) 1500
    Impedance Dual 2Ω
    Frequency Response 24Hz - 130Hz
    Sensitivity 85.34 dB
    Voice Coil 2.5"
    Magnet Weight 103.4 oz.
    Mounting Depth 7.437"
    Cut Out Diameter 11.125"
    Volume Displacement (cu in) 57.49
    Sealed Enclosure Net Volume 1.25 cu ft
    Vented Enclosure Net Volume 2.32 cu ft
    Support Files
    Data Sheet 7512-22 Tech Data (2 pages) View | Download
    50Hzmp3 Download
