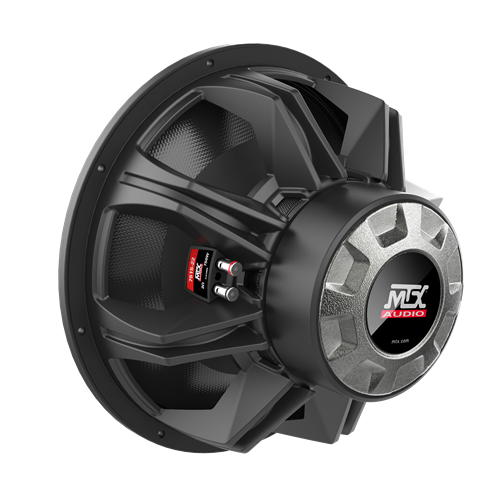

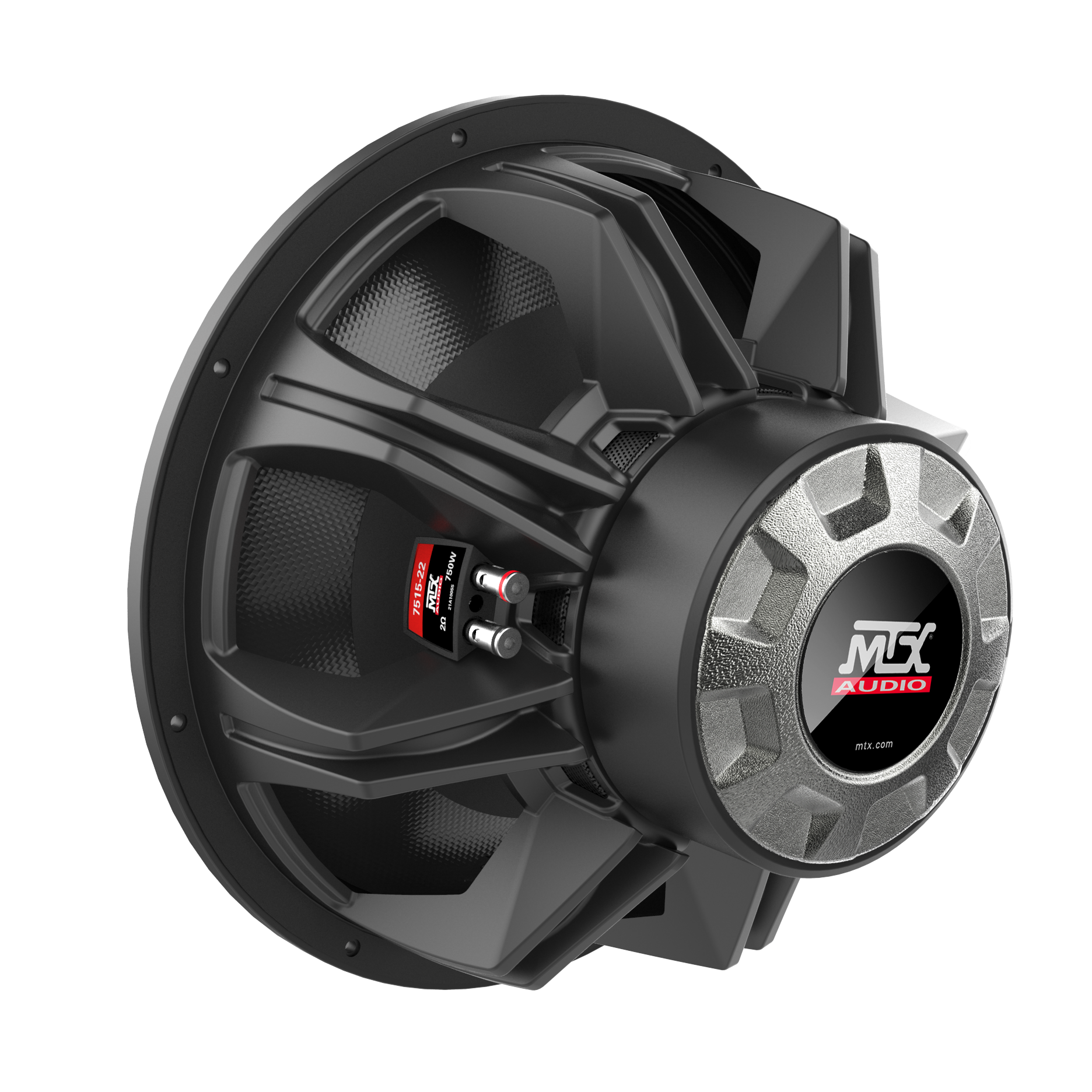

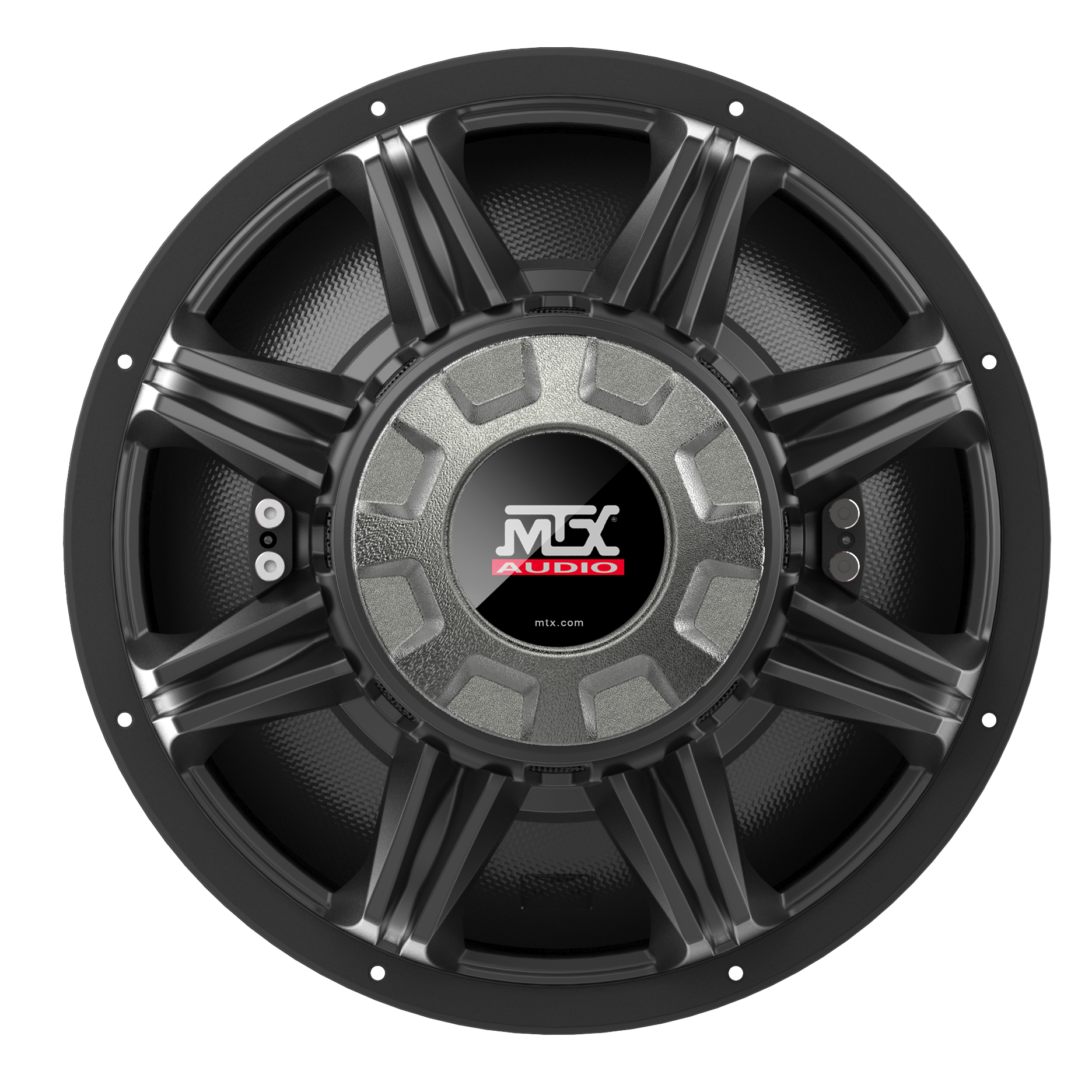

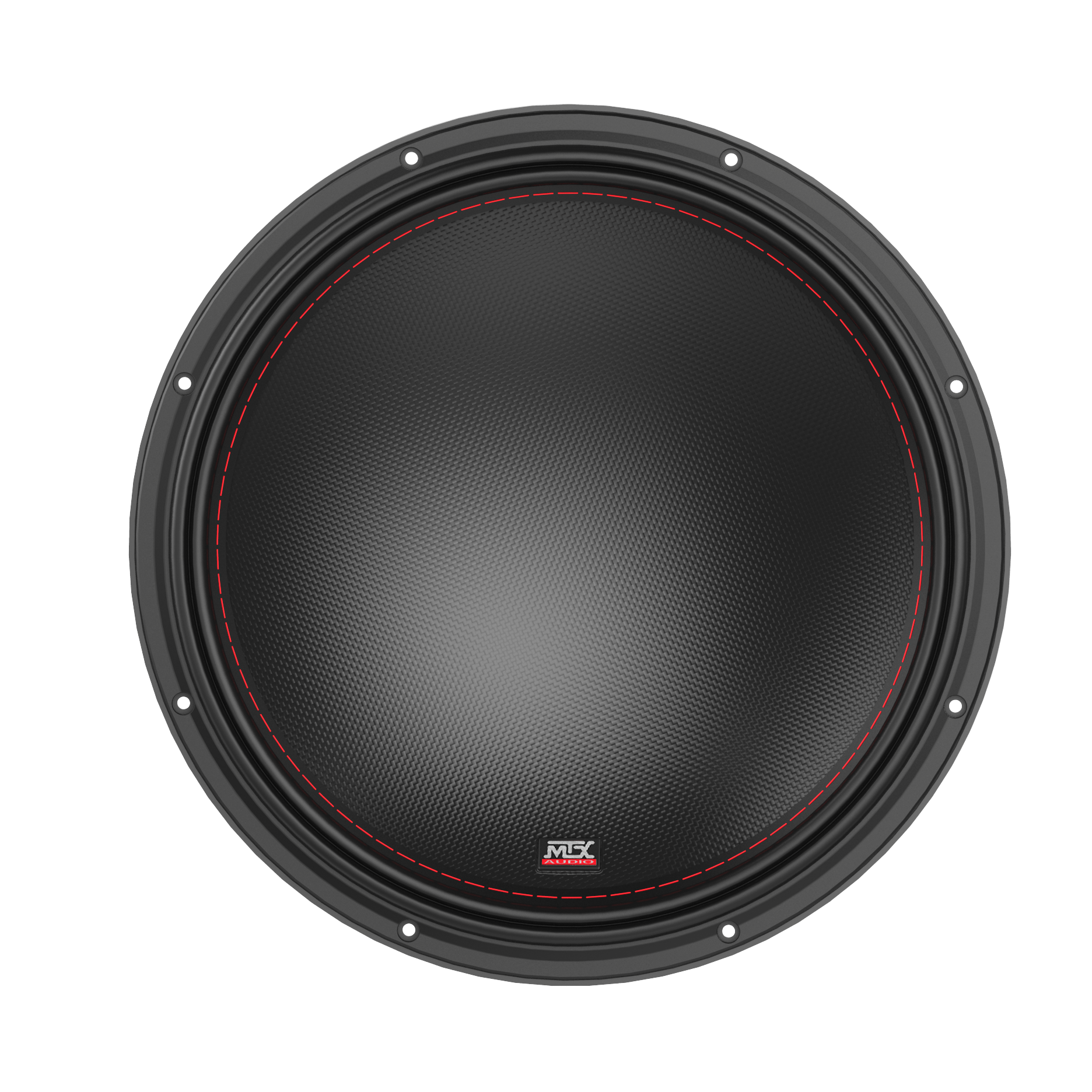

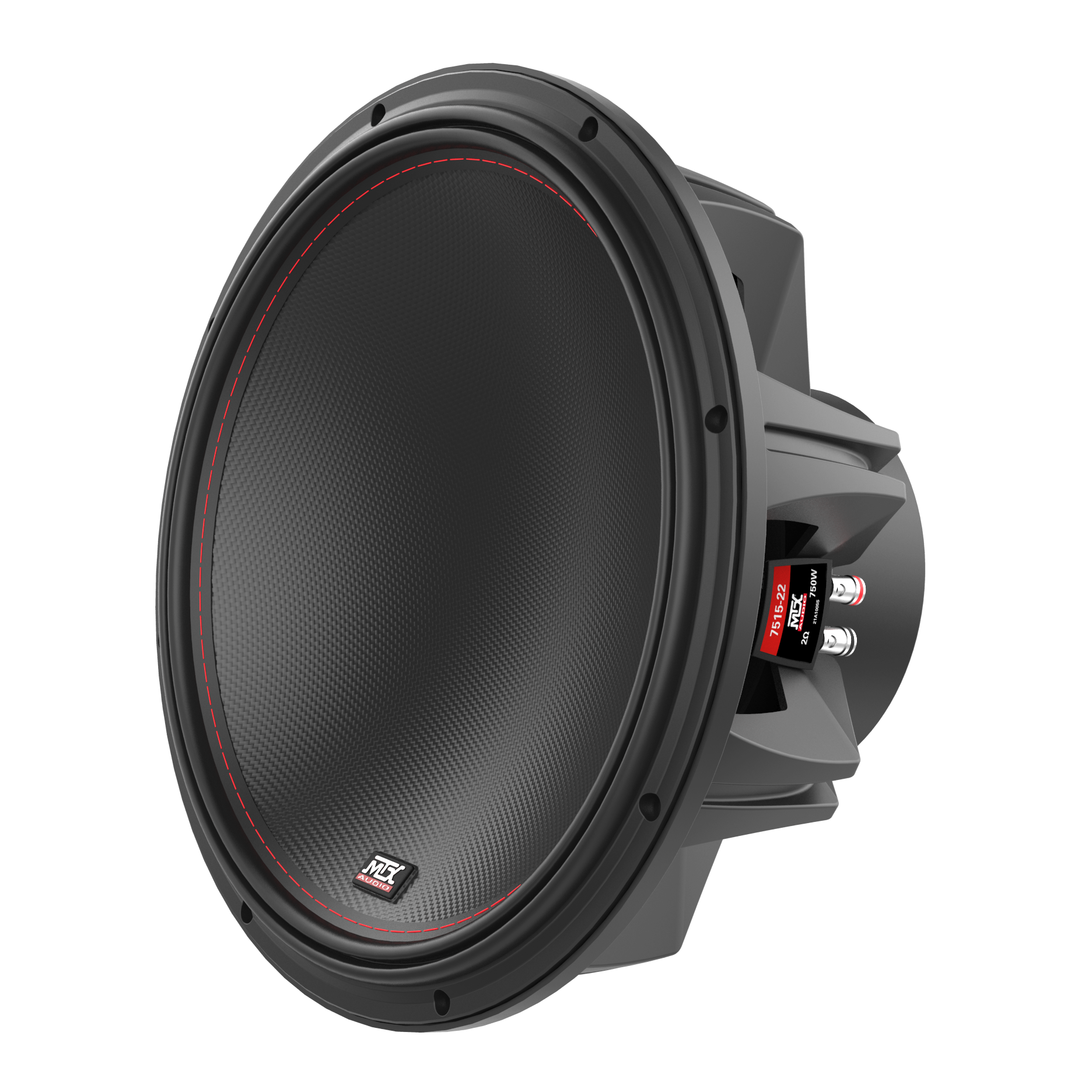

75 Series 7515-22 15 inch 750W RMS Dual 2Ω Car Audio Subwoofer

Premium Design and Build

Competition Level Performance for SQ or SPL

Our 75 Series SuperWoofer has been known for being extremely reliable while it rocks like nobody's business...one of the best in the market. We stepped it up a few notches and have now brought the 75 Series back. Just like the 95 Series, the 75 Series is a "GAME CHANGER" in the SPL world. And sound quality is uncomparable, exceeded by only the MTX 95 Series.

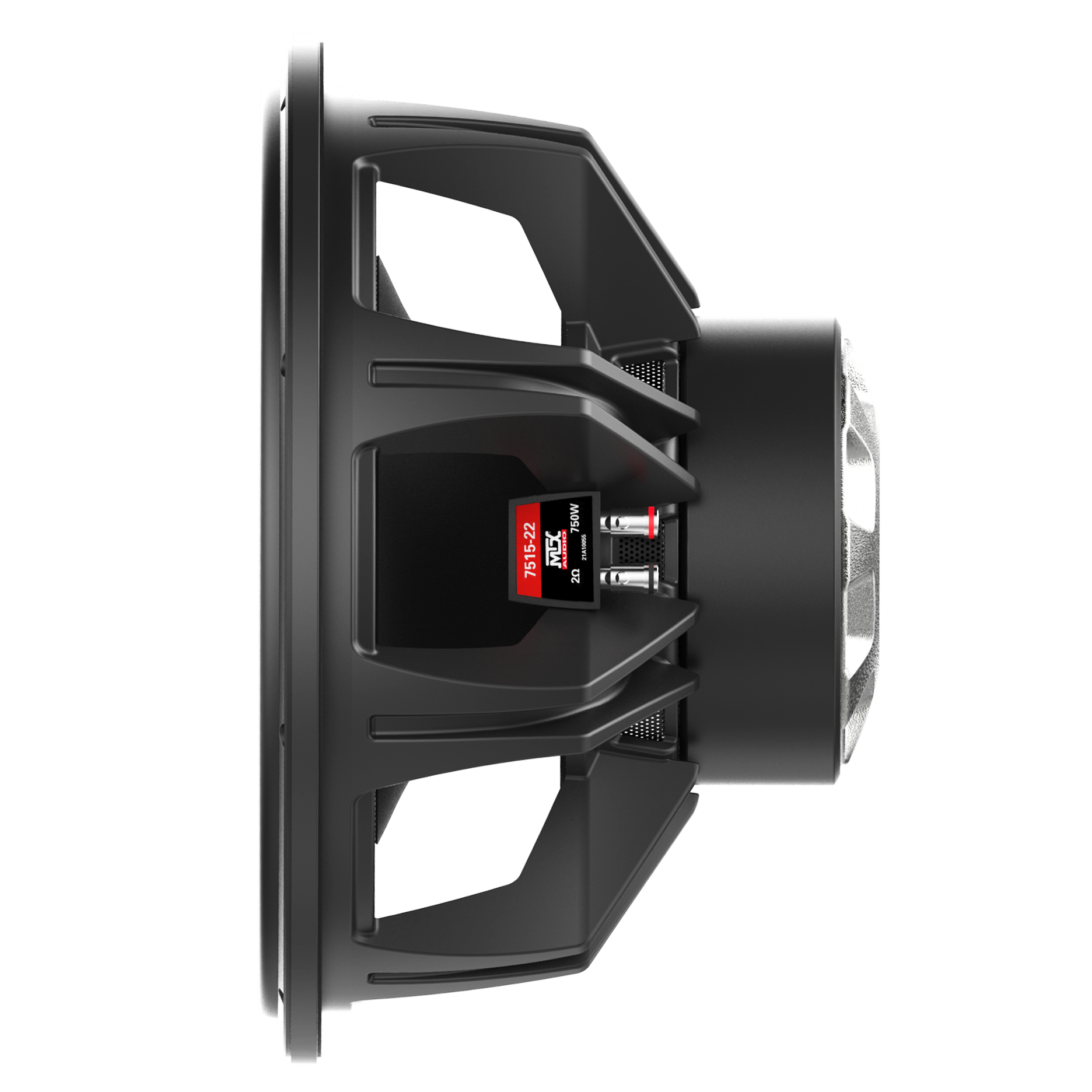

MTX 75 Series Subwoofer Side ViewIf you compete and want a subwoofer that's not only affordable, but reliable, and has been engineered by some of the best in the manufacturing world then get ready to... "PUT SOME THUNDER IN YOUR DOME"!

The 7515-22 SuperWoofer

This 7515-22 is a 15 inch diameter, dual voice coil, 2Ω car audio subwoofer built on the MTX tradition of getting more than expected.

Inverted Apex Surround Spider Plateau Venting Progressive Suspension

Availability: In stock
SKU: 7515-22
$499.95
$50.00
$449.95
Share this MTX page...

Inverted Apex Surround

Creates higher volume displacement, higher SPL and less distortion.

Dual Thermal Management

Spider Plateau Venting lets you play hard and long.

Radial Ribbed T-Yoke

Dissipates heat and decreases distortion.

The Beast

This beast is ideally used in applications where bass levels are the most important factor. The 75 Series SuperWoofer delivers exceptional SPL and sound quality making it perfect for any application.

WHAT OUR CUSTOMERS SAY!

"Awesome sub... It lives up to the 7500 series brand, I had 4 mtx 7500 before and they were extremely loud, and this subwoofer is no different."

Guest - 75 Series Review

Inverted Apex Surround

This super Car Audio Subwoofer features an Inverted Apex Surround that increases surface area and Xmax allowing for increased volume displacement and higher SPL as well as a progressive, layered spider that eliminates break in time and lowers distortion resulting in improved sound quality.

This subwoofer has a dual layer thermal management system that incorporates Spider Plateau Venting, a mechanical cooling process that targets cool air at the voice coil, and an integrated t-yoke heatsink that helps eliminate excess temperature for long term performance. The glass fiber cone offers excellent stiffness to weight ratio providing outstanding sensitivity.

75 Series: Why It's The Best

  • Inverted Apex Surround Increases Surface Area Resulting in Increased Volume Displacement and SPL.
  • 2.5" Aluminum Voice Coil
  • Spider Plateau Venting Targets Cool Air at Voice Coil for Improved Thermal Performance
  • Radial, Ribbed T-Yoke Helps Dissipates Heat to Help Improve Sound Quality by Reducing Distortion
  • Layered, Progressive Spider Requires No Break In Period
  • Cast Aluminum Basket Reduces Resonance for Improved Sound Quality



Subwoofer Wiring Calculator

Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

Select # Of Woofers:

Choose Impedance To Match Amp:


Features
  • 5 Year Limited Warranty
  • Inverted Apex Surround Increases Surface Area Resulting in Increased Volume Displacement and SPL.
  • 2.5" Aluminum Voice Coil
  • Spider Plateau Venting Targets Cool Air at Voice Coil for Improved Thermal Performance
  • Radial, Ribbed T-Yoke Helps Dissipates Heat to Help Improve Sound Quality by Reducing Distortion
  • Layered, Progressive Spider Requires No Break In Period
  • Cast Aluminum Basket Reduces Resonance for Improved Sound Quality
Tech Specs
RMS Power (Watts) 750
Recommended Amp Power (RMS) 375 - 750
Peak Power (Watts) 1500
Frequency Response 20Hz - 130Hz
Sensitivity 87.53 dB
Voice Coil 2.5"
Magnet Weight 119 oz.
Mounting Depth 8.375"
Cut Out Diameter 13.875"
Volume Displacement (cu in) 91.66
Sealed Enclosure Net Volume 1.5 cu ft
Vented Enclosure Net Volume 2.48 cu ft
Support Files
Data Sheet 7515-22 Tech Data (2 pages) View |  Download
50Hzmp3 Download
50Hz Download
