SKU: AWMC4

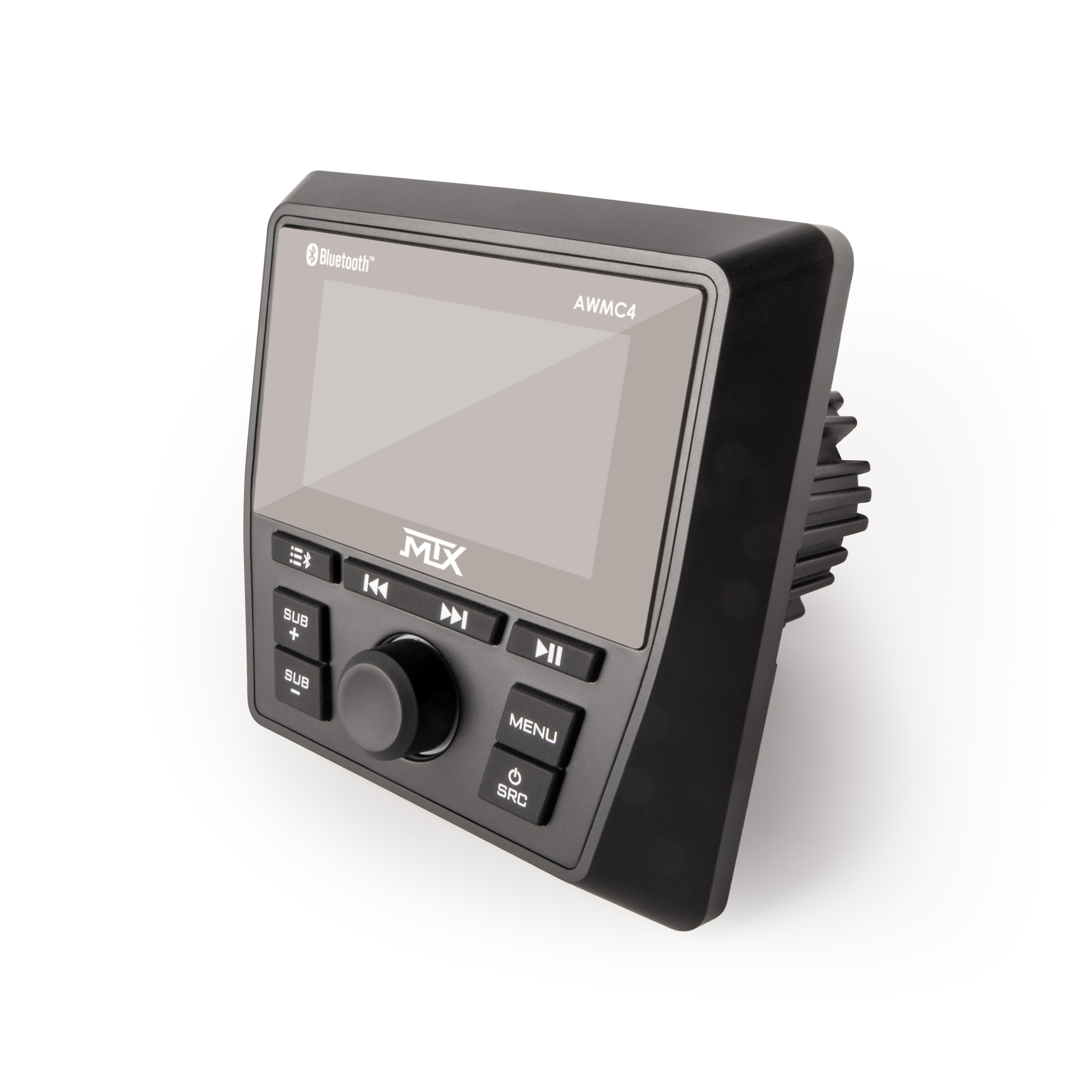

AWMC4 All-Weather Bluetooth Media Controller

Availability: In stock

$549.95 MSRP

$499.95

TAKE CONTROL ANYWHERE YOU RIDE

The AWMC4 is built for clear operation in demanding environments and supports multiple audio sources including Bluetooth, radio, AUX, and USB memory stick playback. It features a 3" full color display and expanded output controls suited for a wide range of system setups.

Ask an expert Find a location

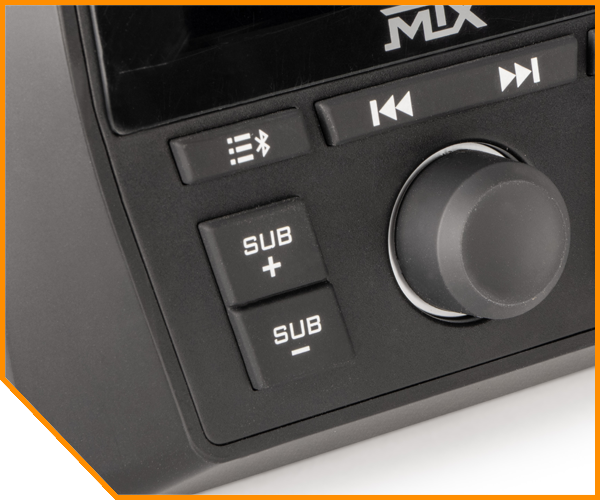

PRECISION SUBWOOFER CONTROL

The AWMC4 includes dedicated sub volume buttons and a subwoofer preout, allowing quick adjustments directly from the front panel. Users can raise or lower subwoofer output at any time for better control over the system’s overall balance.

ALL WEATHER CONSTRUCTION

The AWMC4 is engineered for consistent performance in outdoor settings. The front panel is rated IP66 and the rear is rated IP65. The housing also meets ASTM UV testing requirements, supporting long-term durability in sunlight, moisture, and dust. The sealed, backlit controls and bright display remain usable in a variety of conditions.

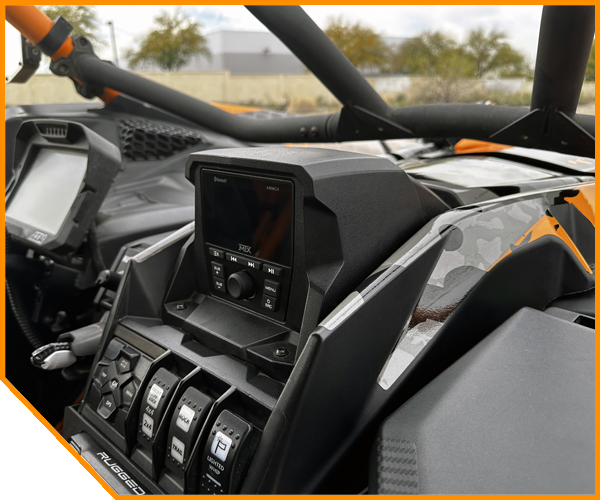

VEHICLE SPECIFIC FIT

The AWMC4 can be installed using MTX dash kits designed to match the layout of specific UTV and powersports vehicles. These kits create a clean, integrated appearance and simplify installation by aligning the controller with factory mounting locations.

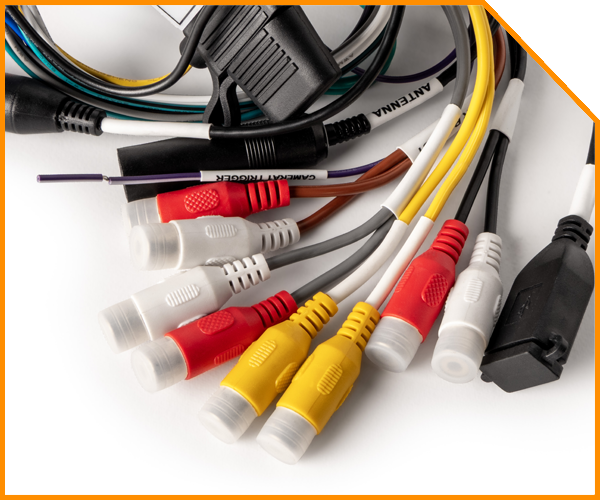

DUAL CAMERA INPUTS

The AWMC4 includes two camera inputs that allow connection of front, rear, or auxiliary cameras. Camera views can be accessed directly through the unit, providing added visibility when parking, maneuvering, or navigating tight spaces.

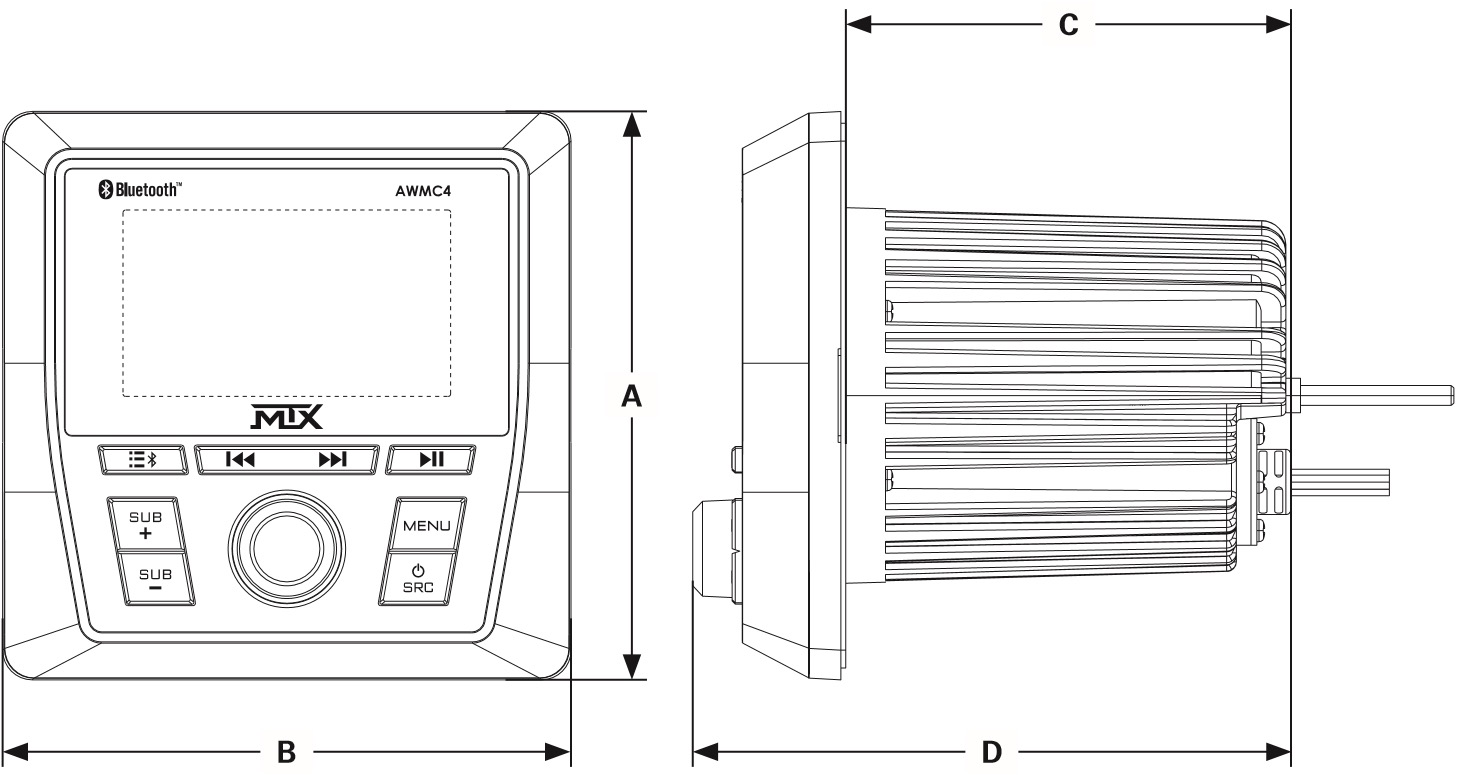

Dimensions & Details

Dimensions

A - Display Length: 4.5" (115mm)
B - Display Width: 4.5" (115mm)
C - Mounting Depth: 3.5" (90mm)
D - Unit Depth: 4.75" (121mm)

Features

All-Weather Design
4-Channel Amplifier for Enhanced Sound
Multi-Source Compatibility (Bluetooth, AM/FM/WB, Auxiliary, USB Stick)
Bright 3" Color Screen for Easy Viewing
Soft Touch Buttons for Easy Operation, Even with Gloves
Front, Rear, and Sub Preouts for Aftermarket Amplifier Integration
Selectable EQ Settings for Custom Sound
Compatible with Most Bluetooth Devices (iPhone®/Android®)
Available Vehicle-Specific Dash Kits for Easy Installation

Ratings

IP66 Rated Front / IP65 Rated Rear
ASTM D4329-2013 UV Testing - 500 Hours

SPECIFICATIONS

Power Output: 40-Watts x 4 @ 2Ω
Line Output Impedance: 10kΩ
Line Output: 4V
Height: 4-1/2" (115mm)
Width: 4-1/2" (115mm)
Depth: 4-3/4" (121mm)
Cut Out Size: 3" (77mm)
Warranty Period: 24 months from date of purchase
