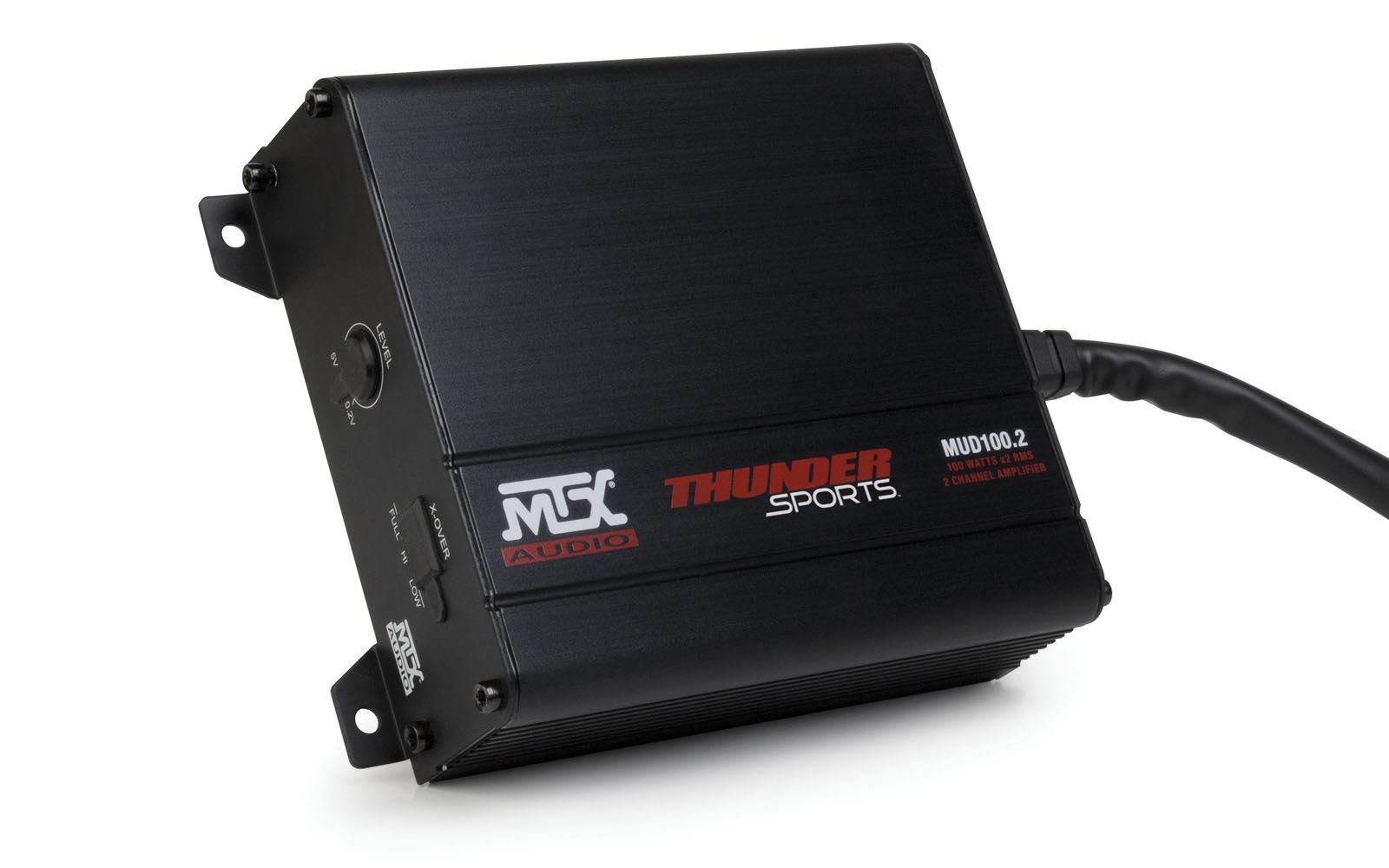

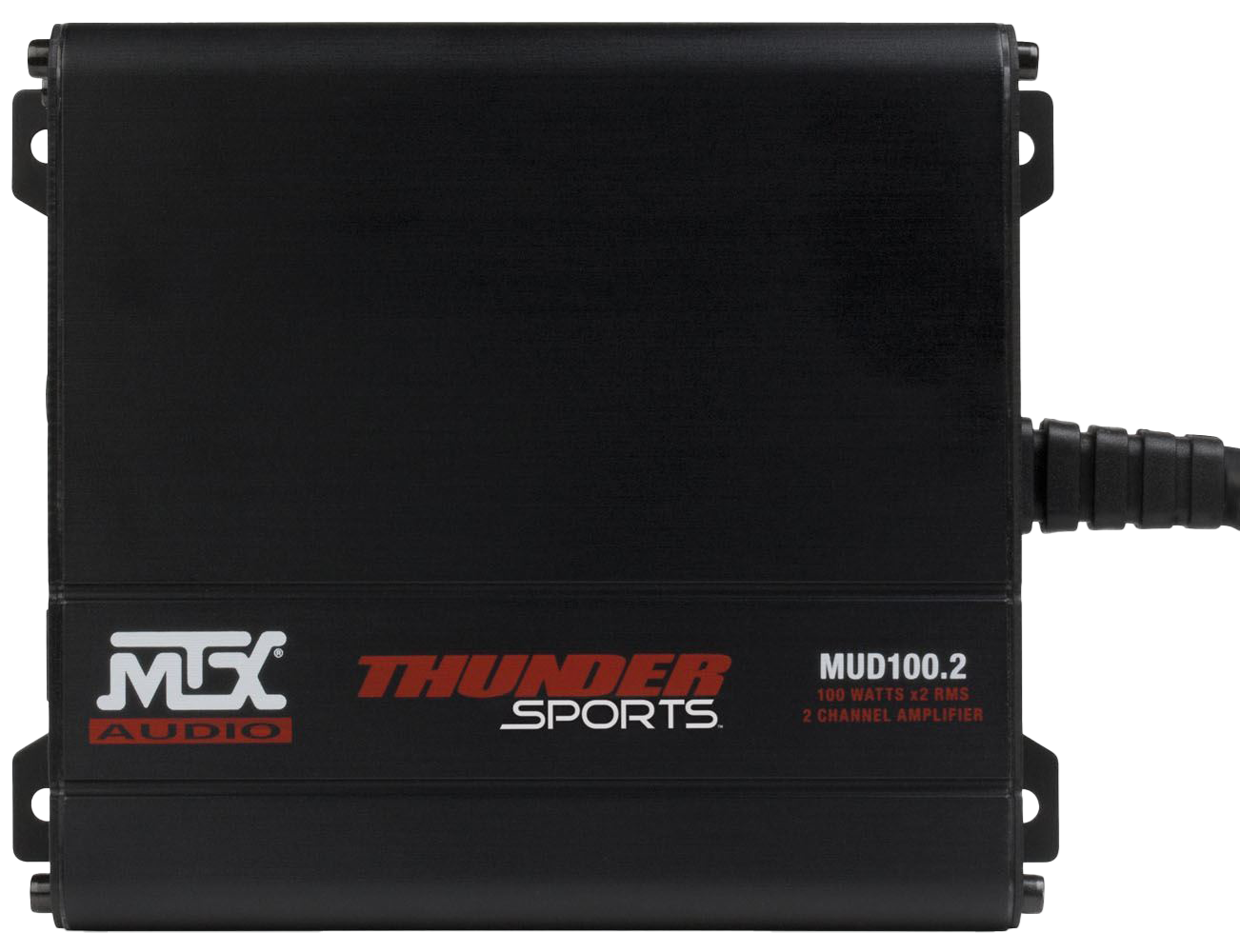

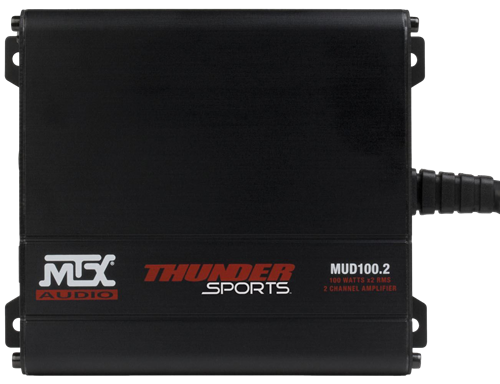

MUD100.2 200W RMS 2-Channel Powersports Amplifier

Marine / Power Sports Amplifiers

Compact sports amp with raw power

Polaris RZR with MTX AudioRugged, Compact & Powerful

Powerful, yet compact, audio amplifier that can be installed on any UTV, boat, sand rail, or motorcycle.

The MTX MUD100.2 features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 2 channels that are capable of delivering 100 watts of RMS power per channel. More than enough power to drive a single or dual full range speakers per channel.

IP66

Click Above to Learn More

Full Range Class D Topology



2Ω Stable



Availability: In stock
SKU: MUD100.2
Sold Individually
199.95
20.00
179.95
Share this MTX page...
    Wake Boat with MTX Audio

    Compact And Powerful

    The MTX MUD100.2 is the most compact amplifier that MTX has ever made. This unit features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 2 channels that are capable of delivering 100 watts of RMS power per channel. More than enough power to drive a single or dual full range speakers per channel.

    The MUD100.2 Key Features

    • Compact Design Enables Installation Anywhere
    • Conformal Coated Printed Circuit Board that Resists Moisture
    • Fixed Crossovers, High and Low Pass Allow Use with Full Range Speakers or Subwoofers
    • 400W Peak Power
    • Weather Resistant in Accordance with IP66 Rating

    WHAT OUR CUSTOMERS SAY!

    Install was simply and easy to hide due to the compact size. Connected it to 4 of the MTX 6.5" Marine speakers and it is loud while still sounding crisp and clear. Plan to add another soon!

    Guest 8/5/2014 MUD100
    Polaris RZR170 with MTX MUD amps

    MTX MUD Amps power custom Polaris RZR170

    Outdoor Rugged

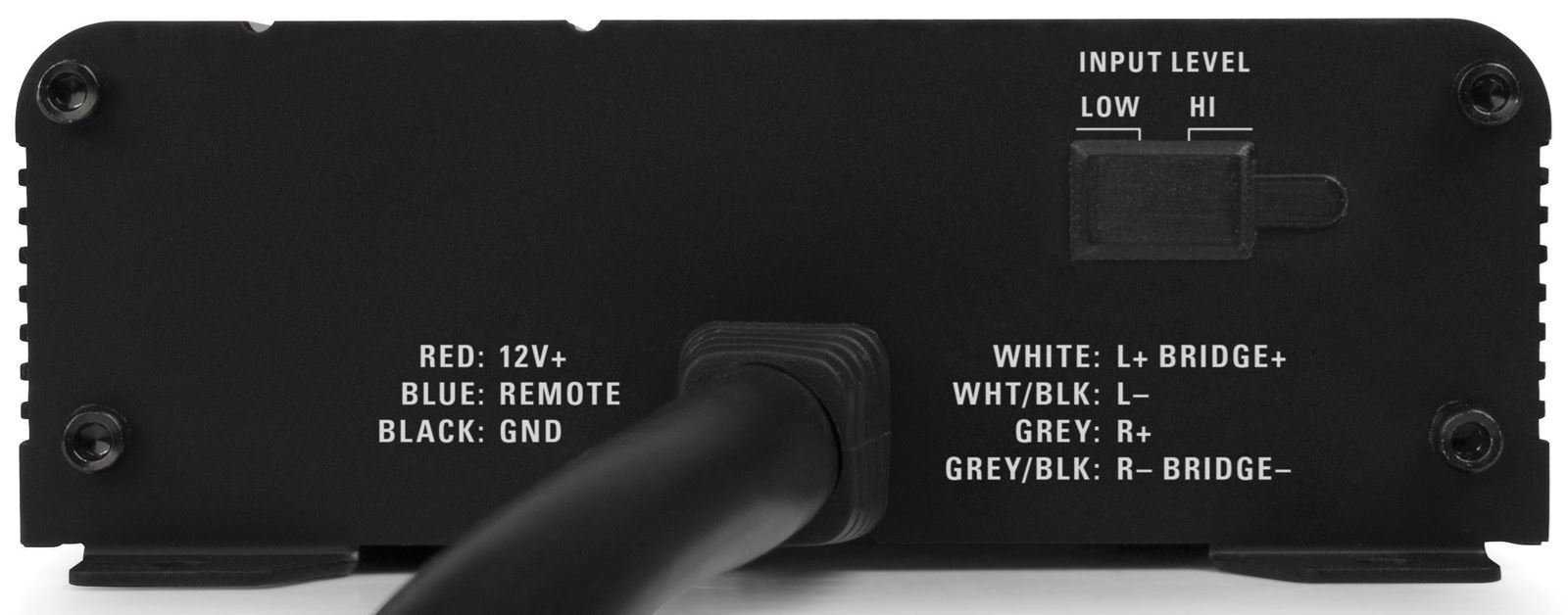

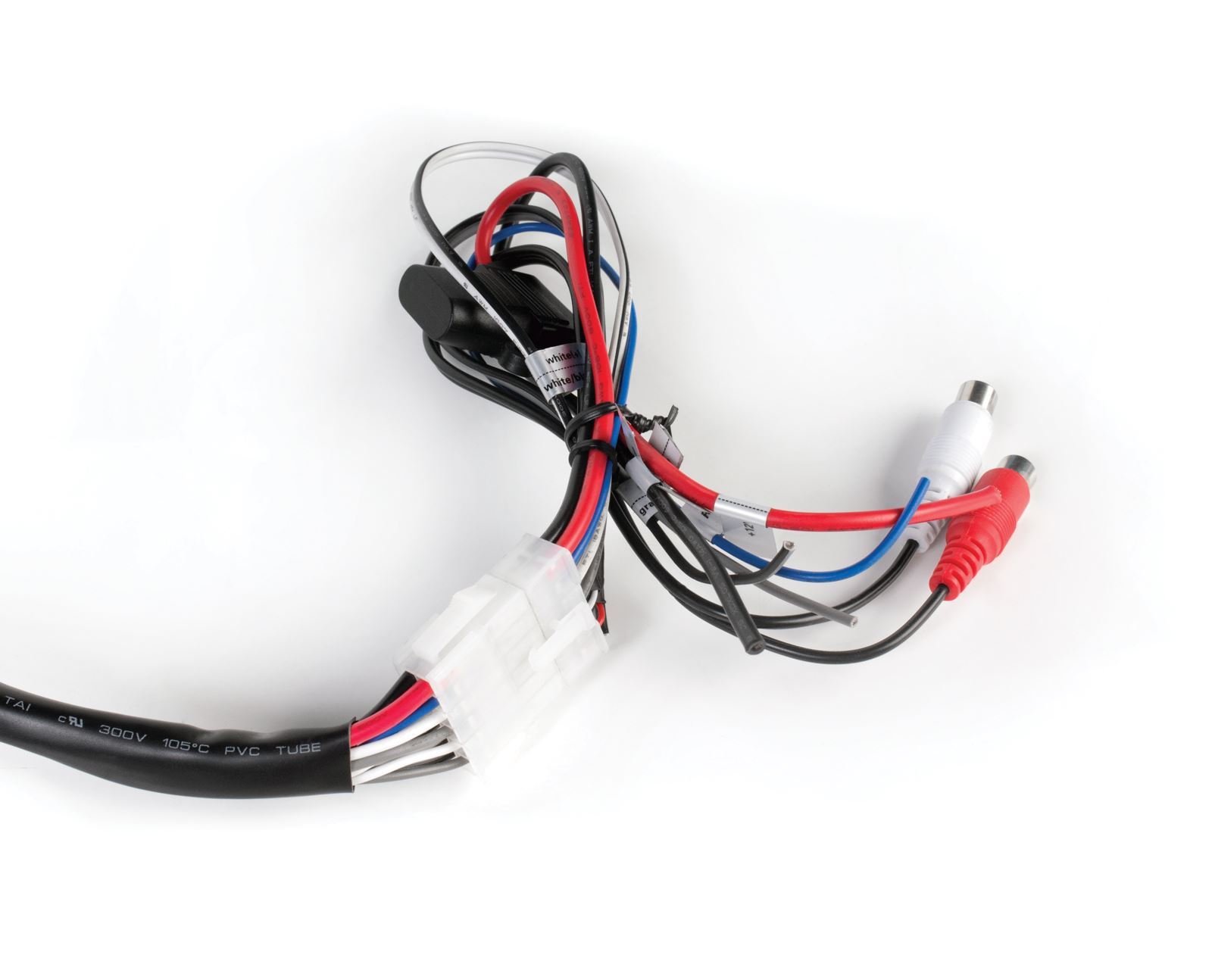

    The entire unit is weather resistant including a conformal coated circuit board and control covers that prevent damage from moisture intrusion. The unique design includes a pigtail that contains all of the wiring necessary to connect power, ground, and signal without having to make a connection directly at the amplifier. This pigtail keeps moisture, dirt, and other hazards from harming the internal components of the unit, ensuring you can enjoy your music wherever the trail takes you.

    Polaris RZR170 with MTX MUD amps 2

    Four MTX MUD Amps mounted on custom Polaris RZR170

    Also check out the MUD100.2 in action in the newly created MTX Polaris ACE Sportsman.

    Features

    Compact Design - The small footprint chassis allows for installation in space challenged vehicles

    Conformal Coated Circuit Board - Protects against corrosion or circuit deterioration due to exposure to moisture or salt conditions

    Fixed Crossover - High and Low Pass Crossovers Allow Use with Full Range Speakers or Subwoofers

    Weather Resistant in Accordance with IP66 Rating

    High and Low Level Inputs - Allows connection to both Speaker and  RCA Input signals

    Tech Specs
    Description 2-Channel
    RMS Power (Watts) 200
    4Ω RMS Power Output 50W x 2 Channels
    2Ω RMS Power Output 100W x 2 Channels
    4Ω Bridged 200W x 1-Channel
    1 Ohm RMS Power Output NA
    Topology Full Range Class D
    THD <1.0%
    Frequency Response 20Hz - 20kHz

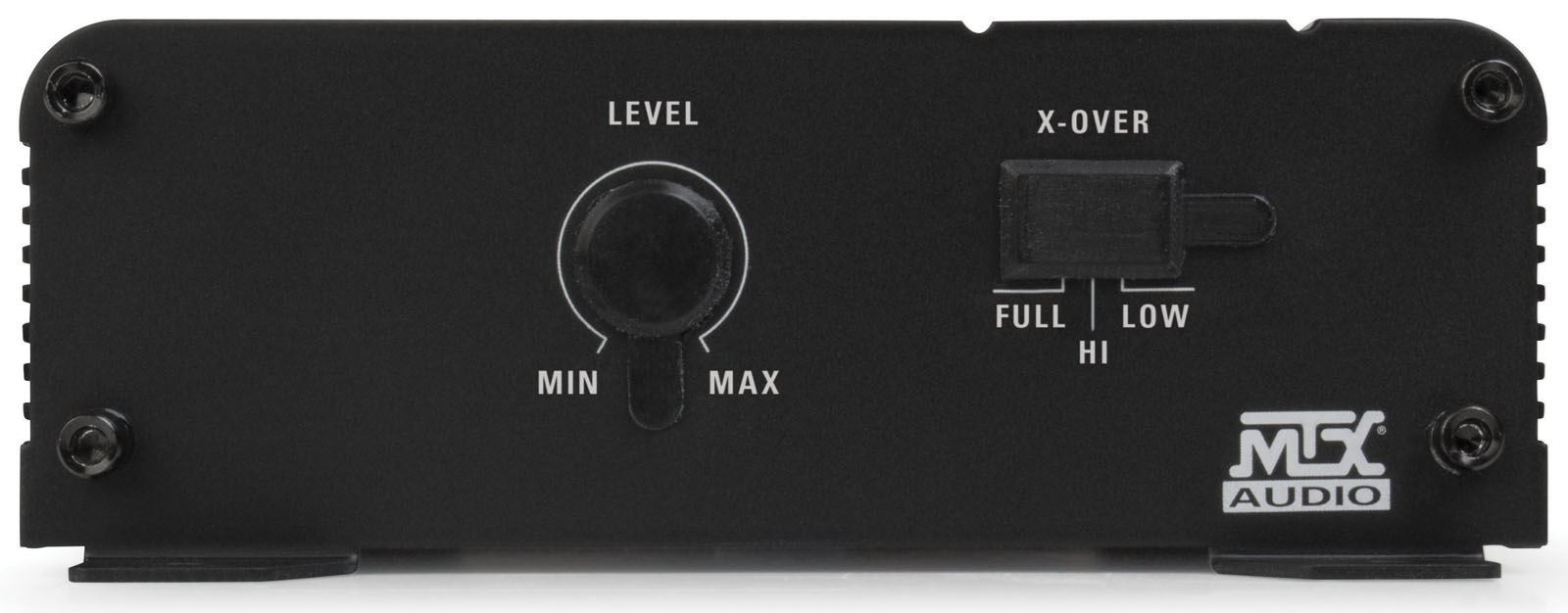

    Crossover Fixed HPF/LPF @ 80Hz, 12dB/Oct
    Max Sensitivity 200mV
    Maximum Input Signal 5V
    Height 4.22"
    Width 5.72"
    Depth 1.86"
    Support Files
    Owners Manual MTX004785 MUD100_2 Owner's Manual RevB (28 pages) View | Download
    Product Tags
    Customers who bought this item also bought

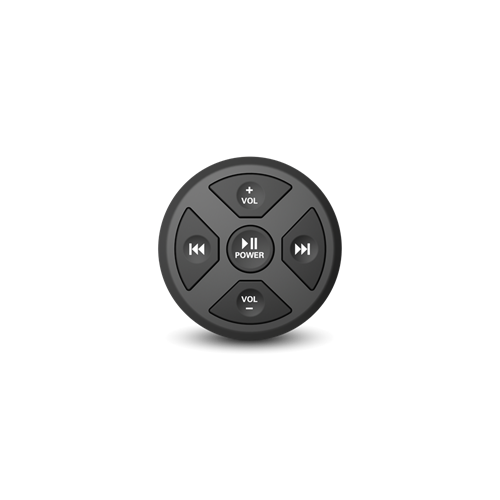

    MUDBTRC
