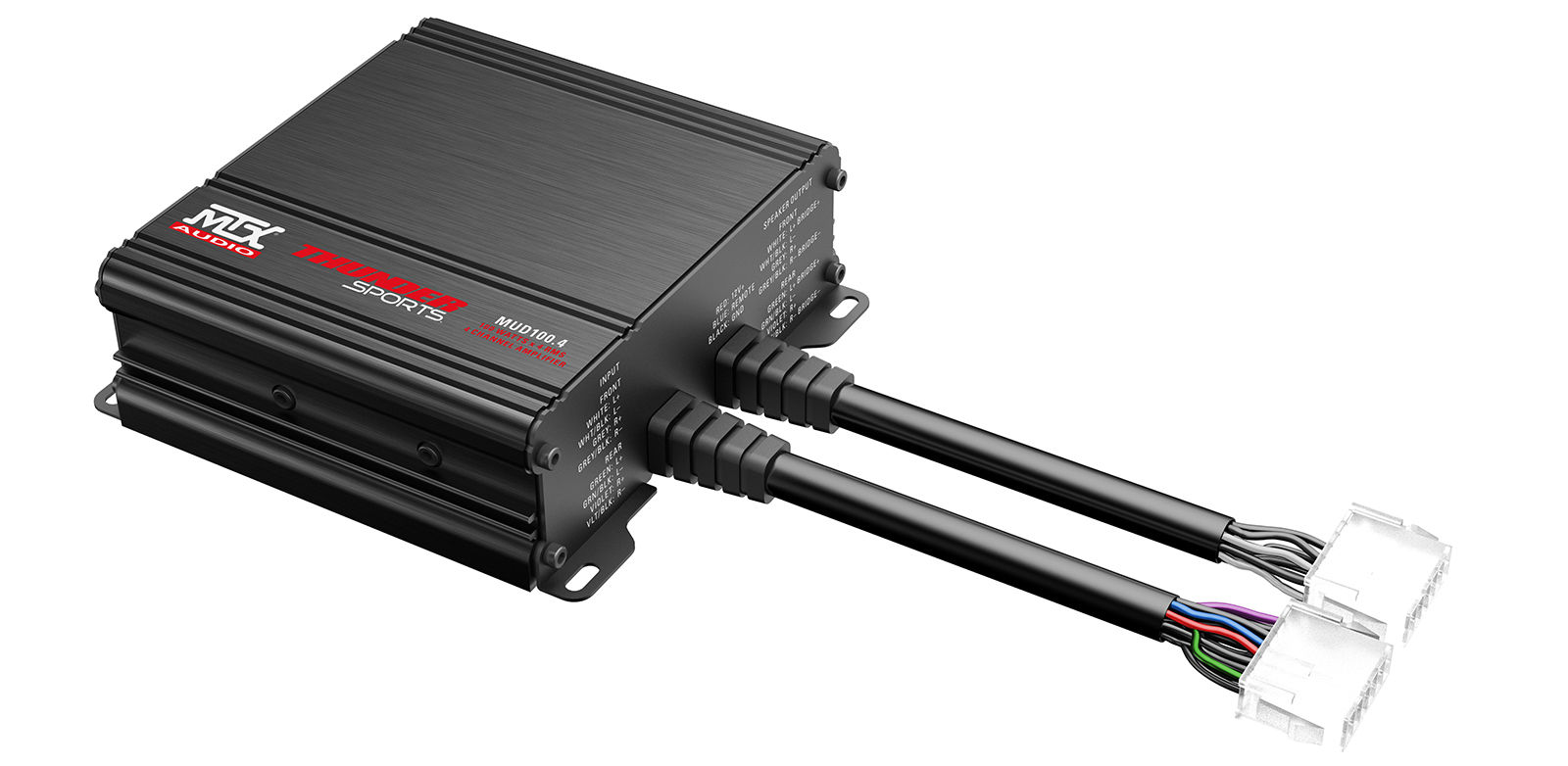

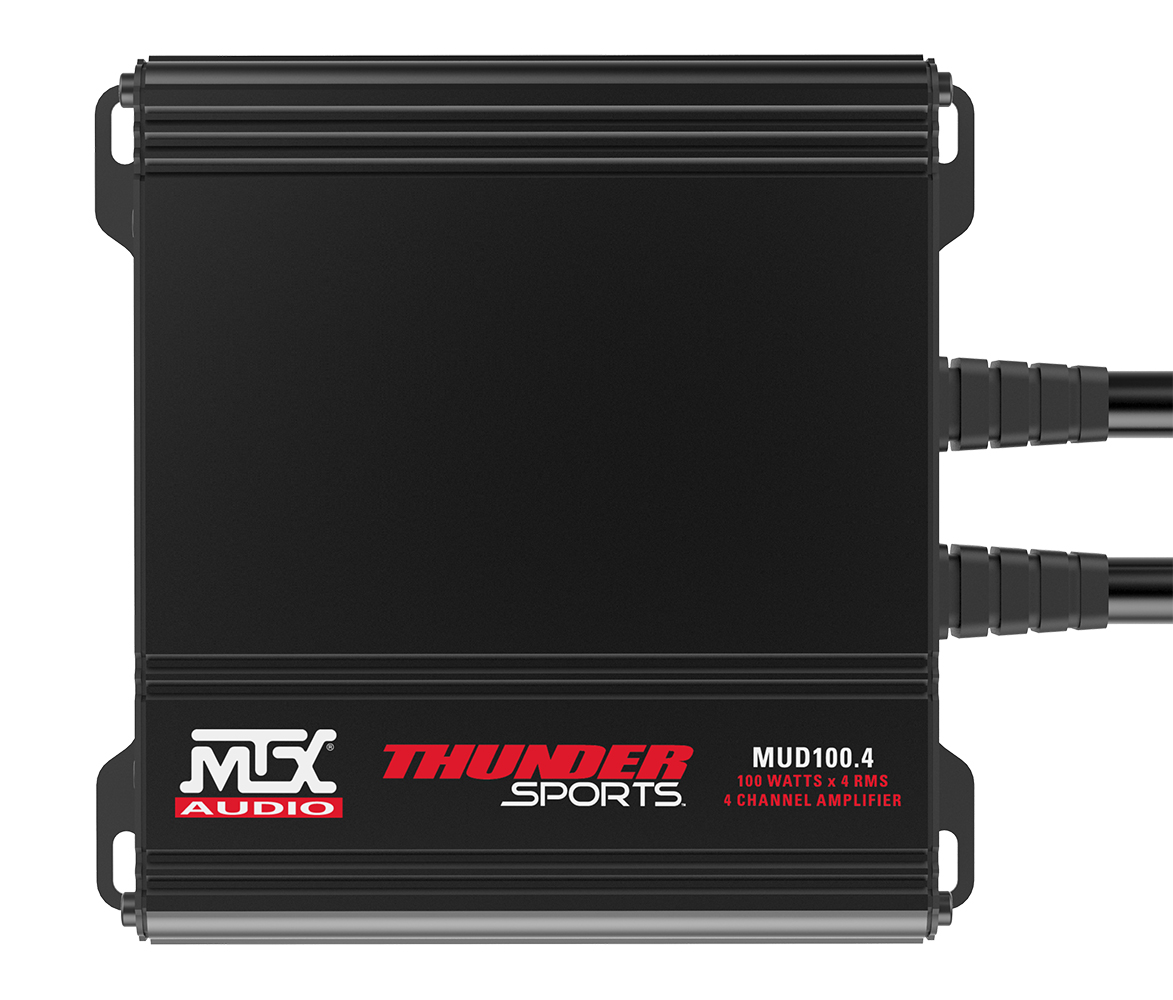

MUD100.4 400W RMS 4-Channel Powersports Amplifier

Motorsports Amplifier

Polaris RZR with MTX AudioRugged, Compact & Powerful

Powerful, yet compact, audio amplifier that can be installed on any UTV, boat, sand rail, or motorcycle.

The MTX MUD100.4 is the most compact amplifier that MTX has ever made. This unit features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 4 channels that are capable of delivering 100 watts of RMS power per channel. More than enough power to drive a single or dual full range speakers per channel.

IP66 Full Range Class D Topology 2Ω Stable Bridgeable

Availability: In stock
SKU: MUD100.4
Sold Individually
299.95
50.00
249.95
Share this MTX page...

    Did You Know?

    The MUD100.4 is the ideal compact, yet powerful, amp for outdoor UTV, marine and bike audio applications. It's two year warrenty is best in class.


    Wake Boat with MTX Audio

    Compact And Powerful

    The MTX MUD100.4 features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 4 channels that are capable of delivering 100 watts of RMS power per channel. More than enough power to drive an entire speaker system on your UTV, bike, or boat.

    The MUD100.4 Key Features

    • Compact Design Enables Installation Anywhere
    • Conformal Coated Printed Circuit Board that Resists Moisture

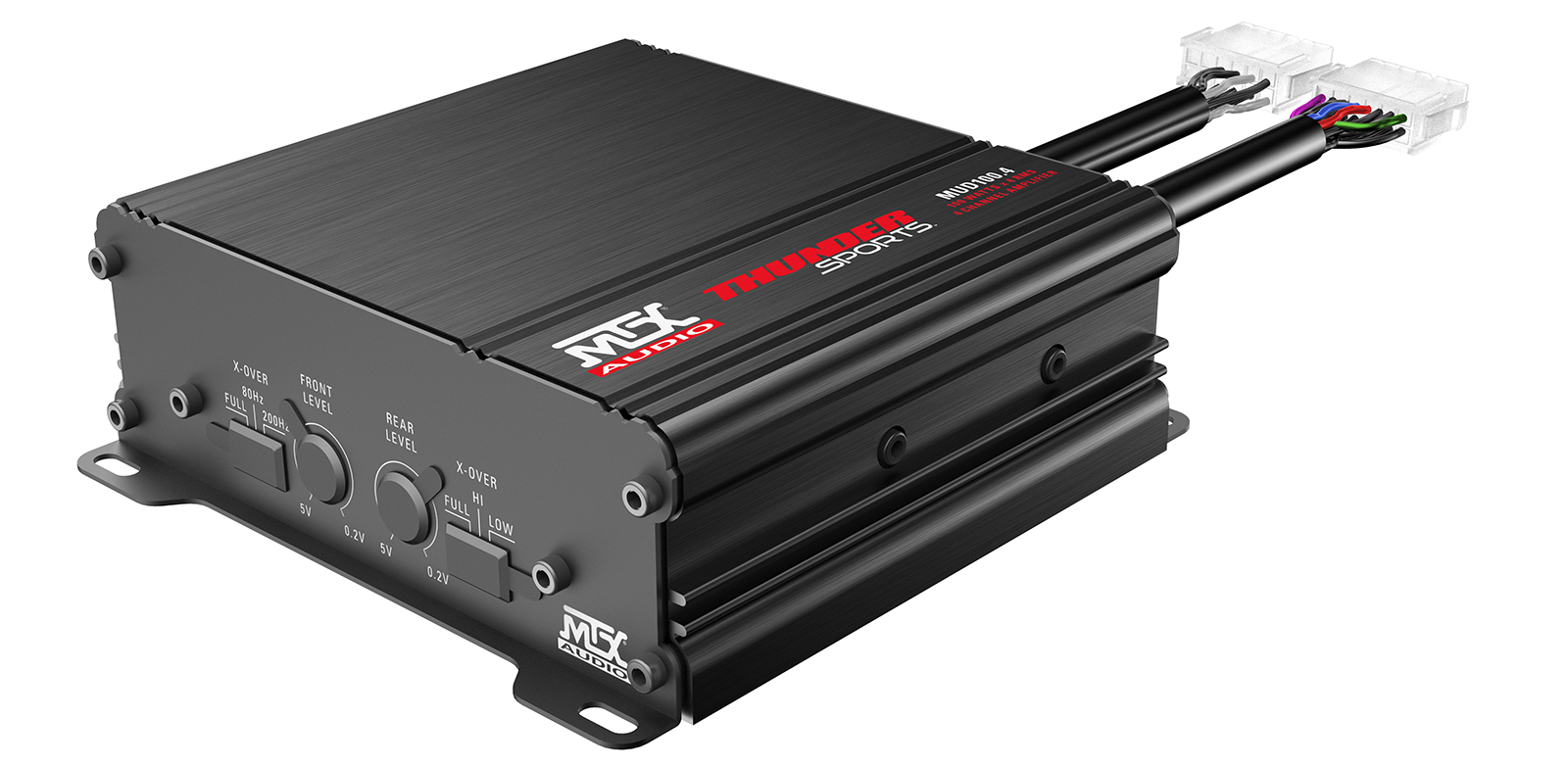

    • Fixed Crossovers, High and Low Pass Allow Use with Full Range Speakers or Subwoofers
    • High and Low Level Inputs
    • 800W Peak Power

    Outdoor Rugged

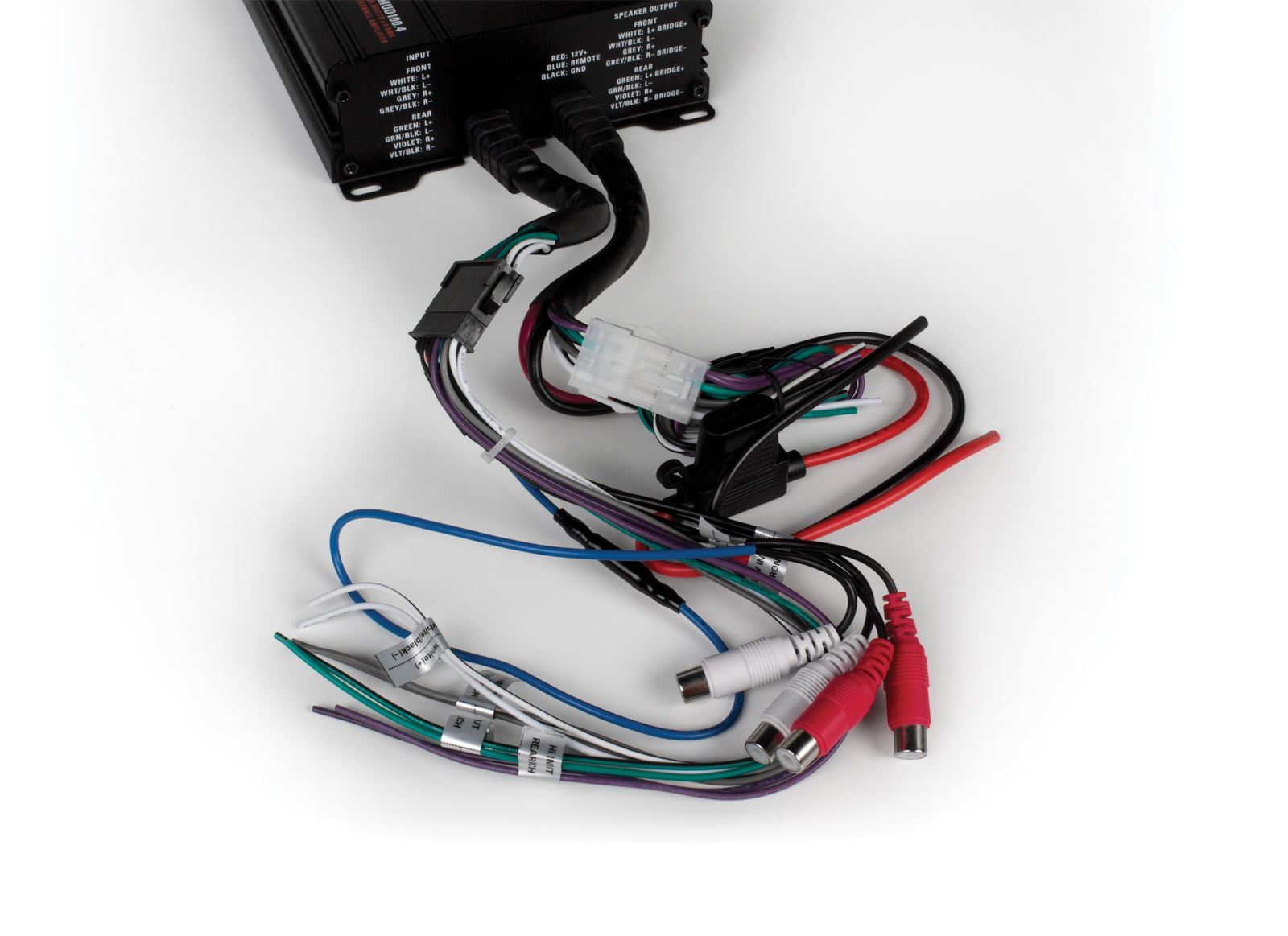

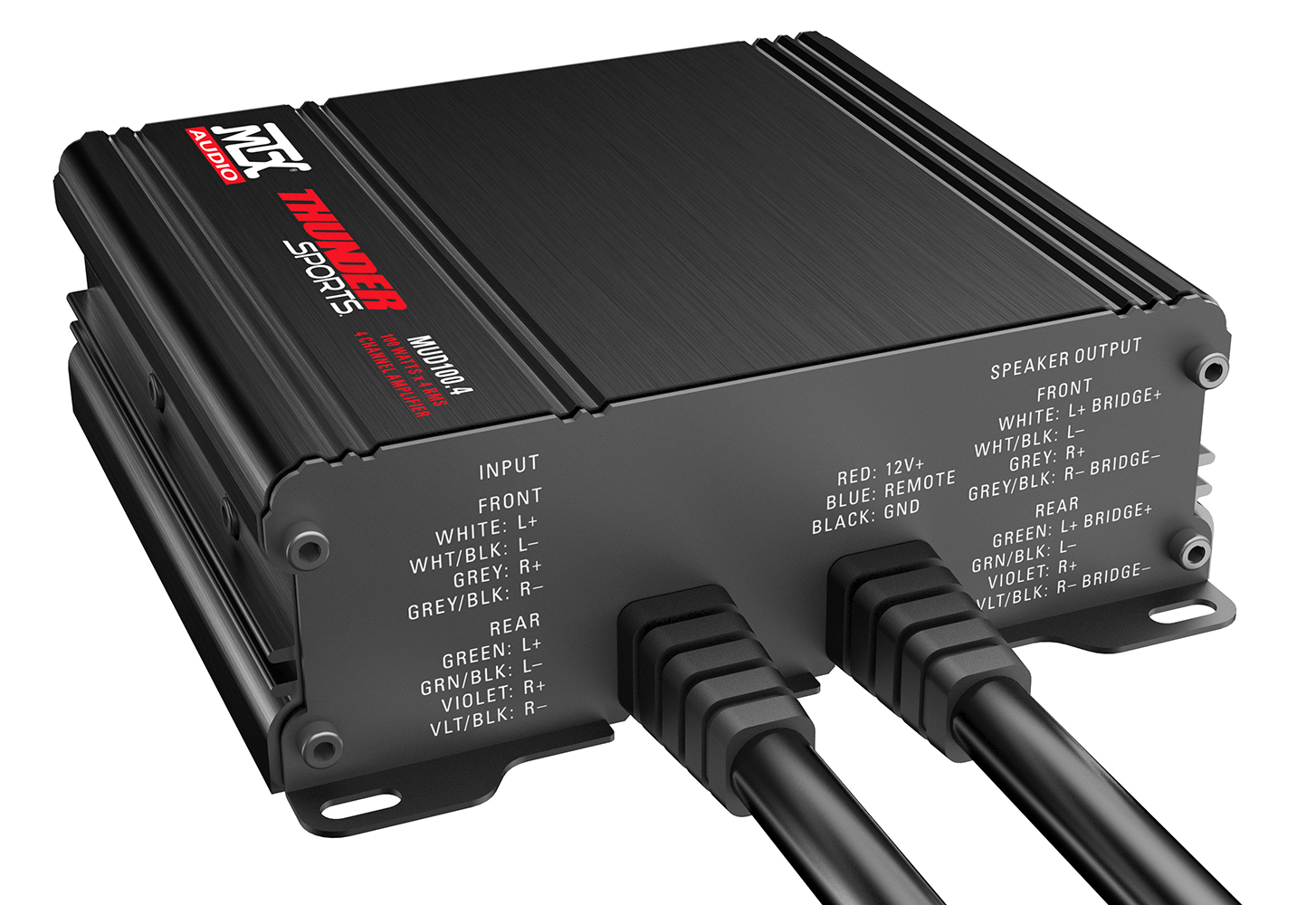

    The entire unit is weather resistant including a conformal coated circuit board and control covers that prevent damage from moisture intrusion. The unique design includes a pigtail that contains all of the wiring necessary to connect power, ground, and signal without having to make a connection directly at the amplifier. This pigtail keeps moisture, dirt, and other hazards from harming the internal components of the unit, ensuring you can enjoy your music wherever the trail takes you.

    Features

    Compact Design - The small footprint chassis allows for installation in space challenged vehicles

    Conformal Coated Circuit Board - Protects against corrosion or circuit deterioration due to exposure to moisture or salt conditions

    Fixed Crossover - High and Low Pass Crossovers Allow Use with Full Range Speakers or Subwoofers

    Weather Resistant in Accordance with IP66 Rating

    High and Low Level Inputs - Allows connection to both Speaker and  RCA Input signals

    Tech Specs
    Description 4-Channel
    RMS Power (Watts) 400
    4Ω RMS Power Output 50W x 4 Channels
    2Ω RMS Power Output 100W x 4 Channels
    4Ω Bridged 200W RMS x 2 Channels
    Topology Full Range Class D
    THD <0.2%
    Frequency Response 10Hz - 32kHz
    Crossover Fixed HPF/LPF @ 80Hz, 12dB/Oct
    Max Sensitivity 200mV
    Maximum Input Signal 5V
    Height 6.52" (165.5mm)
    Width 5.51" (140mm)
    Depth 1.86" (47.2mm)
    Support Files
    MTX005172 MUD100.4 Owner's Manual (28 pages) View | Download
