SKU: X3-17-DK
Sold Individually

Can-Am X3 Dash Kit

DASH KIT FOR AWMC3 MEDIA CONTROLLER IN SELECT CAN-AM MAVERICK X3 MODELS

  • OEM Fit
  • UV Resistant
    149.95
    10.00
    139.95
    Share this MTX page...

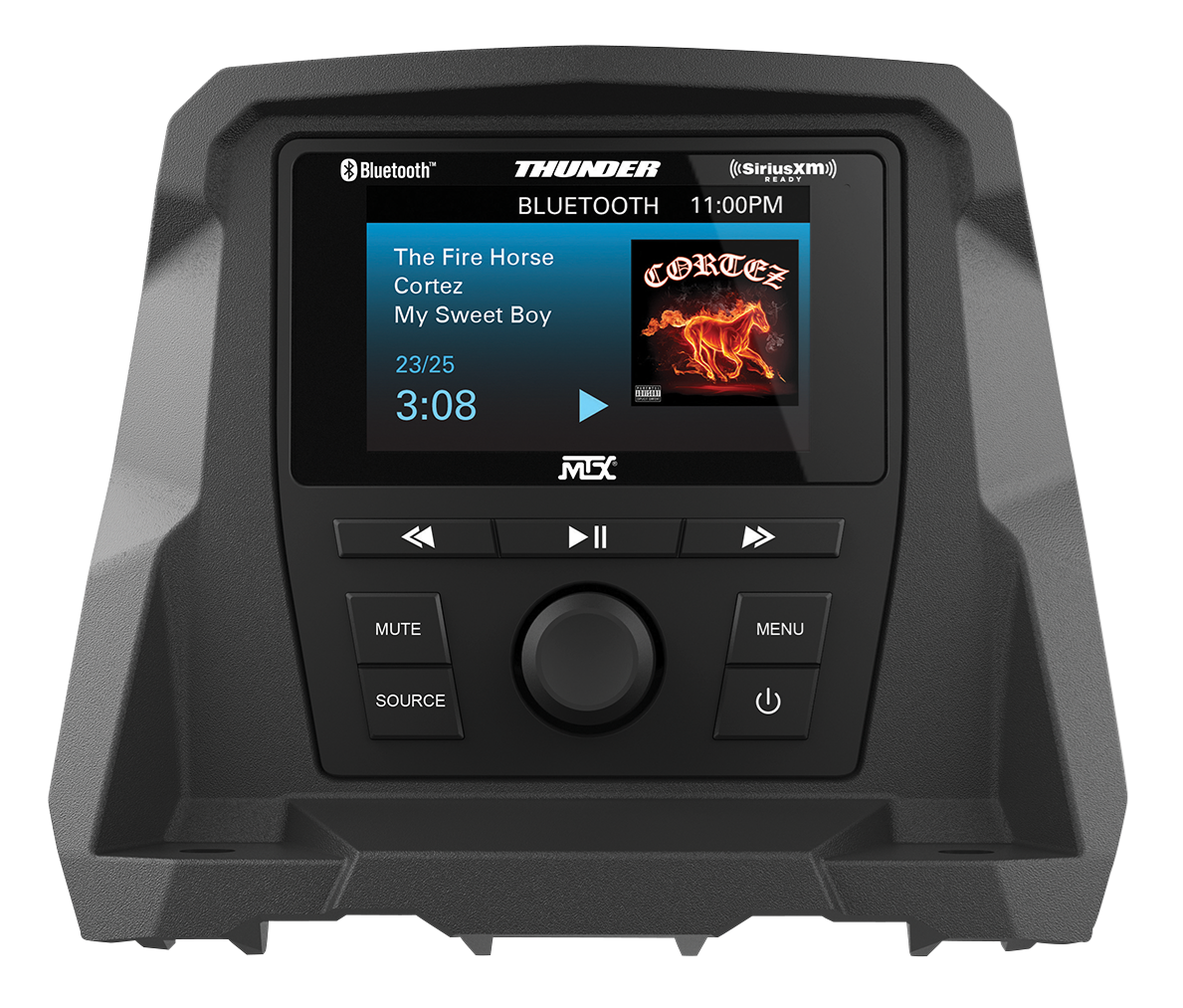

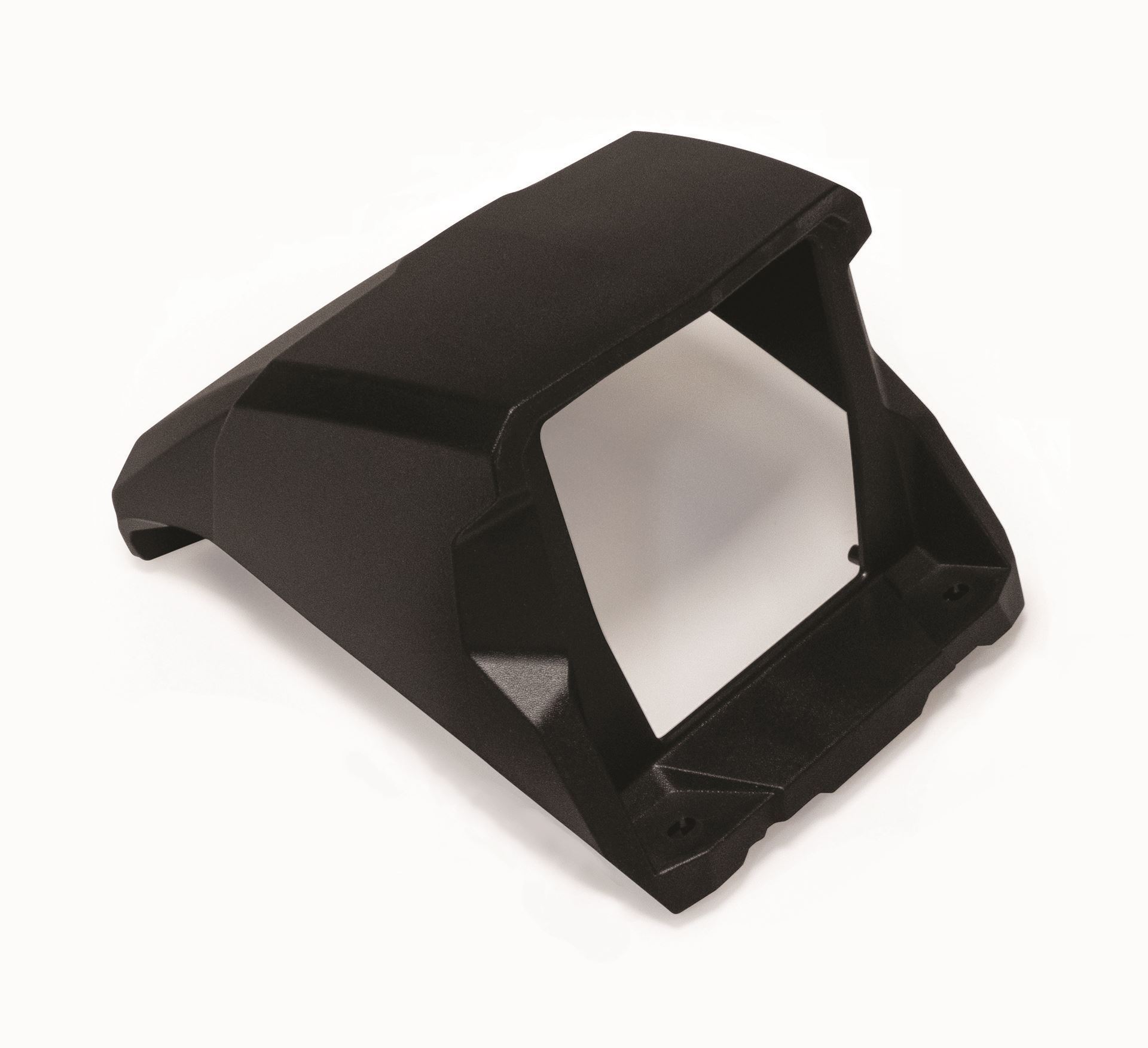

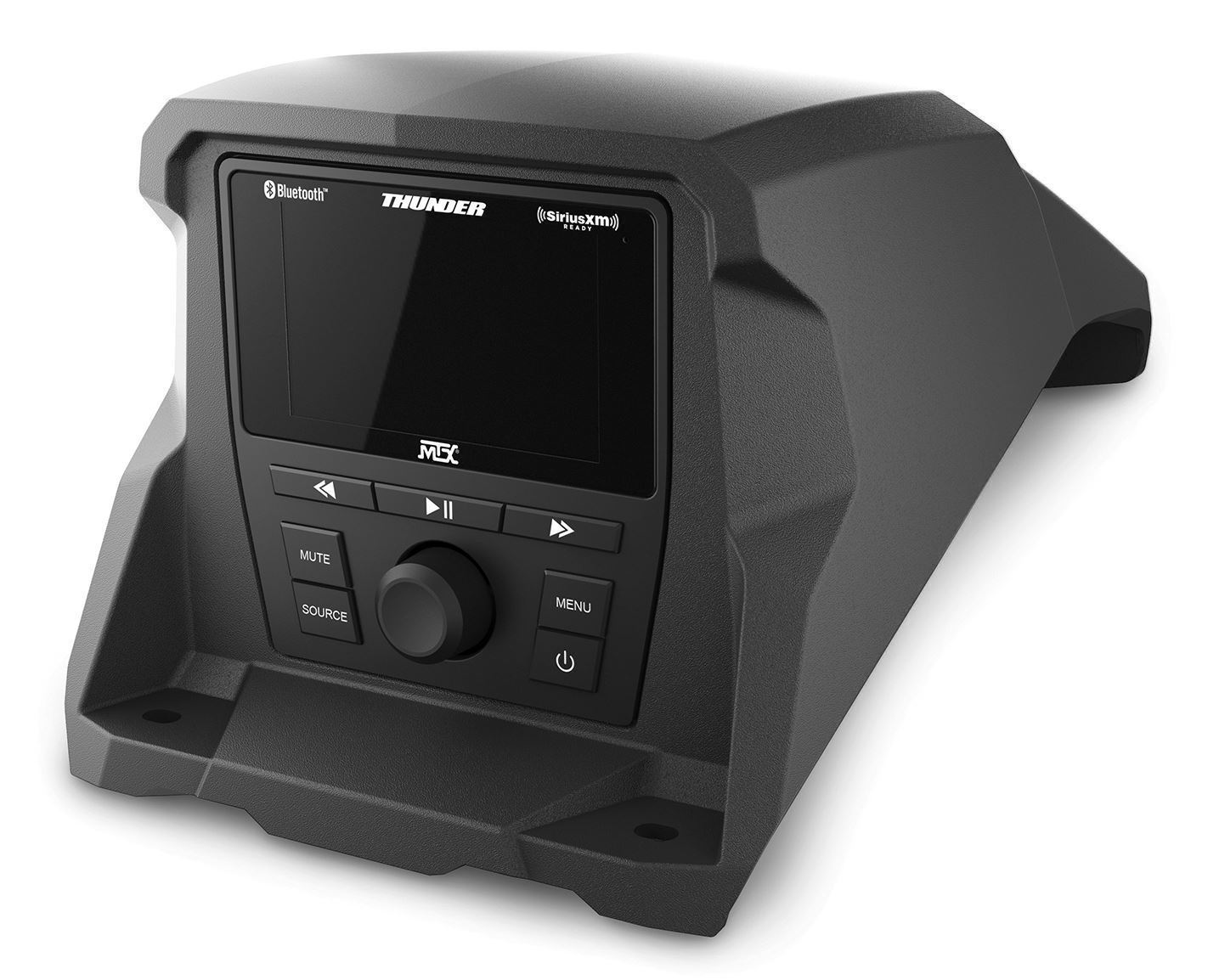

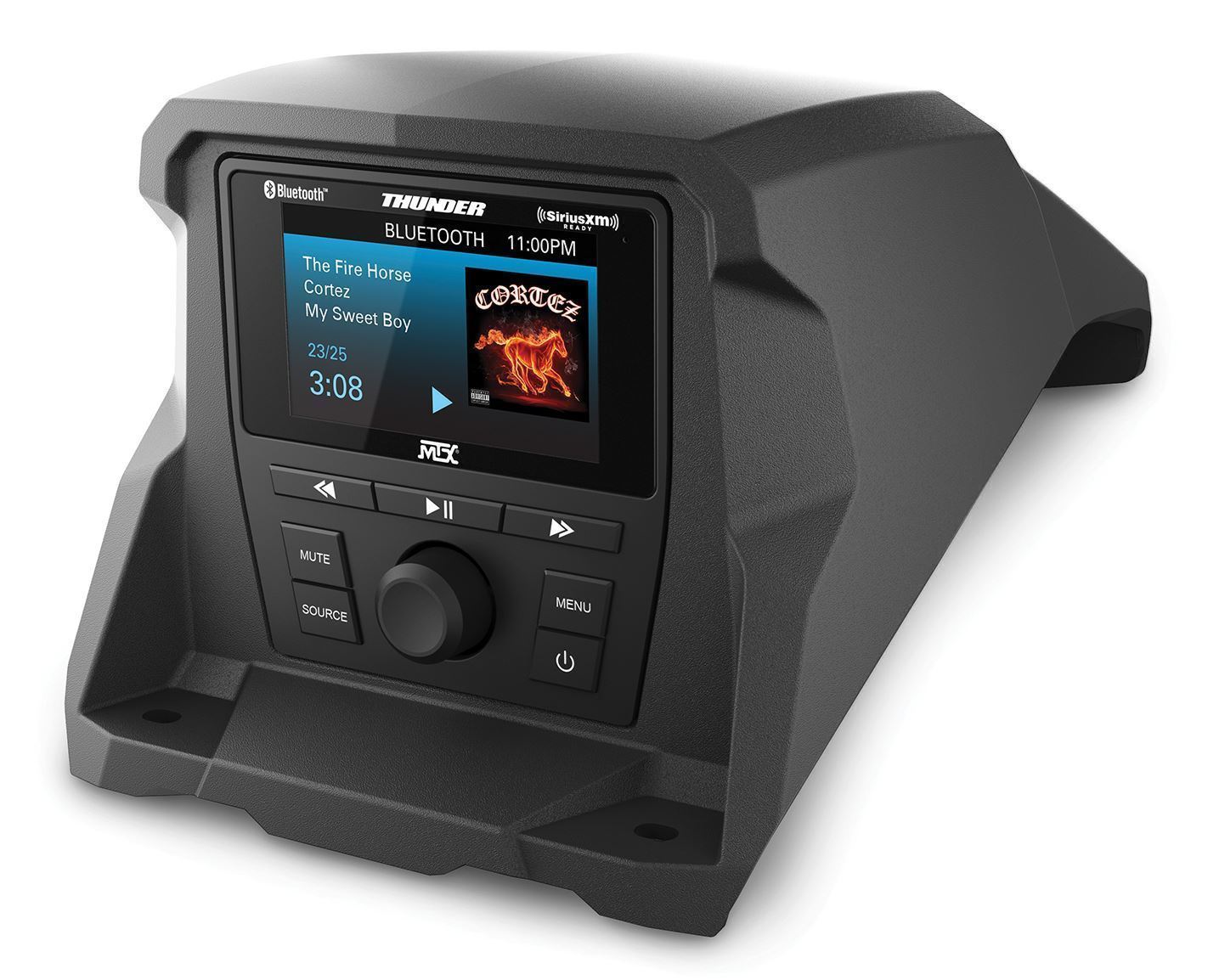

    The MTX X3-17-DK is a custom fit "dash kit" designed to be used with the MTX AWMC3 all weather media controller for installation in select Can Am Maverick X3 side-by-side vehicles. The kit features the lowest profile of any on the market and mounts using existing factory mounting points. It retains full access to the factory fuse panel and does not interfere with any factory or aftermarket intrusion bars. The mounting shroud is factory color and texture matched for a seamless look and feel once installed.

    The MTX X3-17-DK is compatible with the following Can-Am models:
    Model 2017 2018 2019 2020 2021 2022
    X3 Turbo / X3 Max Turbo   Yes Yes Yes
    X3 Turbo R / X3 Max Turbo R Yes Yes Yes
    X3 DS Turbo / X3 Max DS Turbo         Yes Yes
    X3 DS Turbo R / X3 Max DS Turbo R Yes Yes   Yes Yes
    X3 DS Turbo RR / X3 Max DS Turbo RR       Yes Yes Yes
    X3 RS Turbo R / X3 Max RS Turbo R       Yes Yes
    X3 RS Turbo RR / X3 Max RS Turbo RR     Yes Yes Yes Yes
    X3 X DS Turbo         Yes
    X3 X DS Turbo R / X3 Max X DS Turbo R   Yes Yes Yes Yes
    X3 X DS Turbo RR / X3 Max X DS Turbo RR       Yes Yes Yes
    X3 X MR Turbo   Yes Yes Yes Yes
    X3 X MR Turbo R   Yes Yes
    X3 X MR Turbo RR / X3 Max X MR Turbo RR       Yes Yes Yes
    X3 X RC Turbo   Yes Yes Yes Yes
    X3 X RC Turbo RR       Yes Yes Yes
    X3 X RS Turbo R / X3 Max X RS Turbo R Yes Yes Yes Yes
    X3 X RS Turbo RR / X3 Max X RS Turbo RR       Yes Yes Yes

    Vehicle Specific Fit

    MTX offers several vehicle specific dash kits that enable installation of the AWMC3 receiver in your side-by-side vehicle with a custom installation look. Currently available are dash kits for Polaris RZR and CAN-AM X3 with additional models currently in development.

    Note: MTX part MUDRZRDK is available for custom installing the X3-17-DK into select Polaris RZR models.



    Installation Videos

    X3-17-DK Dash Kit Installation
    SPECIFICATIONS
    Power Output 50-Watts x 4 @ 2Ω
    Line Output Impedance 10kΩ
    Line Output 2V
    Height 4-5/16" (109.54mm)
    Width 4-5/16" (109.54mm)
    Depth 4-1/4" (107.95mm)
    Cut Out Size 3" (77mm)
    SUPPORT FILES
    Owners Manual X3-17-DK Manual (12 pages) 2 MB View | Download
