SKU: X3-17-SW-D

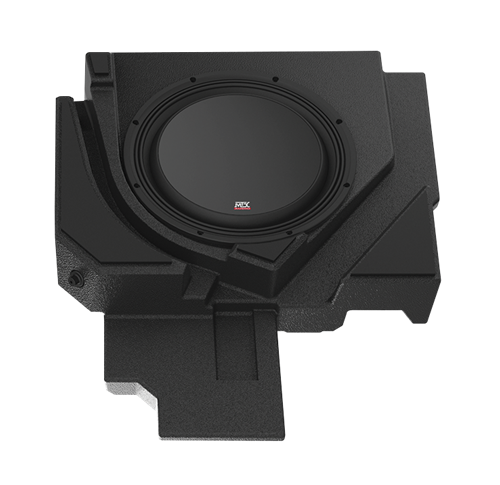

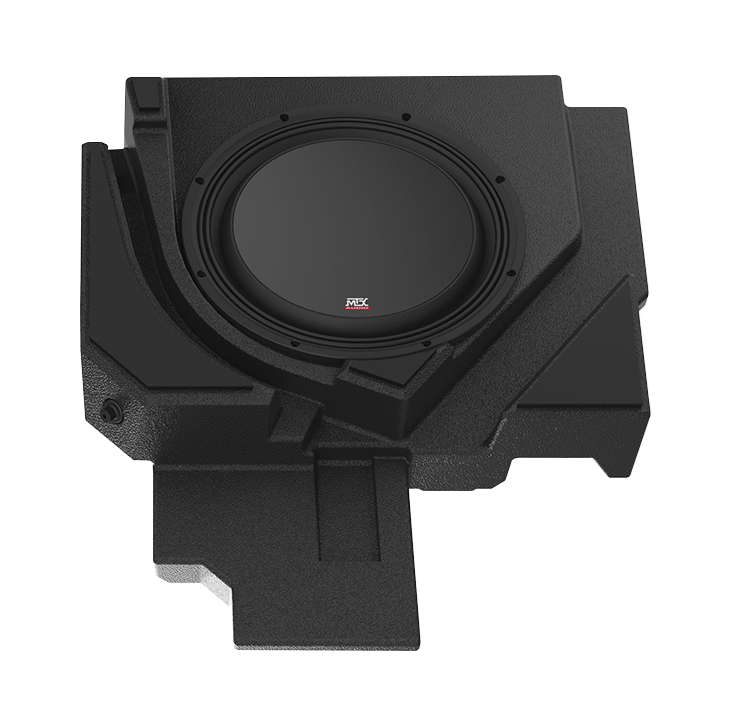

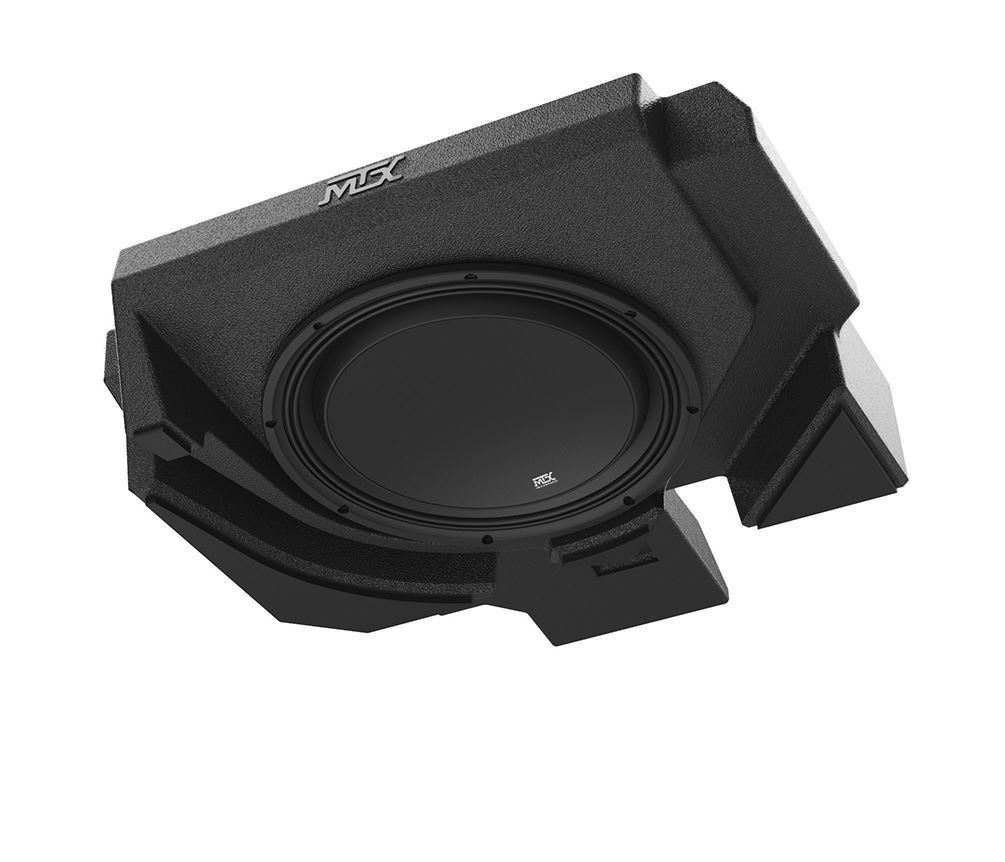

Can-Am X3 Driver Side Subwoofer Enclosure

Industry First 12-Inch, 300-Watt Loaded Underseat Subwoofer Enclosure

  • OEM Fit
    579.95
    50.00
    529.95
    Share this MTX page...

    The CAN-AM X3-17-SW-D subwoofer enclosure is designed to fit a wide range of CAN-AM models for maximum compatibility. The sub enclosure consists of an industry first, high output 12-inch subwoofer in a sealed Slim Line Enclosure Design (S.L.E.D.) that mounts under the driver's seat. The enclosure is down firing with an integrated 300-watt shallow mount subwoofer and will not interfere with any of the vehicles high/low position seat adjustability for both factory and aftermarket seats. Installation is made easy with our One Tool Installation System (O.T.I.S.) which reduces the install time and complexity eliminating the need for multiple tools or vehicle modification. High density Neoprene foam has been applied to all contact points to eliminate panel rattles and an anti-vibration kit with installation tool is provided in the package.

    MTX X3 kits are compatible with the following Can-Am models:
    Model 2017 2018 2019 2020 2021 2022
    X3 Turbo / X3 Max Turbo   Yes Yes Yes
    X3 Turbo R / X3 Max Turbo R Yes Yes Yes
    X3 DS Turbo / X3 Max DS Turbo         Yes Yes
    X3 DS Turbo R / X3 Max DS Turbo R Yes Yes   Yes Yes
    X3 DS Turbo RR / X3 Max DS Turbo RR       Yes Yes Yes
    X3 RS Turbo R / X3 Max RS Turbo R       Yes Yes
    X3 RS Turbo RR / X3 Max RS Turbo RR     Yes Yes Yes Yes
    X3 X DS Turbo         Yes
    X3 X DS Turbo R / X3 Max X DS Turbo R   Yes Yes Yes Yes
    X3 X DS Turbo RR / X3 Max X DS Turbo RR       Yes Yes Yes
    X3 X MR Turbo   Yes Yes Yes Yes
    X3 X MR Turbo R   Yes Yes
    X3 X MR Turbo RR / X3 Max X MR Turbo RR       Yes Yes Yes
    X3 X RC Turbo   Yes Yes Yes Yes
    X3 X RC Turbo RR       Yes Yes Yes
    X3 X RS Turbo R / X3 Max X RS Turbo R Yes Yes Yes Yes
    X3 X RS Turbo RR / X3 Max X RS Turbo RR       Yes Yes Yes

    FULLY ASSEMBLED DESIGN

    Some assembly required is not something you want to read when it comes to installing equipment that you may not be familiar with. Knowing this, MTX delivers your subwoofer and enclosure already assembled. This not only speeds up the install time but ensures the watertight seal around the woofer and reduces the risk of accidental damage during installation.


    HIGH OUTPUT SUBWOOFER

    The X3-17-SW-D includes the most powerful subwoofer MTX has ever used in an off-road enclosure ensuring its ability  to deliver the bass output X3 owners demand. The X3-17-SW-D is designed to work perfectly with the MTX MUD600-1 powersports amplifier.

    EASY TO INSTALL DESIGN

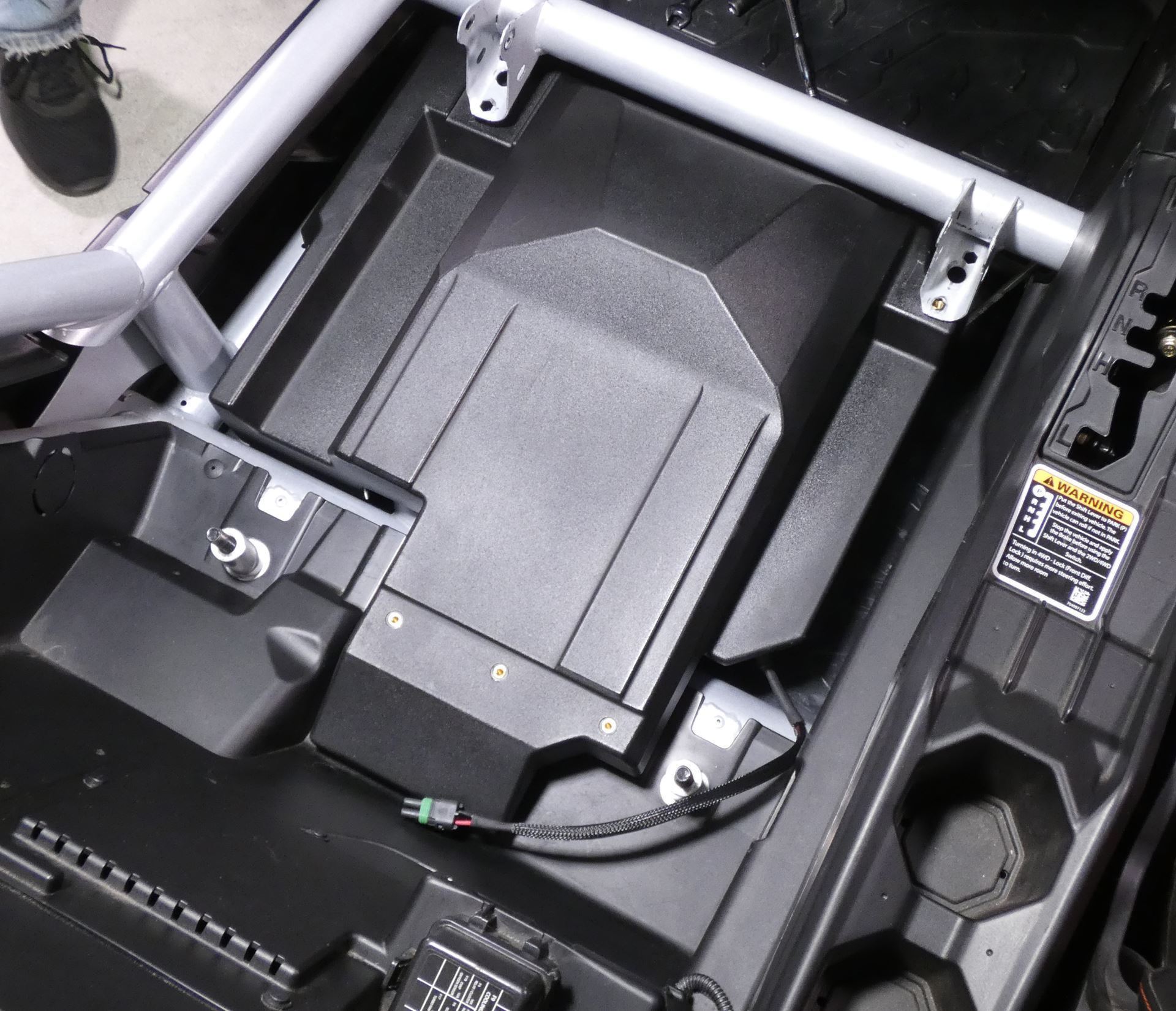

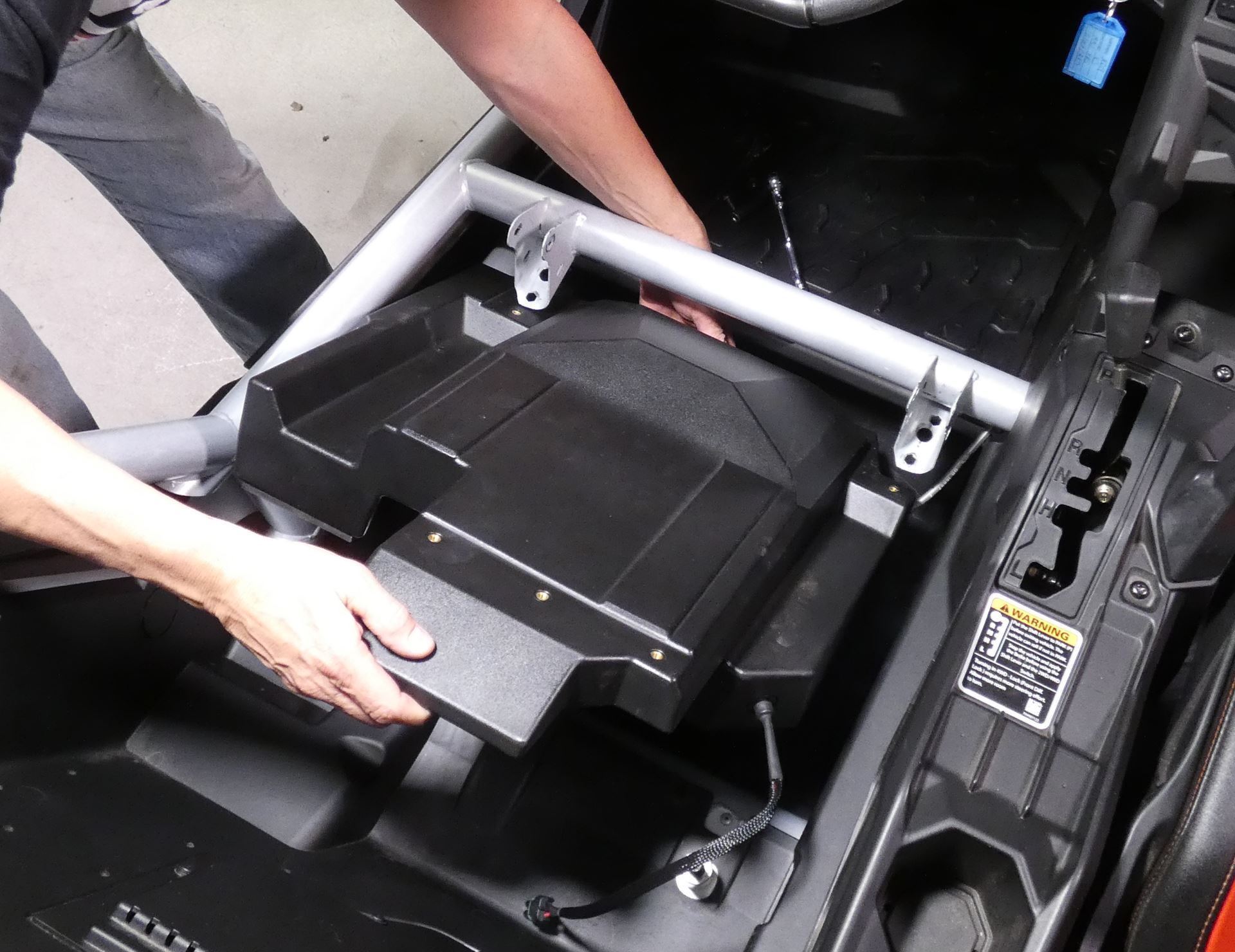

    Installation is made easy with our One Tool Installation System (O.T.I.S.) which reduces the install time and complexity eliminating the need for multiple tools or vehicle modification.

    INTEGRATED SOUND DAMPING

    The X3-17-SW-D incorporates a thick layer of high-density neoprene on the outside of the enclosure, placed along vital contact points with the vehicle. This material compresses against these surfaces during installation to mitigate vibration and potential rattle. This additionally improves the overall bass quality by eliminating body rattles when you decide to turn up the boom.

    PLUG AND PLAY DESIGN

    Featuring an integrated waterproof plug, the X3-17-SW-D is designed to plug directly into the provided wiring harness when installing it as part of one of our X3 audio kits.  If integrating into other audio systems, the plug can be removed for hard wire connections.



    Installation Videos

    X3-17-SW Installation
    FEATURES
    • Factory Matched Texture
    • Installer Friendly Design
    • Direct OEM Fit, No Cutting or Drilling Required
    • Sealed Waterproof Underseat Design
    • Does not Interfere With Seat Position or Height
    • One Tool Installation System (O.T.I.S.)
    SPECIFICATIONS
    Subwoofer 12"
    RMS Power (Watts) 300
    Sensitivity 84.4db (1W/1m)
    Frequency Response 23Hz - 130Hz
    Impedance
    SUPPORT FILES
    Owners Manual X3-17-SW Manual Addendum (1 page) 275 KB View | Download
    Owners Manual MTX006226_X3-17-SW-D_Manual.pdf (12 pages) 2 MB View | Download
