SKU: RANGERSYSTEM3

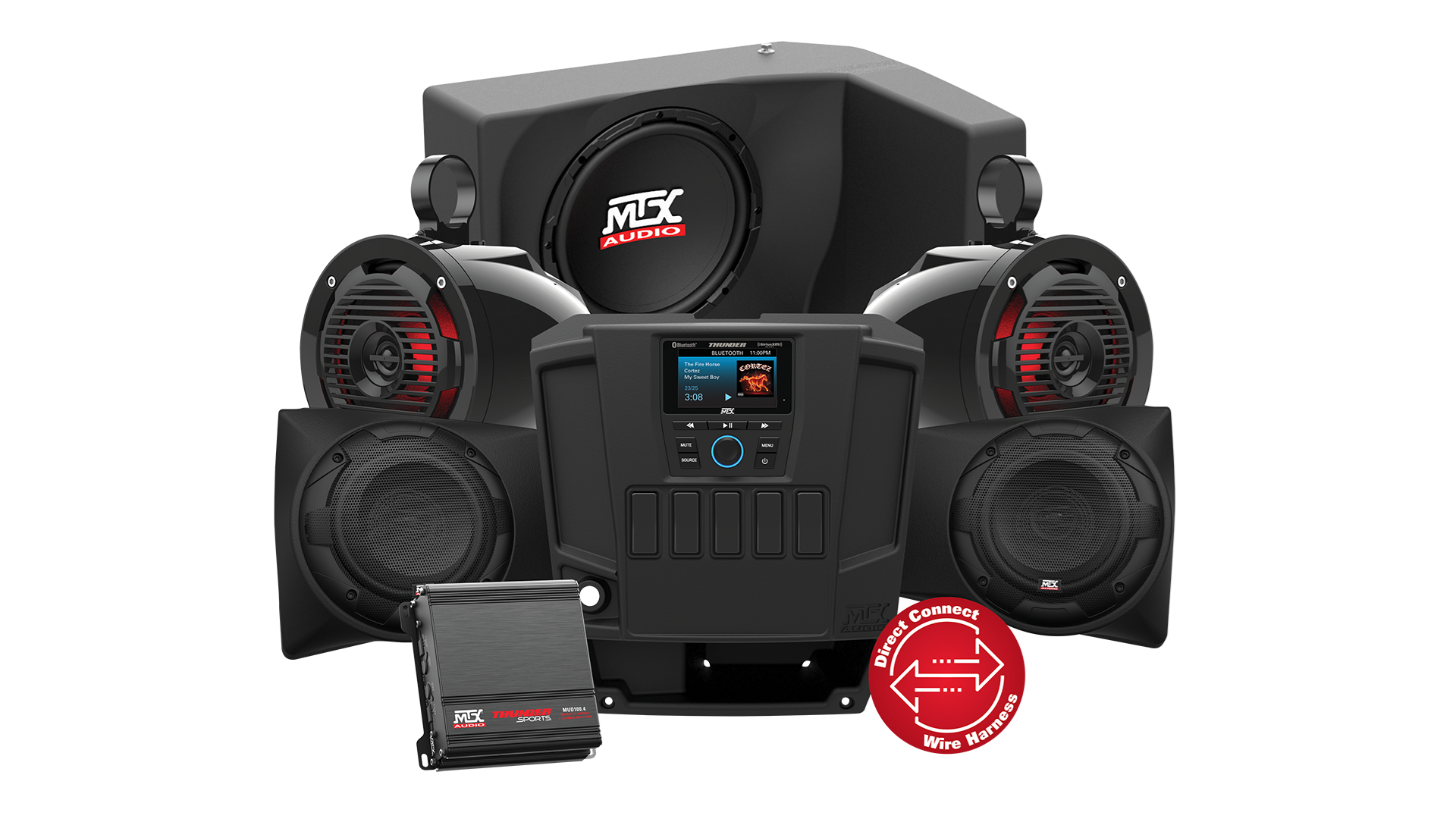

Four Speaker, Dual Amplifier, and Single Subwoofer Polaris RANGER Audio System

Availability: In stock
$1,899.95 MSRP
$1,659.95

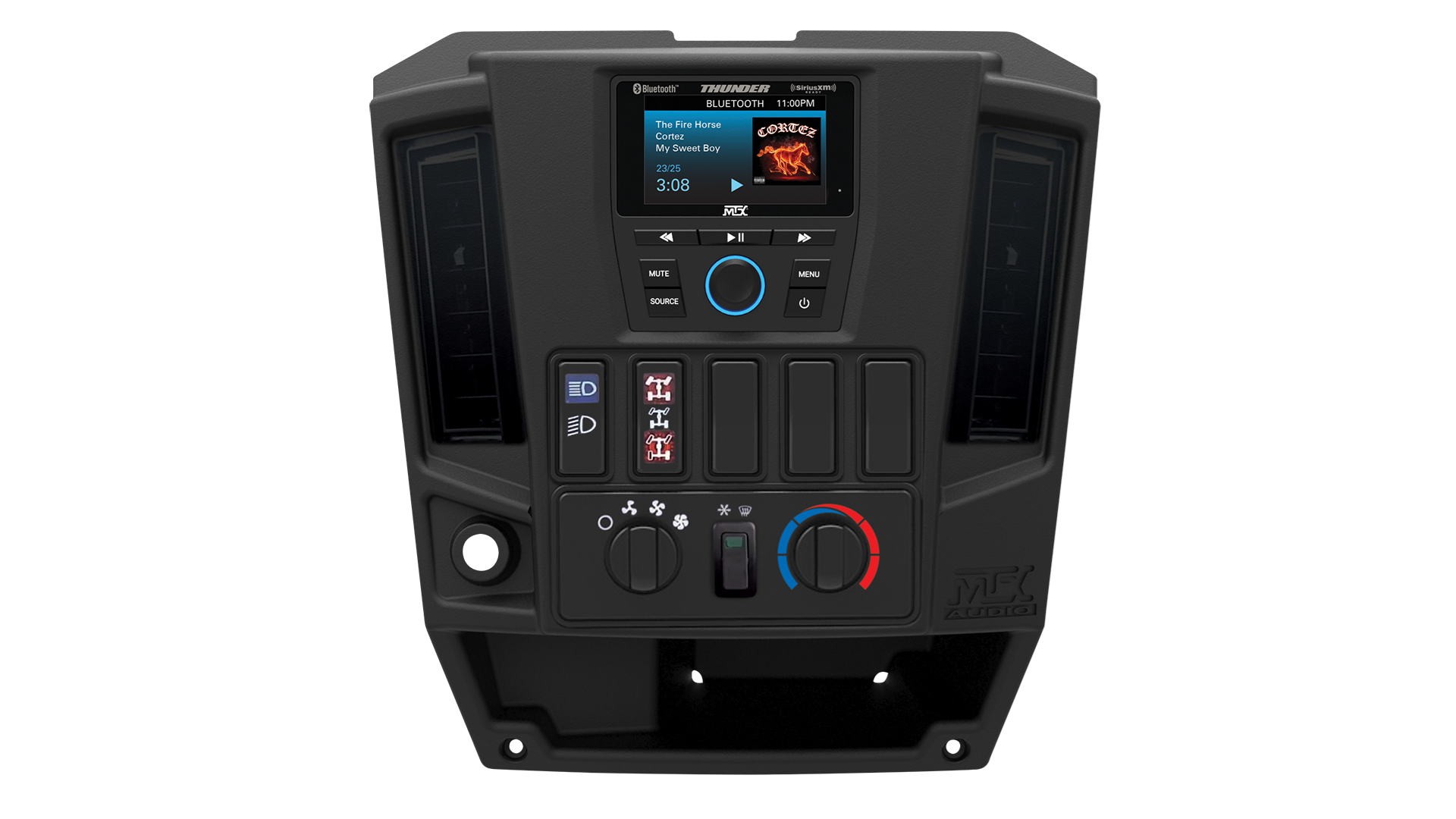

The RANGERSYSTEM3 was designed to have an OEM fit and finish but is 100% aftermarket in its performance. The AWMC3 installs directly into your RANGER dash with the included MUDRNGRDK dash kit while the RNGRPOD65 speaker enclosures mount without sacrificing any passenger space and the MUD65PL attach to the rear cage. The RANGER-10 amplified subwoofer enclosure mounts under the drivers seat and it's all connected with the included plug and play wiring harness.

*
*
*
*
*
*
*
*
Ask an expert Find a location
RANGERSYSTEM3 Overview
RANGERSYSTEM3 is a package that includes everything you need to take your RANGER from stock to extraordinary. This system includes all the hardware and accessories you need to install the entire system without having to drill or cut any part of your machine.

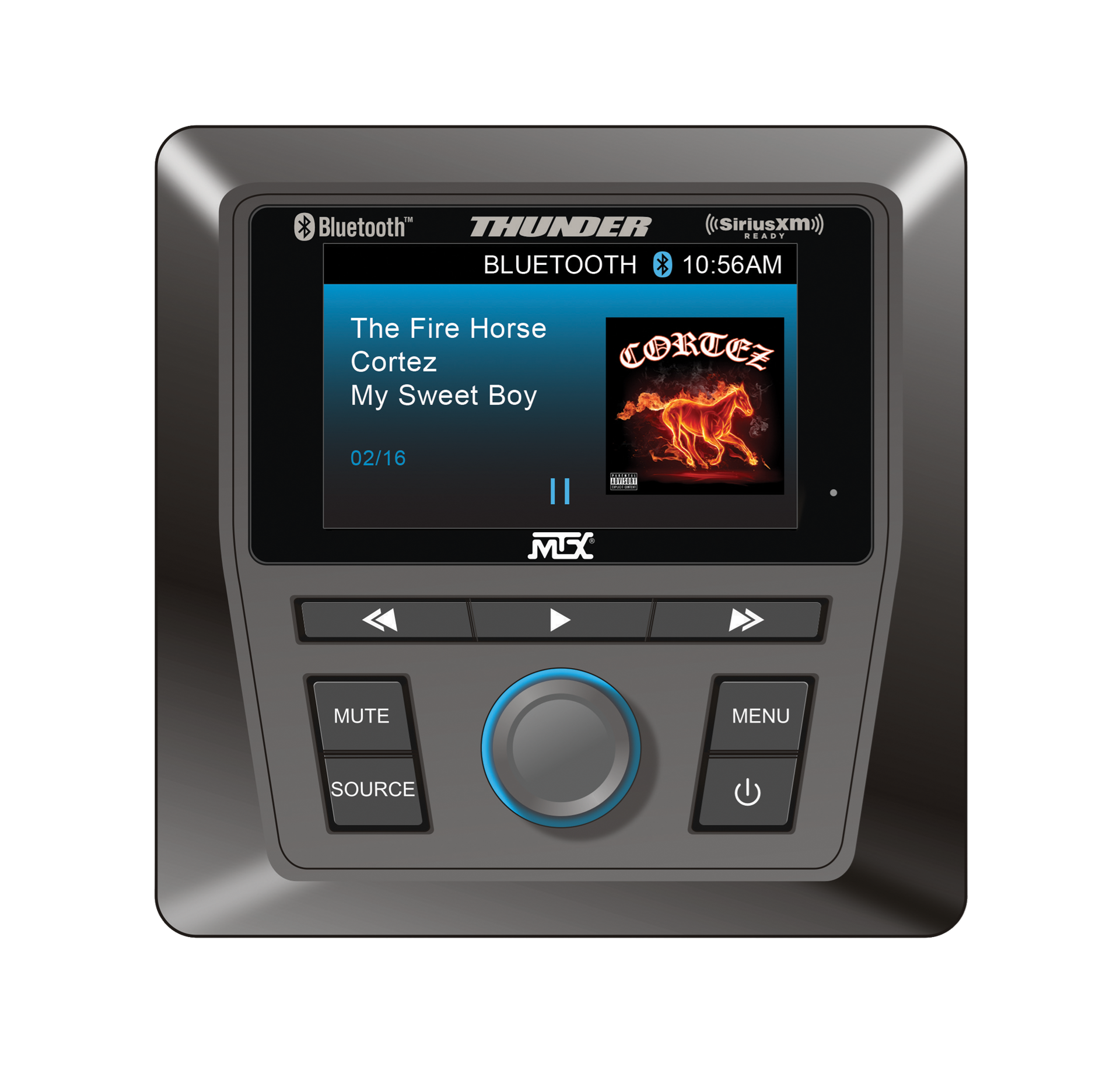

AWMC3 Key Features

  • 3" Full Color TFT Display
  • SiriusXM Radio Ready**
  • AM / FM / WB Tuner
  • Bluetooth Audio Streaming
  • Internal Power Amplifier
  • Weather Resistant (IP66)
  • 2 Sets of Preouts (Front / Rear)
  • Selectable EQ
  • Backlit Control Buttons

RNGRPOD65 Key Features

  • All-Weather Construction with UV Inhibitor
  • Custom Fit for RANGER Dash
  • No Cutting or Drilling Required
  • 6.5" Coaxial Speaker

MUD100.4 Key Features

  • Compact Design Enables Installation Anywhere
  • Conformal Coated Printed Circuit Board that Resists Moisture
  • Fixed Crossovers
  • High and Low Level Inputs
  • 400-Watts RMS Power

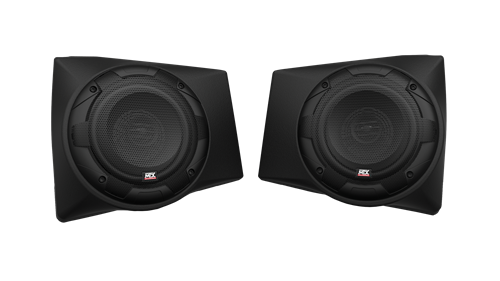

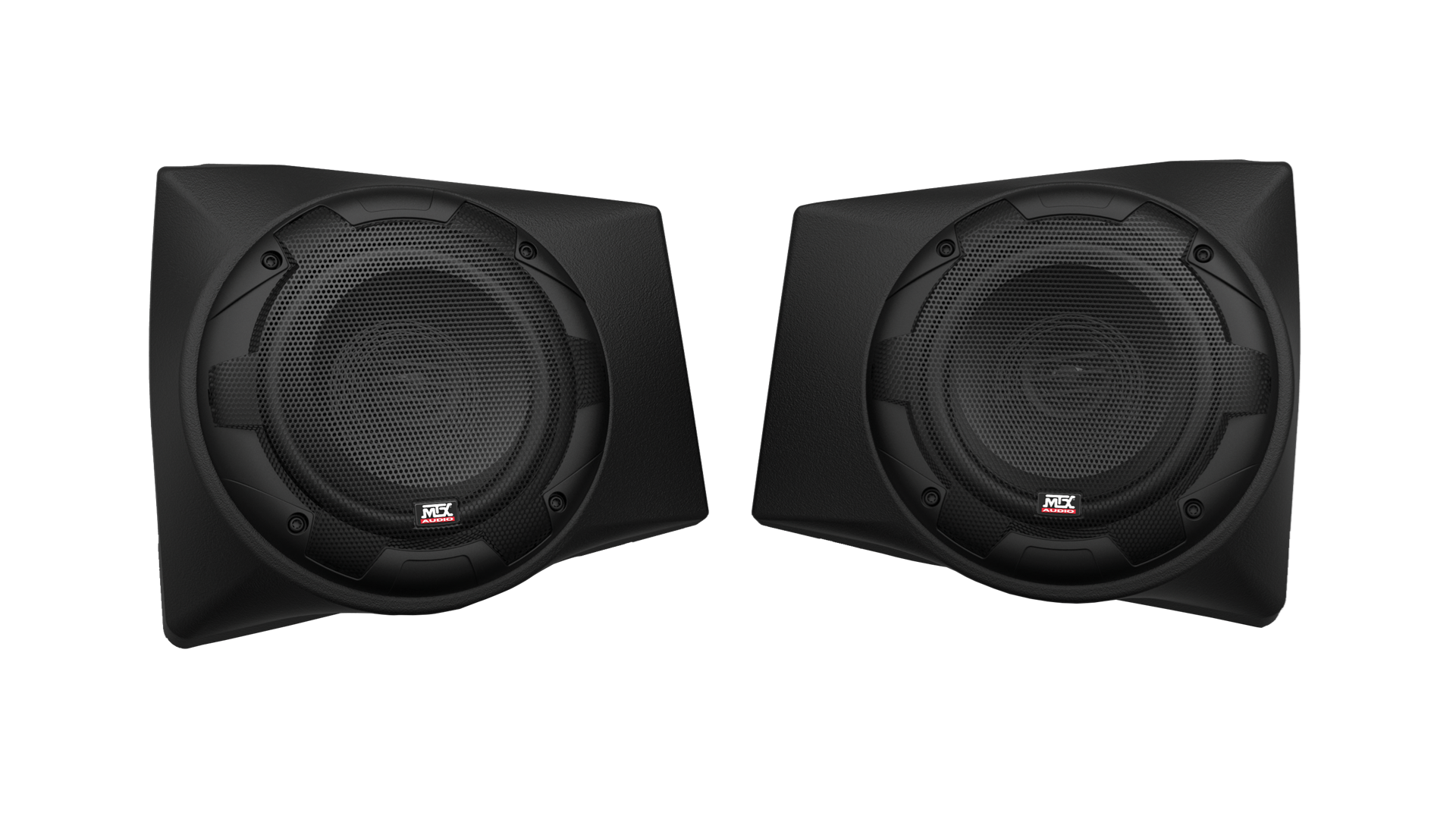

MUD65PL Key Features

  • Weather Resistant 6.5" Speaker Pods
  • Fits Bars with Diameters of 1.75", 1.85", and 2"
  • Internal Crossover Network
  • ABS Impact Resistant Grille with UV Inhibitor
  • Red LED In Grille

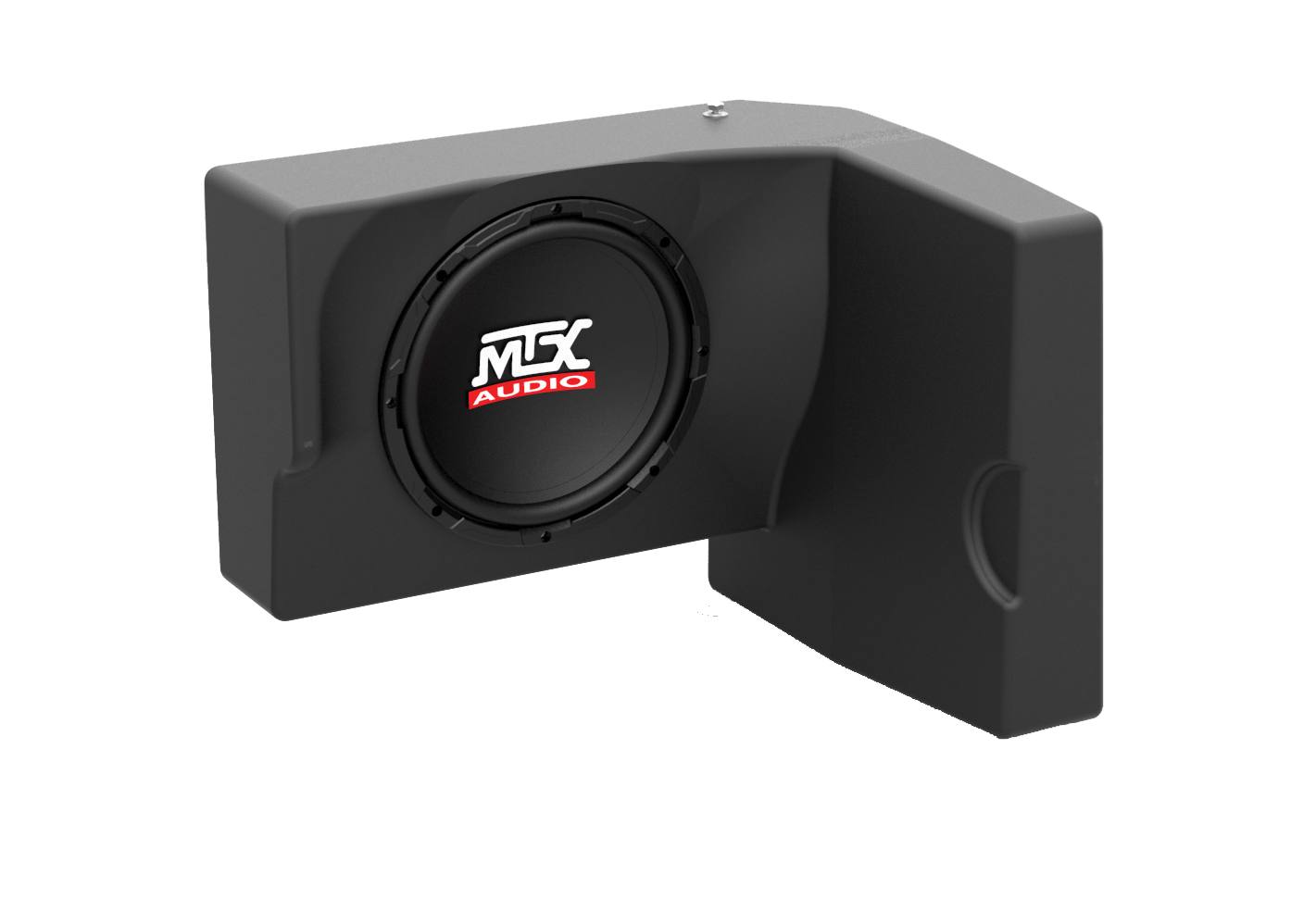

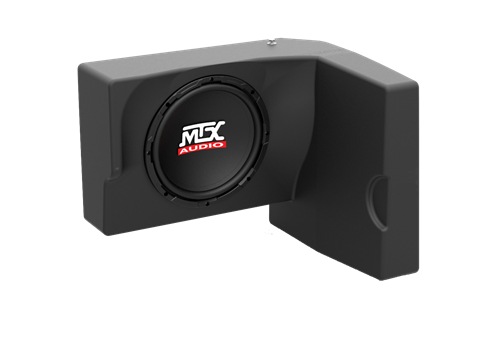

RANGER-10 Key Features

  • 10" Custom Fit Subwoofer Enclosure
  • Integrated 250-Watt RMS Amplifier
  • Low Level Input with External Gain Control
  • Mounts Underneath Driver's Seat on Select RANGER Models
RANGERSYSTEM3 Fit Guide

MODEL201420152016201720182019
500 Yes Yes Yes Yes No No
570 FULL-SIZE Yes Yes Yes Yes Yes No
XP900 Yes Yes Yes Yes Yes No
XP1000 EPS Yes Yes Yes Yes No No
XP1000 EPS HIGH LIFTER No No Yes Yes No No
EV / EV LI-ION No No No No No No
DIESEL No No No No No No
CREW 570-6 Yes Yes Yes Yes Yes No
CREW 570-4 No No No No No No
CREW XP1000 Yes Yes Yes Yes No No
CREW XP900 Yes Yes Yes Yes Yes No
CREW DIESEL No No No No No No

Dimensions & Details

Downloads

  • Installation Sheet - RNGRHARNESS3 Installation Manual (4 pages)
