Level 2 Premium Sound

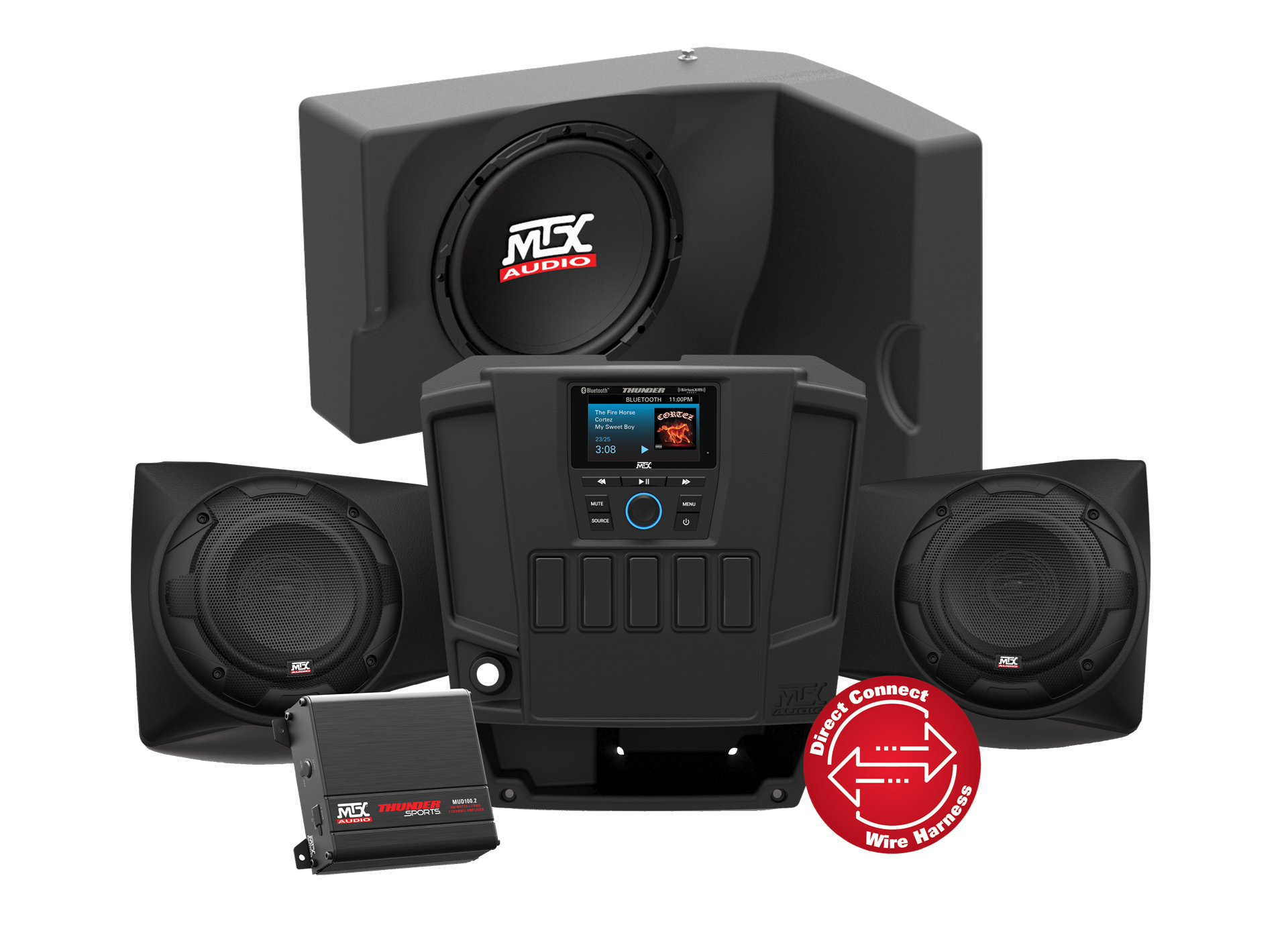

The RANGERSYSTEM2C is a package that includes everything you need to put awesome sound in your RANGER. This system includes all the hardware and accessories you need to install the entire system without having to drill or cut any part of your machine. The package includes the following parts:

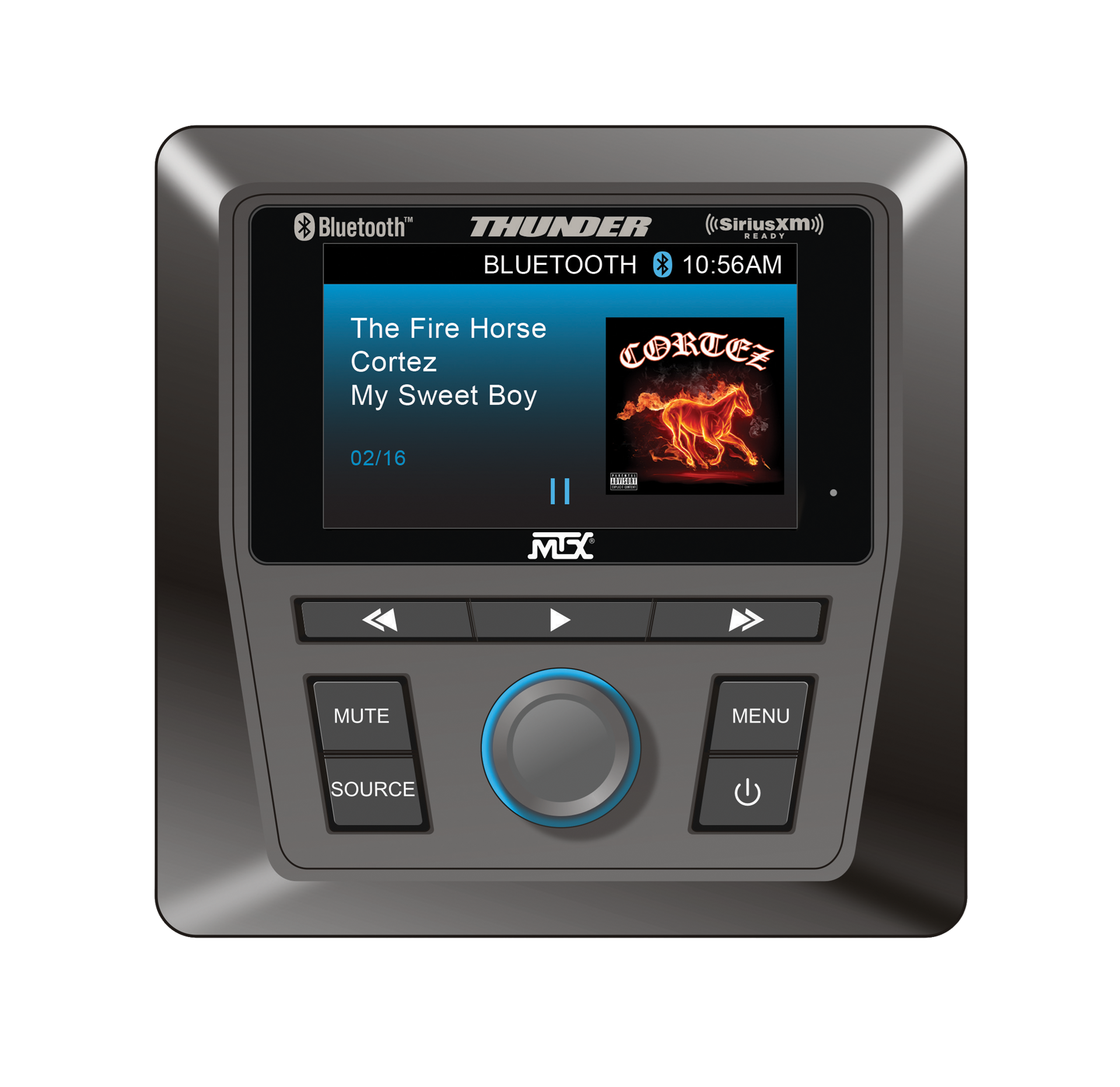

- AWMC3 All-Weather Head Unit with Integrated Amplifier

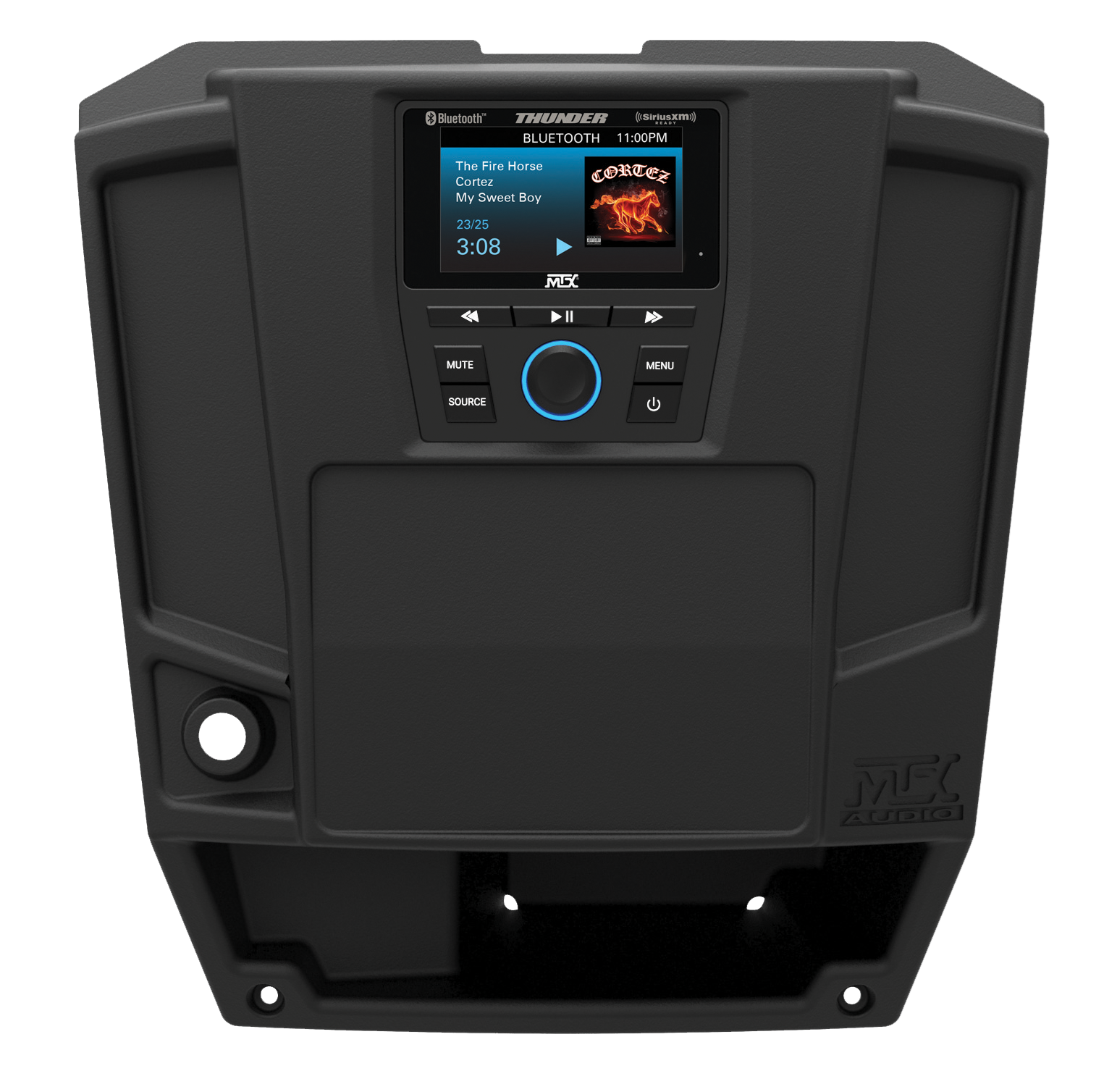

- MUDRNGRDK Direct Fit Dash Kit for Mounting AWMC3 in RZR Dash*

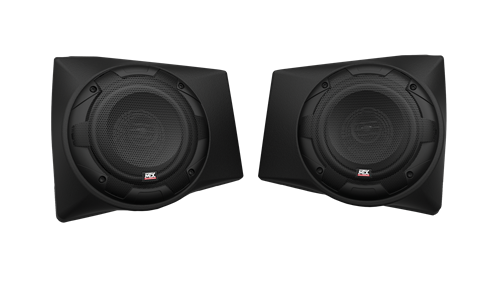

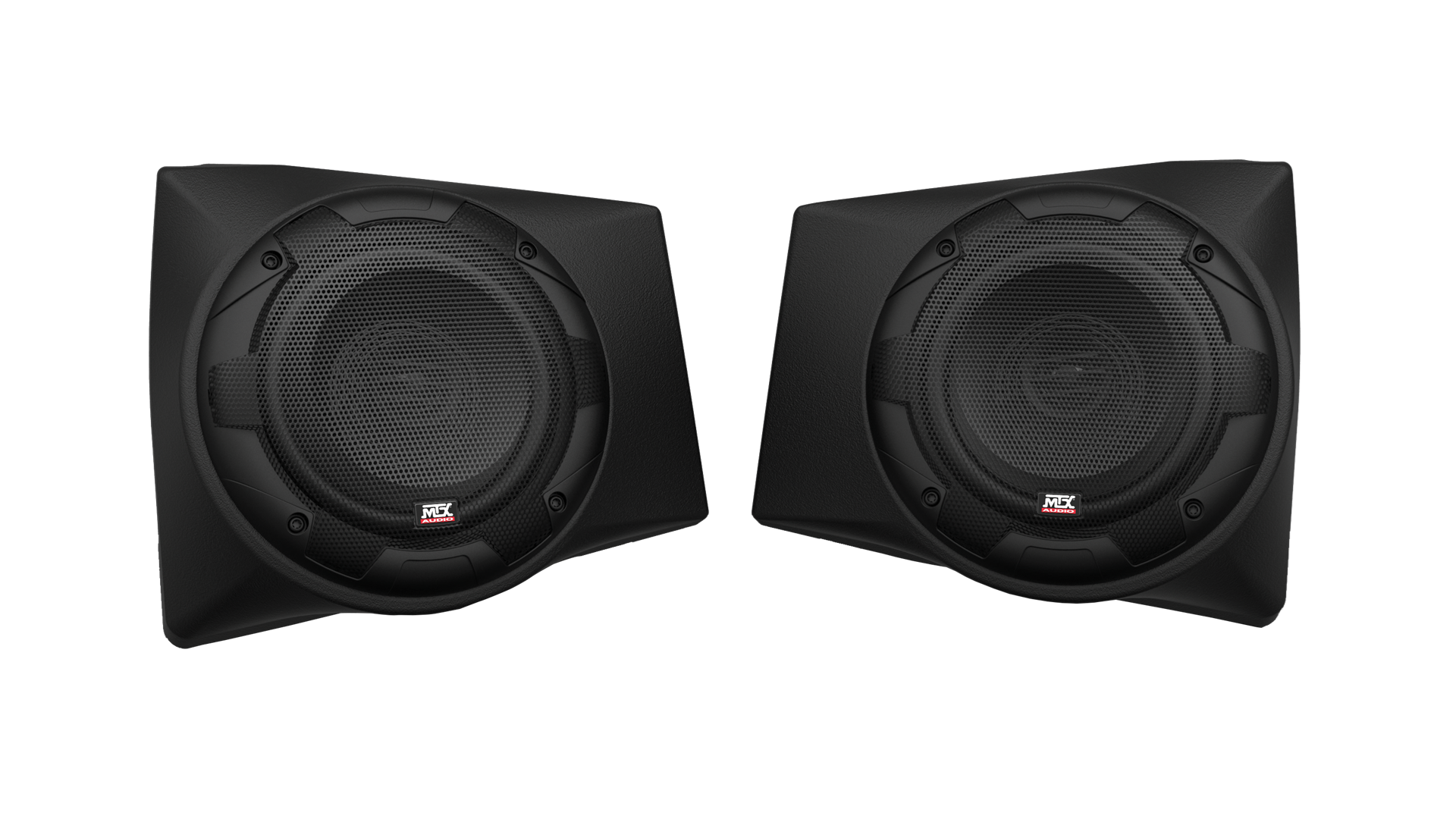

- RNGRPOD65 All-Weather Dash Mount 6.5" Speakers and Pods

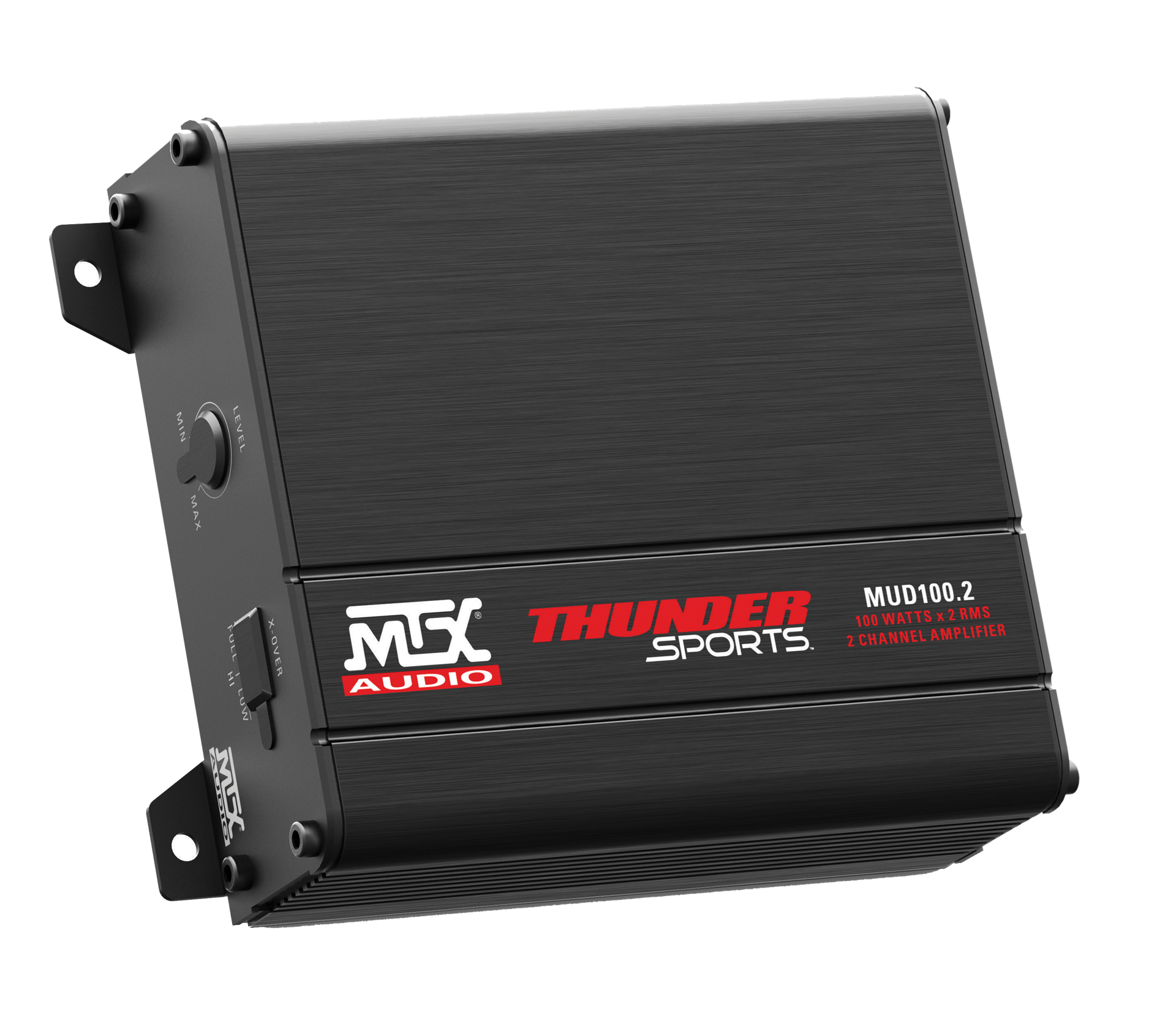

- MUD100.2 200-Watt, 2-Channel All-Weather Amplifier

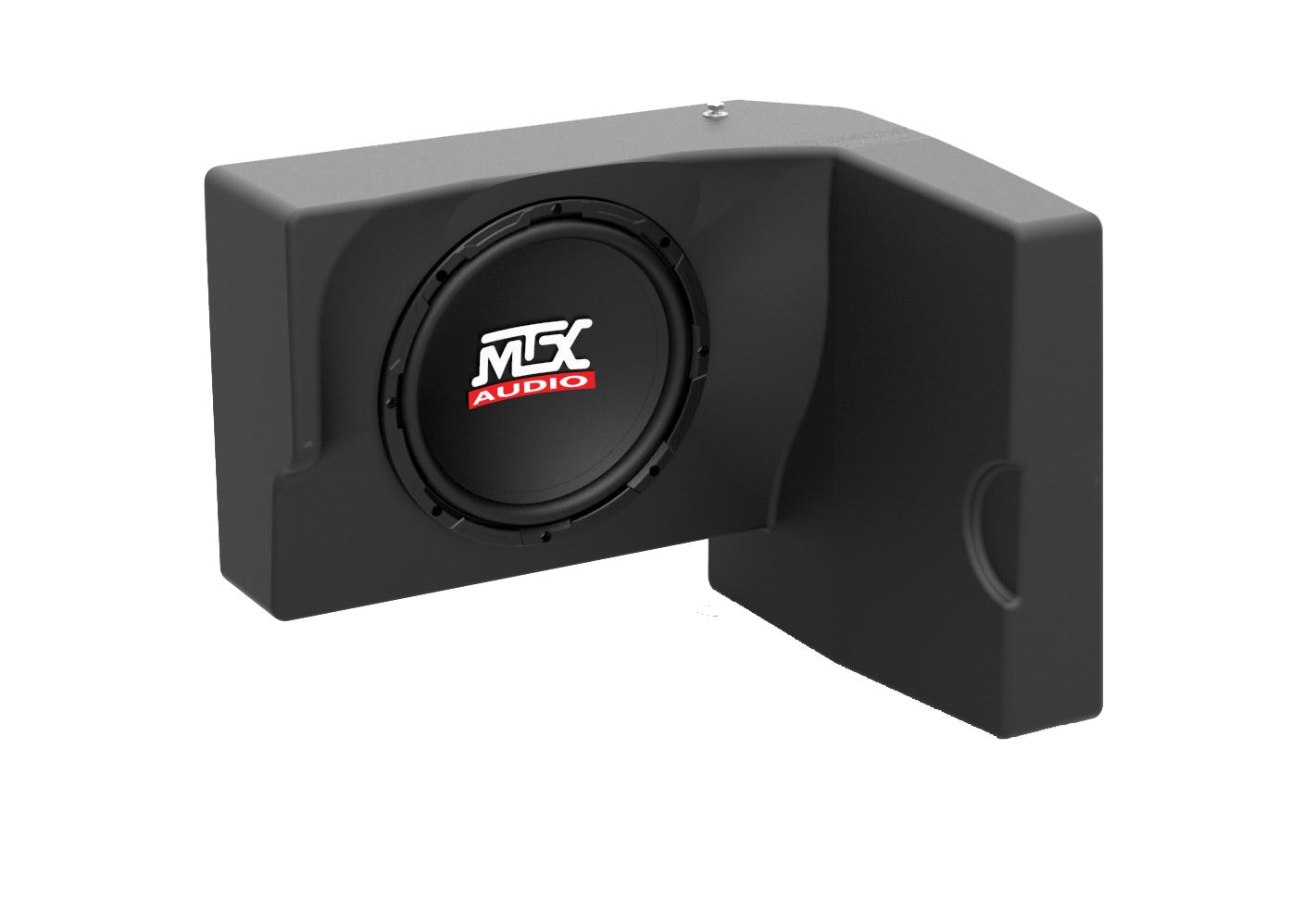

- RANGER-10 Direct Fit 10", 250-Watt Amplified Subwoofer Enclosure
- RNGRHARNESS2 Wiring for Connecting All Hardware
Key Features
AWMC3
- 3" Full Color TFT Display
- SiriusXM Radio Ready
- AM / FM / WB Tuner
- Bluetooth Audio Streaming
- Internal 4 x 50 Watt Power Amplifier
- Weather Resistant (IP66)
- 2 Sets of Preouts (Front / Rear)
- Selectable EQ
- Backlit Control Buttons
RNGRPOD65
- All-Weather Construction with UV Inhibitor
- Custom Fit for RZR Dash
- No Cutting or Drilling Required
MUD100.2
- Compact Design Enables Installation Anywhere
- Conformal Coated Printed Circuit Board that Resists Moisture
- Fixed Crossovers
- High and Low Level Inputs
RANGER-10
- Integrated 250-Watt RMS Amplifier
- Low Level Input with External Gain Control
- Mounts Underneath Drivers seat on Select RANGER Models
All-Weather Design
Each product in the RANGERSYSTEM2C is designed to withstand anything you may encounter in nature including wind, sand, rain, snow, sleet, and any other kind of foul weather you might find yourself riding in. The dash speaker pods and subwoofer enclosure are rotationally molded ensuring they are extremely durable. All amplifiers in the system are weather resistant and include covers for all controls that prevent moisture intrusion. The AWMC3 head unit can be used in any environment and its large rubber buttons make it easy to operate under even the most adverse conditions.
RANGERSYSTEM2C Fit Guide
| MODEL | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 |
|---|
| 500 |
Yes |
Yes |
Yes |
Yes |
No |
No |
| 570 FULL-SIZE |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
| XP900 |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
| XP1000 EPS |
Yes |
Yes |
Yes |
Yes |
No |
No |
| XP1000 EPS HIGH LIFTER |
No |
No |
Yes |
Yes |
No |
No |
| EV / EV LI-ION |
No |
No |
No |
No |
No |
No |
| DIESEL |
No |
No |
No |
No |
No |
No |
| CREW 570-6 |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
| CREW 570-4 |
No |
No |
No |
No |
No |
No |
| CREW XP1000 |
Yes |
Yes |
Yes |
Yes |
No |
No |
| CREW XP900 |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
| CREW DIESEL |
No |
No |
No |
No |
No |
No |
