SKU: PS800.4

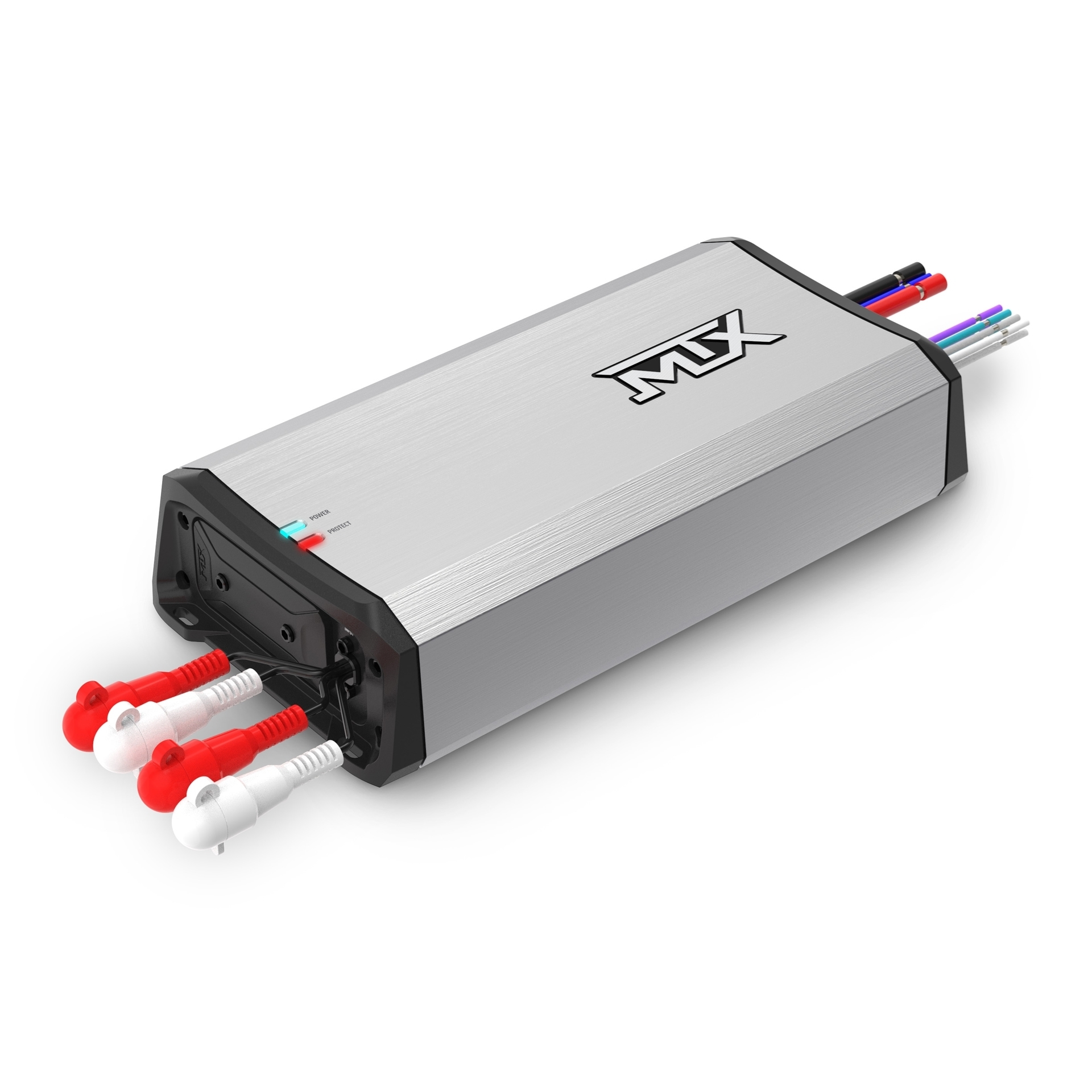

800-Watt RMS Full Range Class-D Powersports Amplifier

Availability: In stock
$549.95 MSRP
$499.95

All Channels. All Weather. All Out.

The PS800.4 Powersports Amplifier delivers clean, powerful sound across your entire system. With 4 channels of full-range Class-D power in a compact, weatherproof design, it’s built to drive your speakers hard and keep the music going wherever you ride.

Ask an expert Find a location

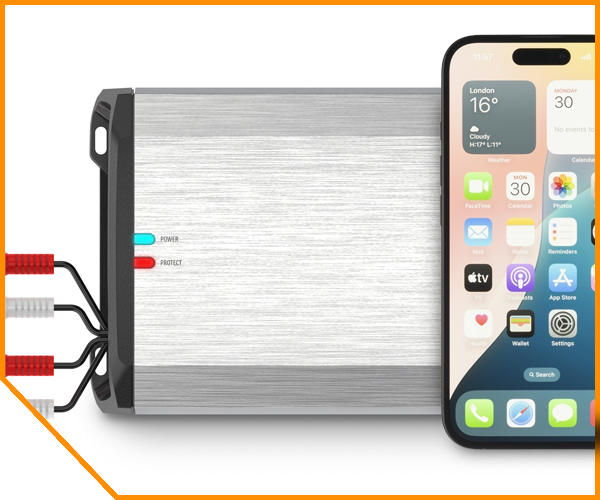

Compact Powerhouse

Compact Powerhouse

At just under 10 inches wide, the PS800.4 fits easily into tight installations while still delivering 200 watts RMS per channel at 2Ω. Its efficient Class-D circuit design means you get big sound without putting unnecessary strain on your electrical system.

Built for the Outdoors

Built for the Outdoors

IP67-rated against dust and water, the PS800.4 is engineered to handle the harshest environments. From desert trails to muddy backroads, stainless steel hardware and a sealed chassis keep it performing no matter where you ride.

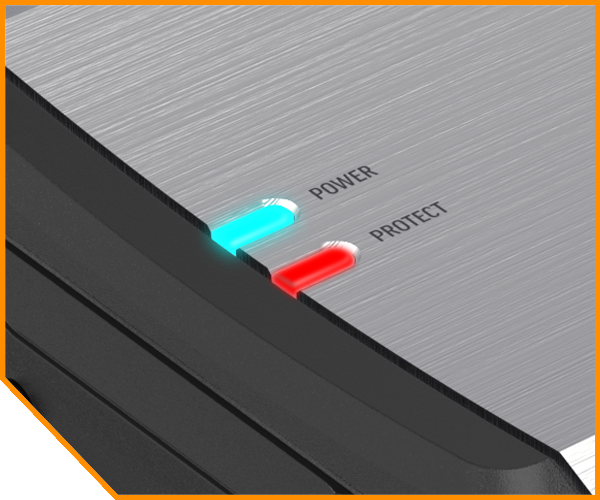

Smart Protection & Reliability

Smart Protection & Reliability

LED status indicators and built-in safeguards against thermal overload, short circuits, and voltage fluctuations ensure reliable performance every time. With CTA-2006-D certification, the PS800.4 delivers honest power that lives up to the numbers.

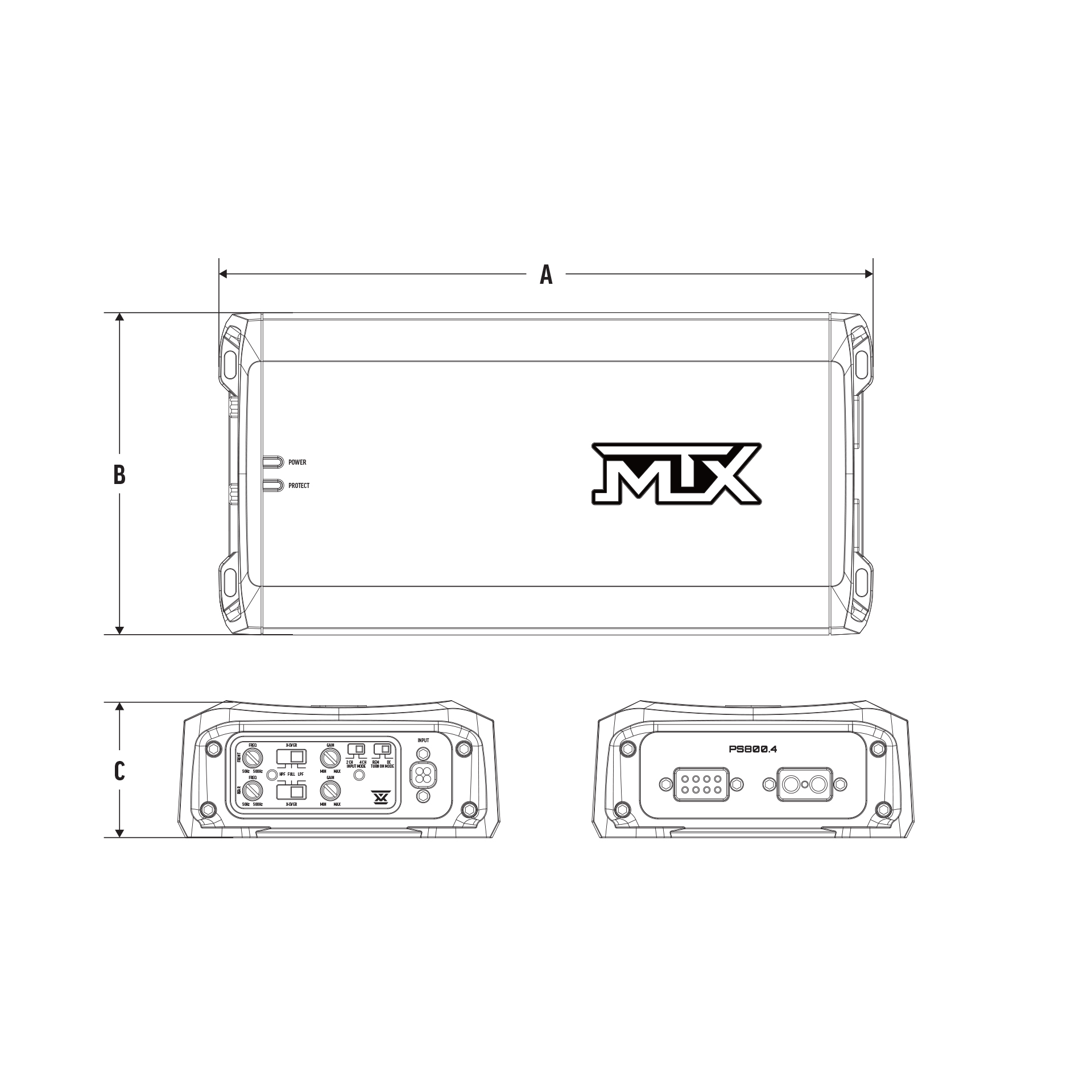

Dimensions & Details

Dimensions

  • A - Length:
    9 ⁵⁄₈” (244mm)
  • B - Width:
    4 ¹¹⁄₁₆" (119mm)
  • C - Depth:
    2" (51mm)
PS800.4 Dimensions

Features

  • Reliable and Efficient Full Range Class-D Circuit Design
  • IP67 Rated Against Water and Dust
  • Small Size Footprint for Easy Installation
  • Surface Mount Component Technology

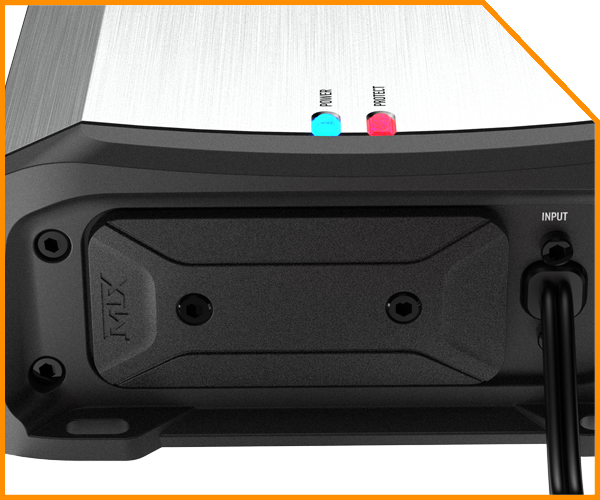

  • Power and Protection LED Light Status Indicators
  • Short, Thermal, and Under / Over Voltage Protection
  • DC Offset Auto Turn On
  • 10V High-Level Audio Input Compatibility

Ratings

  • IP67 Rated
  • CEA2006D compliant
  • RECOMMENDED FUSE RATING: 100A

SPECIFICATIONS

  • Description: Full Range
  • Topology: Class D
  • 2Ω RMS Power Output: 200W x 4 Channels
  • 4Ω RMS Power Output: 100W x 4 Channels
  • 4Ω RMS Bridged Power Output : 400W x 2 Channels
  • THD: < 0.8%
  • Signal to Noise Ratio: > 98dB
  • Frequency Response: 20Hz - 20kHz
  • Crossover: 50Hz - 500Hz
  • Maximum Input Signal: 10V
  • Warranty Period: 24 months from date of purchase

Downloads

Returns & Warranty

30-Day Money-Back Guarantee

At MTX Audio, we are serious about sound®. Therefore, if you are not "blown away" with your purchase, for any reason, you can return any items purchased directly from MTX.com that are complete and like new within 30 days. Products purchased from authorized MTX retailers must be returned through that same retailer. Products purchased through non-authorized MTX retailers may not be returned.

About Returns
Warranty Information

The warranty for PS800.4 is 24 months from the date of purchase.

MTX products purchased in the USA from an authorized MTX dealer are guaranteed against defects in material and workmanship for the period of time specified below, the warranty period begins the day the product is purchased by the end user. This warranty is limited to the original retail purchaser of product and extends only to products purchased from authorized MTX resellers. Product found to be defective during that period will be repaired or replaced by MTX at no charge.
