SKU: RZR-14RC-THUNDER3

3-Speaker Audio System for 2014+ Polaris RZR Vehicles w/RideCommand

3-speaker amplified audio system for 2014+ Polaris RZR vehicles w/RideCommand



  • OEM Fit
  • Bluetooth Enabled
  • UV Resistant
  • IP66 Rated
    1,869.94
    170.00
    1,699.95
    Share this MTX page...
    RZR-14RC-THUNDER3 Overview

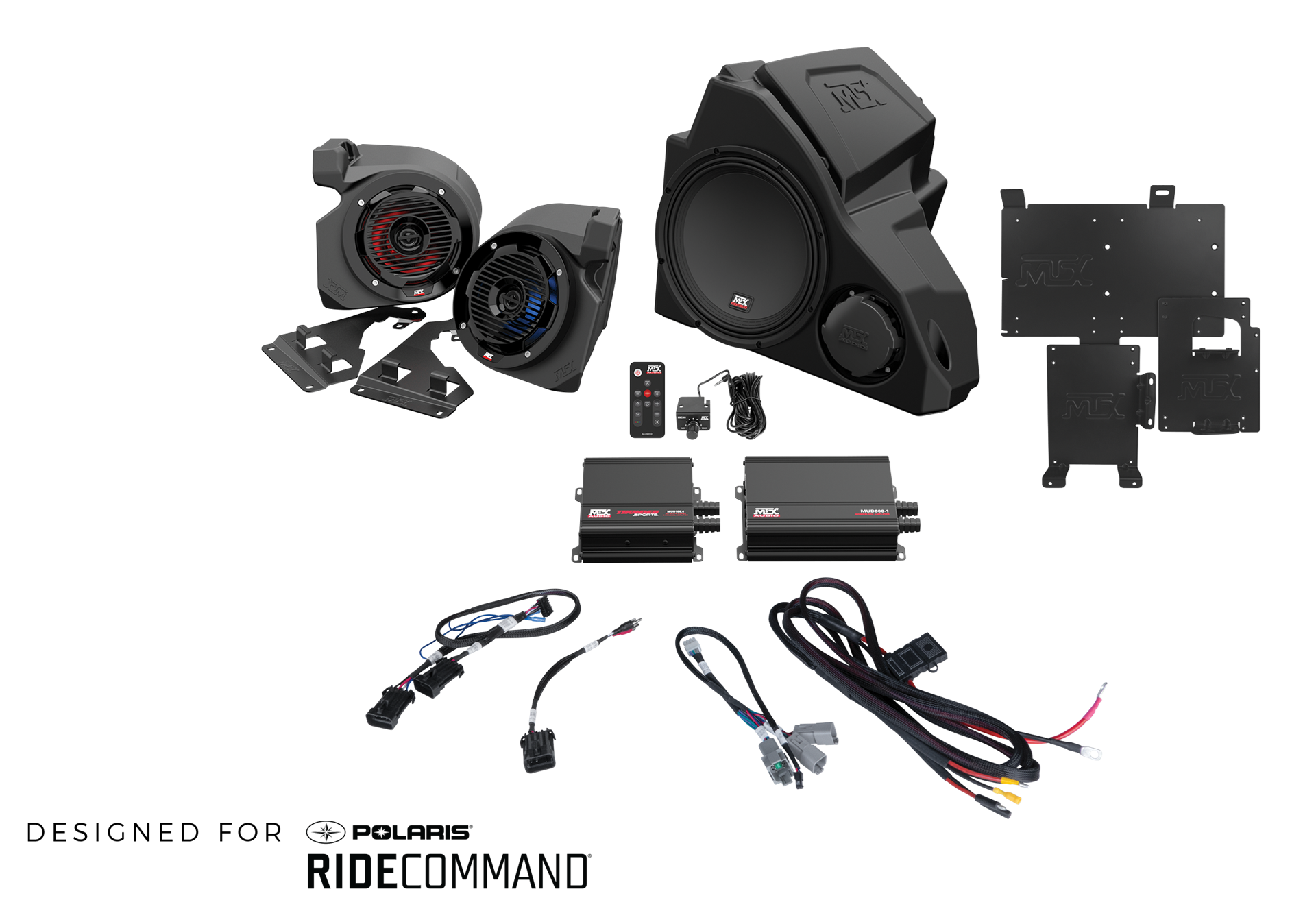

    The RZR-14RC-THUNDER3 audio kit is a complete plug and play 3-speaker audio system designed for the Polaris RZR platform. This kit fits models that have installed RideCommand systems*. It incorporates a direct connect harness allowing use of the RideCommand as a source unit with the RZR-14-FS front speaker pods featuring integrated RGB lighting and the RZR-14-SW subwoofer enclosure. The included MUD100.4 4-channel amplifier and a MUD600-1 monoblock amplifiers connect to the Ride Command system and provide power to all speakers via integrated harnesses that simplifies the installation, which gets you get out of the garage and back to riding quicker. *Not Compatible with Pro XP/ Pro R Model RZR’s or existing factory audio systems.
    RZR-14RC THUNDER3 Installed
    MTX RZR kits are compatible with the following RZR models:
    Non-Pro XP Models201420152016201720182019202020212022
    RZR 900   Yes Yes Yes Yes Yes
    RZR 900 XC   Yes Yes Yes
    RZR 2 900 EPS   Yes Yes Yes Yes Yes
    RZR 4 900 EPS   Yes Yes Yes Yes
    RZR S 900   Yes Yes Yes Yes Yes Yes
    RZR S 1000       Yes     Yes
    RZR S4 1000             Yes
    RZR XP 1000 Yes Yes Yes Yes Yes Yes Yes Yes Yes
    RZR XP Turbo     Yes Yes Yes Yes Yes Yes
    RZR XP Turbo S         Yes Yes Yes Yes
    RZR XP Dynamix Edition         Yes Yes
    RZR XP 4 1000 Yes Yes Yes Yes Yes Yes Yes Yes Yes
    RZR XP 4 Turbo     Yes Yes Yes Yes Yes Yes
    RZR XP 4 Turbo S         Yes Yes Yes Yes
    RZR XP 4 Turbo Dynamix Edition         Yes Yes
    RZR XP 1000 Trails and Rocks           Yes Yes Yes Yes
    RZR XP 1000 High Lifter   Yes Yes Yes Yes Yes Yes Yes Yes
    RZR XP 4 1000 High Lifter     Yes Yes Yes Yes Yes Yes Yes
    RZR Trail [Sport, Premium, Ultimate]             Yes Yes Yes
    RZR Trail 5 [Sport, Premium, Ultimate]             Yes Yes Yes

    *Not Compatible with Pro XP/ Pro R Model RZR’s or existing factory audio systems.

    **Non-RC RZR models must have dash dry box, Polaris part number 5439789-070, for dash mount kit to work

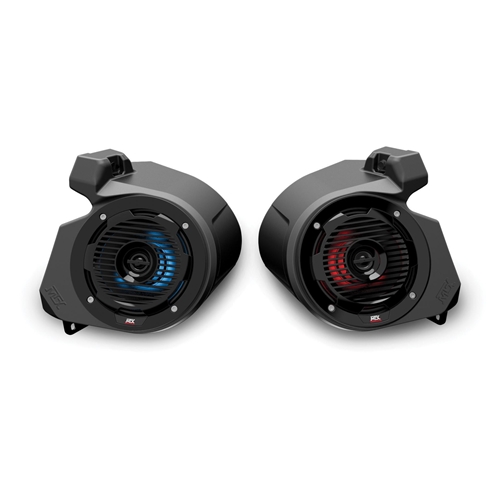

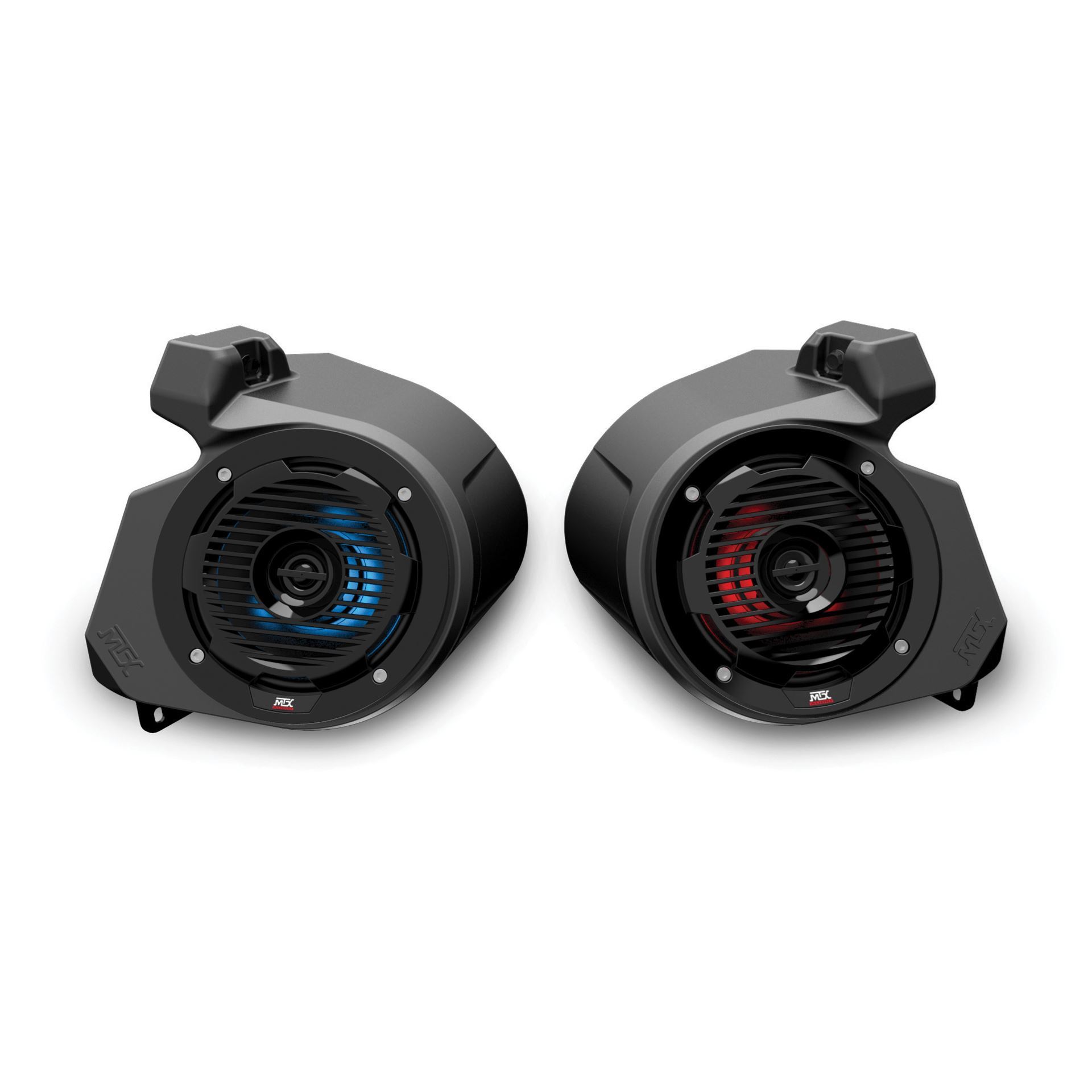

    RZR-14-FS Key Features

    • All-Weather Construction with UV Inhibitor
    • Custom Fit for RZR Kick Panel
    • No Cutting or Drilling Required
    • 6.5" Coaxial Speaker
    • 50-Watt RMS Power
    • Integrated RGB Lighting
    • Custom Quick Mount Bracket with POD-LOC Technology for Easy Installation

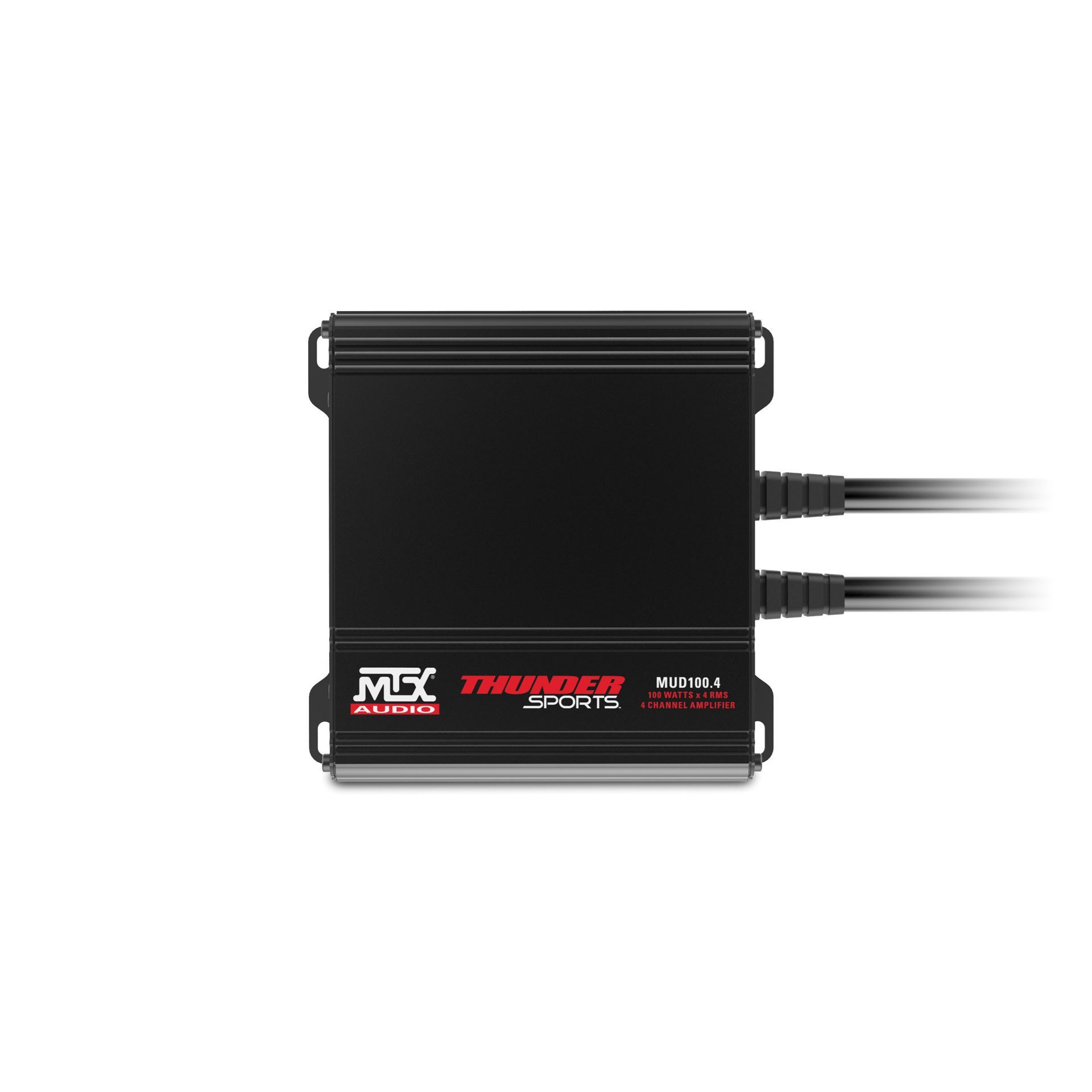

    MUD100-4 Key Features

    • Compact Design Enables Installation Anywhere
    • Conformal Coated Printed Circuit Board that Resists Moisture
    • Fixed Crossovers
    • High and Low Level Inputs
    • 400-Watts RMS Power

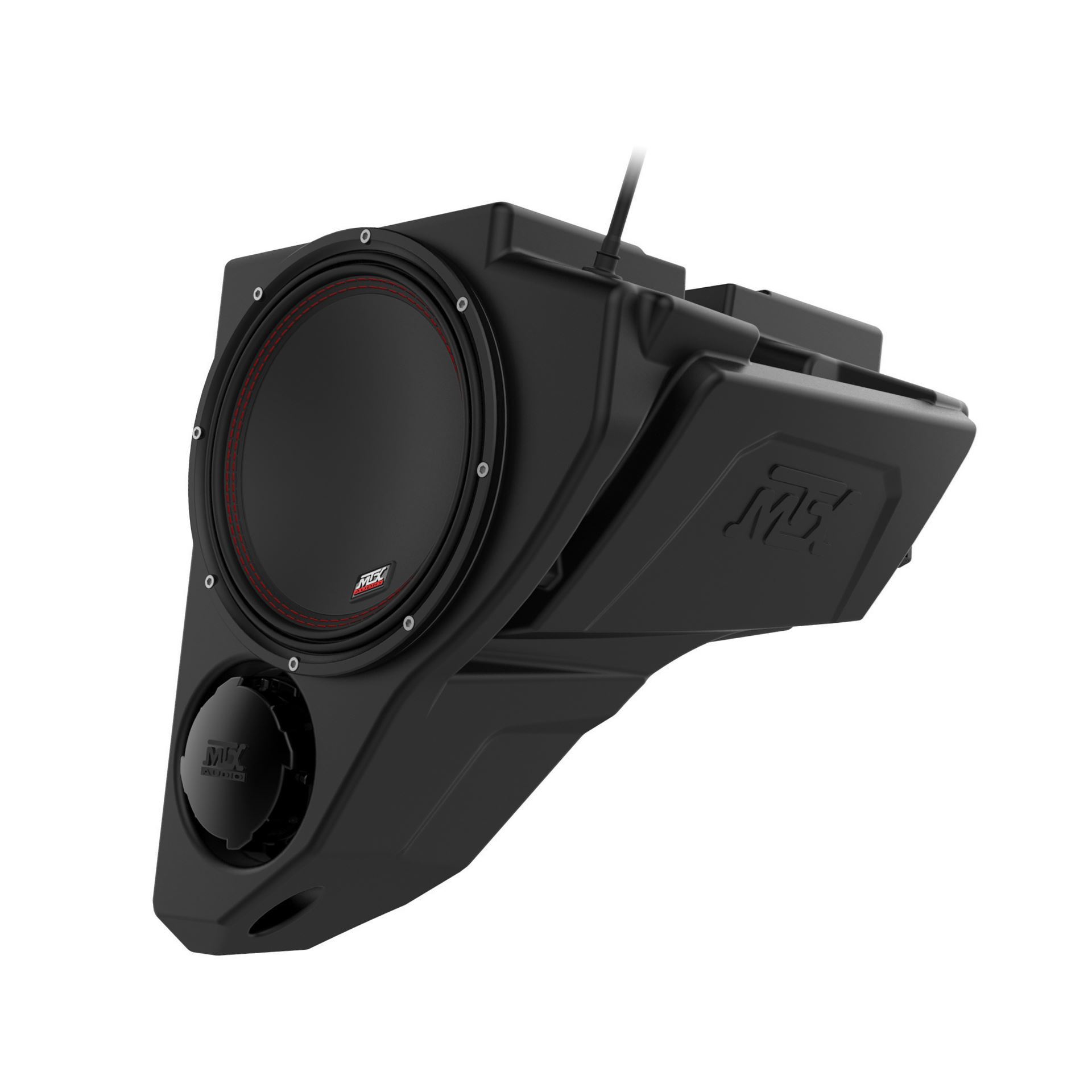

    RZR-14-SW Key Features

    • 10" Custom Fit Subwoofer Enclosure
    • 400-Watt RMS Power
    • Sealed or Ported Functionality
    • QuIPS (Quick Install Port Seal) Technology
    • Mounts Behind Dashboard on Select RZR Models

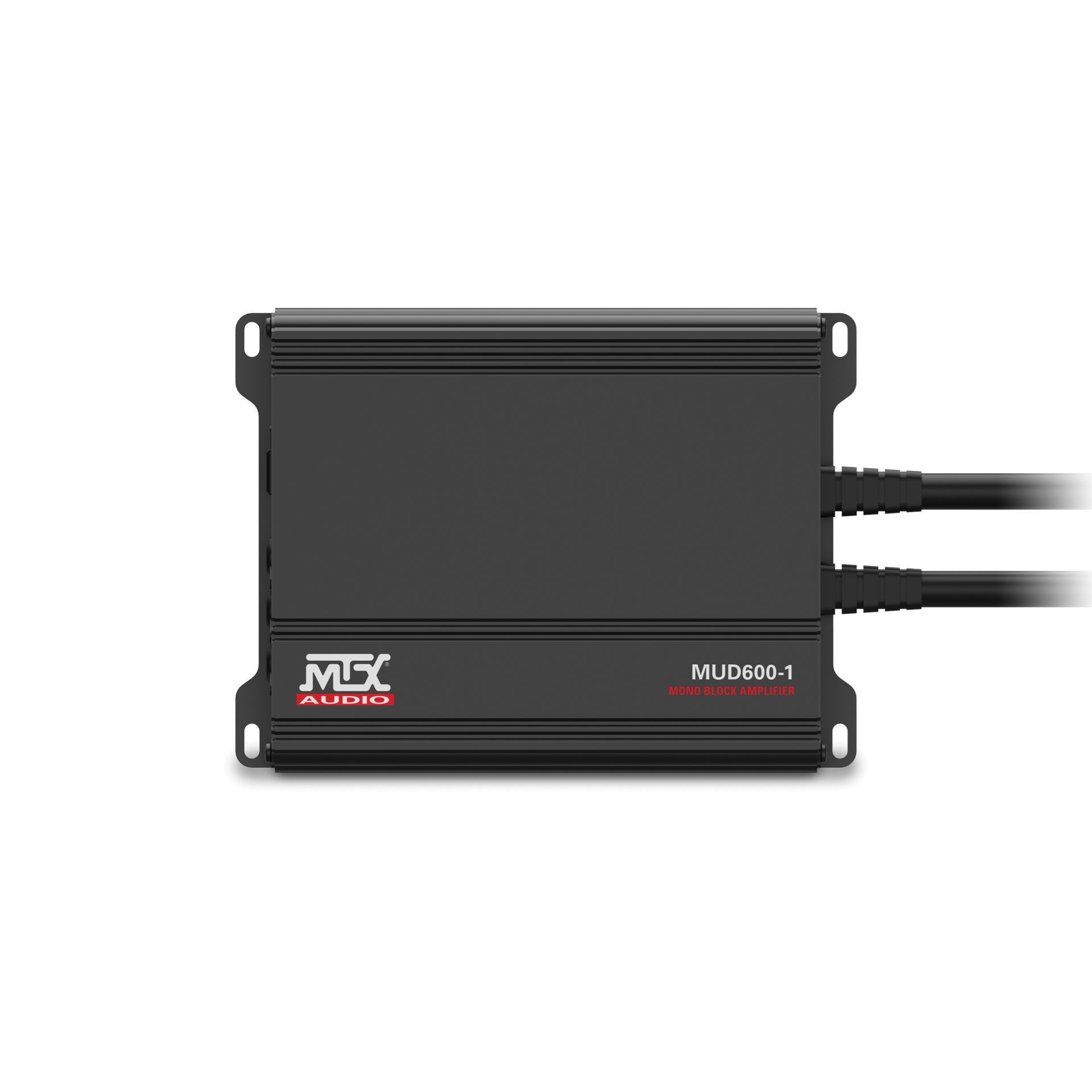

    MUD600-1 Key Features

    • High Efficiency Class D Topology
    • Compact Design Enables Installation Anywhere
    • Conformal Coated Printed Circuit Board that Resists Moisture
    • Fixed Crossovers
    • High and Low Level Inputs
    • 600-Watts RMS Power

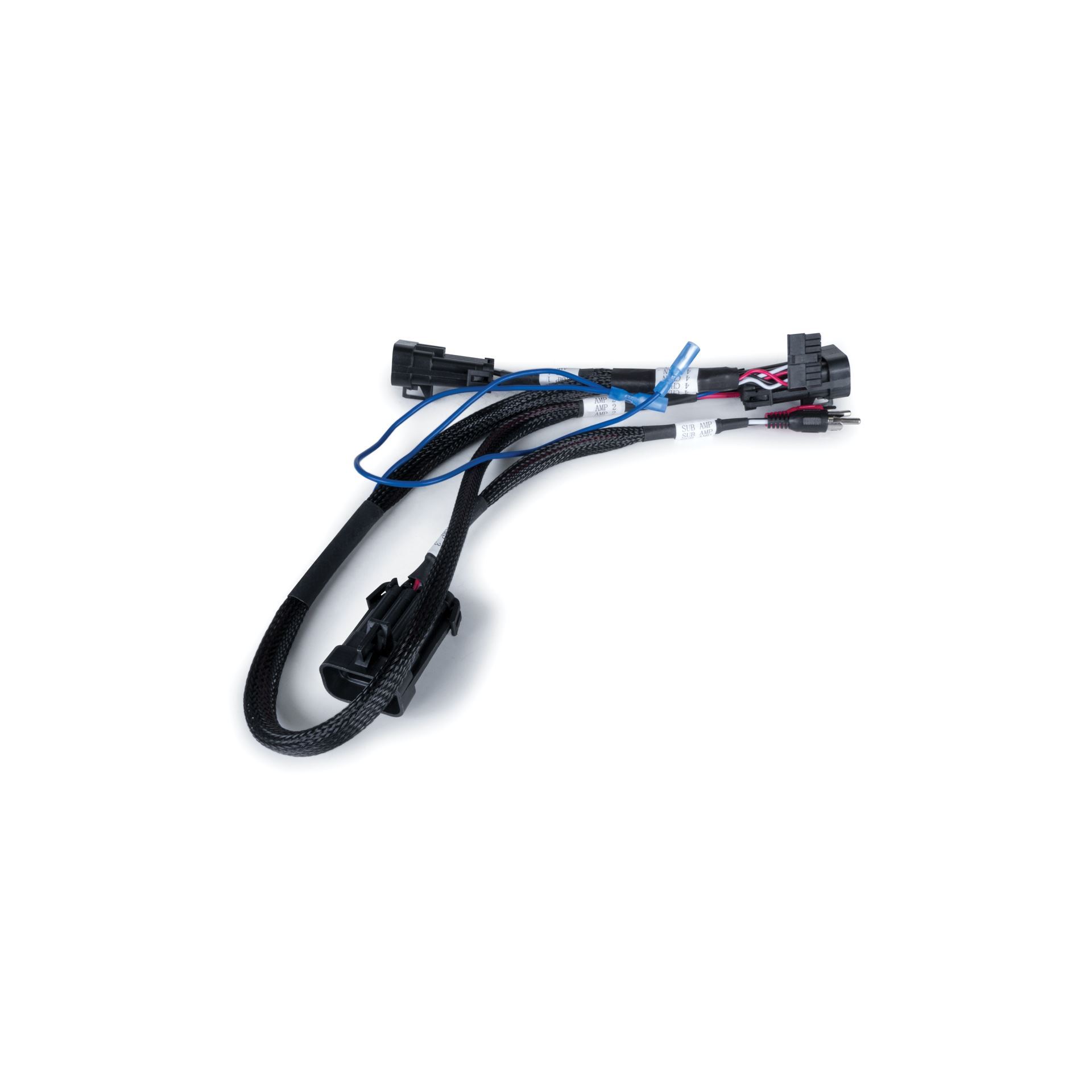

    Plug and Play Connections

    The RZR-14RC-THUNDER3 includes all the wiring required to connect each component. All wiring is ruggedly designed to endure the harsh environments RZRs often find themselves in. All wires are terminated with the appropriate plug for the component being connected, making installation easy.

    Installation Videos

    2019 and newer RZR Turbo S Thunder 3 Kit Installation
    2019 and newer RZR XP/XP4 Thunder 3 Kit Installation
    2014-18 RZR XP/XP4 Thunder 3 Kit Installation
    Kick Panel Speaker Installation
    Loaded Subwoofer Enclosure Installation
    External Base Controller Integration
    Amplifier Gain Settings

    SUPPORT FILES
    Owners Manual MUD100-4 Owner's Manual (28 pages) View | Download

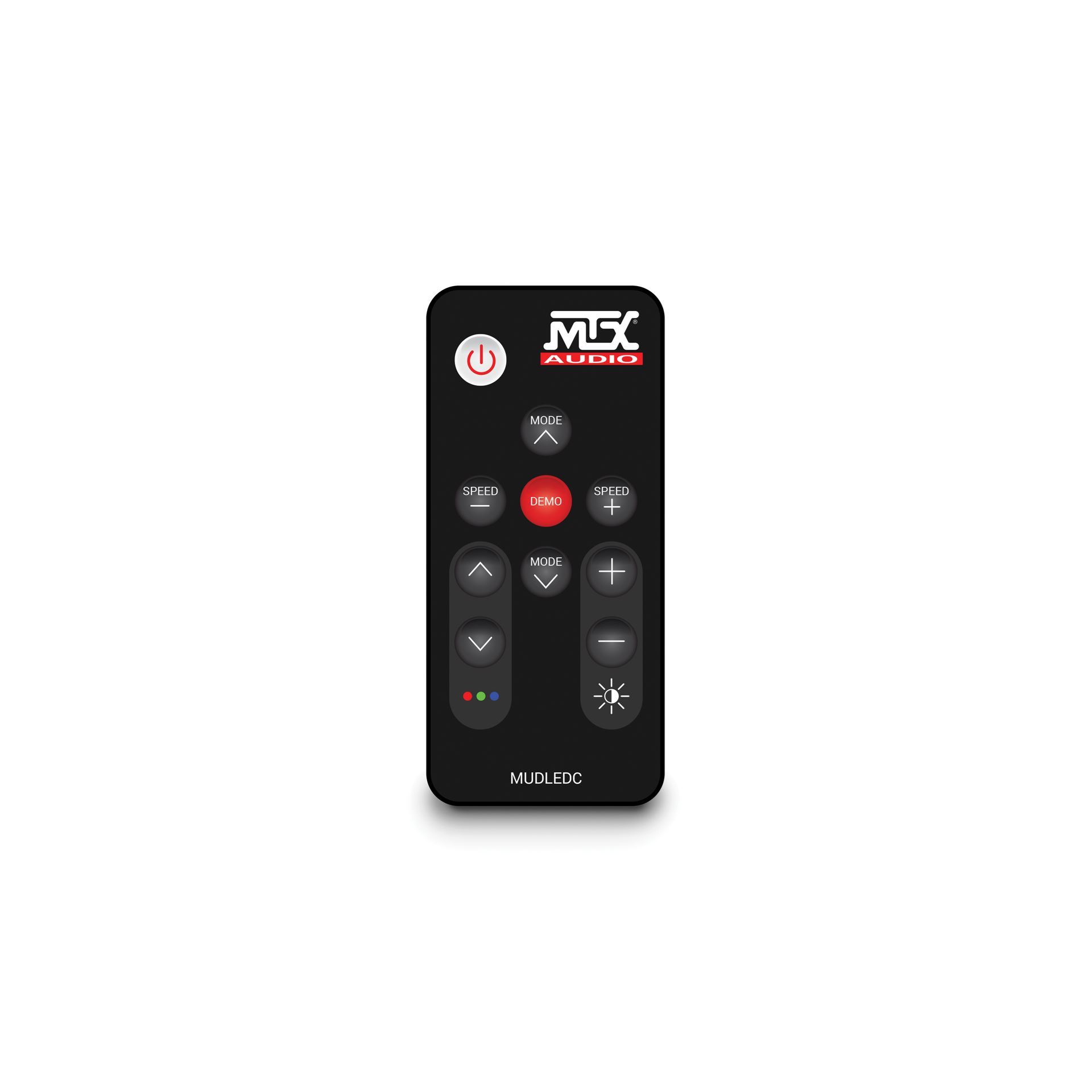

    Owners Manual MUDLEDC Owners Manual (4 pages) View | Download
    Owners Manual MUD600-1 Owners Manual (24 pages) View | Download
    Owners Manual RZR-14-SW Owner's Manual (16 pages) View | Download
    Owners Manual RZR-14-FS Owners Manual (8 pages) View | Download
