SKU: TL-8.8DSP

8-Channel Bluetooth Enabled Digital Signal Processor

0.0 (0 review)
Availability: In stock
$479.95 MSRP
$429.95

Total Control of Your Sound

The TL-8.8DSP is an 8-Channel Digital Signal Processor designed to give complete control over system tuning and sound optimization. With powerful onboard processing and a robust software interface for PC, iOS, and Android, it allows detailed adjustment of equalization, crossover behavior, and time alignment for fully customized audio performance.

Download Software

Download Google Play App

Download IOS App

Ask an expert Find a location

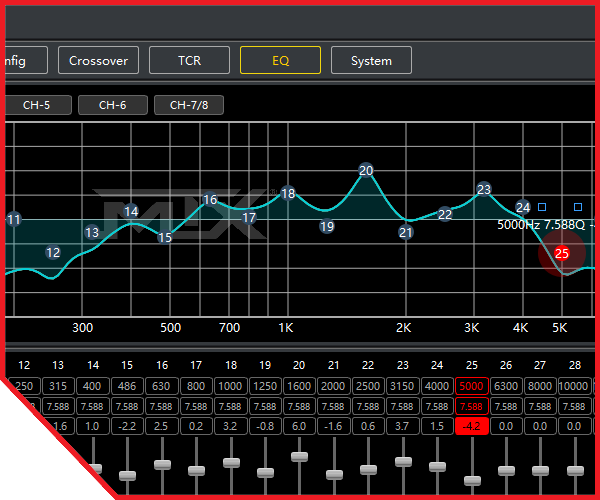

TL-8.8DSP USER-FRIENDLY GUI FOR FASTER SETUP

USER-FRIENDLY GUI FOR FASTER SETUP

The control interface is designed to make setup straightforward and efficient. Clear menus, visual feedback, and logical signal flow help reduce guesswork during tuning, allowing systems to be configured quickly without digging through overly complex menus.

Download Windows Software

TL-8.8DSP COMPACT, INSTALLATION-FRIENDLY DESIGN

COMPACT, INSTALLATION-FRIENDLY DESIGN

The TL-8.8DSP packs full-featured processing into a compact chassis designed to fit where space is limited. Its small footprint makes it easy to mount under seats, behind trim panels, or near amplifiers, giving installers more flexibility without sacrificing capability.

TH750.1 Take Full Command of your Sound

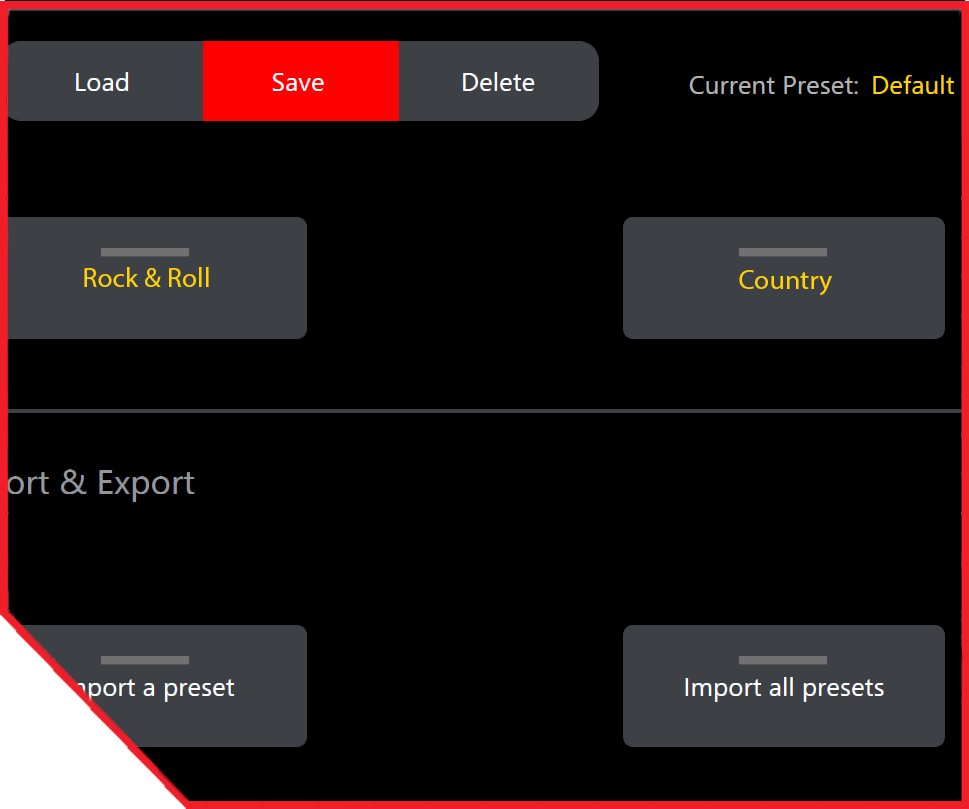

MULTIPLE PRESET MEMORY SLOTS

The TL-8.8DSP includes six preset memory slots for storing custom tuning profiles directly in the processor. Presets can also be saved and loaded through the software, making it easy to transfer a tune to another processor or reuse a baseline setup on similar vehicles. Once stored, presets can be quickly selected through the Bluetooth app without needing physical access to the DSP.

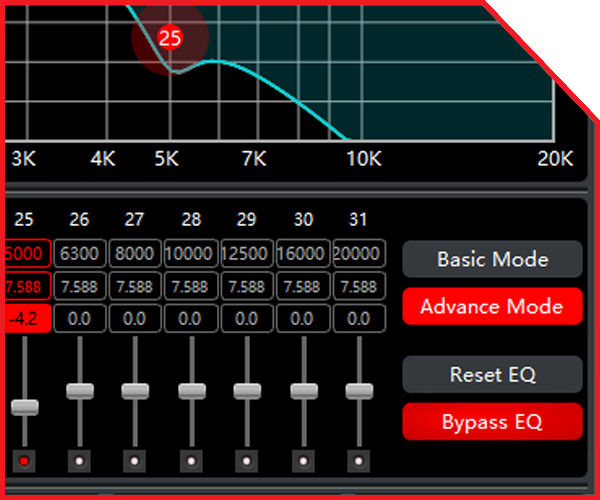

TL-8.8DSP BASIC AND ADVANCED TUNING MODES

BASIC AND ADVANCED EQ TUNING MODES

The TL-8.8DSP offers both Basic and Advanced modes for equalizer tuning to match different levels of system setup. In Basic mode, 13 EQ bands are available with fixed frequency and Q values for fast, straightforward adjustments. Advanced mode unlocks full control with 31 bands of parametric EQ, allowing gain, frequency, and Q to be adjusted for precise system tuning.

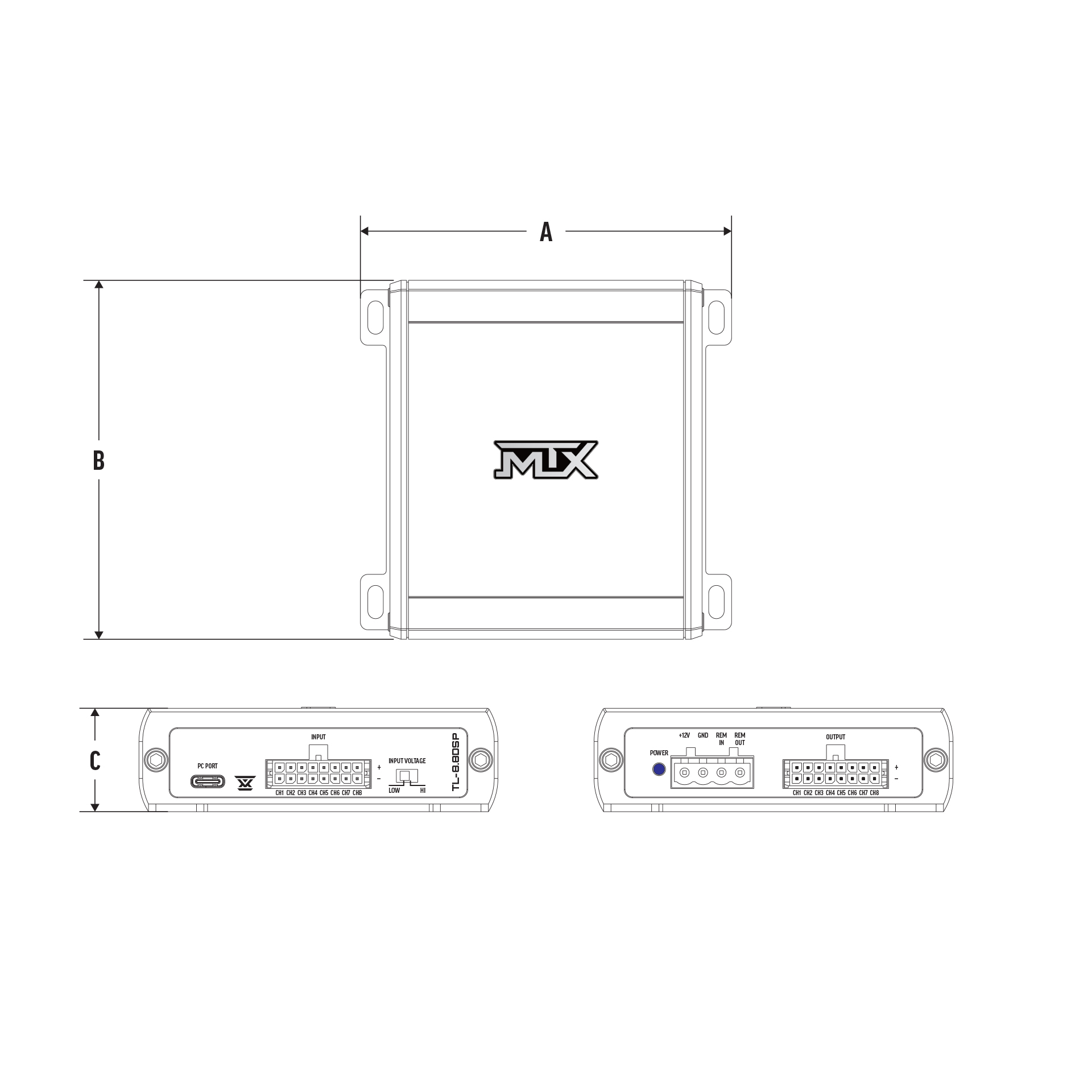

Dimensions & Details

Dimensions

  • A - Length:
    4” (102 mm)
  • B - Width:
    3 ⅞” (98 mm)
  • C - Depth:
    1 ⅛" (28 mm)
  •
TL-8.8DSP Dimensions

Features

  • BT / PC Adjustable DSP Powered by ADAU1452 DSP Chip
  • Tuned via Windows PC, controlled via iOS and Android
  • 8-Channel High / Low Level Input
  • High Level Input Up To 16V
  • 31 Band Parametric EQ
  • Selectable Crossover Type: Butterworth, Linkwitz-Riley, Bessel
  • Variable Crossover Slope: 12 / 18 / 24 / 48dB per Octave
  • Adjustable Time Alignment: 0 – 20ms
  • 6 Presets for Custom Tunes

SPECIFICATIONS

  • Description: 8-CH Digital Signal Processor
  • Maximum Speaker Level Input: Low Range: 2.1V, High Range: 8.4V
  • Input impedance: 2 kΩ
  • Preamp Outputs: 8
  • Maximum Output Level: 4.5V RMS
  • Output impedance: 100 Ω
  • Total Harmonic Distortion: < 0.21%
  • Signal to Noise Ratio: >90dB
  • Frequency Response: 20Hz - 24kHz
  • Recommended Fuse Rating: 2A
  • Warranty Period: 24 months from date of purchase

Downloads

Reviews

Returns & Warranty

30-Day Money-Back Guarantee

At MTX Audio, we are serious about sound®. Therefore, if you are not "blown away" with your purchase, for any reason, you can return any items purchased directly from MTX.com that are complete and like new within 30 days. Products purchased from authorized MTX retailers must be returned through that same retailer. Products purchased through non-authorized MTX retailers may not be returned.

About Returns
Warranty Information

The warranty for TL-8.8DSP is 24 months from the date of purchase.

MTX products purchased in the USA from an authorized MTX dealer are guaranteed against defects in material and workmanship for the period of time specified below, the warranty period begins the day the product is purchased by the end user. This warranty is limited to the original retail purchaser of product and extends only to products purchased from authorized MTX resellers. Product found to be defective during that period will be repaired or replaced by MTX at no charge.

About Our Warranty

RECOMMENDED

Picture of THUNDER 900-Watt Full-Range Class-D 6-Channel Amplifier
TH900.6

THUNDER 900-Watt Full-Range Class-D 6-Channel Amplifier

$749.95
$829.95
Picture of ThunderLink 16 AWG Speaker Wire (50')
TL162-50P

ThunderLink 16 AWG Speaker Wire (50')

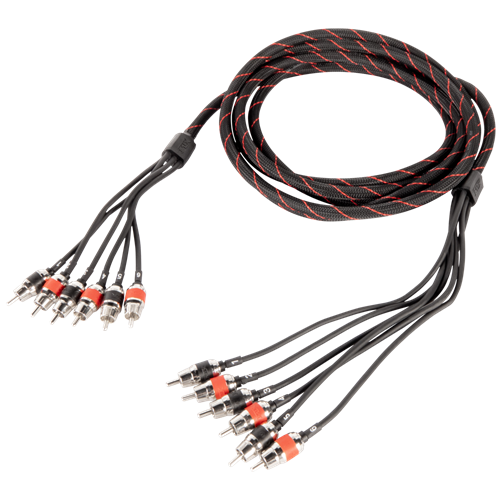

Picture of ThunderLink 3-Series 6-Channel RCA Cable 17'
