SKU: TL-DBE

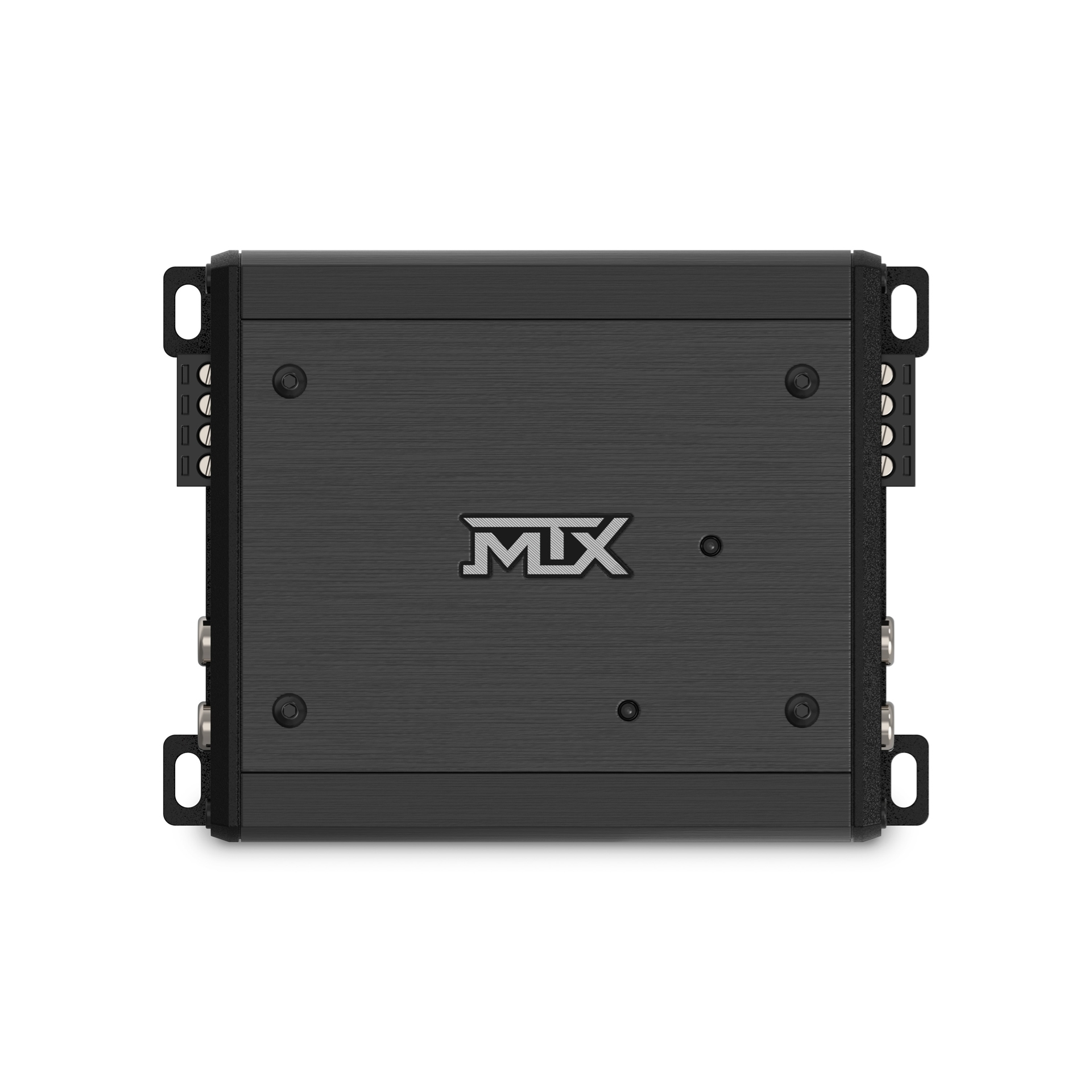

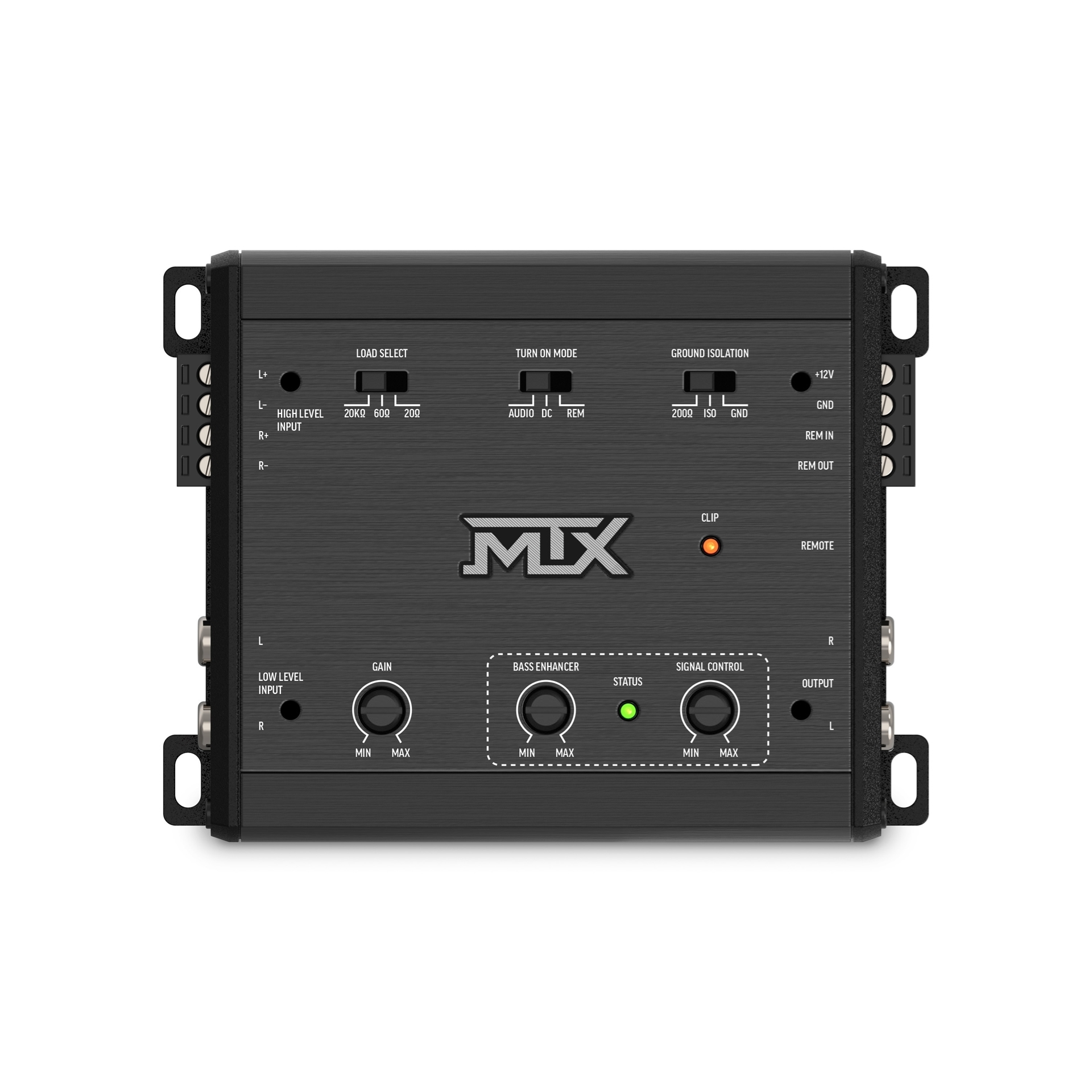

2-Channel Line Output Converter with Digital Bass Enhancer

(0 review)
Availability: In stock
$179.95 MSRP
$159.95

Upgrade Your Factory System

The TL-DBE is a 2-Channel Line Output Converter with Digital Bass Enhancement designed to integrate factory audio systems with aftermarket amplifiers. It corrects bass roll-off common in modern factory head units, delivers a clean preamp signal, and gives you precise low-frequency control without sacrificing factory functionality.

Ask an expert Find a location

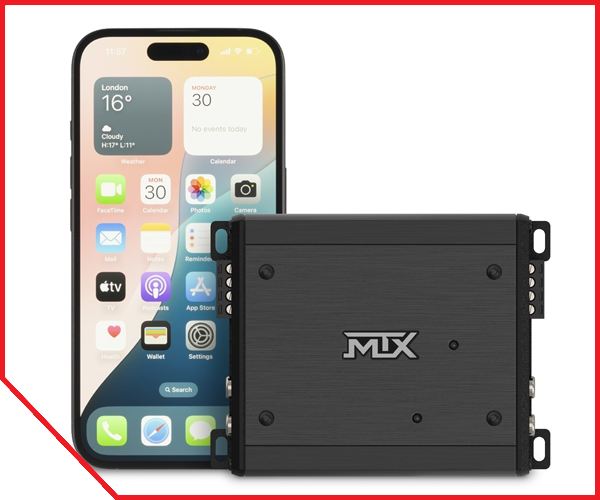

TL DBE COMPACT, INSTALL-FRIENDLY DESIGN

COMPACT, INSTALL-FRIENDLY DESIGN

With a compact chassis measuring just over five inches wide, the TL-DBE is easy to mount in tight spaces such as under seats, behind panels, or near factory audio components. Its small footprint makes it ideal for clean, discreet installations without added complexity.

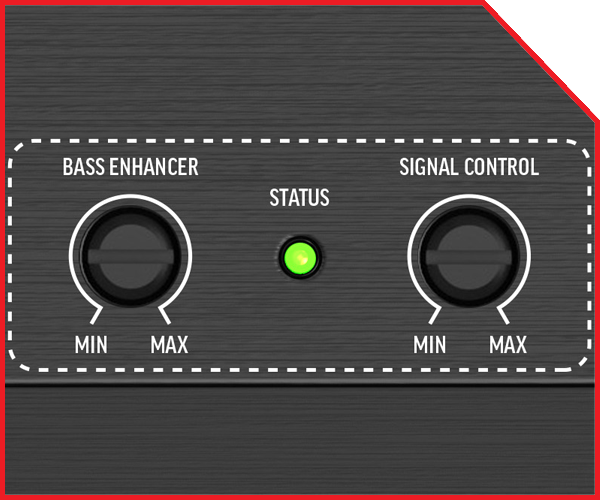

TL-DBE DIGITAL BASS ENCHANCEMENT

DIGITAL BASS ENCHANCEMENT

Many factory systems reduce bass output as volume increases. The TL-DBE is designed to restore and enhance low-frequency response, allowing bass performance to remain full and impactful at higher listening levels. Variable digital bass enhancement lets you fine-tune how much low-end is added back into the signal, while the included external bass control allows quick, on-the-fly adjustment from the driver’s seat.

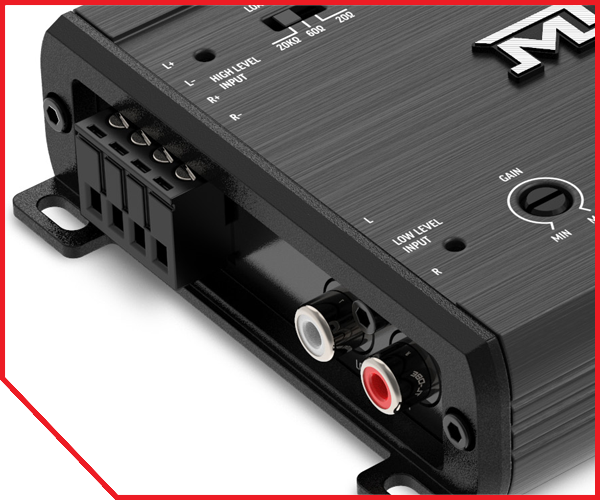

Tl-DBE HIGH-VOLTAGE FACTORY SIGNAL HANDLING

HIGH-VOLTAGE FACTORY SIGNAL HANDLING

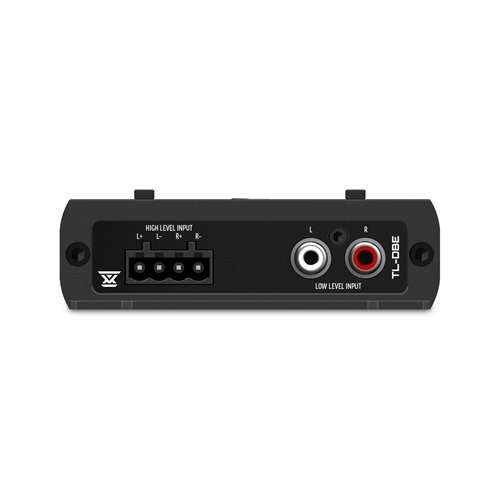

The TL-DBE accepts both high-level speaker inputs and low-level RCA inputs, handling factory speaker outputs up to 40V RMS. This allows it to cleanly capture signal from a wide range of factory head units or factory-amplified systems and deliver a strong, distortion-free preamp output to aftermarket amplifiers.

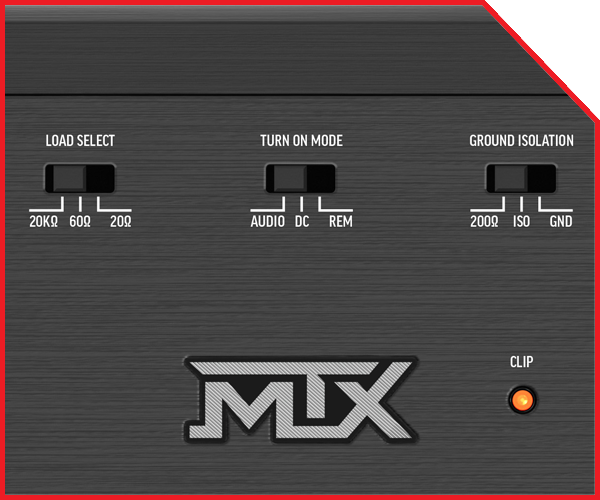

TL-DBE FLEXIBLE TURN-ON AND OUTPUT CONTROL

FLEXIBLE TURN-ON AND OUTPUT CONTROL

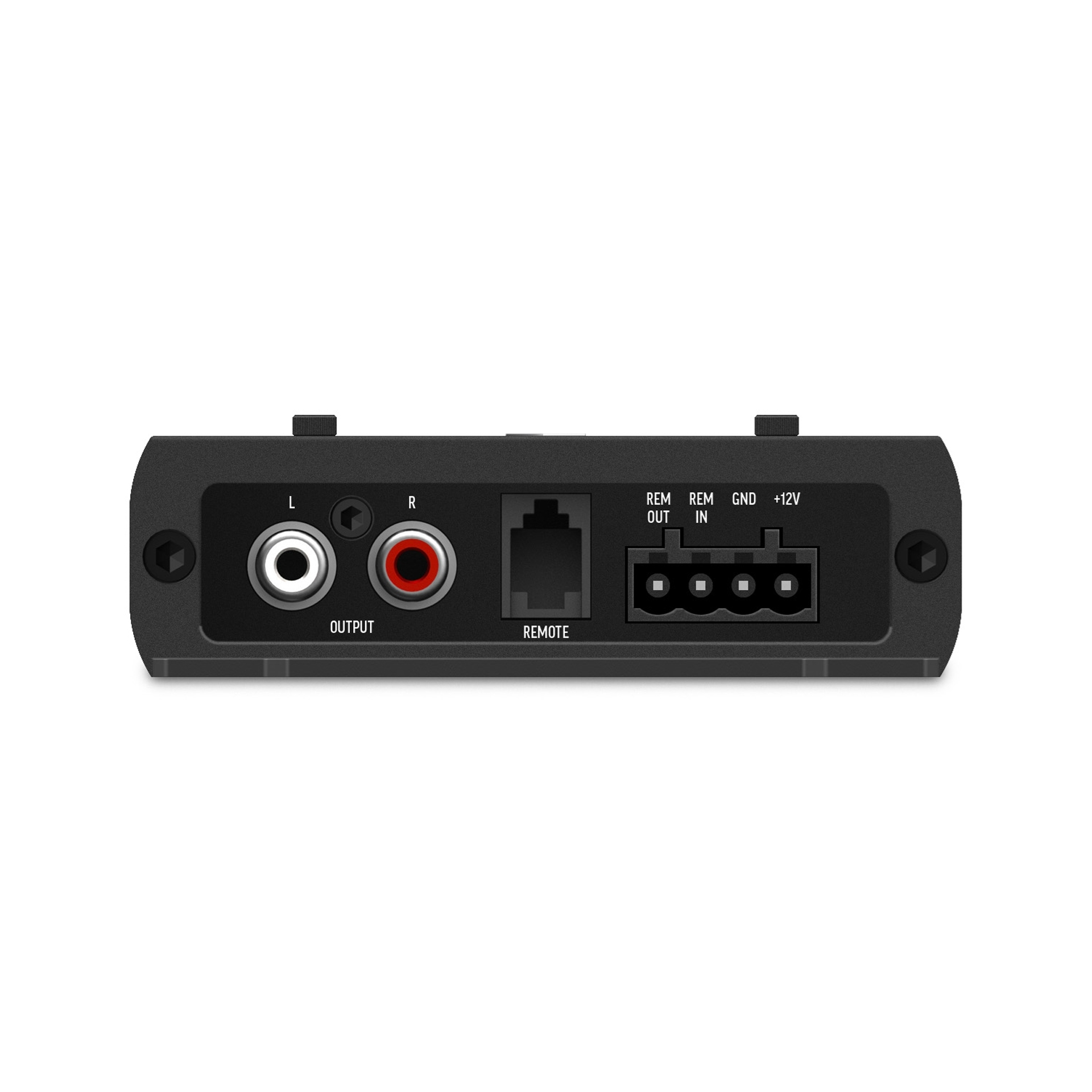

Selectable load resistance and ground isolation options allow the TL-DBE to interface properly with a wide range of factory system designs while minimizing noise. Multiple remote output and turn-on modes, including DC offset sensing, audio signal detection, and +12V remote turn-on, ensure reliable operation across different factory architectures. Integrated gain controls and clip indicators make it easy to set clean output levels.

Dimensions & Details

Dimensions

  • A - Length:
    5” (126 mm)
  • B - Width:
    3 ⅞” (98 mm)
  • C - Depth:
    1 ⅛" (28 mm)
TL-DBE Dimensions

Features

  • Corrects Bass Roll-off at Higher Volumes Typical of Many Factory Head Units
  • Variable Bass Enhancement
  • Low/High Level Input up to 40V
  • Multiple Turn-on Options (DC / Rem / Audio)
  • Selectable Load Resistance
  • Selectable Ground Isolation
  • Remote Level Control


SPECIFICATIONS

  • Description: 2-CH Line Output Converter with Digital Bass Enhancer
  • Maximum Input Level: 40Vrms/400W (20kΩ)
  • Input impedance: Selectable (20Ω, 60Ω 20kΩ)
  • Preamp Outputs: 2
  • Maximum Output Level: 8.5Vrms
  • Output impedance: 80Ω
  • THD: 0.08%
  • Signal to Noise Ratio: > 88dB
  • Frequency Response: 20Hz - 20kHz
  • Recommended Fuse Rating: 1A
  • Warranty Period: 24 months from date of purchase
