10" 150-Watt RMS 4Ω Subwoofer

Availability: Out of stock

$79.95 MSRP

$69.95

World Famous Sub

The classic Terminator Car Audio Subwoofer bangs out bass in rigs all over the world. Its economical price made it our most popular entry level sub over the last several years. And the Terminator still outperforms any sub in its class.

The MTX TN10-04 is a 10" single voice coil, 4 Ohm, 150 watt Car Audio Subwoofer that is economically priced but not short on performance.

Ask an expert Find a location

Spider Plateau Venting

Cools voice coil to prevent overheating.

Linear Drive Systems

Cone always moves linear, preventing distortion.

The Terminator Sub

The terminator subwoofer is loaded with MTX engineering technology including Spider Plateau Venting that ensures trouble free performance and an Assymetrical Linear Drive System that limits distortion ensuring unbeatable performance.

If you are looking for a great subwoofer that won't break your bank look no further. The Terminator sub is still one badass bass pounder...

Subwoofer Wiring Calculator

Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

Select # Of Woofers:

Choose Impedance To Match Amp:

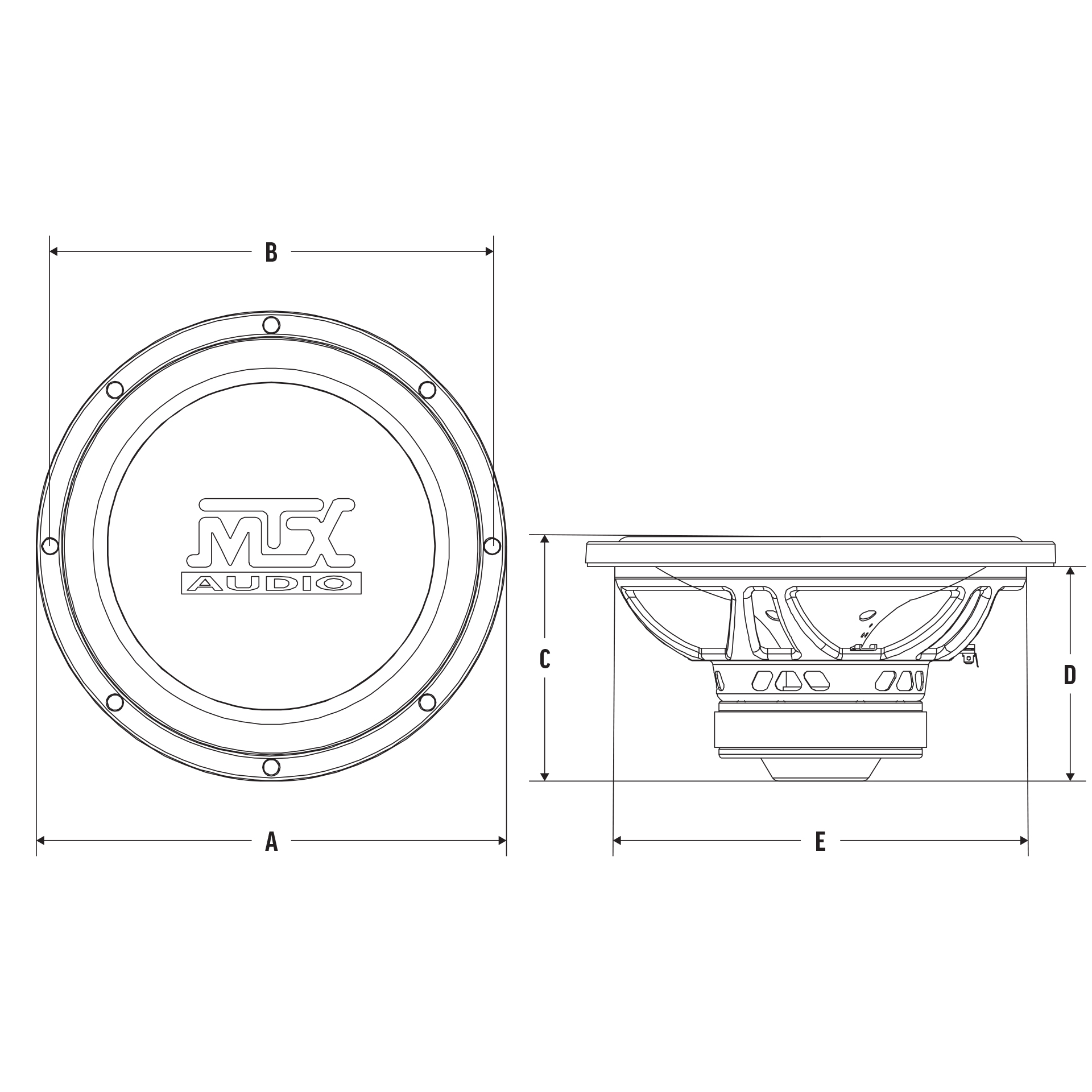

Dimensions & Details

Dimensions

A - Total Diameter: 10.47" (266mm)
B - Driver Diameter: 8.54" (217mm)
C - Total Depth: 5.34" (135.6mm)
D - Mounting Depth: 4.86" (124mm)
E - Cut Out Diameter: 9.19" (233mm)

What's in the Box

Subwoofer
Technical Data Sheet

Features

• 10-inch 4Ω Subwoofer

• 150 Watt RMS Power Handling

• Stamped Steel Basket

• Polypropylene Dust Cap

• Spider Plateau Venting

• Asymmetrical Linear Drive Systems

SPECIFICATIONS

Recommended Amp Power (RMS): 75 - 150
Frequency Response: 29Hz - 160Hz
Impedance: 4Ω
Sensitivity: 84.9dB
Voice Coil: 1.50" (3.81 cm)
Magnet Weight: 27 oz.
Mounting Depth: 4.86"
Cut Out Diameter: 9.19"
Volume Displacement (cu in): 21.21 cu in
Sealed Enclosure Net Volume: 0.75 cu ft
Vented Enclosure Net Volume: 1.45 cu ft
Warranty Period: 12 months from date of purchase

Downloads

- TN10-04Tech Data Sheet

View | Download
Test Tone - 50Hzmp3

Download

Returns & Warranty

30-Day Money-Back Guarantee

At MTX Audio, we are serious about sound®. Therefore, if you are not "blown away" with your purchase, for any reason, you can return any items purchased directly from MTX.com that are complete and like new within 30 days. Products purchased from authorized MTX retailers must be returned through that same retailer. Products purchased through non-authorized MTX retailers may not be returned.

About Returns

Warranty Information

The warranty for TN10-04 is 12 months from the date of purchase.

MTX products purchased in the USA from an authorized MTX dealer are guaranteed against defects in material and workmanship for the period of time specified below, the warranty period begins the day the product is purchased by the end user. This warranty is limited to the original retail purchaser of product and extends only to products purchased from authorized MTX resellers. Product found to be defective during that period will be repaired or replaced by MTX at no charge.

About Our Warranty
