SKU: TN12-02

Sold Individually

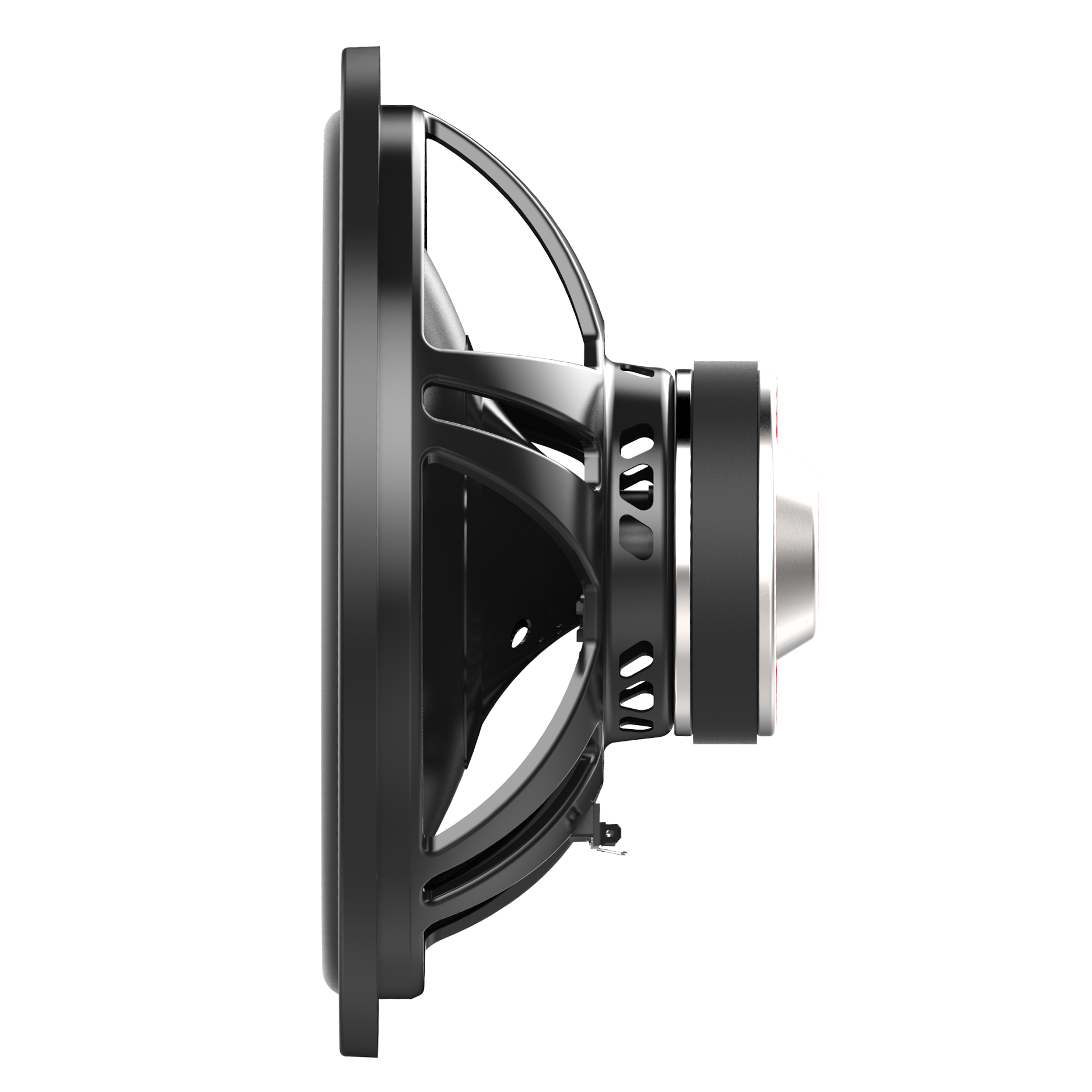

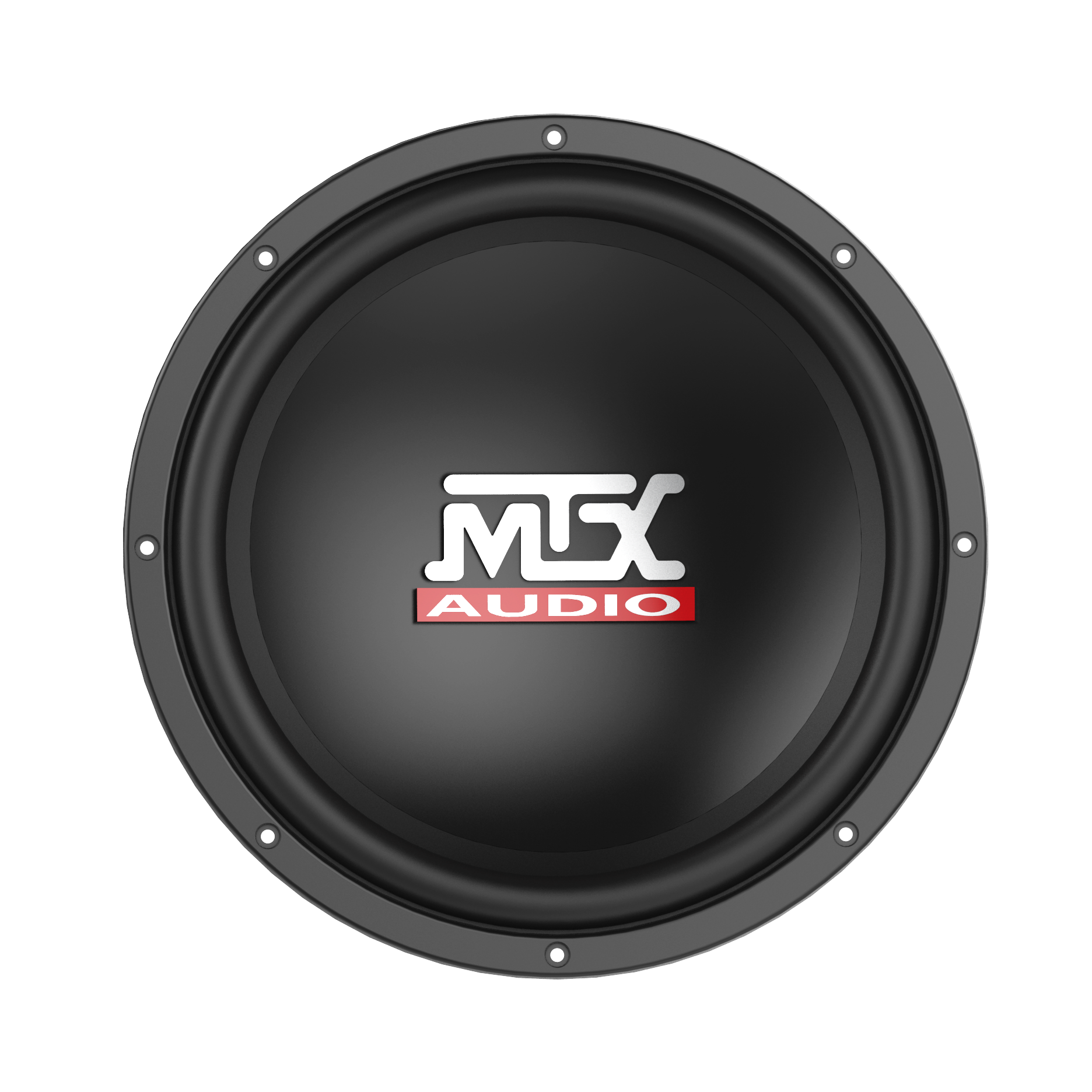

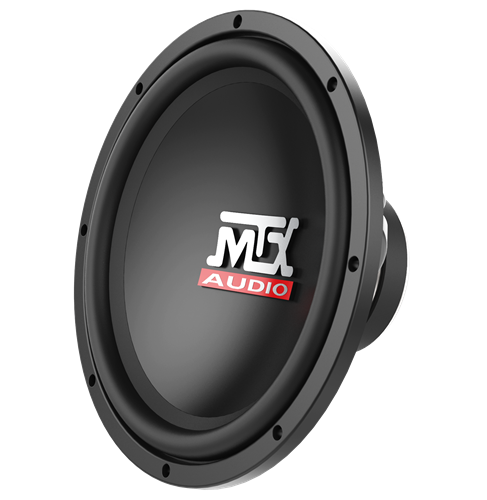

12" 200-Watt RMS 2Ω Subwoofer

(4 reviews)

Availability: In stock

$89.95 MSRP

$79.95

World Famous Sub

The classic Terminator Car Audio Subwoofer bangs out bass in rigs all over the world. Its economical price made it our most popular entry level sub over the last several years. And the Terminator still outperforms any sub in its class.

The MTX TN12-02 is a 12" single voice coil, 2 Ohm, 200 watt subwoofer that is economically priced but not short on performance.

Ask an expert Find a location

Spider Plateau Venting

Cools voice coil to prevent overheating.

Linear Drive Systems

Cone always moves linear, preventing distortion.

The Terminator Sub

The terminator subwoofer is loaded with MTX engineering technology including Spider Plateau Venting that ensures trouble free performance and an Asymetrical Linear Drive System that limits distortion ensuring unbeatable performance.

If you are looking for a great subwoofer that won't break your bank look no further. The Terminator sub is still one badass bass pounder...

Subwoofer Wiring Calculator

Learn how to properly wire your subwoofers with this easy subwoofer wiring diagram tool.

Select # Of Woofers:

Choose Impedance To Match Amp:

Dimensions & Details

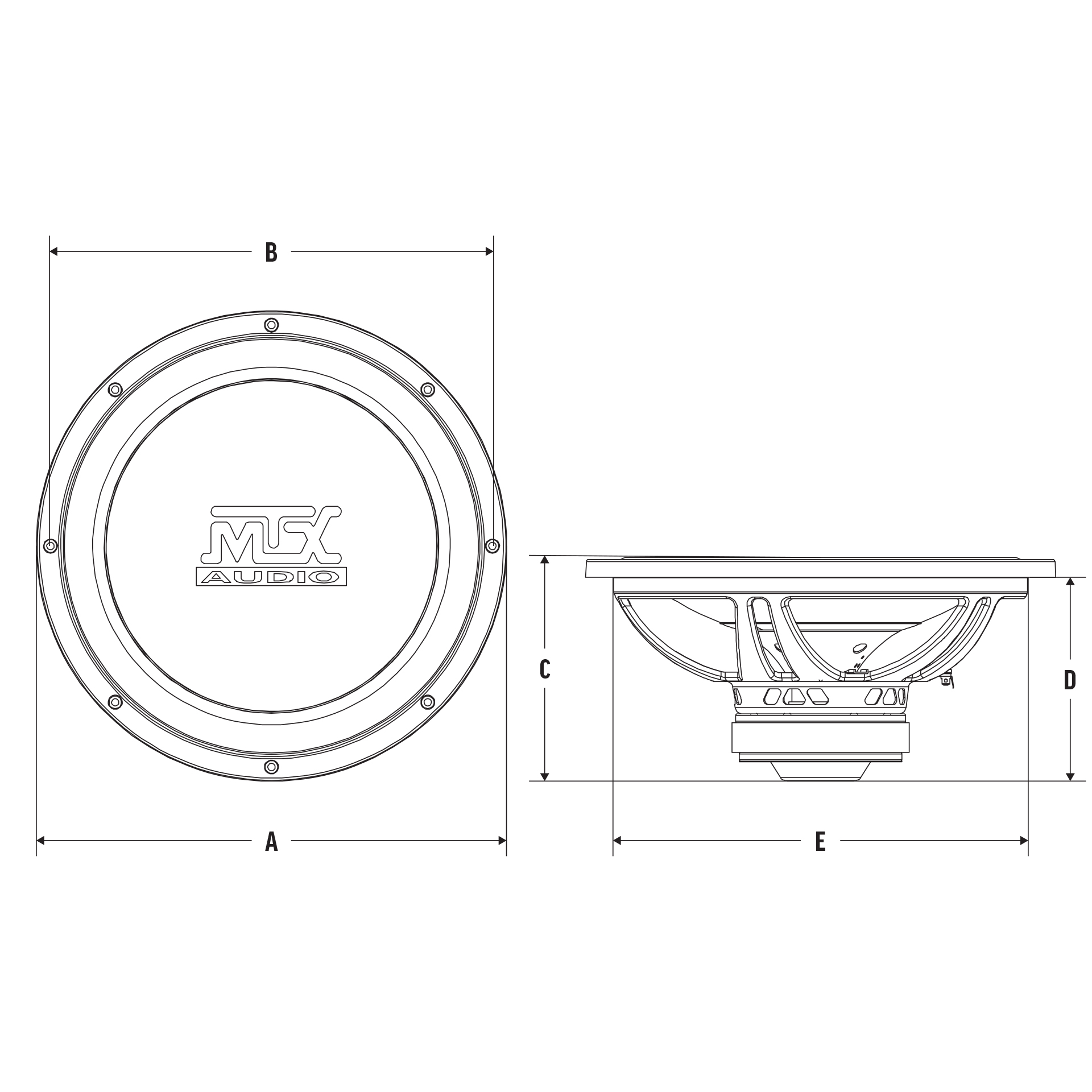

Dimensions

A - Total Diameter: 12.48" (317mm)
B - Driver Diameter: 10.32" (262mm)
C - Total Depth: 5.89" (149.5mm)
D - Mounting Depth: 5.44" (137mm)
E - Cut Out Diameter: 11.08" (280mm)

What's in the Box

Subwoofer
Technical Data Sheet

Features

• 12-inch 2Ω Subwoofer

• 200 Watt RMS Power Handling

• Stamped Steel Basket

• Polypropylene Dust Cap

• Spider Plateau Venting

• Asymmetrical Linear Drive Systems

SPECIFICATIONS

Recommended Amp Power (RMS): 100 - 200
Frequency Response: 24Hz - 160Hz
Impedance: 2Ω
Sensitivity: 86.4dB
Voice Coil: 1.50" (3.81 cm)
Magnet Weight: 27 oz.
Mounting Depth: 5.44" (137mm)
Cut Out Diameter: 11.08" (280mm)
Volume Displacement: 30.92 cu in
Sealed Enclosure Net Internal Volume: 1.25 cu ft
Vented Enclosure Net Internal Volume: 2.00 cu ft
Warranty Period: 12 months from date of purchase
