Terminator 8" Micro Amplified Subwoofer Enclosure

The TN8MS amplified micro-sub is a perfect choice when you want to add bass to your system but space is limited.

    Availability: In stock
    Share this MTX page...

    Small Stature, Bad Attitude

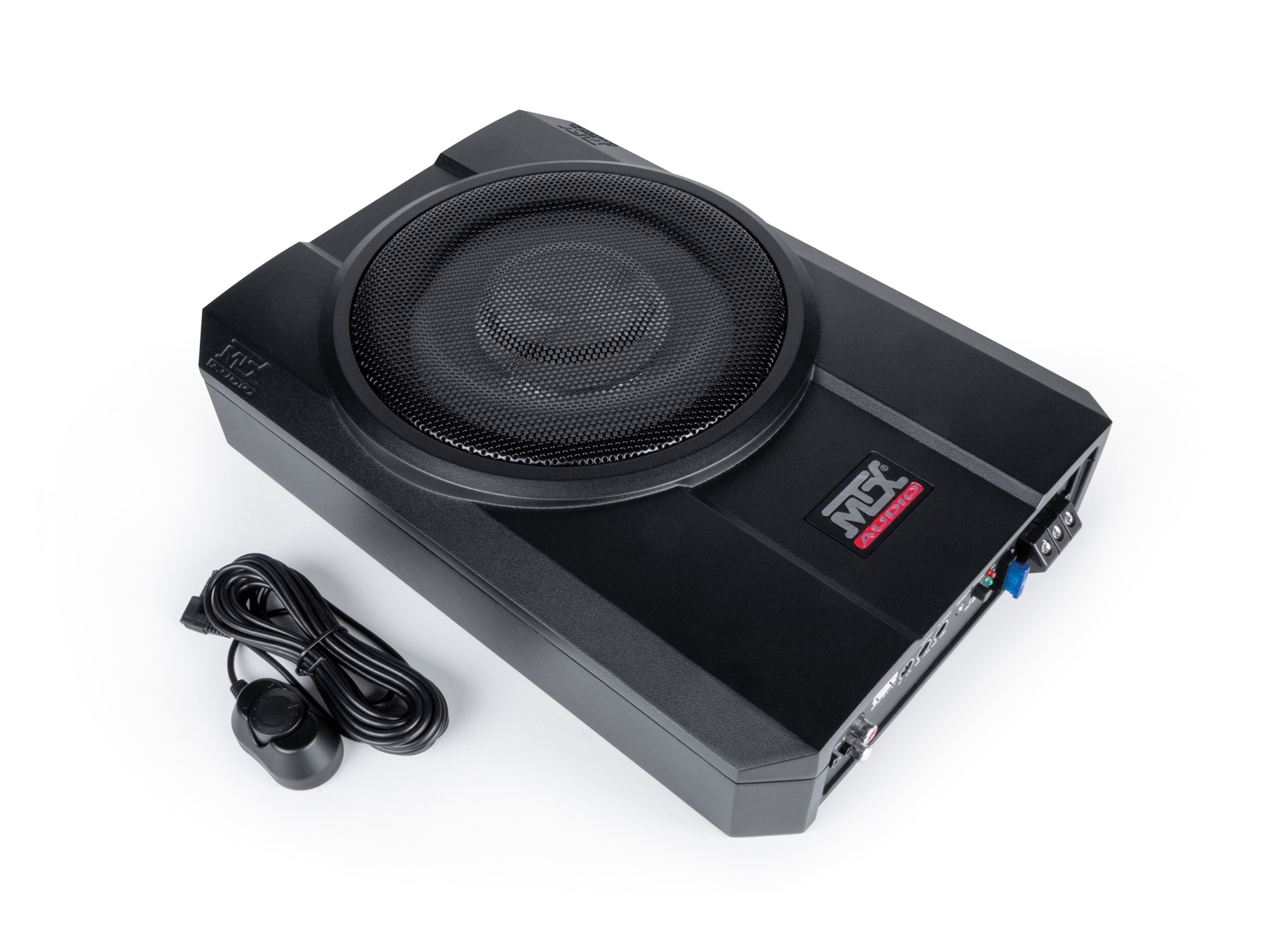

    TN8MS subwoofer enclosure top angle

    The TN8MS is the latest release in the Terminator line from MTX Audio. This 8", low-profile subwoofer is designed for use in vehicles where space is at a premium or better yet, where you want it to be invisible like under the front seat. The TN8MS does not disappoint in delivering unexpected bassout in a form that is no bigger than a donut box.

    Integrated Amplification

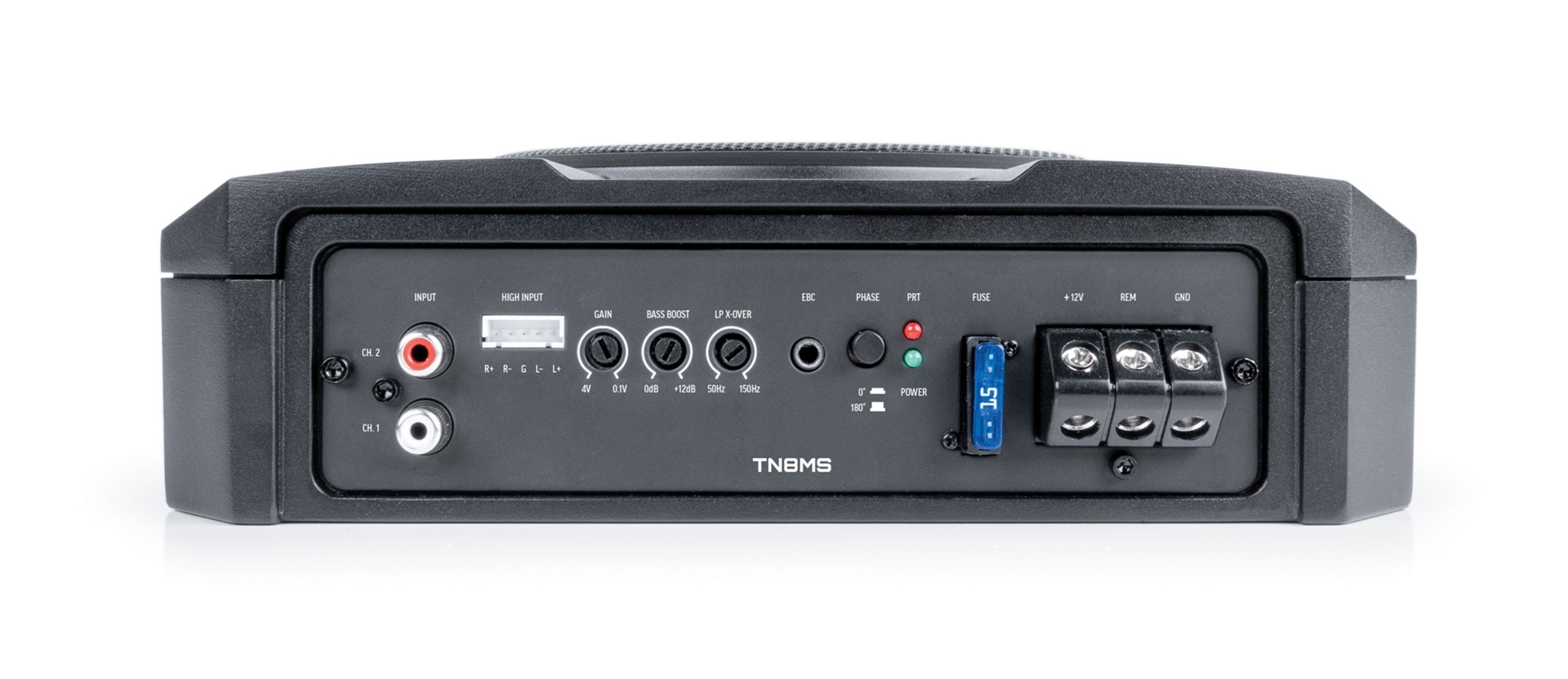

    TN8MS subwoofer enclosure amp

    The TN8MS has a high efficiency internal 135-watt RMS, class A/B amplifier designed to deliver crisp sound at all levels. The unit is loaded with features including adjustable gain, bass boost and low pass crossover allowing you to customize the sound to your music and listening style. You can connect the unit to a factory or aftermarket headunit using either RCA cables or high level speaker connections. When you use high level connections, there is no reason to run the remote wire from the headunit as the amplifier will automatically turn on when it senses signal from the headunit making installation quick and easy. The unit also includes a remote bass knob that connects to the amplifier via included 3.5mm cable enabling you to adjust the bass level from the comfort of the driver's seat.

    Low Profile

    TN8MS subwoofer enclosure side angle

    The TN8MS is designed in the smallest form factor possible to still be able to produce MTX approved bass. The unit is all inclusive, with the amplifier and subwoofer mounted in an optimized enclosure. The enclosure has a total height of less than 3.1" making it perfect for installation under a seat or behind a truck seat. Don't let the small size fool you, the TN8MS delivers incredible bass that will surprise and impress even the craziest bass heads for its size.

    • Class A/B Topology - Delivers Excellent Sound Quality

    • Phase Switch - Allows you to switch the directional movement in relation to other speakers from 0 to 180°
    • Variable Bass Boost - Allows you to boost your bass output by up to 12dB @45Hz
    • Smart Engage Auto Turn On Circuitry - Allows for Easy Installation with Factory Radios through high level connections
    • External Bass Control - Includes EBC Allowing for Bass Adjustment from Driver's Seat
    Subwoofer 8"
    RMS Power (Watts) 135
    Frequency Response 20Hz - 200Hz
    THD+N ≤ 1%
    Signal to Noise Ratio 91dBA
    Input Sensitivity 400mV - 5V

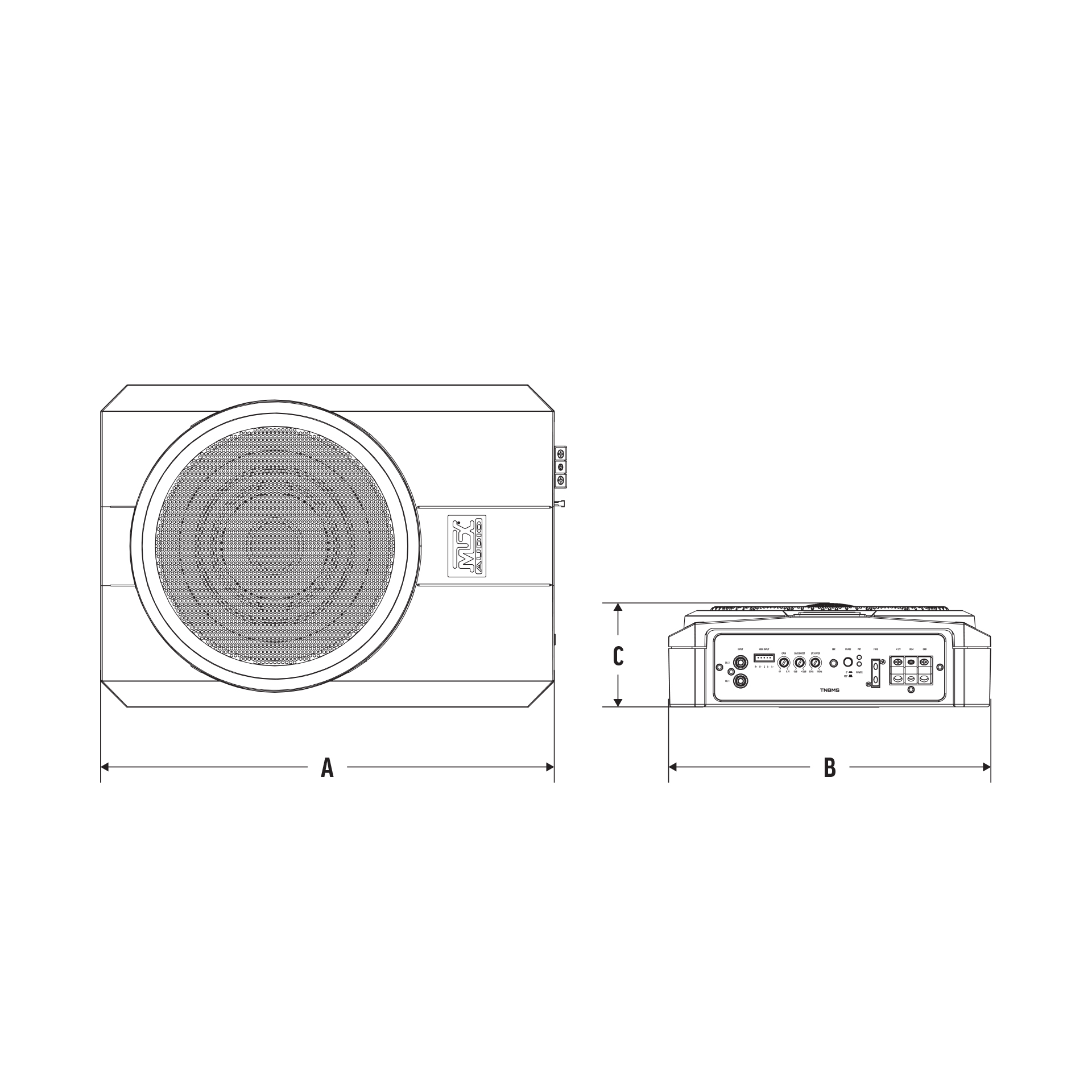

    Length 13.58" (34.5 cm)
    Width 9.53" (24.2 cm)
    Height 3.07" (7.8 cm)
    Warranty Period 24 months from date of purchase
    Owners Manual TN8MS Owners Manual (16 pages) View | Download
    Packaging TN8MS Carton (1 page) View | Download
    Product Label TN8MS Product ID Label (1 page) View | Download
