Universal Bluetooth Switch Audio Package with Amplifier and 2 Roll Cage Speakers

  • Bluetooth Enabled
  • Universal Mounting
  • IP65 Rated
    Availability: In stock
    Share this MTX page...
    UNI-1-AWBTSW Overview

    Powerful, Two-Speaker MTX Extreme Sports Sound System with Bluetooth

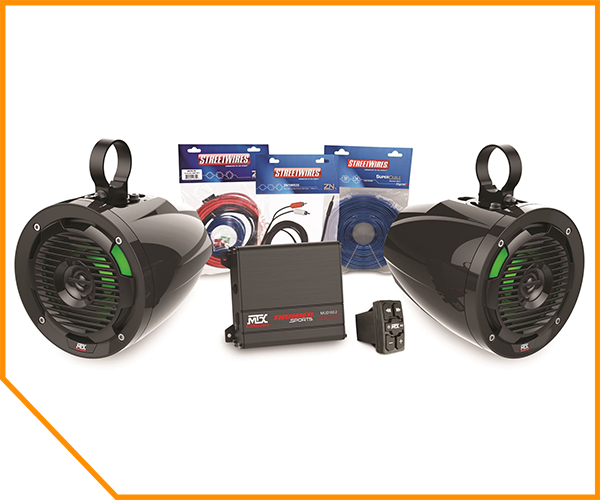

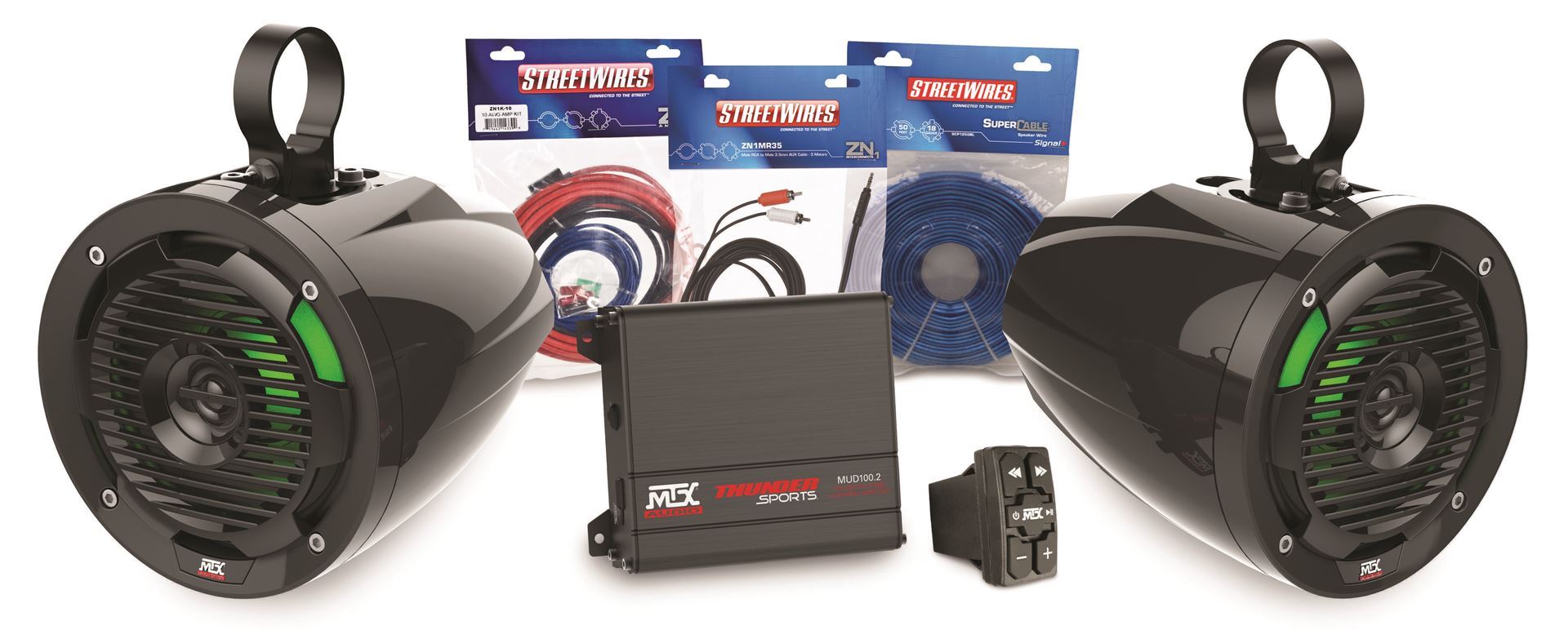

    The UNI-1-AWBTSW is a package that includes everything you need to take your UTV, sand rail, Jeep, or whatever to the next level in sound. This kit includes the all new MTX MUD100.2 which is the most compact amplifier that MTX has ever made. This unit features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 2 channels that are capable of delivering 100-watts of RMS power per channel at 2Ω, perfect power for driving the included all-weather speakers, one per channel. The two MUD65PL roll cage speakers can project amazing sound to get you rocking big time. Crank them up in your UTV and enjoy the ride.

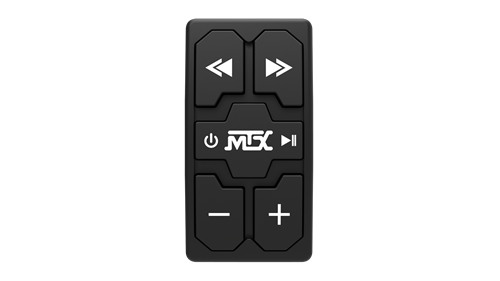

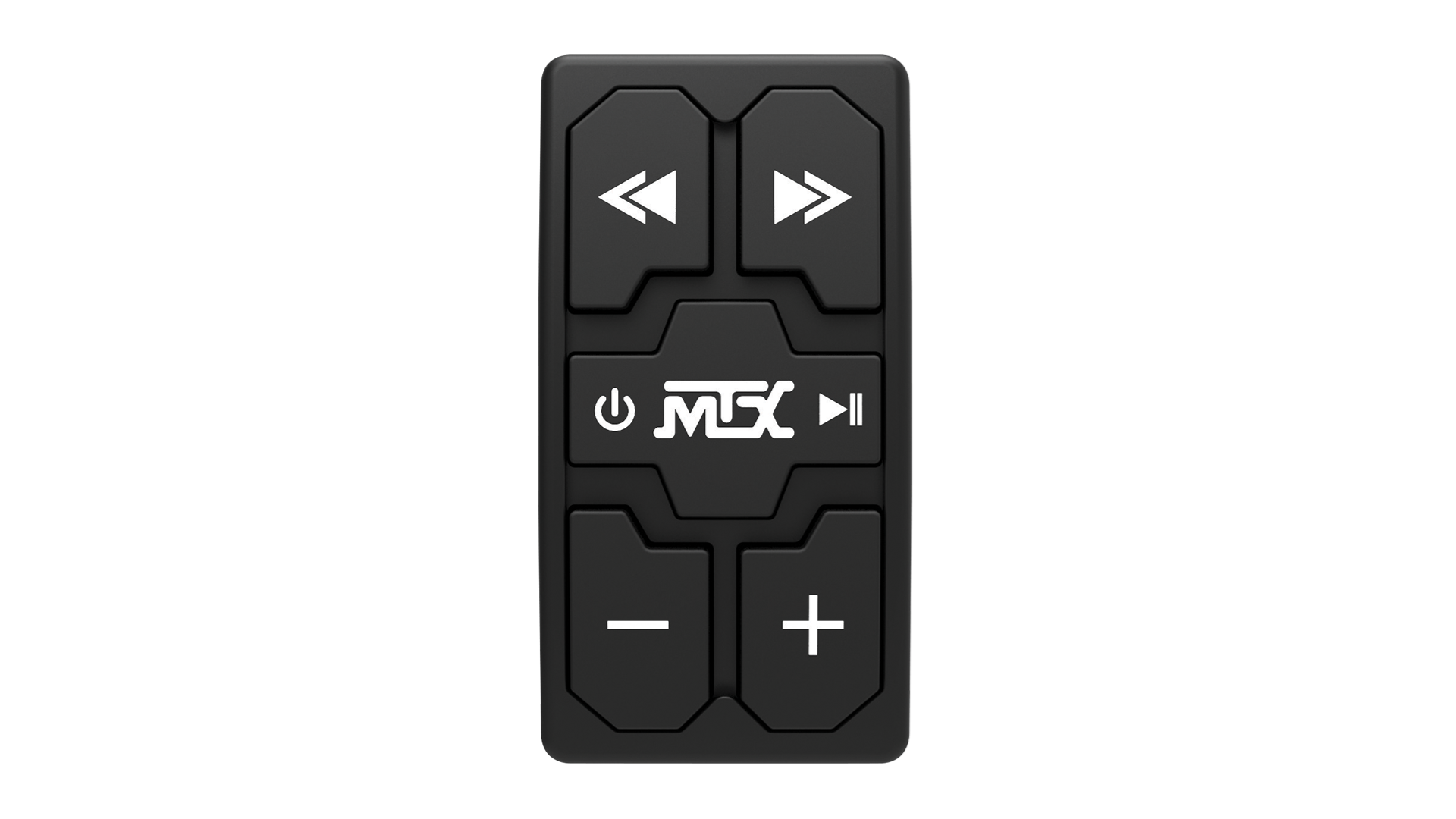

    AWBTSW Key Features

    • Replaces Head Unit and Works with Any Amplifier
    • Bluetooth v4.0
    • Weatherized Rubber Buttons
    • Remote Amplifier Output
    • Works with Most Bluetooth Devices Including Smartphones and Tablets
    • Hassle Free Bluetooth Auto-Pairing

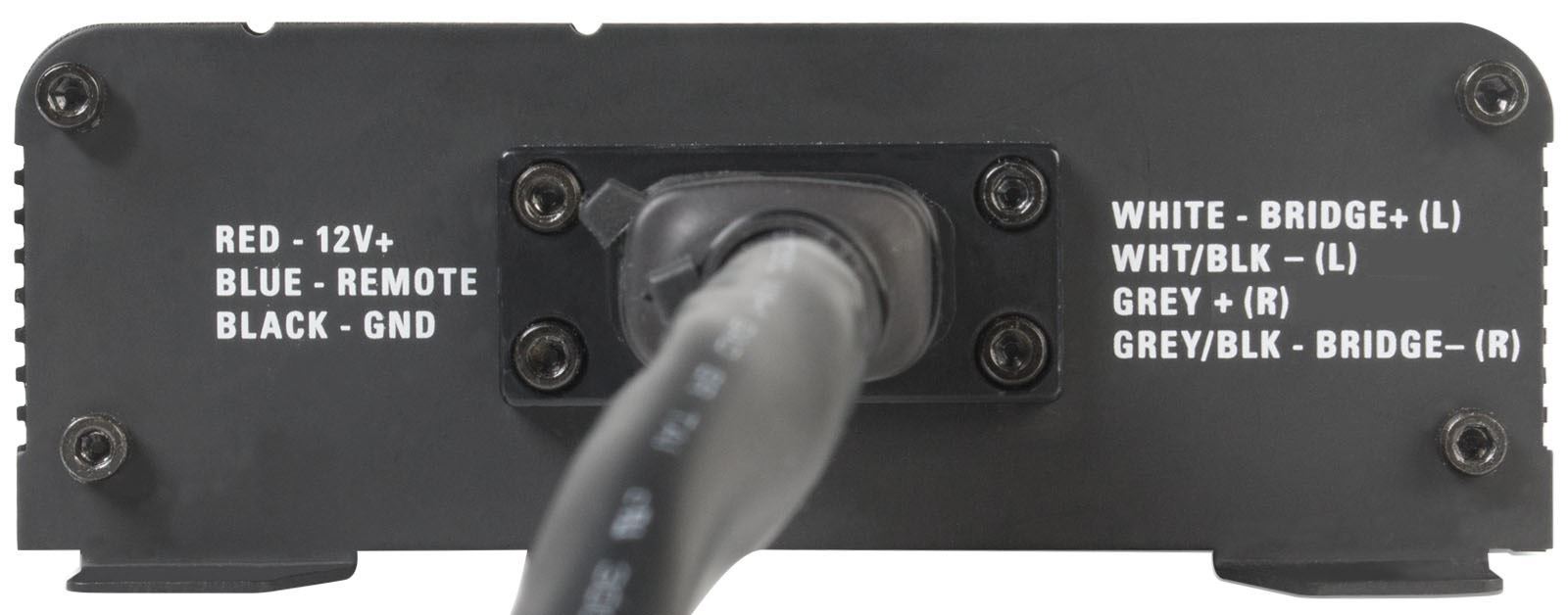

    • Includes Power, Ground, and Output Connections
    • 3.5mm Stereo Line Output
    • Auxiliary Input for Connecting Devices Via 3.5mm Cable
    • Back Lit Buttons for Easy Use Day or Night

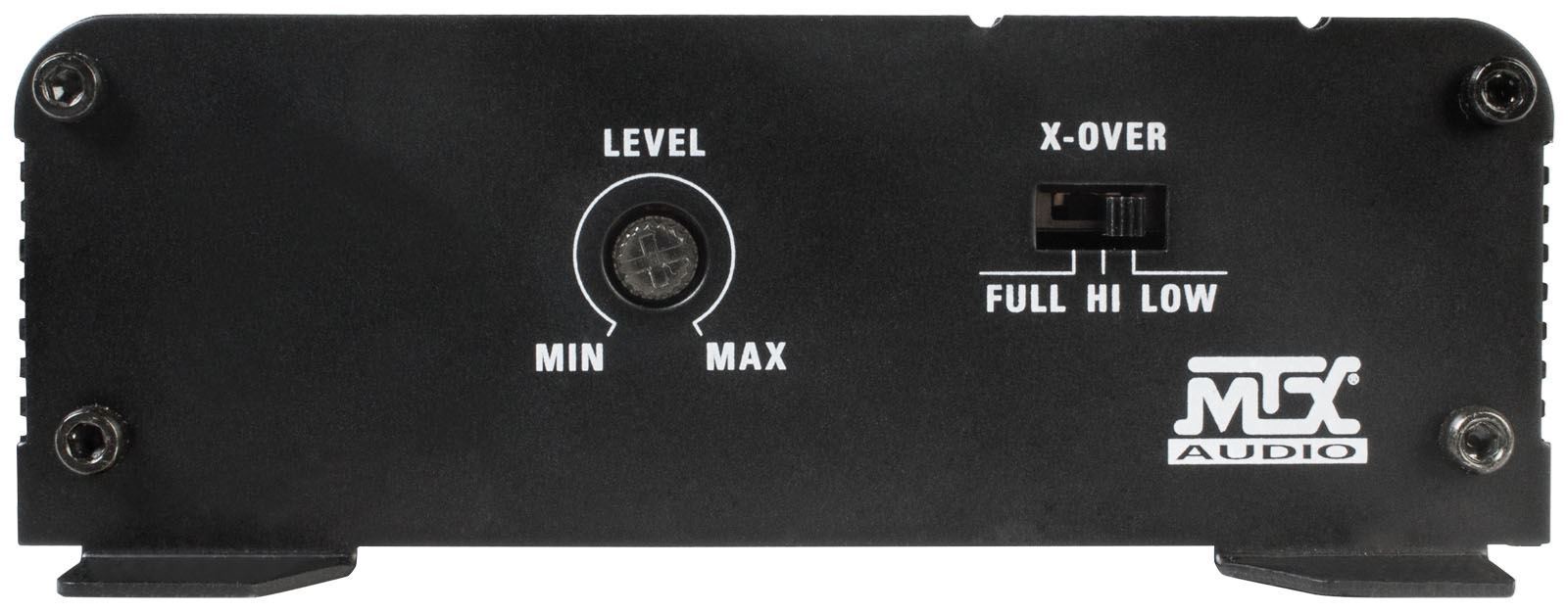

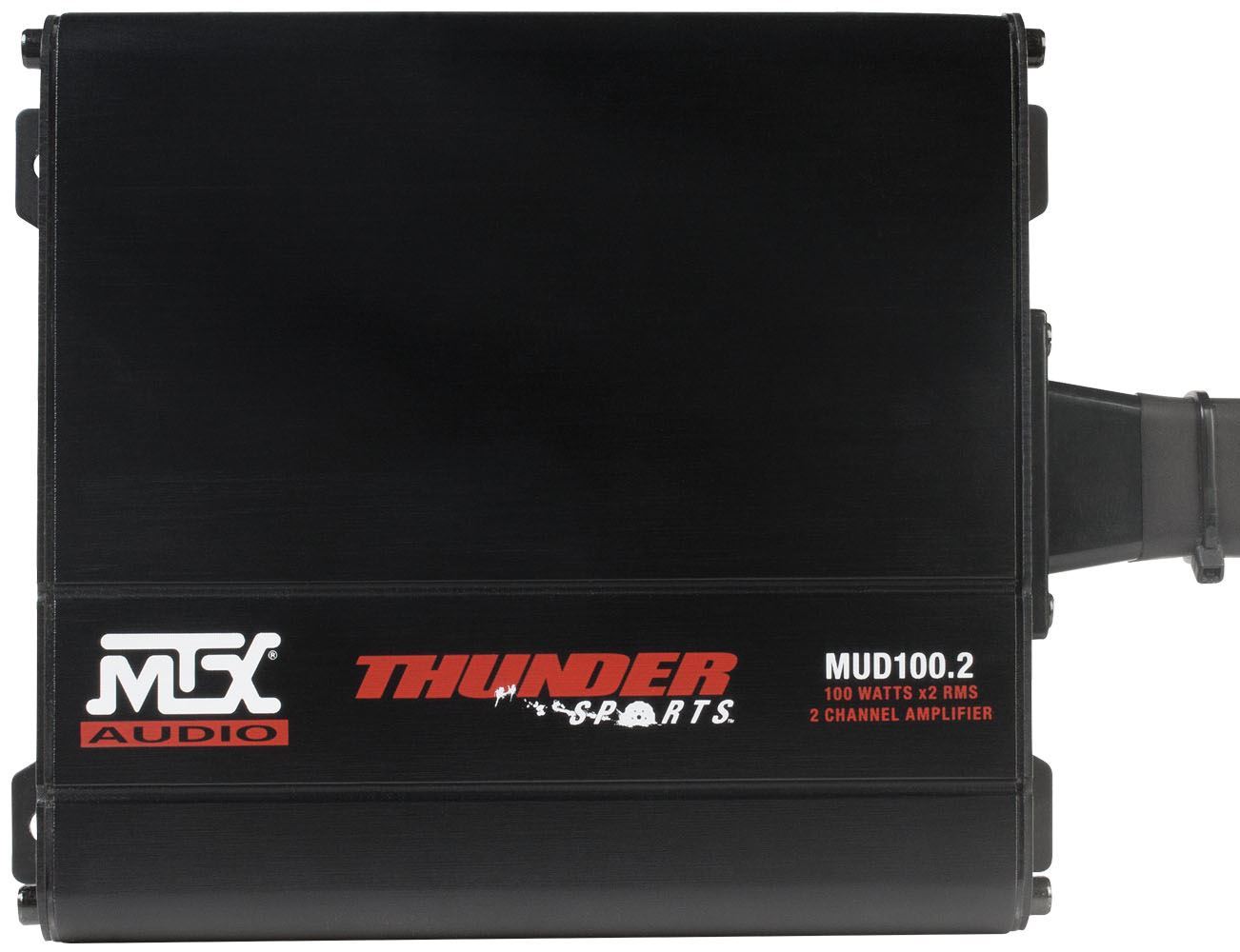

    MUD100.2 Key Features

    • Compact Design Enables Installation Anywhere
    • Conformal Coated Printed Circuit Board that Resists Moisture
    • Fixed Crossovers
    • High and Low Level Inputs
    • 200-Watts RMS Power

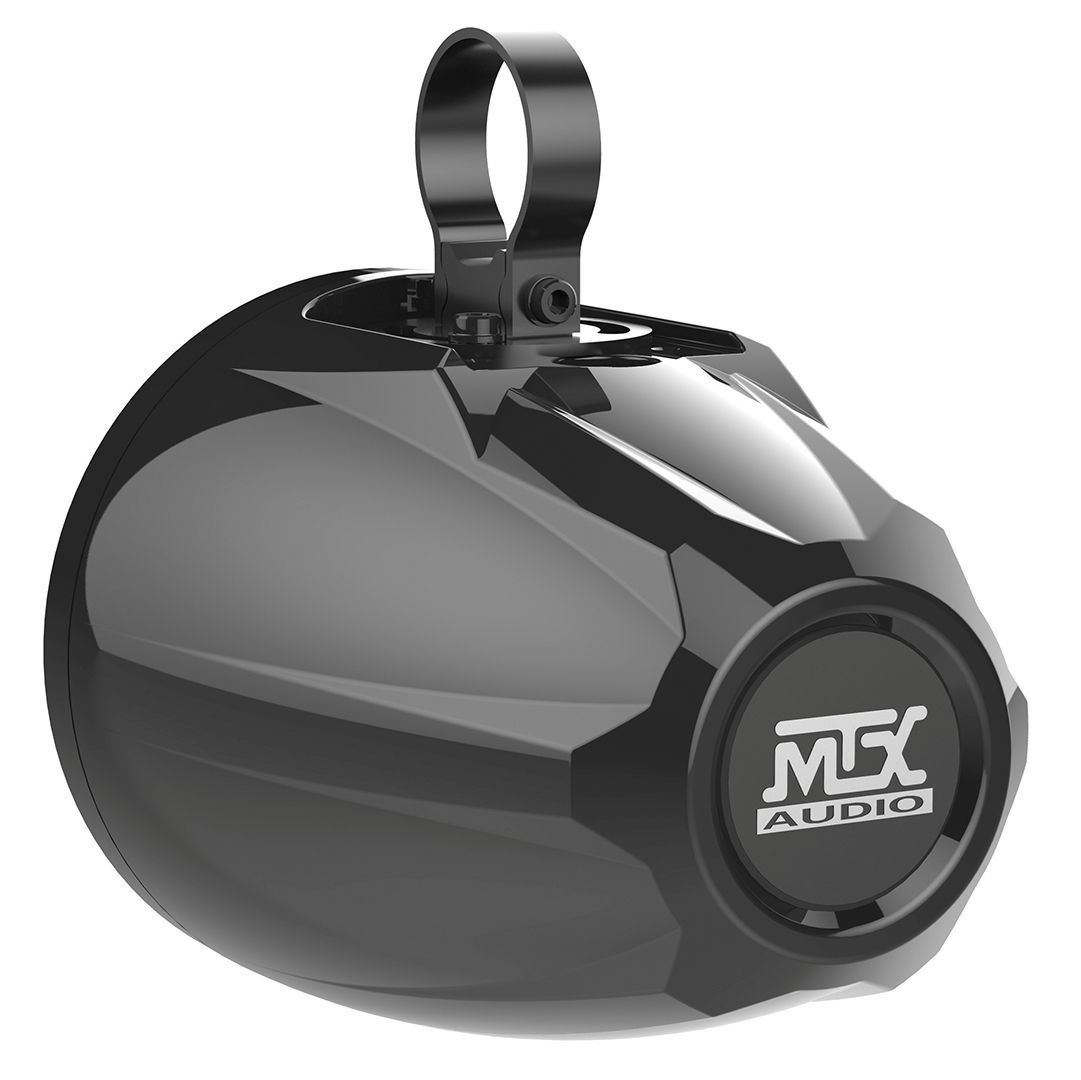

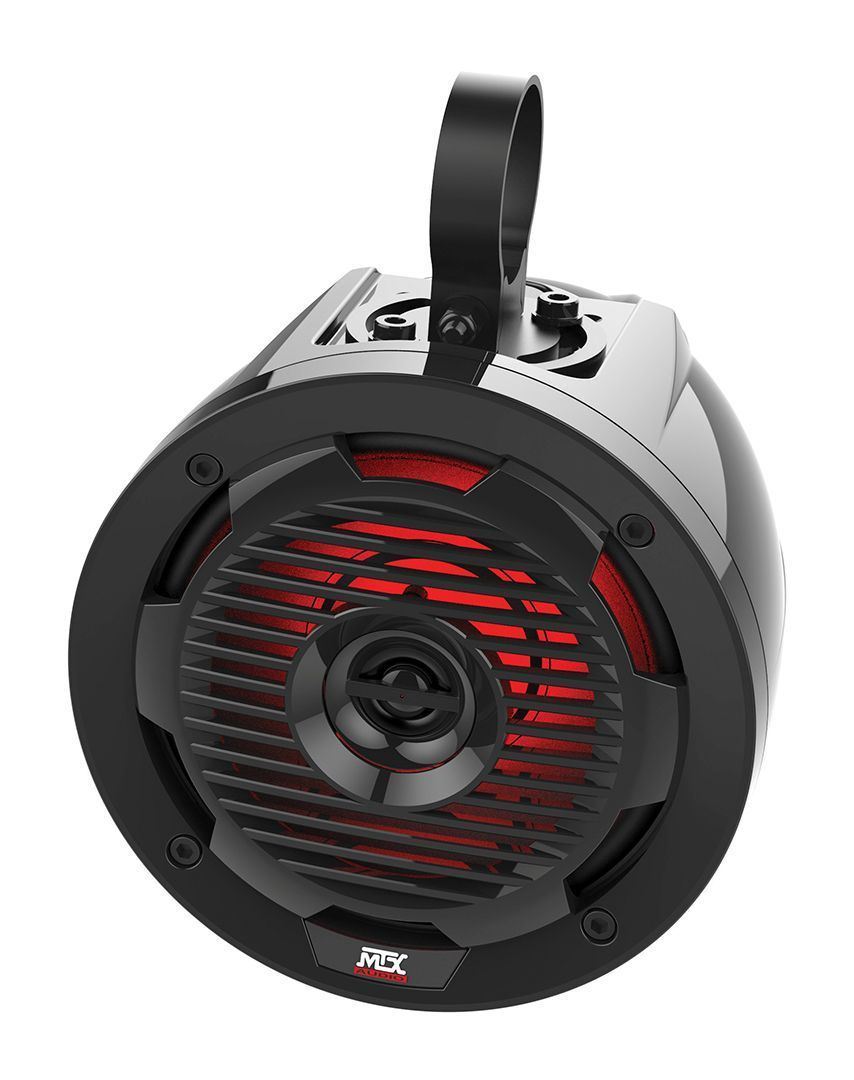

    MUD65PL Key Features

    • Weather Resistant 6.5" Speaker Pods
    • Fits Bars with Diameters of 1.75", 1.85", and 2"
    • Internal Crossover Network
    • ABS Impact Resistant Grille with UV Inhibitor
    • Integrated RGB Lighting
    • Optional Remote Control and Wiring Harness Available for Custom Color Creation (MUDLEDC)

    Wiring Included

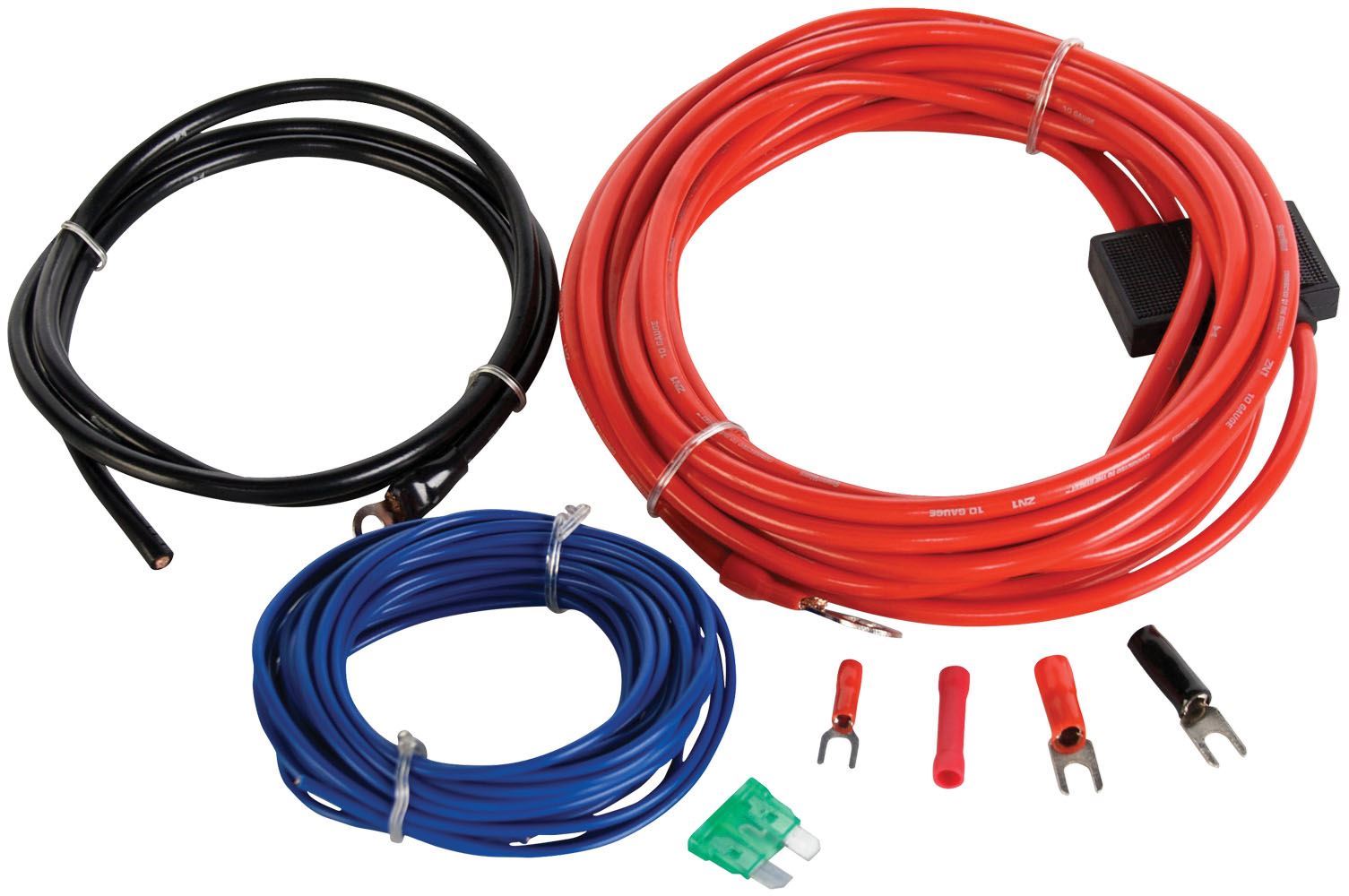

    • PS1K-10 Power Kit for Connecting Amplifier to the Battery
    • ZN1MR35 Stereo to 3.5mm Cable for Connection of AWBTSW to Amplifier
    • SCP1850BL 18-Gauge Speaker Wire for Connecting MUD65PLs to Amplifier

    This package works with Polaris, Can-Am, Yamaha, Kawasaki, Honda, Massimo, Kymco, Kubota, John Deere, and other vehicles with roll cages between 1.5" and 2" roll cages.

    Description 2-Channel
    4Ω RMS Power Output 50W x 2 Channels
    2Ω RMS Power Output 100W x 2 Channels
    1Ω RMS Power Output NA
    Topology Full Range Class D
    THD <1.0%
    Frequency Response 20Hz - 20kHz
    Crossover Fixed HPF/LPF @ 80Hz, 12dB/Oct
    Max Sensitivity 200mV
    Maximum Input Signal 5V
    Dimensions 4.65" x 5.71" x 1.61"
    Speaker Size 6.5", 2-Way
    Sensitivity 86dB
    Impedance 86dB
    Frequency Response 70Hz-20kHz
    Dimensions 9.34" x 7.09" x 8.76"

    Owners Manual MTX004785 MUD100_2 Owner's Manual RevB (28 pages) View | Download
    Owners Manual AWBTSW Owners Manual (4 pages) View | Download
    Owners Manual MTX005835B MUD65PL Owners Manual (8 pages) View | Download
