SKU: UNI-2-ADDON

Amplifier and 4 Roll Cage Speaker Package Addition

Amplifier and 4 Roll Cage Speaker Package Addition

    Availability: In stock
    819.95
    70.00
    749.95
    Share this MTX page...
    UNI-2-ADDON Overview

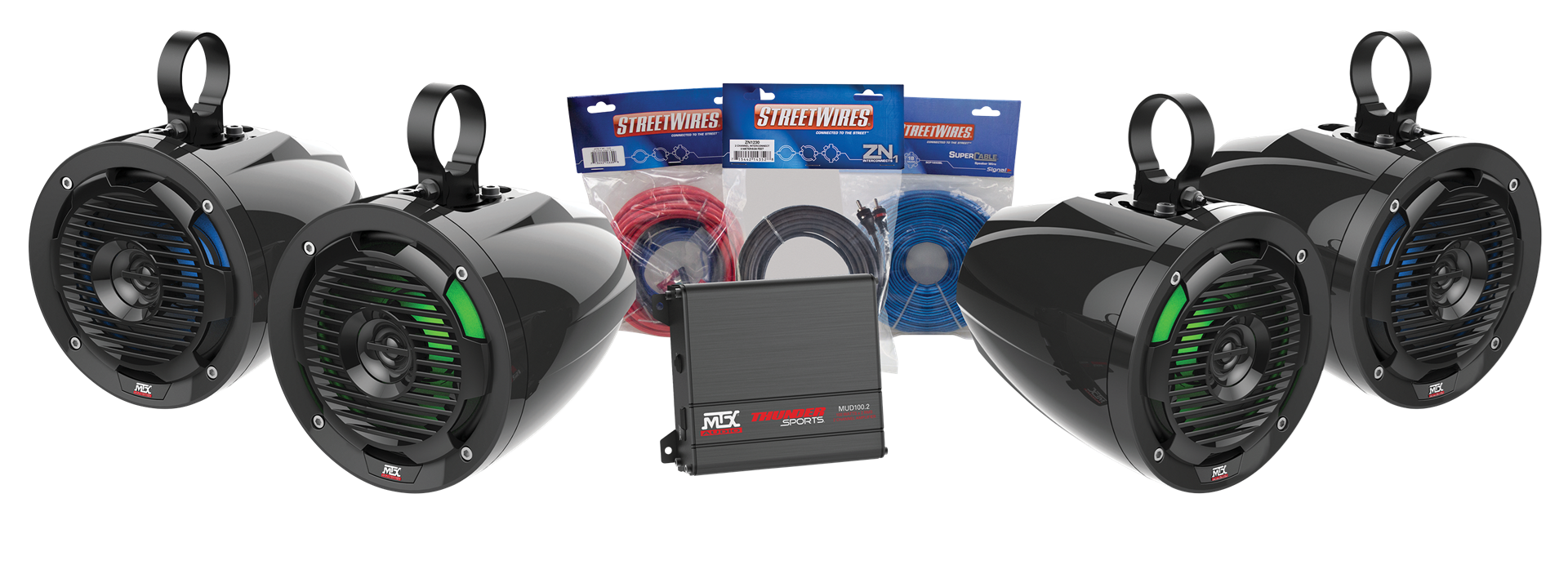

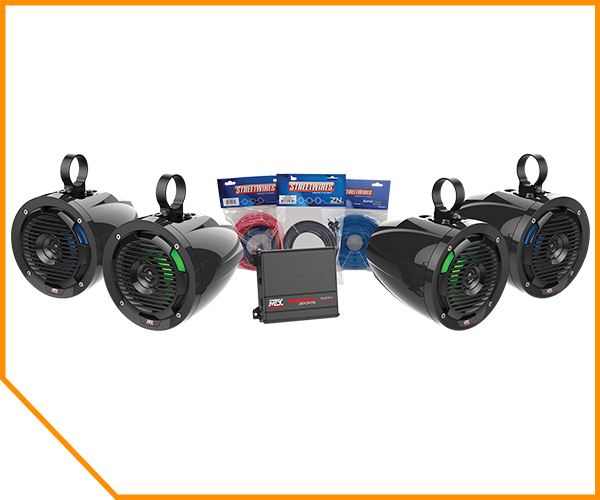

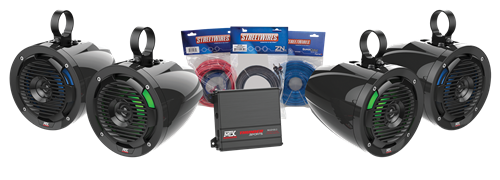

    Powerful, Four-Speaker MTX Extreme Sports Sound System Addition

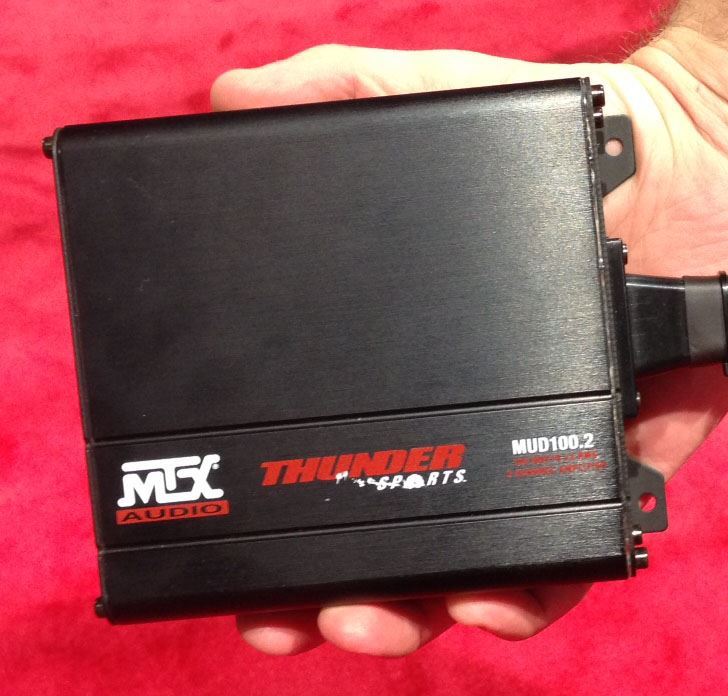

    The UNI-2-ADDON is a package that includes everything you need to take your UTV, sand rail, Jeep, or whatever's audio system to the next level in sound. This kit can be connected to any source unit that includes RCA outputs and includes the MTX MUD100.2 which is the most compact amplifier that MTX has ever made. This unit features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 2 channels that are capable of delivering 100-watts of RMS power per channel at 2Ω, perfect power for driving the included all-weather speakers, two per channel. The four MUD65PL MTX roll cage speakers can project amazing sound to get you rocking big time. Crank them up in your UTV and enjoy the ride.

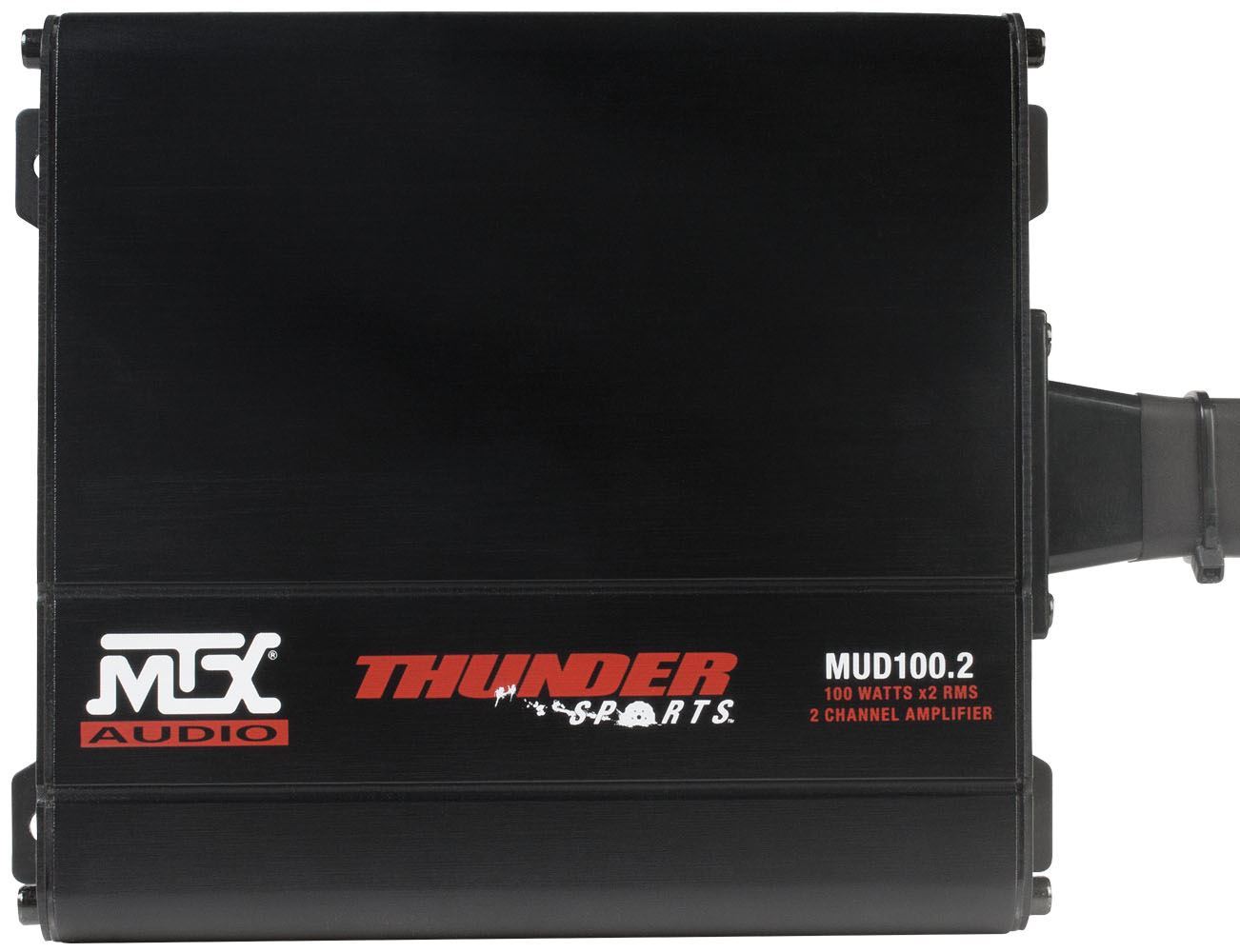

    MUD100.2 Key Features

    • Compact Design Enables Installation Anywhere
    • Conformal Coated Printed Circuit Board that Resists Moisture

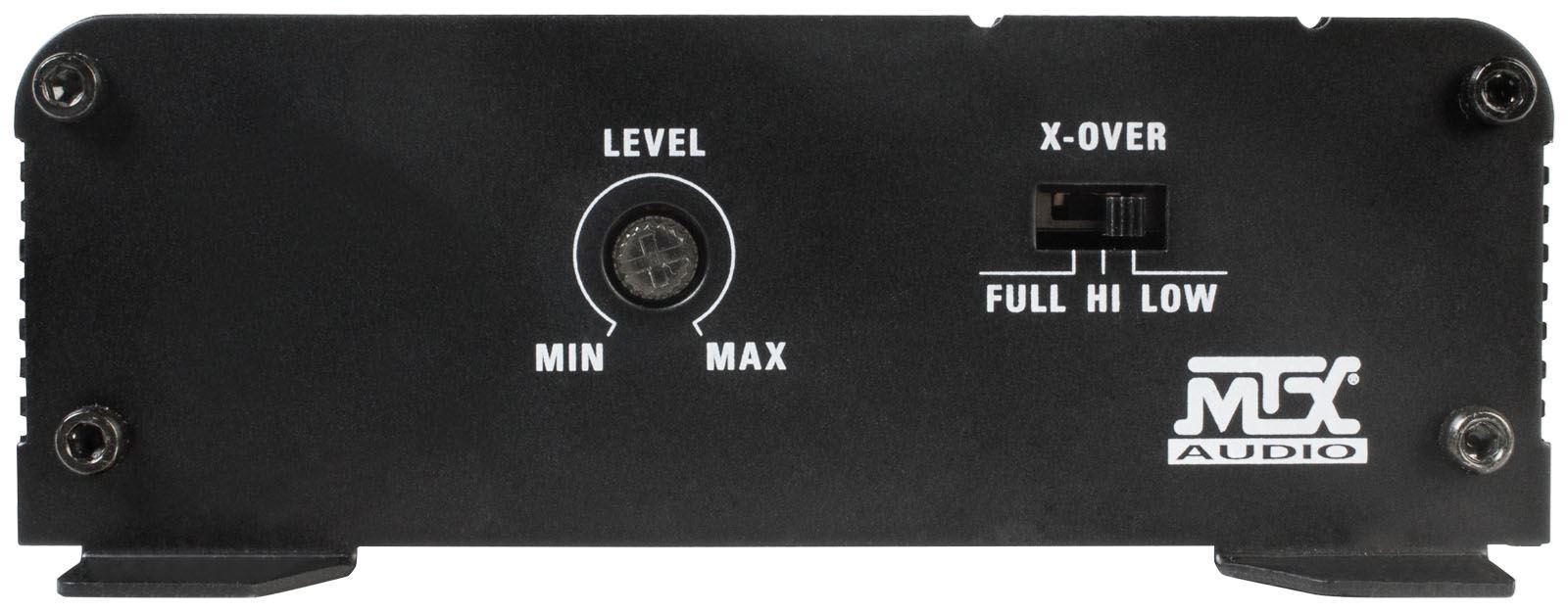

    • Fixed Crossovers
    • High and Low Level Inputs
    • 200-Watts RMS Power

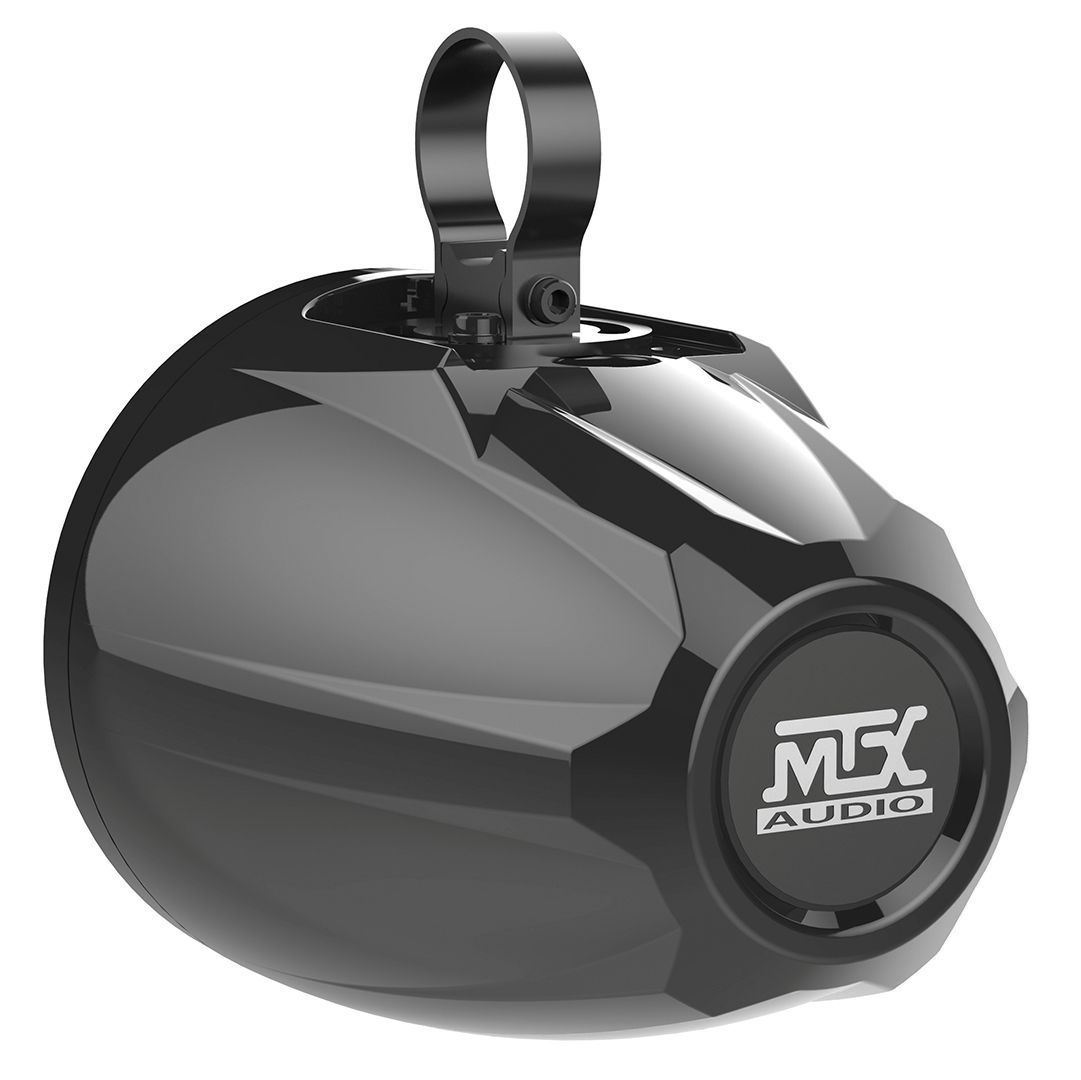

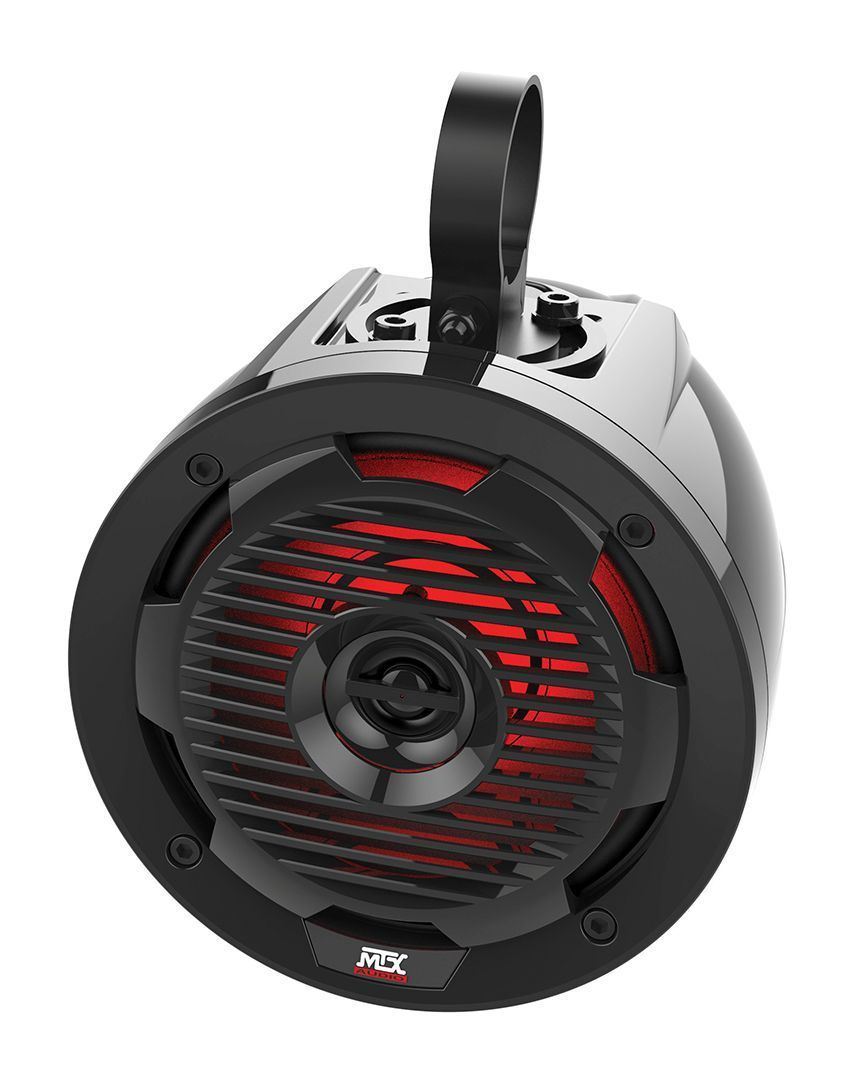

    MUD65PL Key Features

    • Weather Resistant 6.5" Speaker Pods
    • Fits Bars with Diameters of 1.75", 1.85", and 2"
    • Internal Crossover Network
    • ABS Impact Resistant Grille with UV Inhibitor
    • Integrated RGB Lighting
    • Optional Remote Control and Wiring Harness Available for Custom Color Creation (MUDLEDC)

    Wiring Included

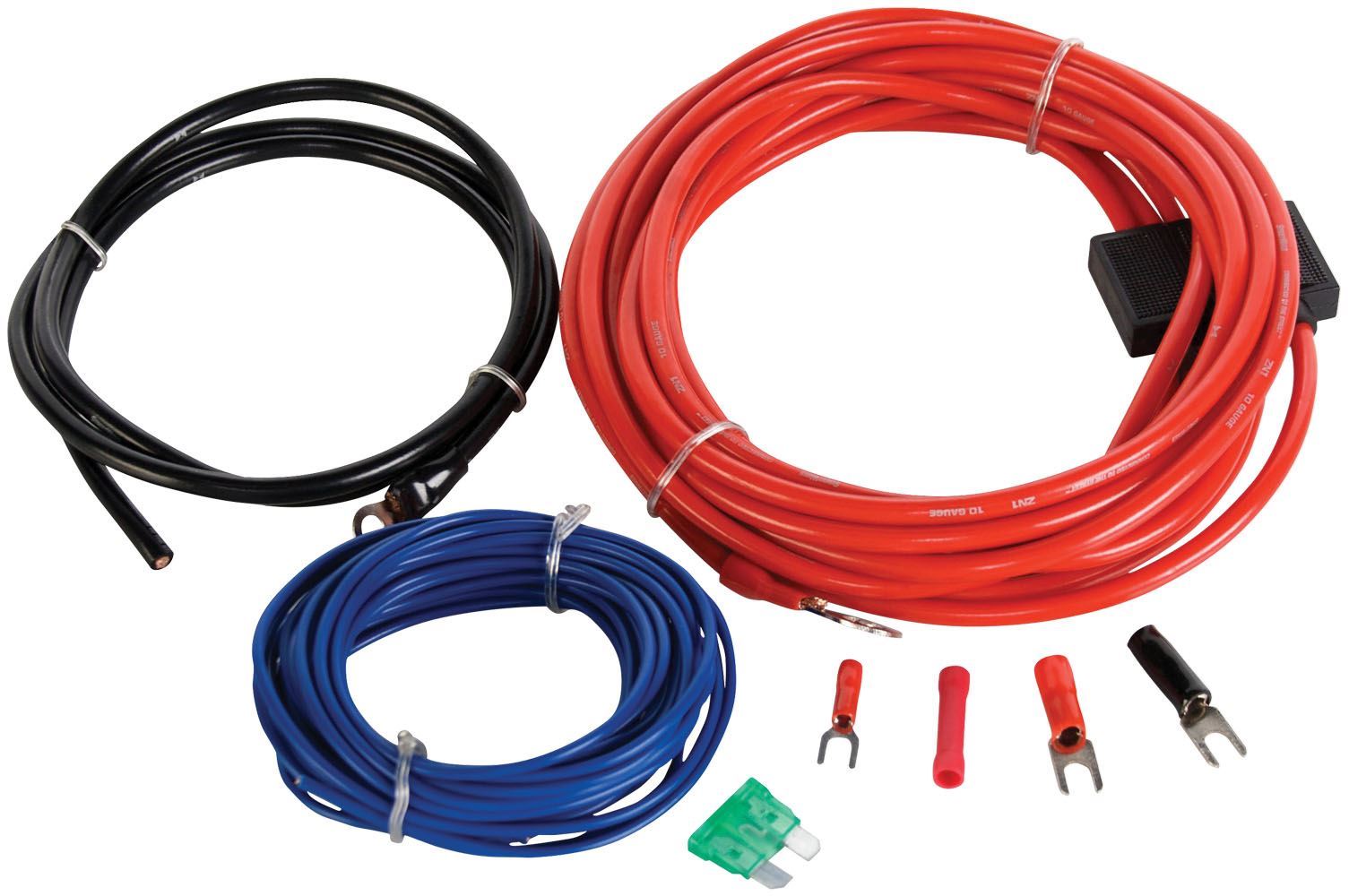

    • PS1K-10 Power Kit for Connecting Amplifier to the Battery
    • ZN1230 Stereo Cable for Connection of Your Source Unit to the Amplifier

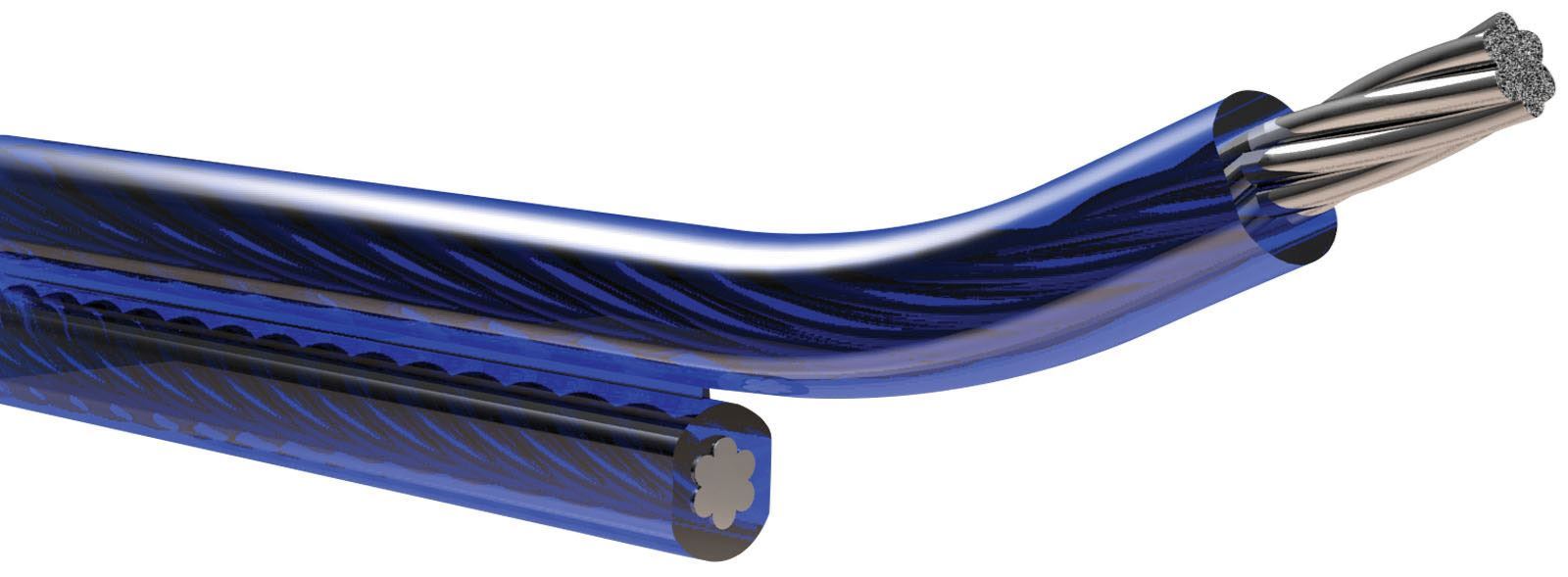

    • SCP1850BL 18-Gauge Speaker Wire for Connecting MUD65PLs to Amplifier

    This package works with Polaris, Can-Am, Yamaha, Kawasaki, Honda, Massimo, Kymco, Kubota, John Deere, and other vehicles with roll cages between 1.5" and 2" roll cages.

    SPECIFICATIONS
    Amplifier
    Description 2-Channel
    4Ω RMS Power Output 50W x 2 Channels
    2Ω RMS Power Output 100W x 2 Channels
    1Ω RMS Power Output NA
    Topology Full Range Class D
    THD <1.0%
    Frequency Response 20Hz - 20kHz
    Crossover Fixed HPF/LPF @ 80Hz, 12dB/Oct
    Max Sensitivity 200mV
    Maximum Input Signal 5V
    Dimensions 4.65" x 5.71" x 1.61"
    Speaker
    Speaker Size 6.5", 2-Way
    Sensitivity 86dB
    Impedance 86dB
    Frequency Response 70Hz-20kHz
    Dimensions 9.34" x 7.09" x 8.76"

    SUPPORT FILES
    Owners Manual MTX004785 MUD100_2 Owner's Manual RevB (28 pages) View | Download
    Owners Manual MTX005835B MUD65PL Owners Manual (8 pages) View | Download
    Collateral UNI-2-ADDON Wiring Diagram (1 page) View | Download
