SKU: MA1400.5

1400-Watt RMS Class-D 5-Channel Marine Amplifier

Availability: In stock
$1,049.95 MSRP
$949.95

One Amp for your Entire System

The MA1400.5 five-channel marine amplifier from MTX powers your entire boat’s audio system with full-range clarity and deep, resonant bass. With dedicated channels for both speakers and a subwoofer, this compact powerhouse delivers efficient performance and precise control- perfect for open-water adventures or dockside hangs.

Ask an expert Find a location

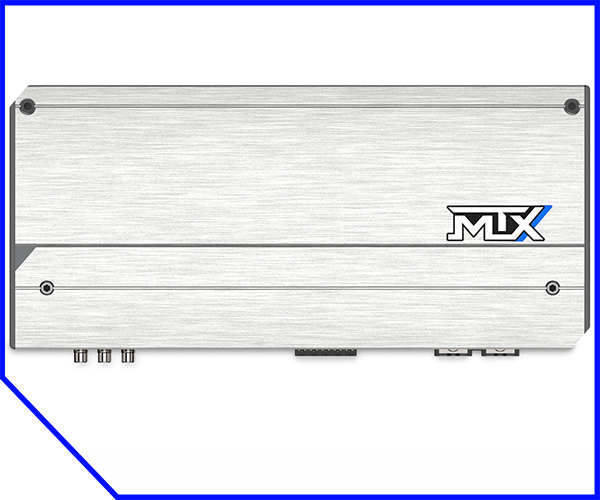

MA1400.5 Built for the Water, Ready for the Ride

Built for the Water, Ready for the Ride

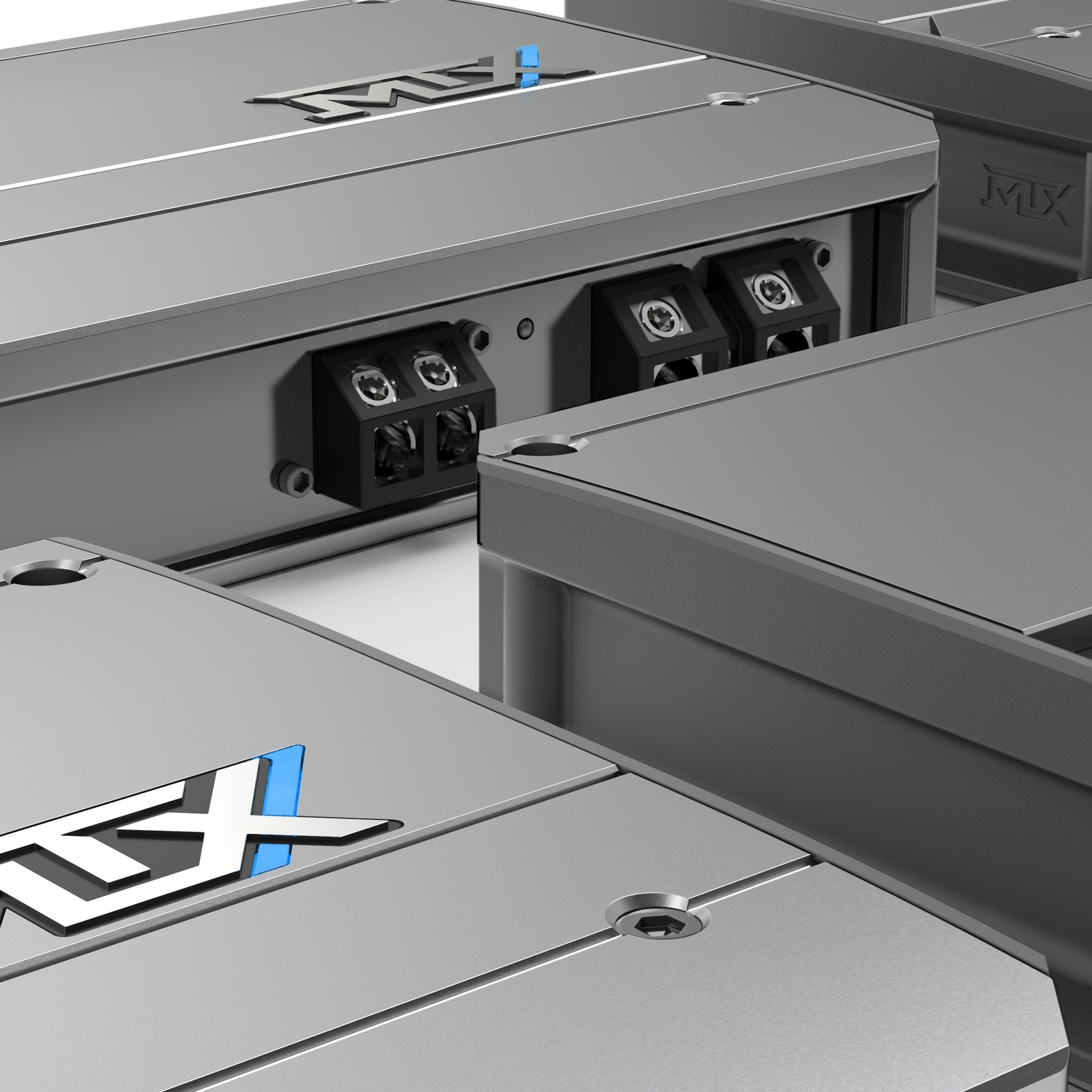

Engineered for life on the water, the MA1400.5 features a conformal-coated circuit board that shields against moisture, salt, and spray. This ensures long-term reliability in harsh marine environments. Stainless steel hardware adds an extra layer of corrosion resistance, making it tough enough for any ride.

MA1400.5 Audio Power, Anywhere you Anchor

Audio Power, Anywhere you Anchor

With four full-range channels delivering up to 100W RMS each at 2Ω and a dedicated subwoofer channel pushing up to 800W RMS at 1Ω, the MA1400.5 brings smooth mids, crisp highs, and thunderous lows to every corner of your vessel. No matter the conditions, your sound stays loud and clear.

MA1400.5 Efficient and Reliable Performance

Efficient and Reliable Performance

Built with Class-D efficiency, the MA1400.5 minimizes heat and power consumption without sacrificing output. Advanced protection circuits and an LED status indicator keep your system running smoothly, alerting you to any potential issues so you can enjoy uninterrupted music on every ride.

MA1400.5 Big Power in a Compact Design

Big Power in a Compact Design

Despite its high output, the MA1400.5’s compact chassis fits easily into tight compartments or under seats, with a durable design that holds up to vibration and weather. Every unit comes with a Dyno Power Rating Certificate, so you know you’re getting real, tested power.

Dimensions & Details

Dimensions

  • A - Length:
    14 ¹⁄₂” (367mm)
  • B - Width:
    7” (176mm)
  • C - Depth:
    2” (50mm)
  •
  • Weight:
    9.06Lbs (4.11Kg)
MA1400.5 Dimensions

Features

  • Conformal Coated Circuit Board for Water & Salt Resistance
  • Stainless Steel Hardware to Prevent Corrosion
  • 1400 Watts RMS Power Output
  • Four Full-Range Channels and One Mono Subwoofer Channel
  • High-Efficiency Class-D Circuit Design
  • Adjustable Gain, Crossover, and Bass Boost Controls

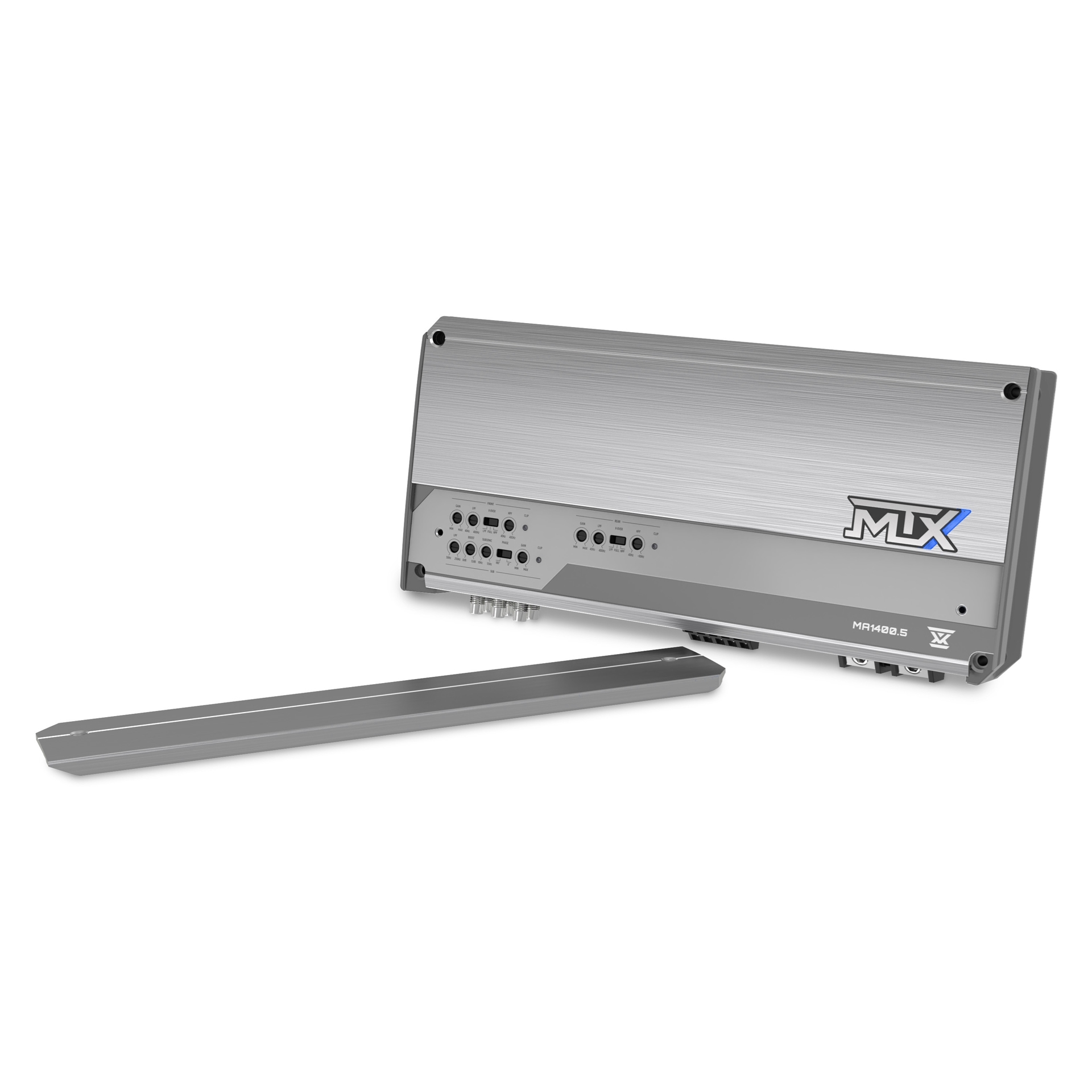

  • Hidden Control Panel for a Clean Look
  • Included External Bass Control Remote
  • Power and Protection LED Status Indicator
  • Thermal, Short, and Over/Under Voltage Protection
  • High-Quality Tiffany-Style RCA Input
  • 10V High-Level Audio Input Compatibility
  • Clip Detection Light for Tuning Optimization
  • Surface Mount Component Technology
  • Direct Insert Power and Speaker Terminals
  • Dyno Power Rating Certificate

Ratings

  • CEA2006D compliant
  • RECOMMENDED FUSE RATING: 150A - 200A

CTA-2006-D Amp Badge
CTA-2006-D Continuous Power Output:

150W RMS x 4 @ 2Ω, 1kHz + 800W RMS x 1@ 1Ω, 50Hz, ≤1% THD+N

150W RMS x 4 @ 2Ω, 1kHz + 500W RMS x 1@ 2Ω, 50Hz, ≤1% THD+N

150W RMS x 4 @ 2Ω, 1kHz + 300W RMS x 1@ 4Ω, 50Hz, ≤1% THD+N

100W RMS x 4 @ 4Ω, 1kHz + 800W RMS x 1 @ 1Ω, 50Hz, ≤1% THD+N

100W RMS x 4 @ 4Ω, 1kHz + 500W RMS x 1 @ 2Ω, 50Hz, ≤1% THD+N

100W RMS x 4 @ 4Ω, 1kHz + 300W RMS x 1 @ 4Ω, 50Hz, ≤1% THD+N

300W RMS x 2 Bridged @ 4Ω, 1kHz + 800W RMS x 1@ 1Ω, 50Hz, ≤1% THD+N

300W RMS x 2 Bridged @ 4Ω, 1kHz + 500W RMS x 1@ 2Ω, 50Hz, ≤1% THD+N

300W RMS x 2 Bridged @ 4Ω, 1kHz + 300W RMS x 1@ 4Ω, 50Hz, ≤1% THD+N

List of CTA-2006-D Certified 12 Volt Amplifiers

Videos

SPECIFICATIONS

  • Description: 5-Channel
  • Topology: Class D
  • 4Ω RMS Power Output: 100W x 4 Channels + 300W
  • 2Ω RMS Power Output: 150W x 4 Channels + 500W
  • 4Ω RMS Bridged Power Output: 300W x 2 Channels (1/2/3/4)
  • 1Ω RMS Power Output: 800W (Sub Only)
  • THD: < 0.4%
  • Signal to Noise Ratio: > 95dB
  • Frequency Response: 20Hz - 20KHz (Ch1-4) 20Hz - 250Hz (Sub)
  • Crossover: 40Hz - 400Hz (CH1-4) 50Hz - 250Hz (Sub)
  • Subsonic Filter: 10Hz - 55Hz (Sub)
  • Maximum Input Signal: 10V
  • Warranty Period: 24 months from date of purchase

Returns & Warranty

30-Day Money-Back Guarantee

At MTX Audio, we are serious about sound®. Therefore, if you are not "blown away" with your purchase, for any reason, you can return any items purchased directly from MTX.com that are complete and like new within 30 days. Products purchased from authorized MTX retailers must be returned through that same retailer. Products purchased through non-authorized MTX retailers may not be returned.

About Returns
Warranty Information

The warranty for MA1400.5 is 24 months from the date of purchase.

MTX products purchased in the USA from an authorized MTX dealer are guaranteed against defects in material and workmanship for the period of time specified below, the warranty period begins the day the product is purchased by the end user. This warranty is limited to the original retail purchaser of product and extends only to products purchased from authorized MTX resellers. Product found to be defective during that period will be repaired or replaced by MTX at no charge.
