SKU: PROXP-20-THUNDER5

5-Speaker Audio System for Polaris RZR Pro XP Vehicles

$2,749.95 MSRP
$2,499.95
$1,999.95 On Sale
Until 11/01/2024

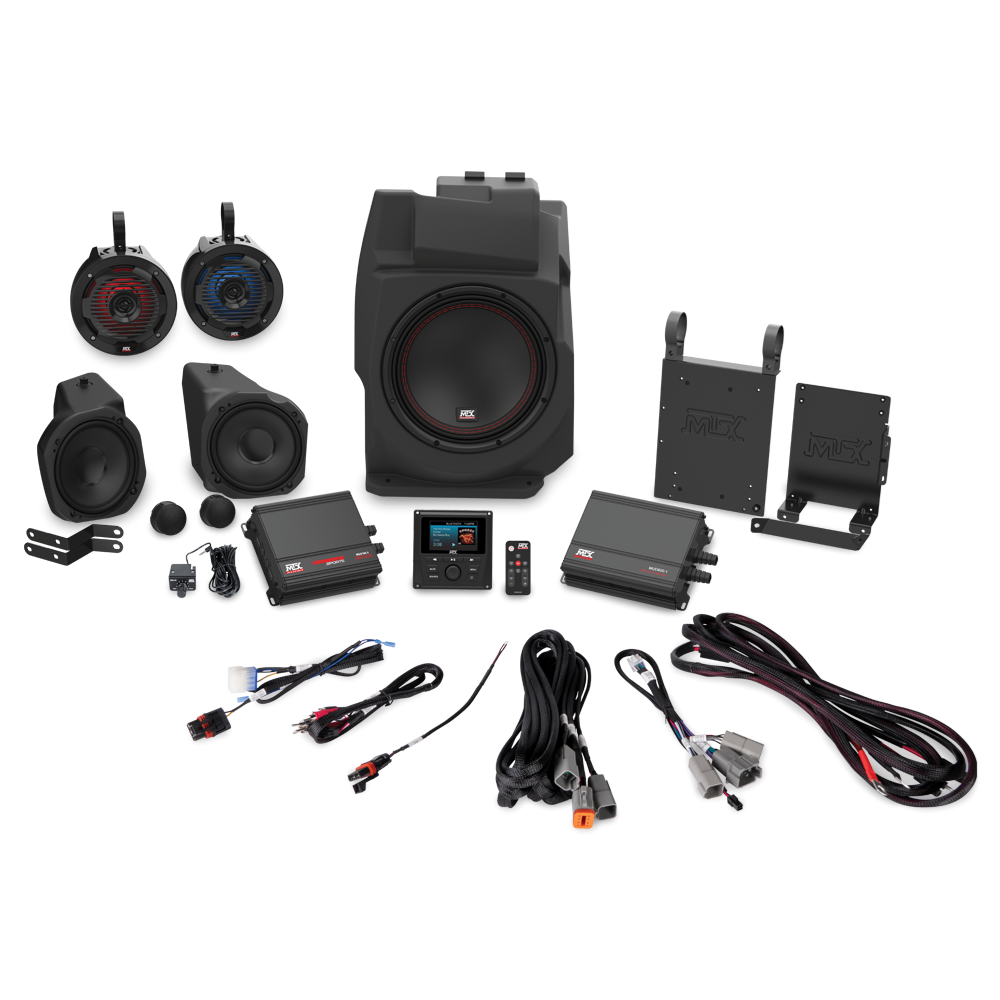

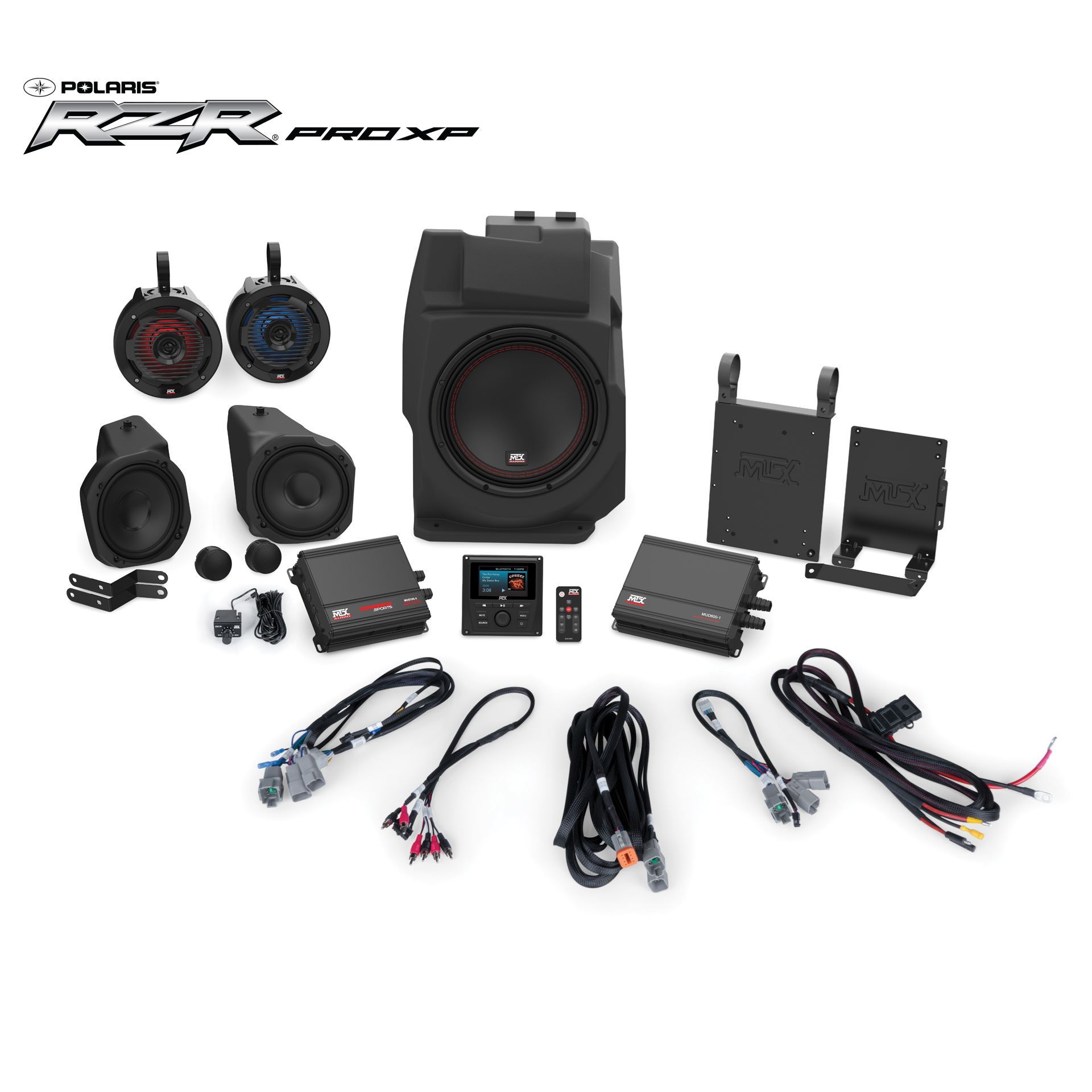

The PROXP-20-THUNDER5 audio kit is a complete plug and play 5-speaker audio system designed for the Polaris RZR Pro XP platform*. This kit fits all models that DO NOT have an installed Ride Command system. The heart of this system is the MTX AWMC3 media receiver that mounts in the upper dash factory panel and provides a full function, feature rich audio experience. Power for the system if provided by the included MUD100.4 4-channel and MUD600-1 monoblock amplifiers. Front audio reproduction is handled by a set of the PROXP-20-FS component speakers. The lower 6 ½” rotationally molded speaker pod is designed to install in a matter of minutes and feature integrated RGB lighting while the 1” soft dome tweeter mounts in the upper dash top factory enclosure. Low end comes from the PROXP-20-SW subwoofer enclosure with its high output 10” subwoofer in a ported enclosure that mounts in the dash on the passenger side of the vehicle. Rear sound is provided by a pair of our MUD65PL speaker cans which feature integrated RGB lighting in a compact design with plug and play connectivity. Connections are made via integrated quick connect, watertight harnesses designed for harshest of riding environments. *Not Compatible with non-Pro XP Model RZR’s.
Ask an expert Find a location

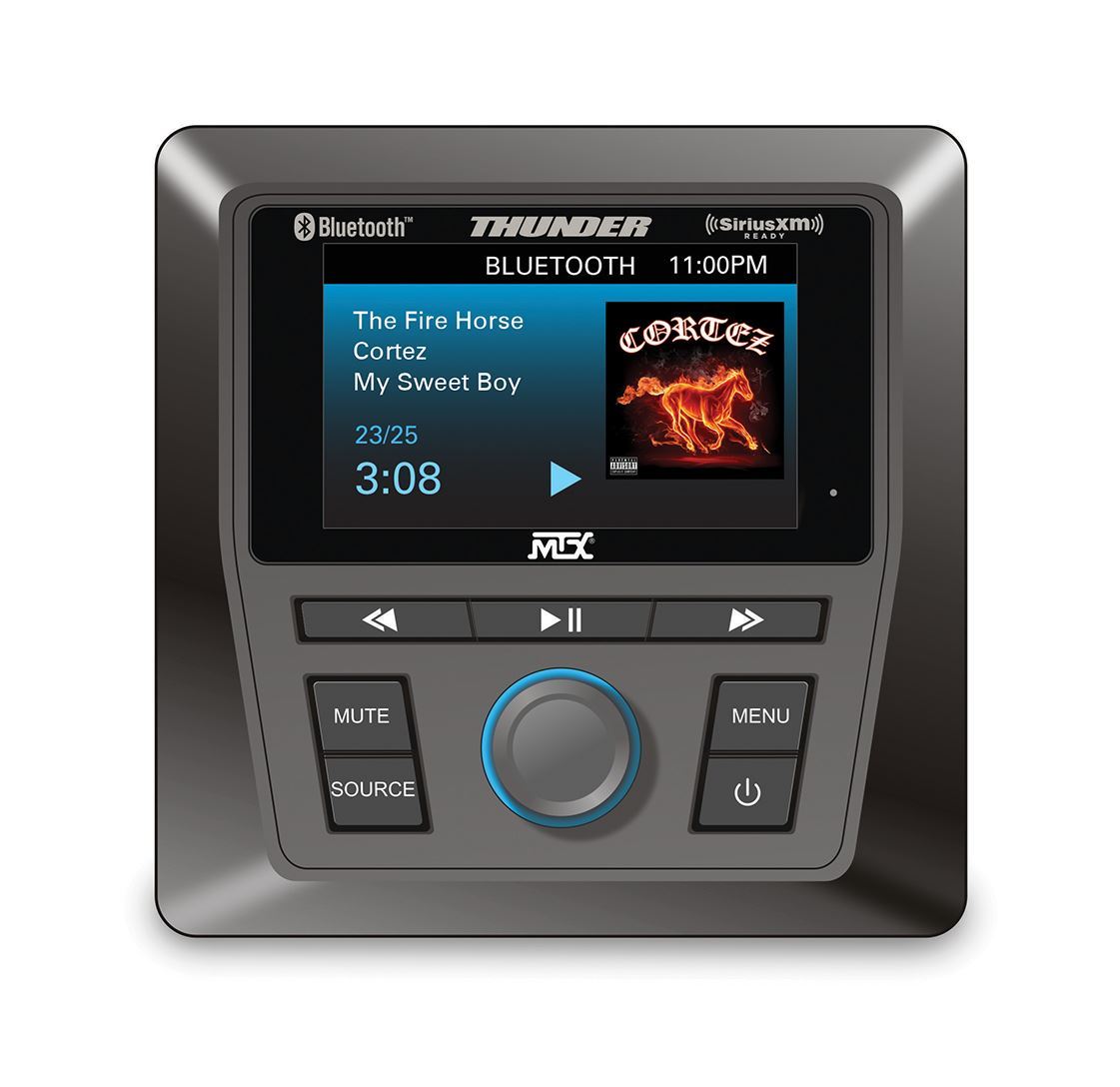

AWMC3* Key Features

  • 3" Full Color TFT Display
  • SiriusXM Radio Ready**
  • AM / FM / WB Tuner
  • Bluetooth Audio Streaming
  • Internal Power Amplifier
  • Weather Resistant (IP66)
  • 2 Sets of Preouts (Front / Rear)
  • Selectable EQ
  • Backlit Control Buttons
  • **SiriusXM antenna/receiver and external AM/FM antenna not included.

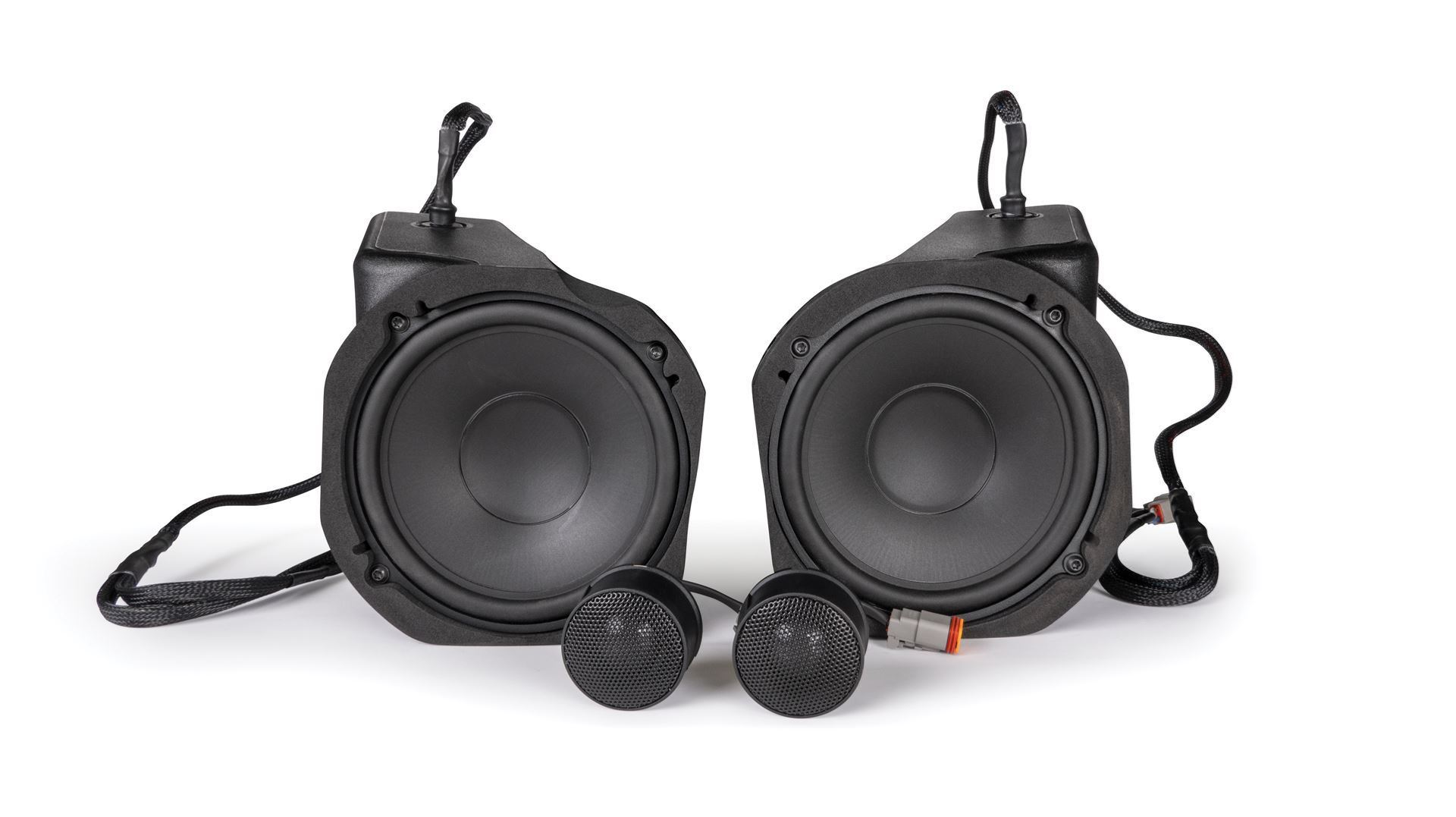

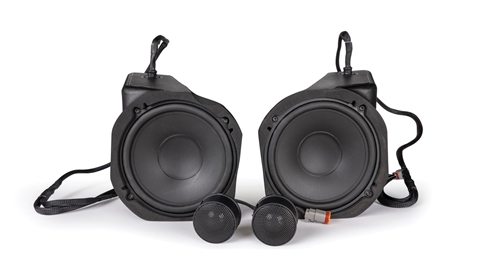

PROXP-20-FS Key Features

  • All-Weather Construction with UV Inhibitor
  • Custom Fit for Dash Panel Panel
  • No Cutting or Drilling Required
  • 6.5" Midrange Speaker
  • 1.0" Teteron Soft Dome Tweeter
  • 75-Watt RMS Power
  • Integrated RGB Lighting
  • Fully assembled Out of the Box

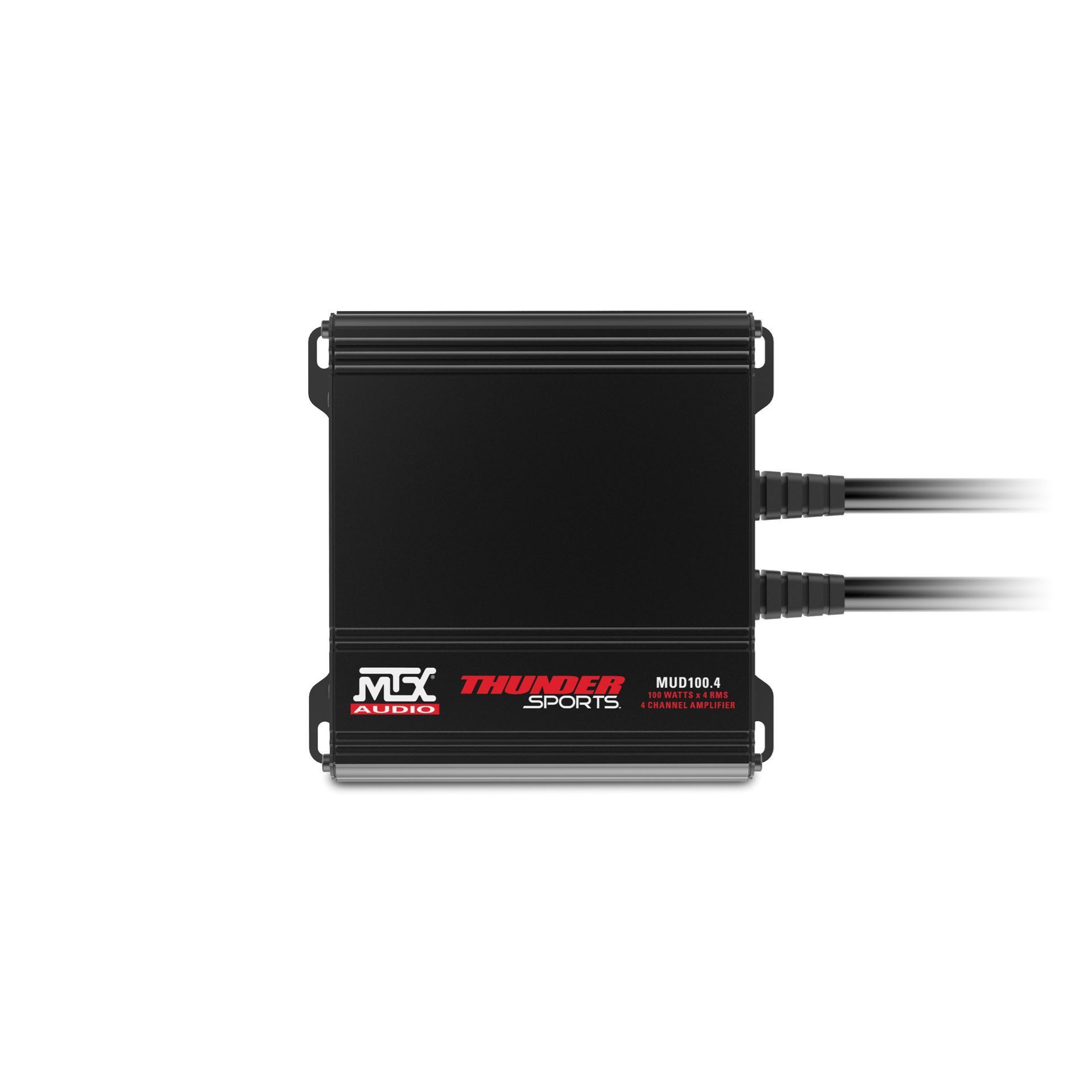

MUD100-4 Key Features

  • Compact Design Enables Installation Anywhere
  • Conformal Coated Printed Circuit Board that Resists Moisture
  • Fixed Crossovers
  • High and Low Level Inputs
  • 400-Watts RMS Power

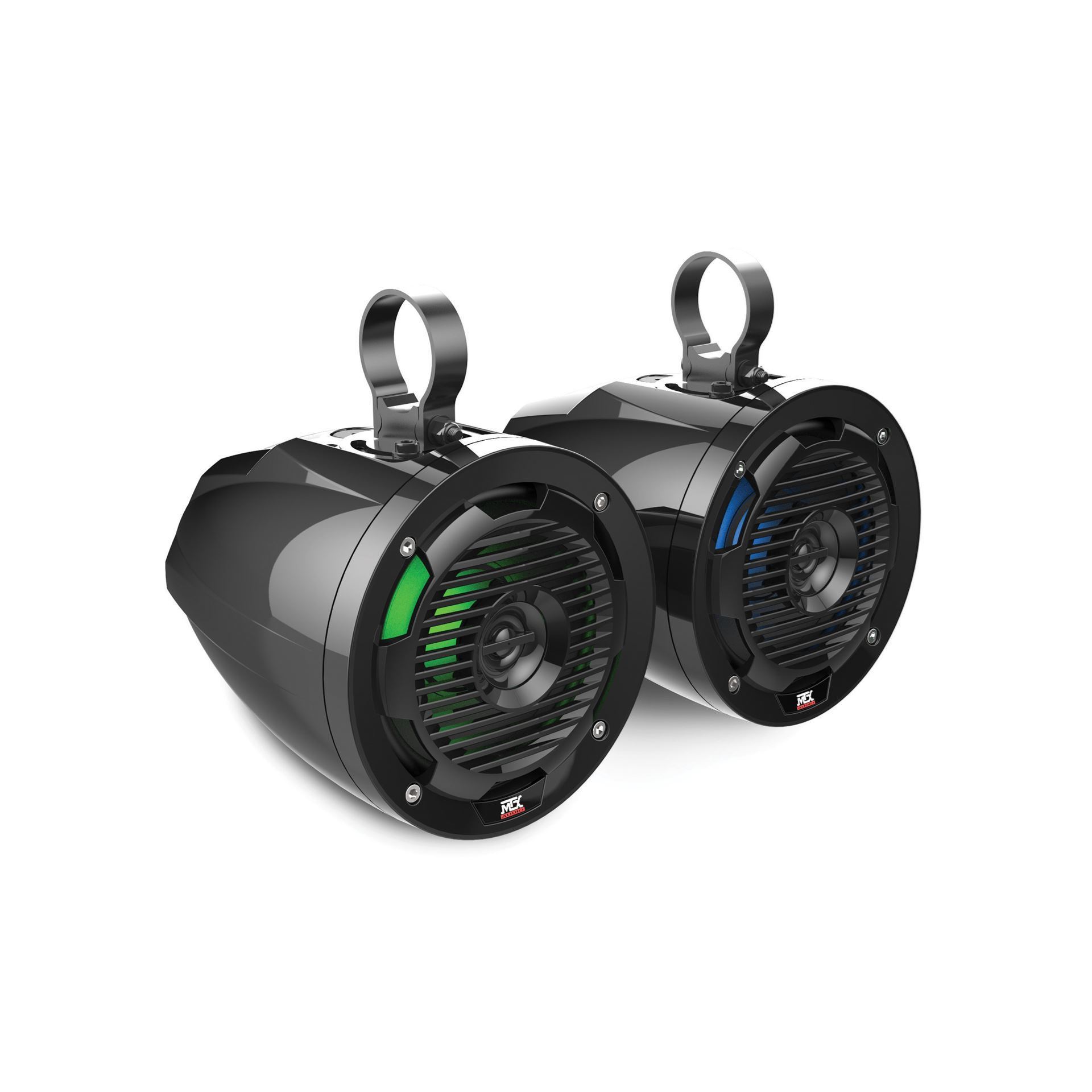

MUD65PL Key Features

  • Weather Resistant 6.5" Speaker Pods
  • Fits Bars with Diameters of 1.75", 1.85", and 2"
  • Internal Crossover Network
  • ABS Impact Resistant Grille with UV Inhibitor
  • Integrated RGB Lighting
  • Optional Remote Control and Wiring Harness Available for Custom Color Creation (MUDLEDC)

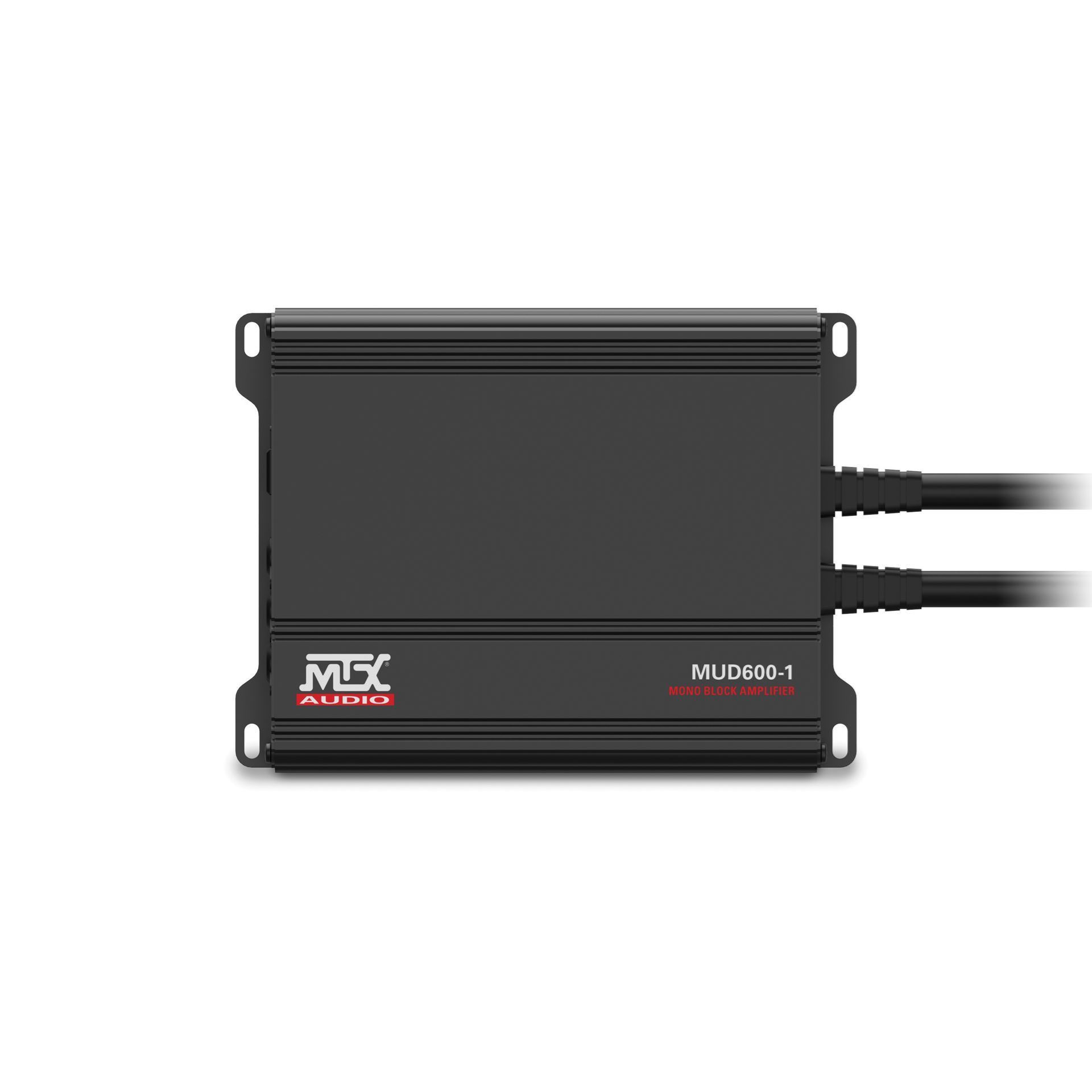

MUD600.1 Key Features

  • High Efficiency Class D Topology
  • Compact Design Enables Installation Anywhere
  • Conformal Coated Printed Circuit Board that Resists Moisture
  • Fixed Crossovers
  • High and Low Level Inputs
  • 600-Watts RMS Power

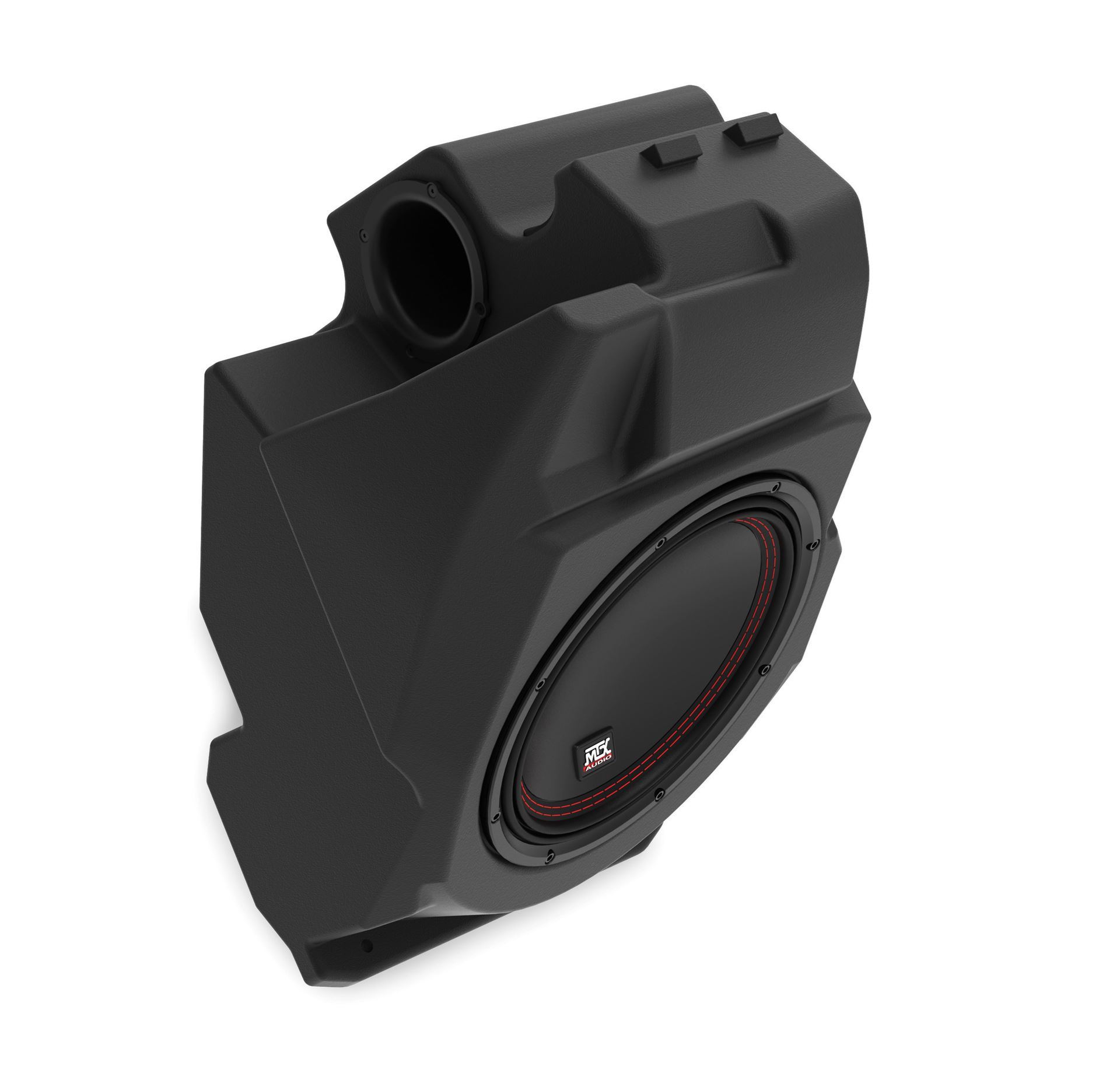

PROXP-20-SW Key Features

  • 10" Custom Fit Subwoofer Enclosure
  • 400-Watt RMS Power
  • High Mount Ported
  • Mounts Behind Dashboard on Passenger Side
  • Quick Installation with Installer Friendly Design
  • Fully assembled Out of the Box

Plug and Play Connections

The PROXP-20-THUNDER5 includes all the wiring required to connect each component. All wiring is ruggedly designed to endure the harsh environments RZRs often find themselves in. All wires are terminated with the appropriate plug for the component being connected, making installation easy.

Dimensions & Details

MTX RZR Pro XP Kit Fit Guide

MTX RZR Pro XP kits are compatible with the following RZR models:
RZR Models ’20 ’21 ’22
RZR Pro XP / XP4 Sport   Yes Yes
RZR Pro XP / XP4 Premium Yes Yes Yes
RZR Pro XP / XP4 Ultimate Yes Yes Yes
RZR Pro XP / XP4 Sport RFLE   Yes
RZR Pro XP / XP4 Ultimate RFLE   Yes
RZR Pro R / R 4 Sport     Yes
RZR Pro R / R 4 Premium     Yes
RZR Pro R / R 4 Ultimate     Yes
RZR Turbo R / R 4 Sport     Yes
RZR Turbo R / R 4 Premium     Yes
RZR Turbo R / R 4 Ultimate     Yes
Fitment Guide Note: The amp racks are not compatible with Polaris heater option.
