SKU: PROXP-20RC-THUNDER5

5-Speaker Audio System for Polaris RZR Pro XP Vehicles w/RideCommand

5-speaker amplified audio system for 2020+ Polaris RZR Pro XP vehicles w/RideCommand



  • OEM Fit
  • Bluetooth Enabled
  • UV Resistant
  • IP66 Rated
    2,399.95
    200.00
    2,199.95
    Share this MTX page...
    PROXP-20RC-THUNDER5 Overview

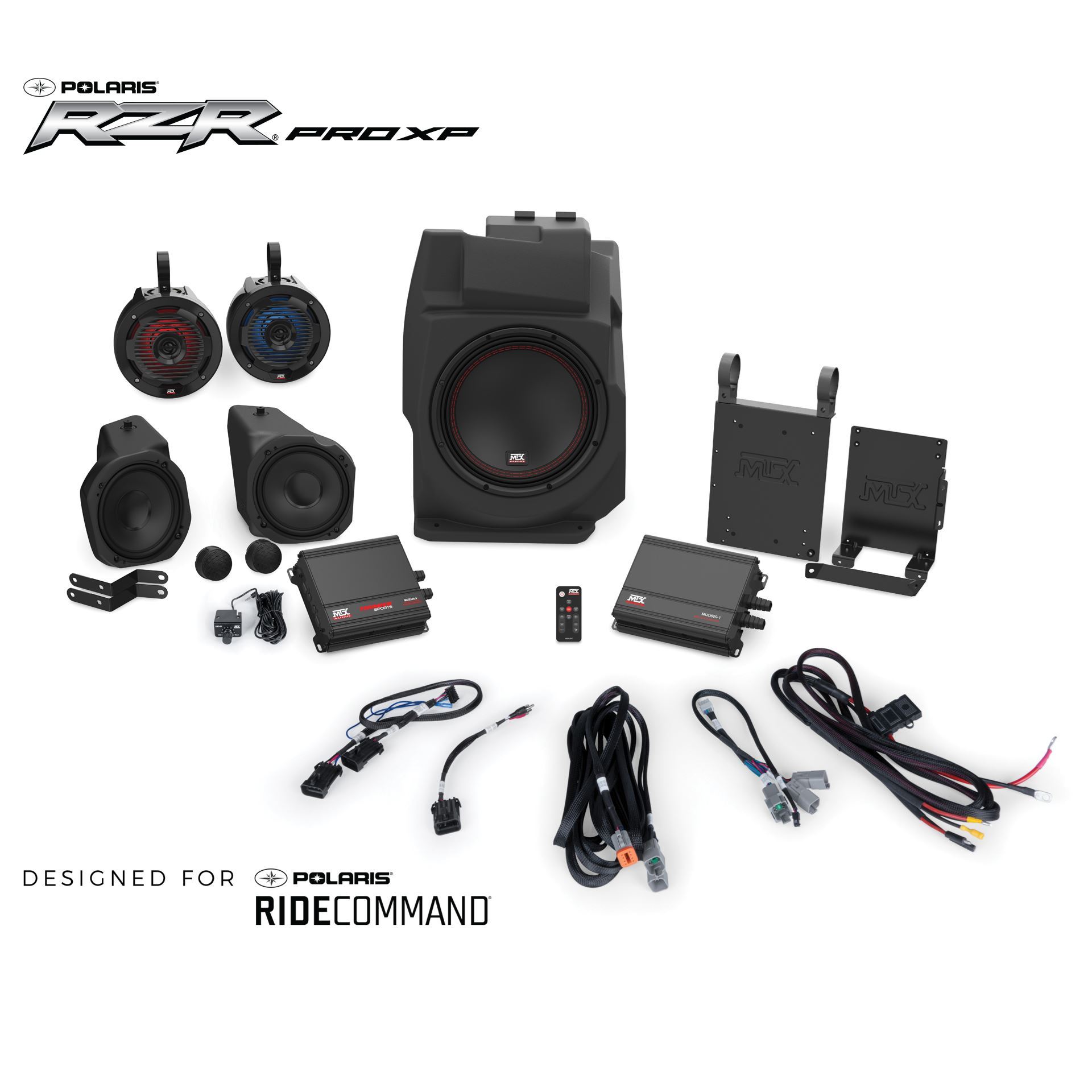

    The PROXP-20RC-THUNDER5 audio kit is a complete plug and play 5-speaker audio system designed for the Polaris RZR Pro XP platform*. This kit fits all models that have an installed Ride Command system. Building of the capabilities of the Polaris Ride Command system the kit features full plug and play integration to the factory harness while power for the system if provided by the included MUD100.4 4-channel and MUD600-1 monoblock amplifiers. Front audio reproduction is handled by a set of the PROXP-20-FS component speakers. The lower 6 ½” rotationally molded speaker pod is designed to install in a matter of minutes and feature integrated RGB lighting while the 1” soft dome tweeter mounts in the upper dash top factory enclosure. Low end comes from the PROXP-20-SW subwoofer enclosure with its high output 10” subwoofer in a ported enclosure that mounts in the dash on the passenger side of the vehicle. Rear sound is provided by a pair of our MUD65PL speaker cans which feature integrated RGB lighting in a compact design with plug and play connectivity. Connections are made via integrated quick connect, watertight harnesses designed for harshest of riding environments. *Not Compatible with non-Pro XP Model RZR’s.

    MTX RZR Pro XP kits are compatible with the following RZR models:
    RZR Models202020212022
    RZR Pro XP 4 Sport   Yes Yes
    RZR Pro XP 4Premium Yes Yes Yes
    RZR Pro XP 4 Ultimate Yes Yes Yes
    RZR Pro XP 4 Sport RFLE   Yes
    RZR Pro XP 4 Ultimate RFLE   Yes
    Fitment Guide Note: The amp racks are not compatible with Polaris heater option.

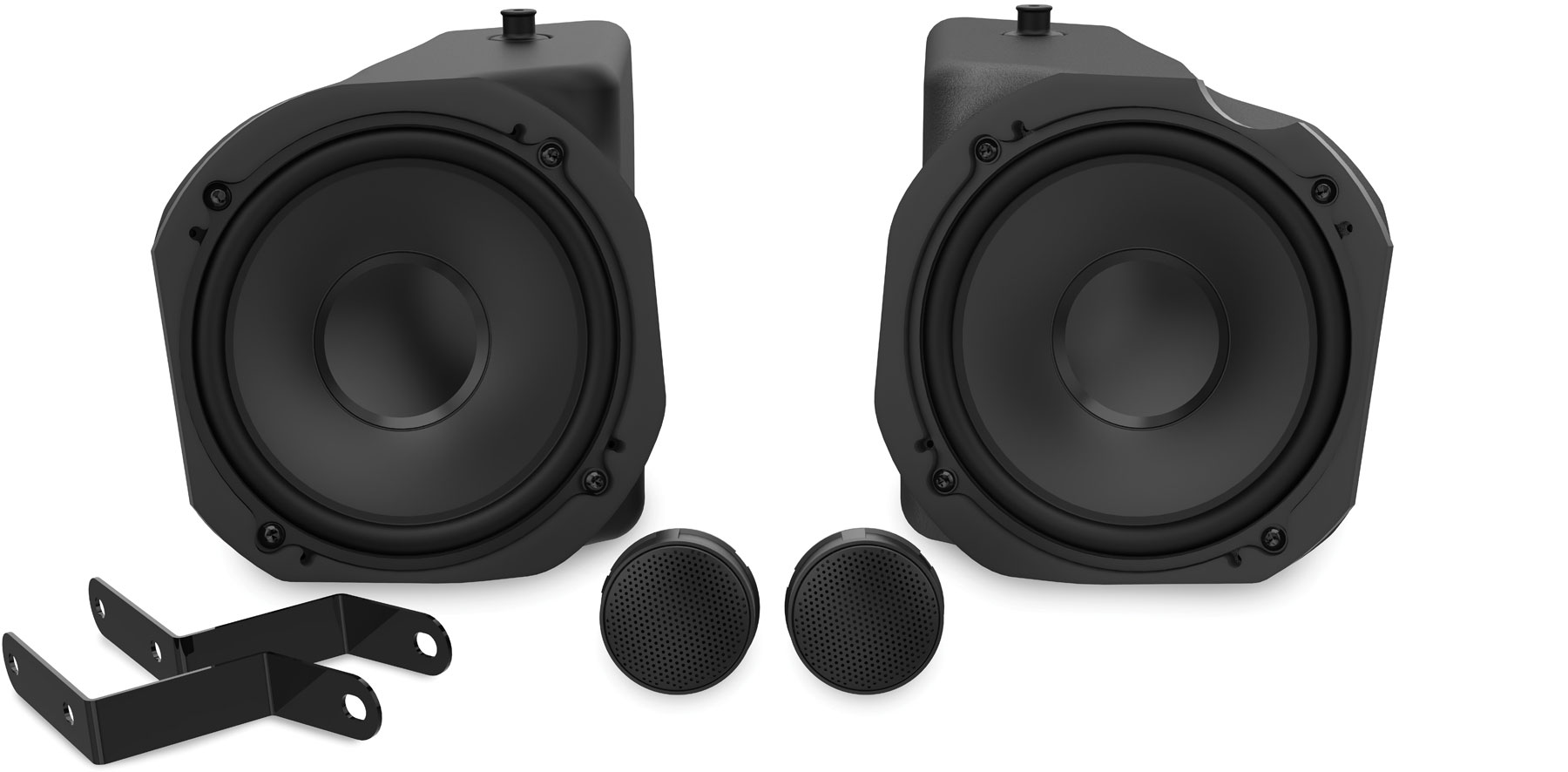

    PROXP-20-FS Key Features

    • All-Weather Construction with UV Inhibitor
    • Custom Fit for Dash Panel Panel
    • No Cutting or Drilling Required
    • 6.5" Midrange Speaker
    • 1.0" Teteron Soft Dome Tweeter
    • 75-Watt RMS Power
    • Integrated RGB Lighting
    • Fully assembled Out of the Box

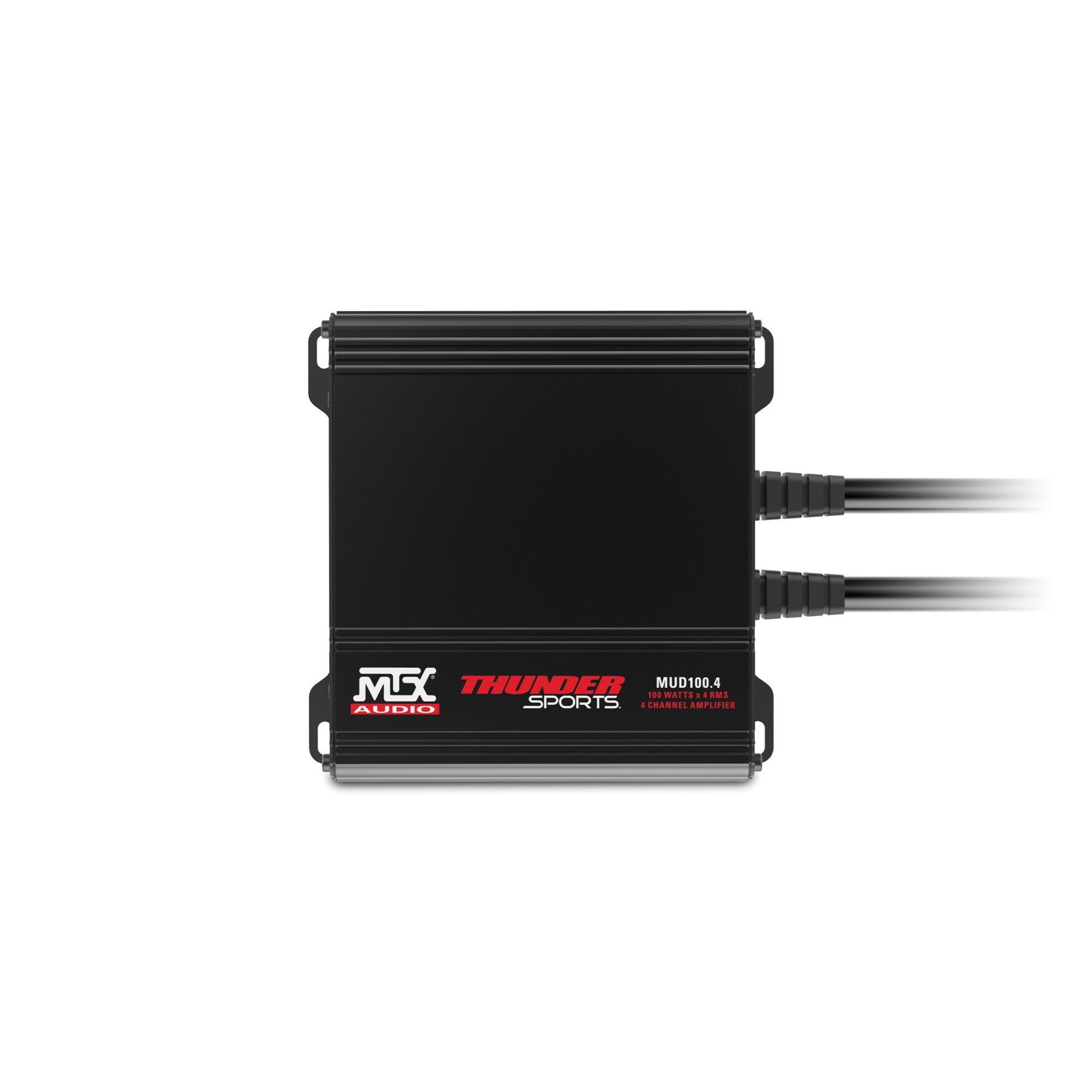

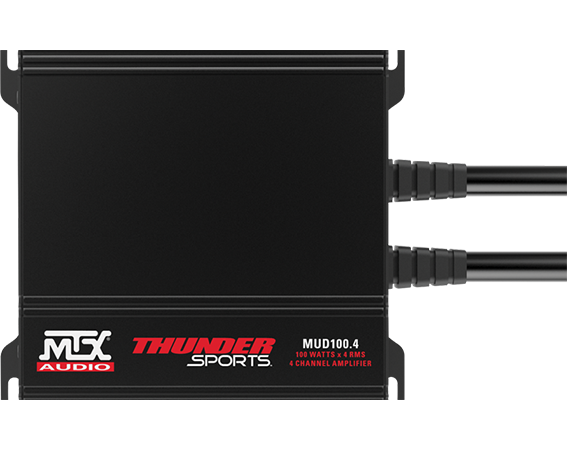

    MUD100-4 Key Features

    • Compact Design Enables Installation Anywhere
    • Conformal Coated Printed Circuit Board that Resists Moisture
    • Fixed Crossovers
    • High and Low Level Inputs
    • 400-Watts RMS Power

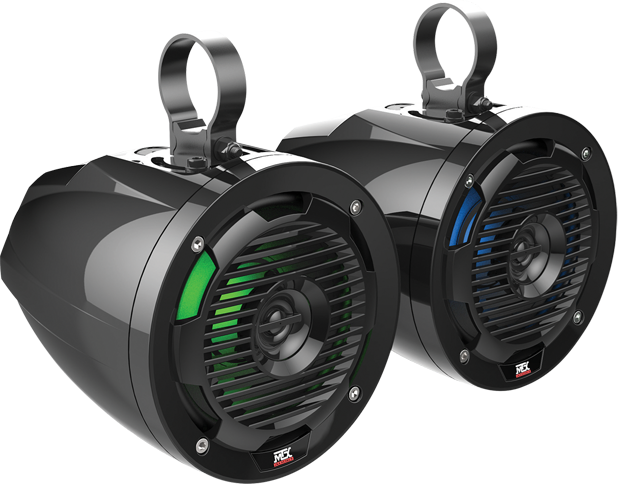

    MUD65PL Key Features

    • Weather Resistant 6.5" Speaker Pods
    • Fits Bars with Diameters of 1.75", 1.85", and 2"
    • Internal Crossover Network
    • ABS Impact Resistant Grille with UV Inhibitor
    • Integrated RGB Lighting
    • Optional Remote Control and Wiring Harness Available for Custom Color Creation (MUDLEDC)

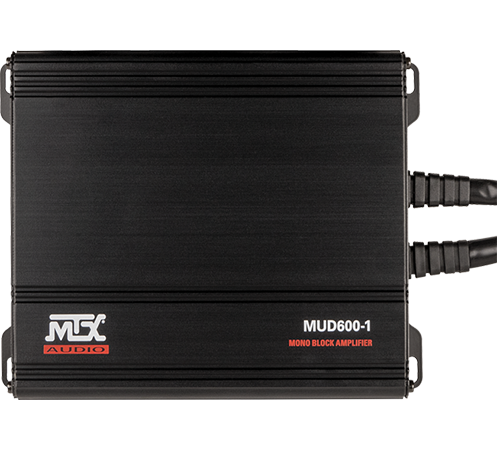

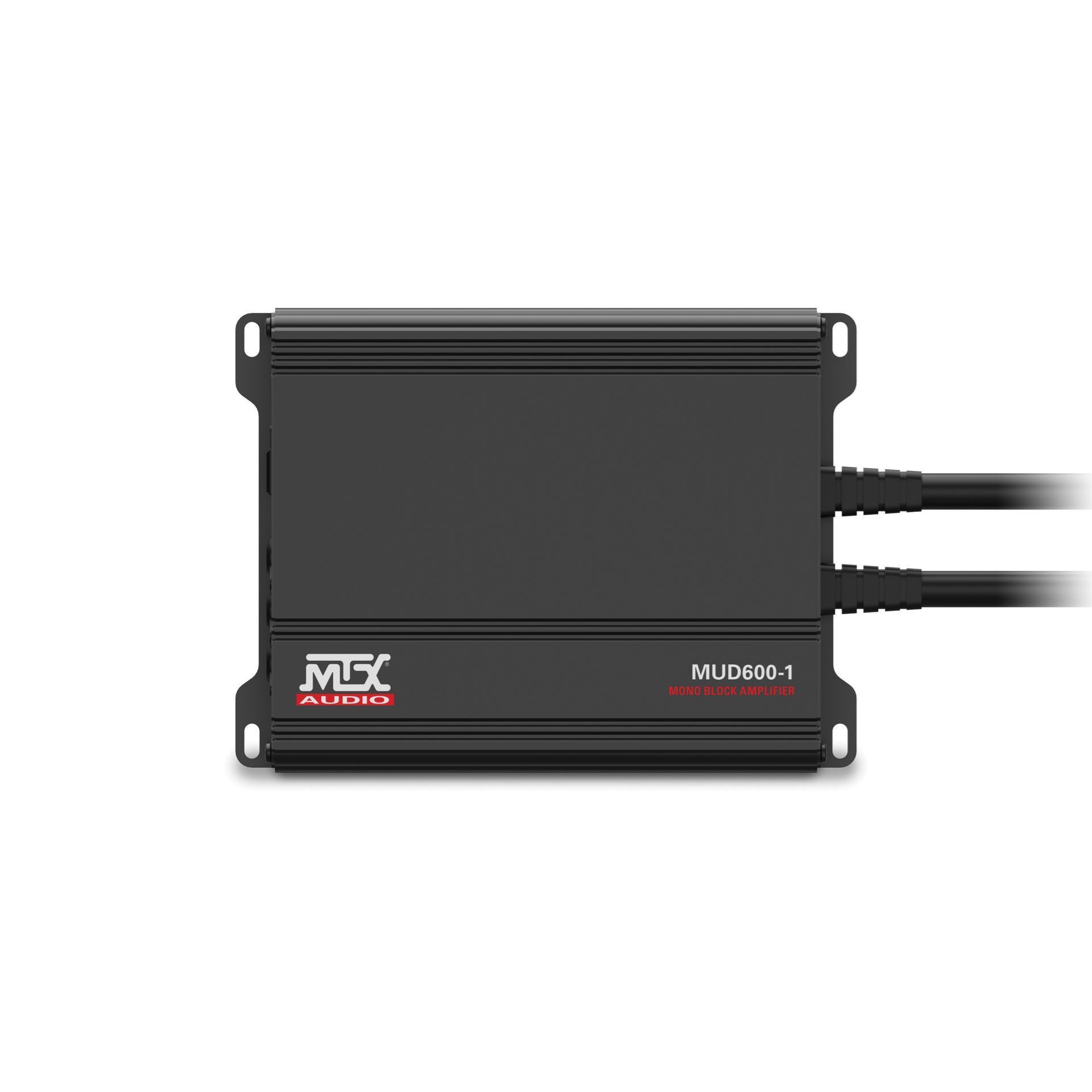

    MUD600.1 Key Features

    • High Efficiency Class D Topology
    • Compact Design Enables Installation Anywhere
    • Conformal Coated Printed Circuit Board that Resists Moisture
    • Fixed Crossovers
    • High and Low Level Inputs
    • 600-Watts RMS Power

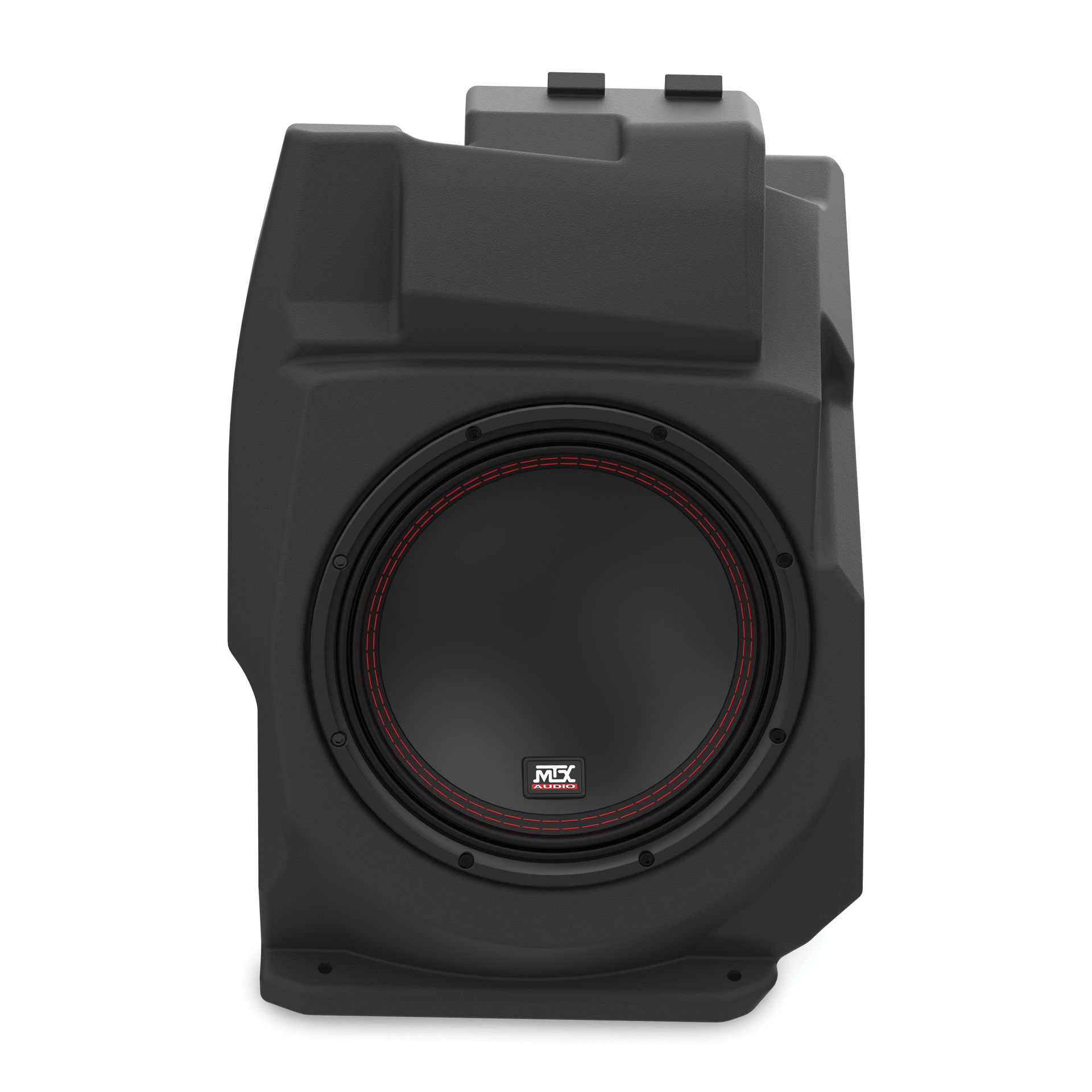

    PROXP-20-SW Key Features

    • 10" Custom Fit Subwoofer Enclosure
    • 400-Watt RMS Power
    • High Mount Ported
    • Mounts Behind Dashboard on Passenger Side
    • Quick Installation with Installer Friendly Design
    • Fully assembled Out of the Box

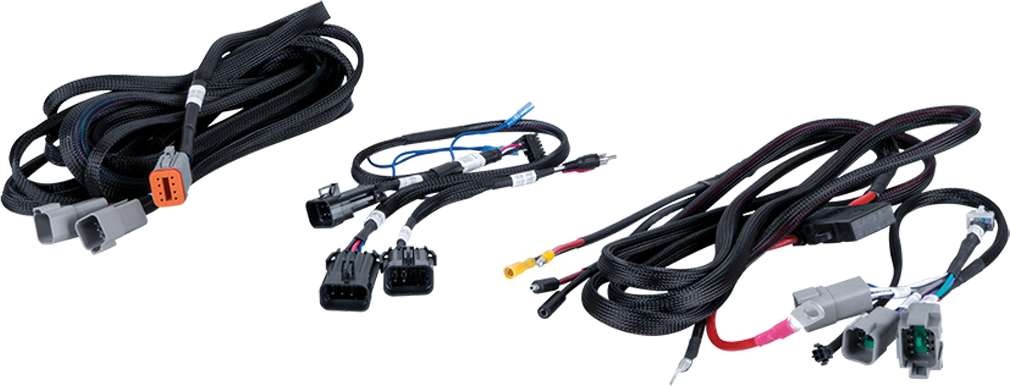

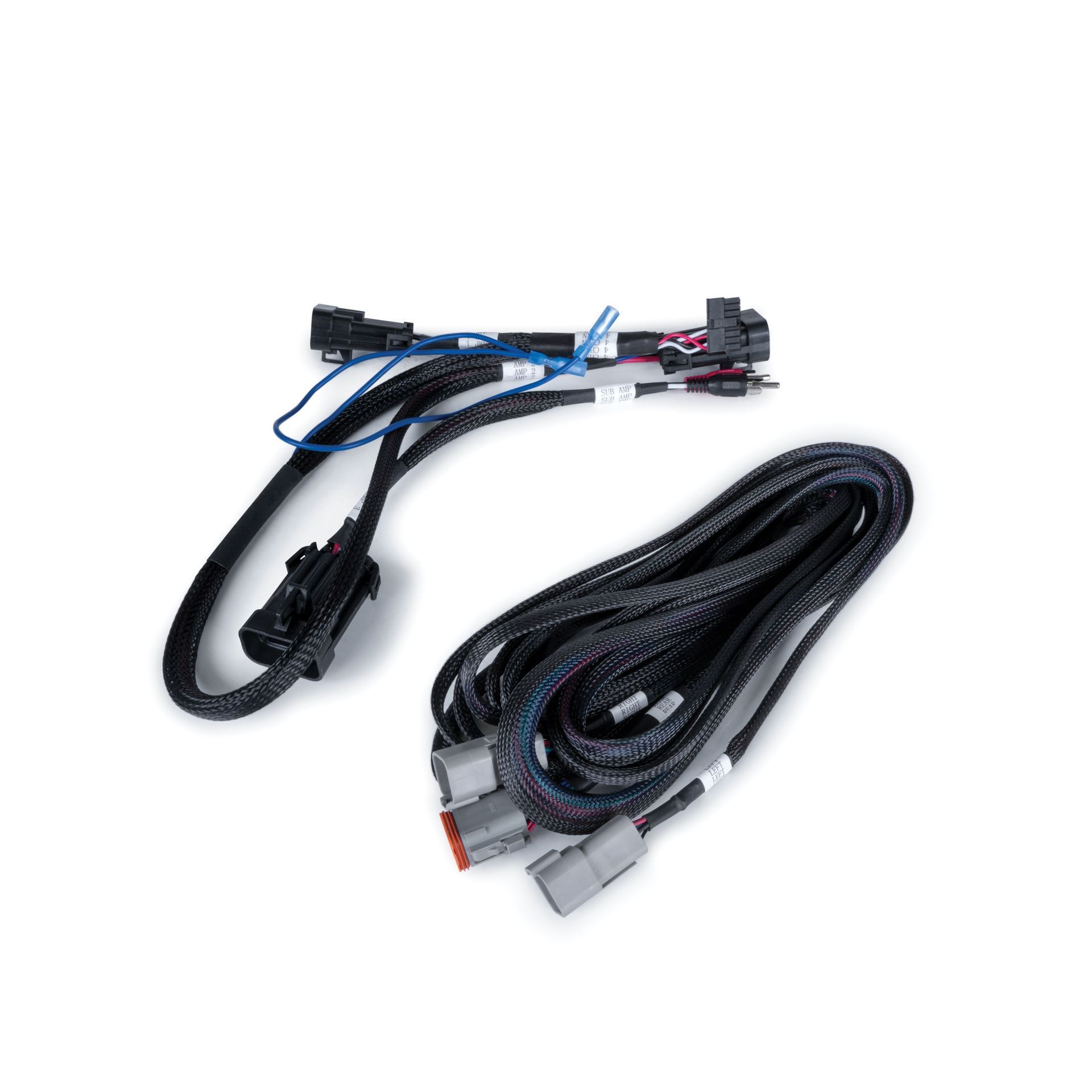

    Plug and Play Connections

    The PROXP-20RC-THUNDER5 includes all the wiring required to connect each component. All wiring is ruggedly designed to endure the harsh environments RZRs often find themselves in. All wires are terminated with the appropriate plug for the component being connected, making installation easy.

    Installation Videos

    2020 and newer Polaris RZR Pro XP with Ride Command 5-Speaker Audio System (PROXP-20RC-THUNDER5) Installation
    SUPPORT FILES
    Owners Manual PROXP-20-SW Manual (16 pages) 5 MB View | Download
    Owners Manual PROXP-20-FS Manual (16 pages) 3 MB View | Download
    Owners Manual MTX005835B MUD65PL Owners Manual (8 pages) 504 KB View | Download
    Owners Manual MUD600-1 Owners Manual (24 pages) 274 KB View | Download
    Owners Manual MUDLEDC Owners Manual (4 pages) 334 KB View | Download
    Owners Manual MUD100-4 Owner's Manual (28 pages) 1 MB View | Download
