SKU: UNI-1-AWMC3

Amplifier and 2 Roll Cage Speaker with Bluetooth Media Controller Package

Amplifier and 2 Roll Cage Speaker with Bluetooth Media Controller Package

  • Bluetooth Enabled
  • IP66 Rated
  • Multi-Source Compatible
    Availability: In stock
    919.95
    70.00
    849.95
    Share this MTX page...
    UNI-1-AWMC3 Overview

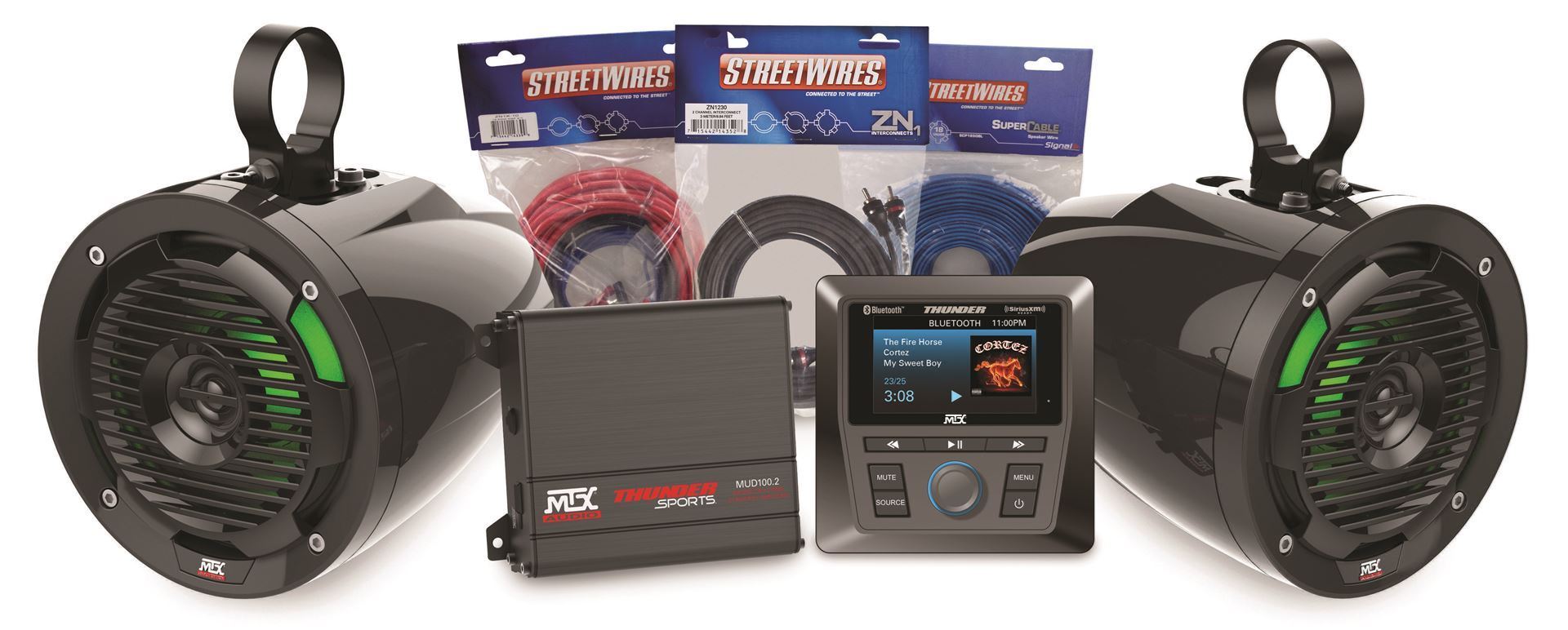

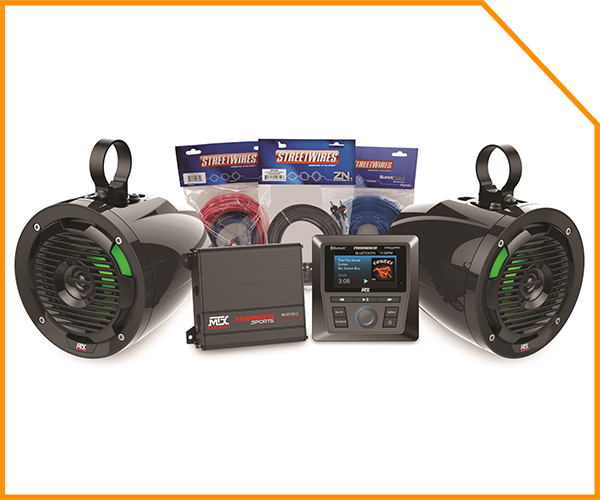

    Powerful, Two-Speaker MTX Extreme Sports Sound System with All-Weather Bluetooth Media Controller
    The UNI-1-AWMC3 is a package that includes everything you need to take your UTV, sand rail, Jeep, or whatever to the next level in sound. The AWMC3 is a media controller that includes Bluetooth, AM/FW/WB, Auxiliary input, and SiriusXM® ready connectivity. The large 3" color screen is bright and easy to read and the soft touch control buttons are easy to push even when wearing a glove. The kit also includes the MTX MUD100.2 which is the most compact amplifier that MTX has ever made. This unit features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 2 channels that are capable of delivering 100-watts of RMS power per channel at 2Ω, perfect power for driving the included all-weather speakers, one per channel. The two MUD65PL roll cage speakers can project amazing sound to get you rocking big time. Crank them up in your UTV and enjoy the ride.

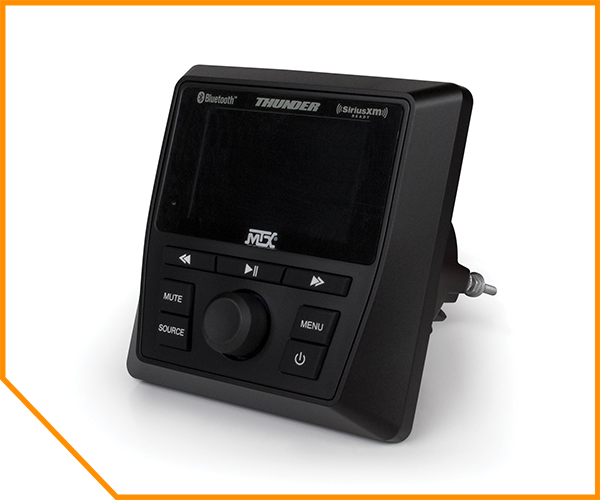

    AWMC3 Key Features

    • 3" Full Color TFT Display
    • SiriusXM-Ready™ (SiriusXM Connect Vehicle Tuner and Subscription Sold Separately)
    • AM / FM / WB Tuner
    • Bluetooth® Audio Streaming
    • Internal 4 x 50 Watt Power Amplifier
    • AUX Input
    • USB Charging
    • iPhone® - Unit Will Charge and Play Music Through USB*
    • Android® - Unit Will Charge, but Will Not Play Music Through USB
    • Unit Will Play Music and Display Album Artwork Using a USB Memory Stick (.mp3)
    • Weather Resistant (IP66)
    • Selectable EQ
    • 2 Sets of Preouts (Front / Rear)
    • Backlit Control Buttons

    MUD65PL Key Features

    • Weather Resistant 6.5" Speaker Pods
    • Fits Bars with Diameters of 1.75", 1.85", and 2"
    • Internal Crossover Network
    • ABS Impact Resistant Grille with UV Inhibitor
    • Integrated RGB Lighting
    • Optional Remote Control and Wiring Harness Available for Custom Color Creation (MUDLEDC)

    MUD100.2 Key Features

    • Compact Design Enables Installation Anywhere
    • Conformal Coated Printed Circuit Board that Resists Moisture
    • Fixed Crossovers
    • High and Low Level Inputs
    • 200-Watts RMS Power

    Wiring Included

    • PS1K-10 Power Kit for Connecting Amplifier to the Battery
    • ZN1230 Stereo Cable for Connection of the AWMC3 to the Amplifier
    • SCP1850BL 18-Gauge Speaker Wire for Connecting MUD65PLs to Amplifier

    This package works with Polaris, Can-Am, Yamaha, Kawasaki, Honda, Massimo, Kymco, Kubota, John Deere, and other vehicles with roll cages between 1.5" and 2" roll cages.

    SPECIFICATIONS
    Media Controller
    Power Output 50-Watts x 4 @ 2Ω
    Line Output Impedance 10kΩ
    Line Output 2V
    Height 4-5/16" (109.54mm)
    Width 4-5/16" (109.54mm)
    Depth 4-1/4" (107.95mm)
    Cut Out Size 3" (77mm)
    Amplifier
    Description 2-Channel
    4Ω RMS Power Output 50W x 2 Channels
    2Ω RMS Power Output 100W x 2 Channels
    1Ω RMS Power Output NA
    Topology Full Range Class D
    THD <1.0%
    Frequency Response 20Hz - 20kHz
    Crossover Fixed HPF/LPF @ 80Hz, 12dB/Oct
    Max Sensitivity 200mV
    Maximum Input Signal 5V
    Dimensions 4.65" x 5.71" x 1.61"
    Speaker
    Speaker Size 6.5", 2-Way
    Sensitivity 86dB
    Frequency Response 70Hz-20kHz
    Dimensions 9.34" x 7.09" x 8.76"
    SUPPORT FILES
    Owners Manual MTX005835B MUD65PL Owners Manual (8 pages) 504 KB View | Download
    Owners Manual AWMC3 Owners Manual (16 pages) 1 MB View | Download
    Owners Manual MTX004785 MUD100_2 Owner's Manual RevB (28 pages) 968 KB View | Download
